SuperStorage 2029P-E1CR24L

  Products  Systems   SuperStorage   [ 2029P-E1CR24L ]


Broadcom 3008 AOC



Integrated Board
Super X11DPH-T

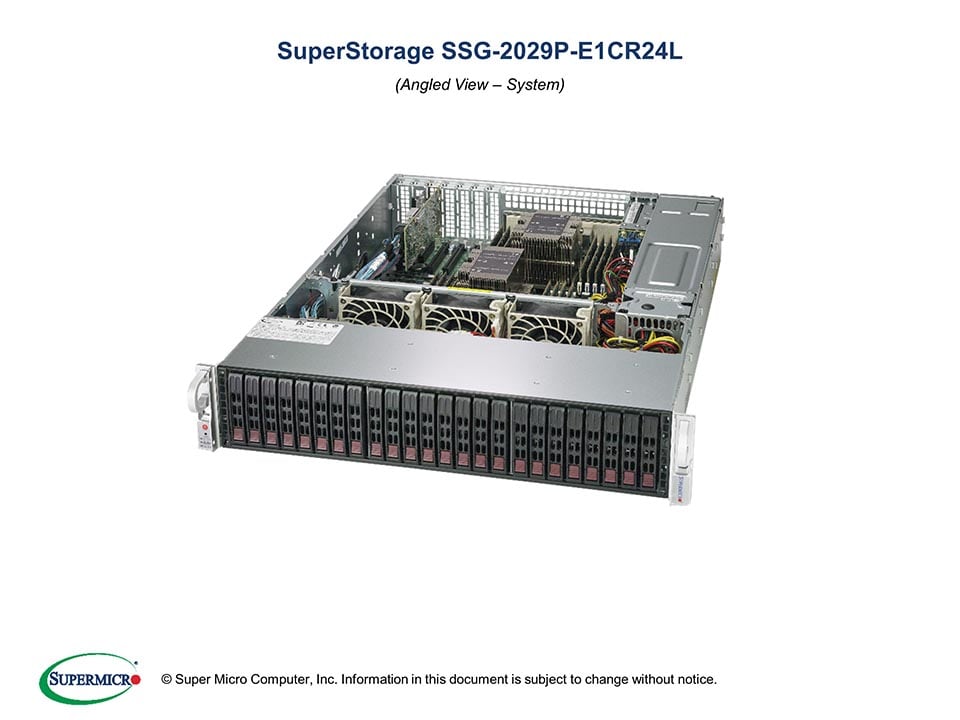

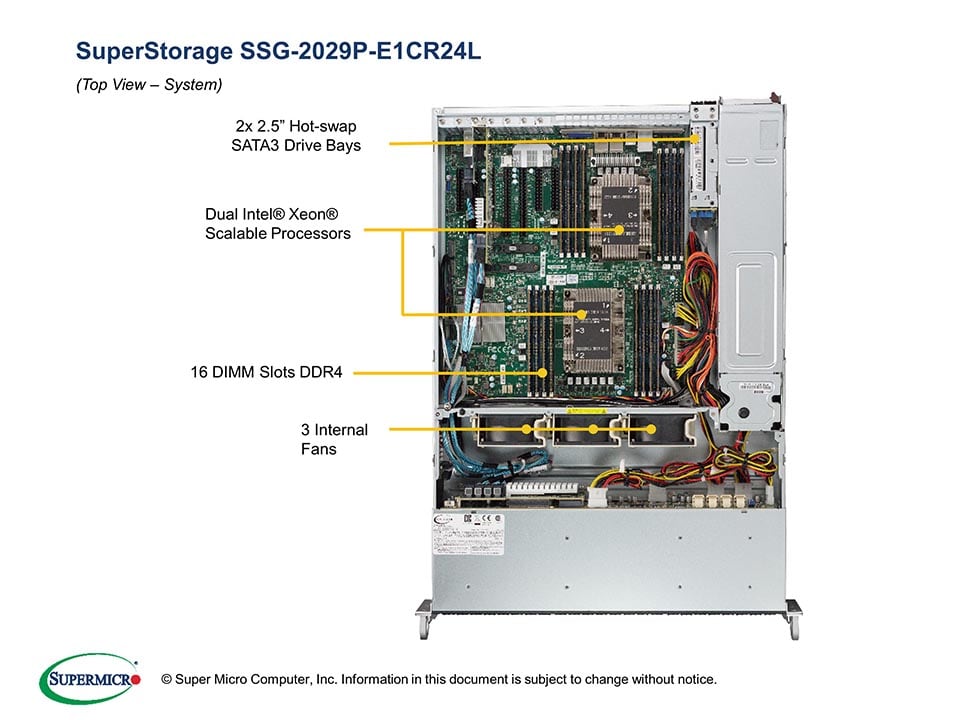

Views: | Angled View | Top View |

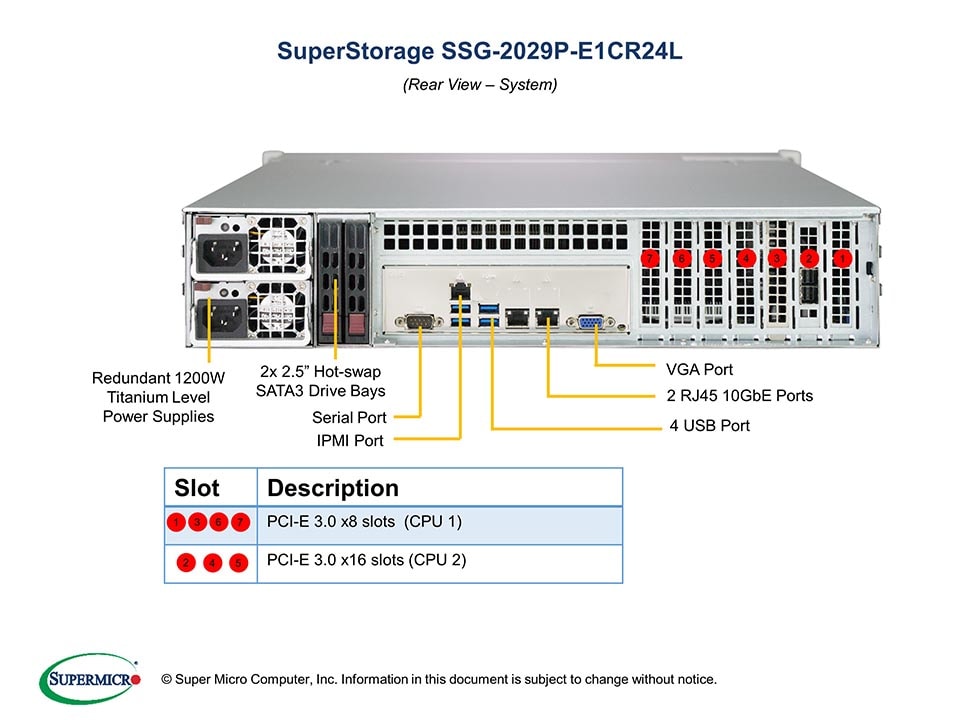

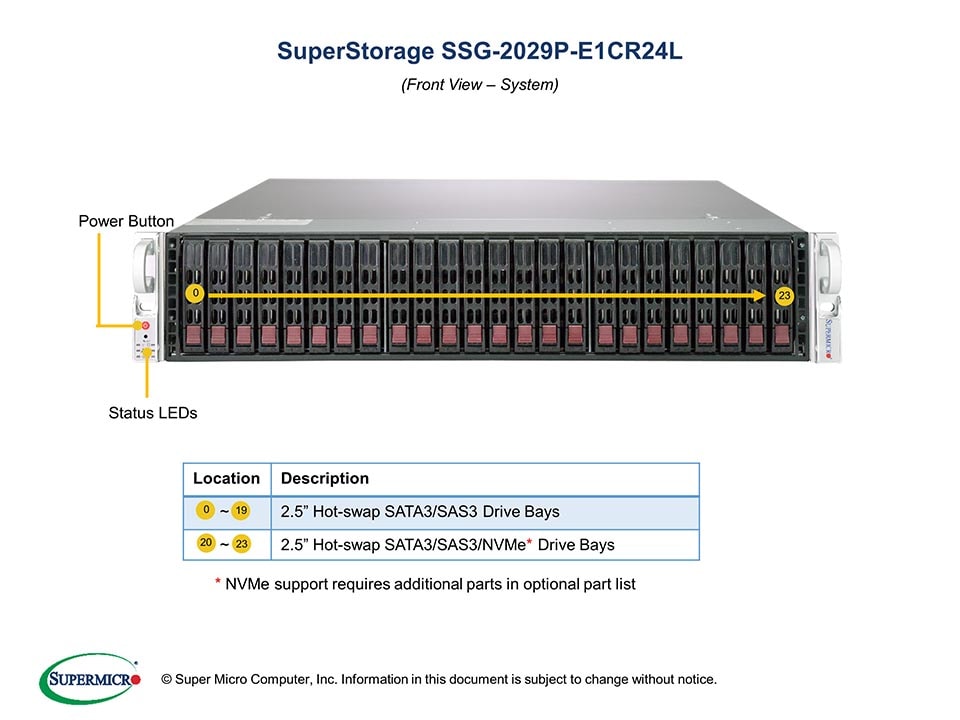

| Front View | Rear View |

Key Applications
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 2 & 3 occupied by controller
    and JBOD expansion port)
4. 24 Hot-swap 2.5" SAS3/SATA3 drive bays
    including 4 optional NVMe drives;
    2 Hot-swap 2.5" SATA3 drive bays (rear),
    2x M.2 NVMe. Expander based backplane.
5. Broadcom 3008 SAS3 AOC
6. 2x 10GBase-T LAN ports with
    Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM fans
9. 1200W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SSG-2029P-E1CR24L
  • SuperStorage 2029P-E1CR24L (Black)

Motherboard

Super X11DPH-T

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008 AOC
  • Broadcom 3008 controller
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • 256Mb AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 24.8" (630mm)
Gross Weight
  • 61 lbs (27.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slot
  • 4 PCI-E 3.0 x8 slots
  • Slot 2 & 3 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • 2 Hot-swap 2.5" SATA3 drive bays (rear)
Optional
  • 2 Optional Onboard NVMe M.2

Backplane
Expander based backplane

System Cooling
Fans
  • 3 Hot-swap 8cm redundant PWM cooling fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPH-T
CSE-216BE1C4-R1K23LPB
1
1
Super X11DPH-T Motherboard
2U Chassis
Add-on Card / Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
Backplane BPN-SAS3-216EL1-N4 1 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-0099 1 Power extension cable; one HDD to two HDD and two FDD. 35/25/12cm. 22AWG
Cable 2 CBL-SAST-0532 4 MINI SAS HD,12G,INT,50CM,30AWG
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0068PSC 1 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
* Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B
* Cable 3 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
* Cable 4 CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
* Cable 5 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 6 CBL-0182L 1 4 pin to 4 pin power extension .HDD to RA,40cm. 20AWG
* Cable 7 CBL-0217L 1 CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM
* FAN 1 FAN-0158L4 3 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
* Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219
* Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray
* Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
* Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
* Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
* Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
* Rail Set MCP-410-00007-0N 1 Rail screw bag
* Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
4 NVMe Drives Support AOC-SLG3-2E4R-O
CBL-SAST-0590
MCP-220-00121-0B
2
4
4
Dual-Port PCIe Gen-3 NVMe Internal Host Bus Adapter
MINI SAS HD,INT,PCIe NVMe SSD, 70CM,30AWG
Black gen-3 2.5 NVMe drive tray
Cable CBL-0099 1 HDD Y-Split Cable
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
