Key Applications / Features
- Compute Intensive Application
- HPC, Data Center, Enterprise
Server
- Hyperscale / Hyperconverged
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡

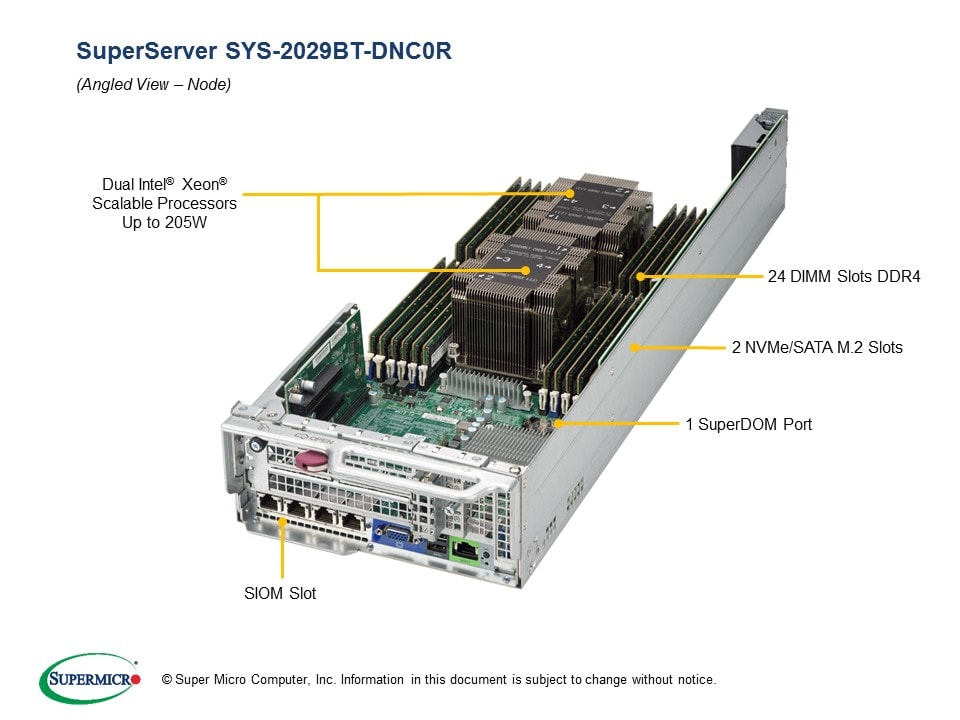

2. 24 DIMMs; up to 6TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16,
1
SIOM
card support (flexible networking)
Note: must bundle with Network card
4. 4 NVMe/SAS3 + 8 SAS3 Hot-swap
2.5" drive bays; 2 internal M.2
NVMe/SATA slots
5. SAS3 support via Broadcom 3216;
IT mode
6. IPMI 2.0 + KVM with dedicated LAN
7. Video via Aspeed AST2500 BMC
8. 4 Heavy duty 8cm PWM fans with
air shroud

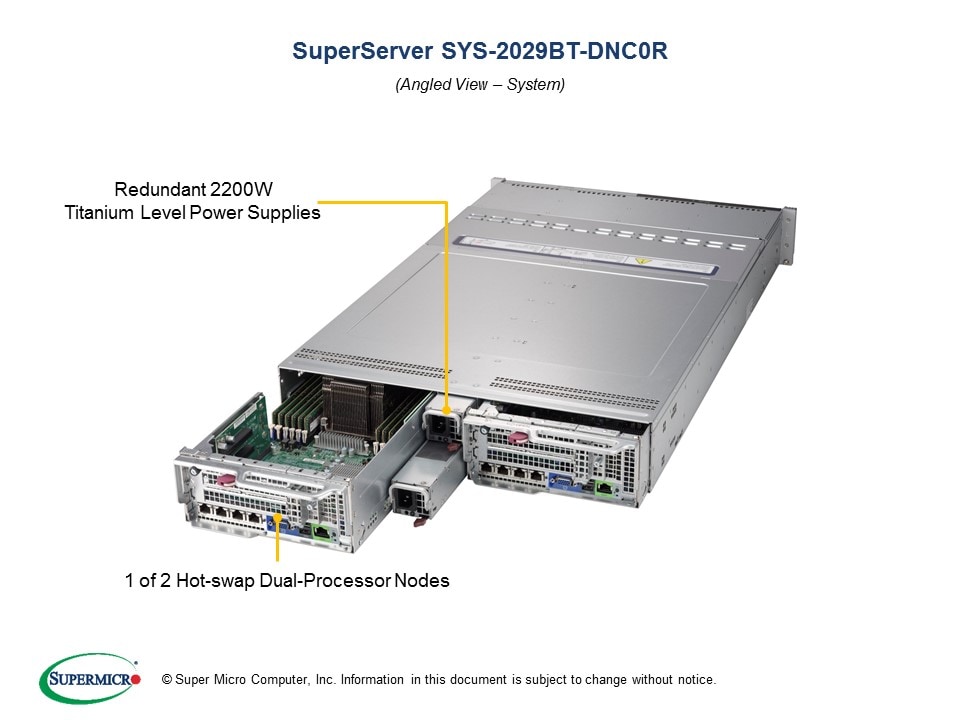

9. 2200W Redundant Power Supplies
Titanium Level (96%)
|
|
|
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system
(with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).
|
|
 |
|
|
|
|
| |
 | | SYS-2029BT-DNC0R |
- SuperServer 2029BT-DNC0R (Black)
|
| |
|
| CPU |
- Dual Socket P (LGA 3647)
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s
- Support CPU TDP 70-205W
|
| Cores |
|
| Note |
‡
BIOS version 3.2
or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| |
|
| Memory Capacity |
- 24 DIMM slots
- Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
- Supports Intel® Optane™ DCPMM††
|
| Memory Type |
- 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
|
| Note |
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
|
| |
|
| Chipset |
|
| SAS |
- SAS3 (12Gbps) via Broadcom 3216; IT mode
|
| Network |
- Must bundle with at least one
SIOM
network card
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
|
| |
|
| LAN |
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
|
| Video |
|
| DOM |
- 1 SuperDOM (Disk on Module) port
|
| Others |
- M.2 and SATA DOM for boot drive only
|
| |
|
| BIOS Type |
|
| |
|
| Software |
|
| Power Configurations |
- ACPI / APM Power Management
|
| |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Width |
|
| Height |
|
| Depth |
|
| Package |
- 24.65" (H) x 9.76" (W) x 45.28" (D)
|
| Weight |
- Gross Weight: 85 lbs (38.6kg)
- Net Weight: 54.5 lbs (24.7 kg)
|
| Available Colors |
|
| | |
| | Buttons |
- Power On/Off button
- UID button
|
| LEDs |
- Power status LED
- HDD activity LED
- Network activity LEDs
- Universal Information (UID) LED
|
| |
|
| PCI-Express |
- 2 PCI-E 3.0 x8 slots
- 1 PCI-E 3.0 x16 slot
- 1
SIOM
card support
(must bundle with network card)
|
| | |
| | Hot-swap |
- 4 Hot-swap 2.5" NVMe/SAS3 + 8 Hot-swap 2.5" SAS3 drive bays
Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.
|
| M.2 |
|
| | |
| | Fans |
- 4 Heavy duty 8cm PWM fans with air shroud
|
| | |
| 2200W Redundant Power Supplies with PMBus |
| Total Output Power |
- 1200W/1800W/1980W/2090/2200W
|
Dimension
(W x H x L) |
|
| Input |
- 1200W: 100-127Vac / 50-60Hz
- 1800W: 200-220Vac / 50-60Hz
- 1980W: 220-230Vac / 50-60Hz
- 2090W: 230-240Vac / 50-60Hz
- 2090W: 180-220Vac (for UL/cUL only)
- 2200W: 220-240Vac (for UL/cUL only)
- 2090W: 230-240Vdc (for CCC only)
|
| +12V |
- Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
- Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
- Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
|
| 12Vsb |
|
| Output Type |
|
| Certification |
  Titanium Level
[ Test Report ]
|
| | |
| | RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11DPT-B
CSE-217BHD+-R2K22BP |
2
1 |
Super X11DPT-B Motherboard
2U Chassis |
|
Backplane
|
BPN-ADP-12S3216N4-2UB |
2
|
NVMe backplane adapter for 2U2N hybrid big twin systems |
|
Backplane
|
BPN-SAS3-217BHQ-N4 |
1
|
2U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe storage Media per Node |
|
Cable 1
|
CBL-PWCD-0578 |
2
|
PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
|
Drive Tray(s)
|
MCP-220-00141-0B-BULK |
16
|
Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI |
|
Drive Tray(s)
|
MCP-220-00144-0B-BULK |
8
|
Black Gen3 hot-swap 2.5 inch HDD tray with lock, orange tab |
|
Parts
|
MCP-240-21730-0N |
1
|
217B BigTwin type I (Impact) BPN retention bkt w/ foam assy |
|
Air Shroud
|
MCP-310-21725-0B |
2
|
Bigtwin 2U2N plastic air shroud for Cascade lake MB |
|
Manual
|
MNL-2011-QRG |
1
|
2029BT-D(N/NC0)R Quick Reference Guide |
|
Riser Card
|
RSC-P2-88 |
2
|
2U LHS TwinPro Riser card with two standard PCI-E x8 slots,H |
|
Heatsink / Retention
|
SNK-P0068PS |
2
|
2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
|
Heatsink / Retention
|
SNK-P0069PS |
2
|
1.5U Proprietary 50-mm Tall Front Passive CPU Heat Sink for X11 Purley Platform 2U Node Twin Series Servers |
|
Fan
|
FAN-0162L4 |
4
|
80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan |
|
Power Supply
|
PWS-2K22A-1R |
2
|
1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 |
|
|
|
| |
| | |
Part Number |
Qty |
Description |
|
Fan
|
FAN-0191L4 |
-
|
80x80x38 mm, 14.9K RPM, Non-hot-swappable Middle Cooling Fan (Optimal for computational performance) |
| TPM security module |
AOM-TPM-9670H-S |
1 |
SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor |
| TPM security module |
AOM-TPM-9671H-S |
1 |
SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor |
| Intel VROC RAID Key |
AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD |
1
1
1 |
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10 |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
| SuperDOM |
- |
- |
Supermicro SATA DOM Solutions [Details] |
| Network Card(s) |
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2 |
-
-
-
-
-
-
-
- |
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB |
Hide Parts List
|
|
|
|
