SuperServer 2049P-TN8R (Complete System Only)

Products Systems Multi-processor Server Systems [ 2049P-TN8R ]





Integrated Board
Super X11QPL

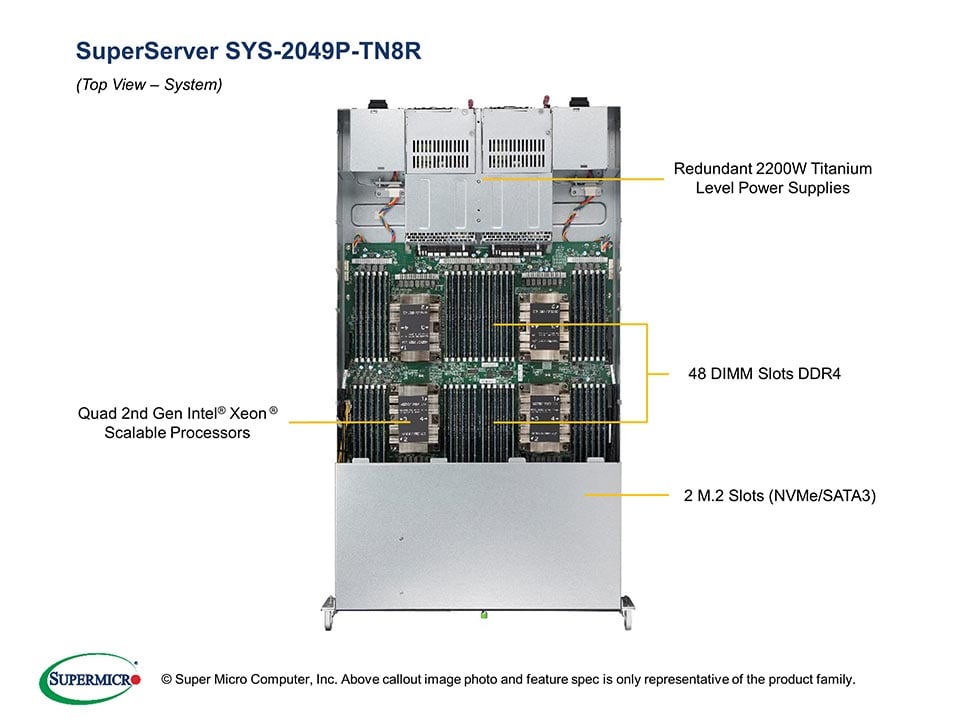

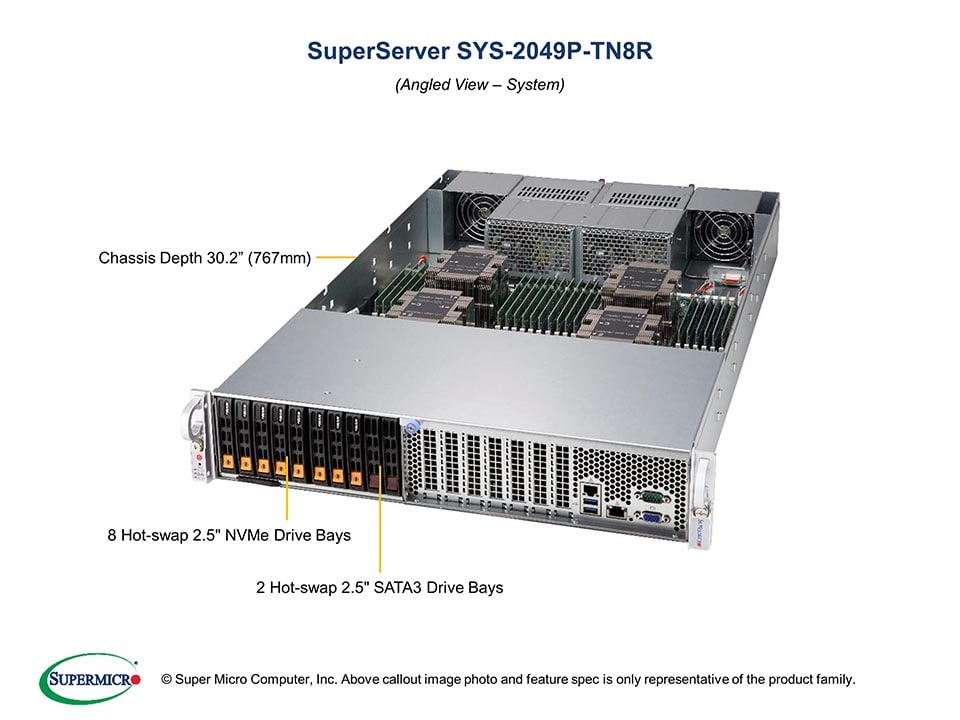

Views: | Angled View | Top View |

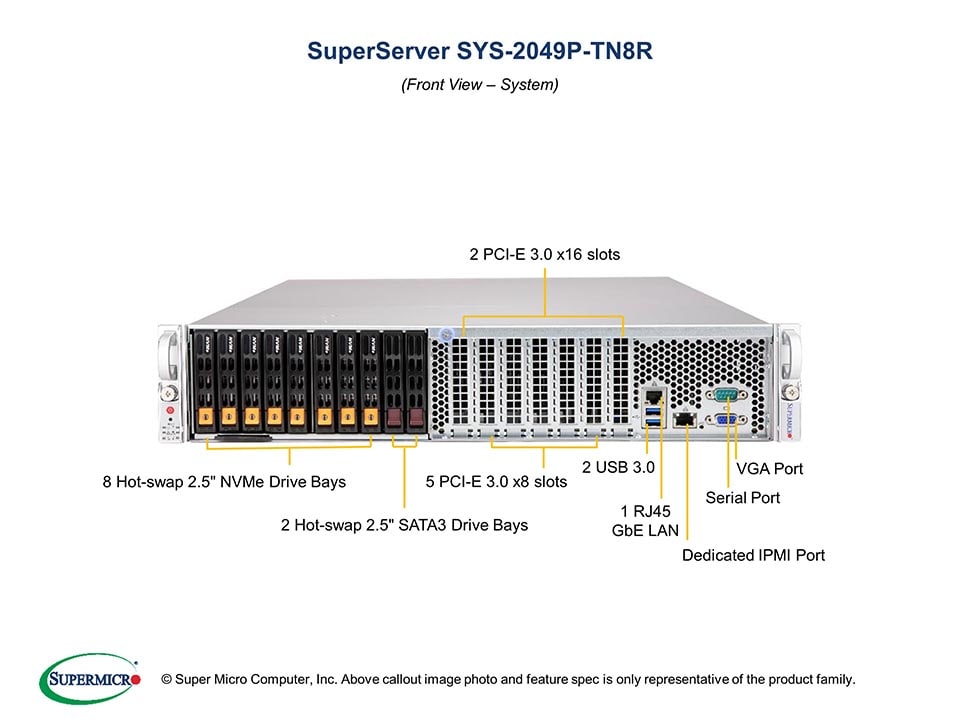

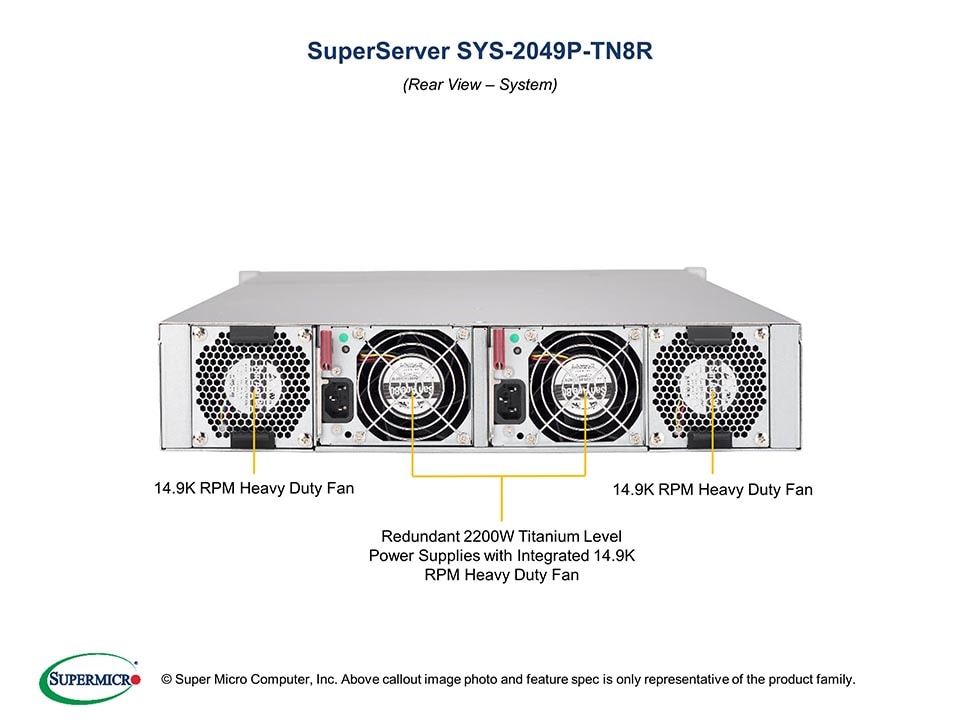

| Front View | Rear View |
Key Applications
• 4-Way High Core Count VM Optimized
• Cloud and Virtualization
• Data Center
• Scale-Out Density, VOD Delivery

Key Features
1. Quad Socket P (LGA 3647) support
    2nd Gen. Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 48 DIMMs; up to 12TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 5 PCI-E 3.0 x8 slots,
    2 PCI-E 3.0 x16 slots
4. 1 GbE LAN ports via Intel i210
    1 dedicated IPMI LAN port
5. 2 Hot-swap 2.5" SATA3 drive bays
    8 Hot-swap 2.5" U.2 NVMe SSD bays
6. 2 M.2 M key (22110/2280)
7. 4 heavy duty fans with optimal fan speed control
8. 2200W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 1 HDD recommended). Please contact your Supermicro sales rep for special 2 CPUs with 2 DIMMs requirements with fees.

Drivers & Utilities BIOS IPMI Tested Memory NVMe Options Manuals OS Certification Matrix Drive Options

Product SKUs
SYS-2049P-TN8R
  • SuperServer 2049P-TN8R (Black)
Motherboard

Super X11QPL
Processor
CPU
  • Quad Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP up to 205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors
System Memory
Memory Capacity
  • 48 DIMM slots
  • Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Connectivity
  • 1 Gigabit Ethernet port via Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
NVMe
  • 8 U.2 NVMe
LAN
  • 1 RJ45 GbE LAN port
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 COM port (rear)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218LTS-R2K21P
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 30.2" (767mm)
Weight
  • Net Weight: 47.5 lbs (21.55 kg)
  • Gross Weight: 73.5 lbs (33.34 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
Expansion Slots
PCI-Express
  • 5 PCI-E 3.0 x8 slots
  • 2 PCI-E 3.0 x16 slots

    (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers.
Drive Bays
Hot-swap
  • 2 Hot-swap 2.5" SATA3 drive bays
  • 8 Hot-swap 2.5" U.2 NVMe SSD bays
M.2
  • 2 M.2 M key for NVMe/SATA3 (22110/2280)
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090W/2200W
    (UL/cUL only)
Dimension
(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
  • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
  • Max: 100A / Min: 0A (1200W)
  • Max: 150A / Min: 0A (1800W)
  • Max: 165A / Min: 0A (1980W)
  • Max: 174.17A / Min: 0A (2090W)
  • Max: 183.3A / Min: 0A (2200W)
  • Max: 174.17A / Min: 0A (2090W)
12Vsb
  • Max: 2A / Min: 0A
Output Type
  • Gold Finger (connector on M/P)
Certification Titanium Level96% Titanium Level
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11QPL
CSE-218LTS-R2K21P 		1
1 		Super X11QPL Motherboard
2U Chassis
Backplane BPN-NVME3-218L-S2 1 2U Backplane Supports 8 x 2.5" NVMe and 2 x 2.5" SAS3/SATA3 Storage Media,HF,RoHS
Cable 1 CBL-0097L-03 1 MINI SAS-4 SATA,INT,51CM,51CM SB,30AWG
Cable 2 CBL-PWEX-1076 1 PWEX,2X4F/P4.2 TO 2X2F/P4.2 x2,BLK*4,YEL*4,30CM,18AWG
Cable 3 CBL-SAST-1044 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 57CM,32AWG,85
Cable 4 CBL-SAST-1045 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 62CM,32AWG,85
Cable 5 CBL-SAST-1046 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85
Cable 6 CBL-SAST-1048 1 SLIMLINE SAS x8 to SLIMLINE SAS x8, INT, 10CM,32AWG,85
Heatsink / Retention SNK-P0068PS 4 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-2K21A-2R1 2 2U 2200W power supply with PMBus and 200-240Vdc input,RoHS
FAN FAN-0198L4 2 80x80x38 mm, 14.9K RPM for SC218L Low Cost 4-way Server
