SuperServer 6029UZ-TR4+ (Complete System Only)

  Products  Systems   Ultra   [ 6029UZ-TR4+ ]





Integrated Board
X11DPU-ZE+

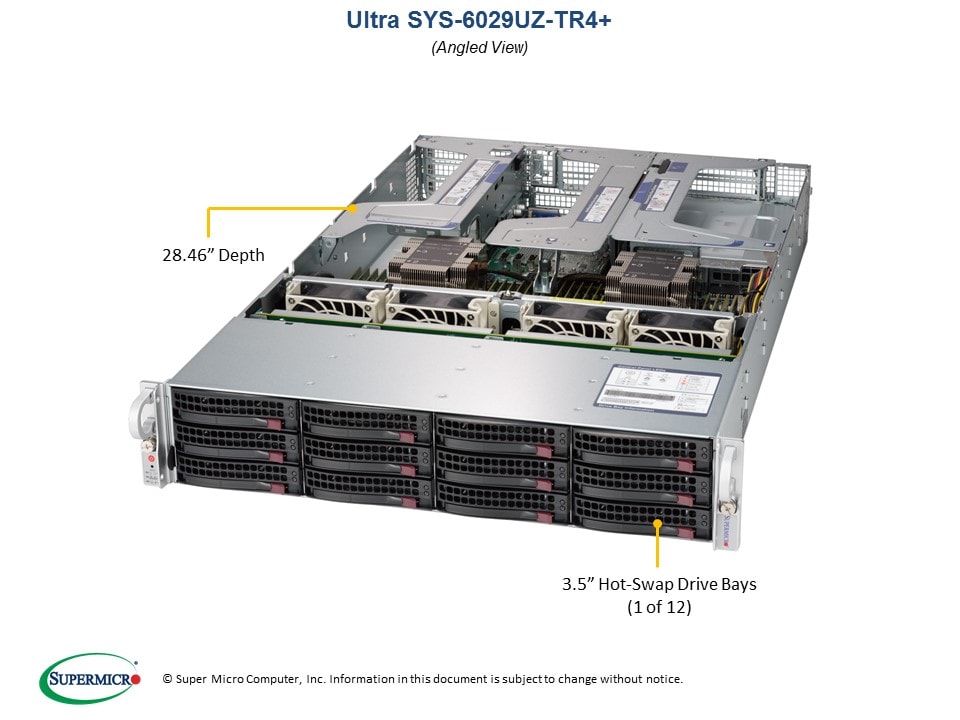

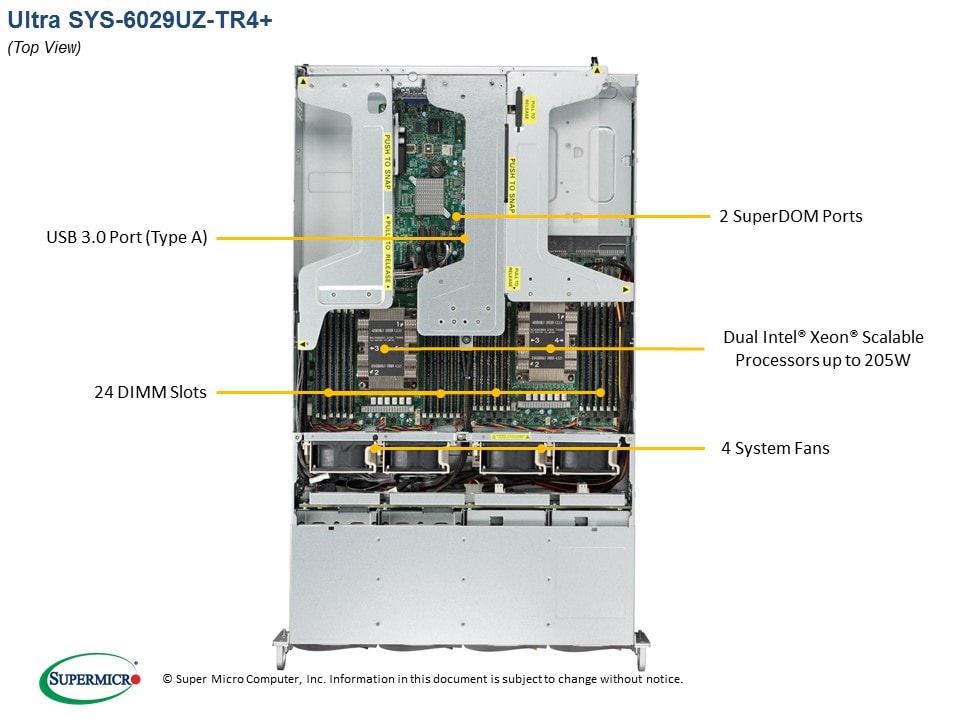

Views: | Angled View | Top View |

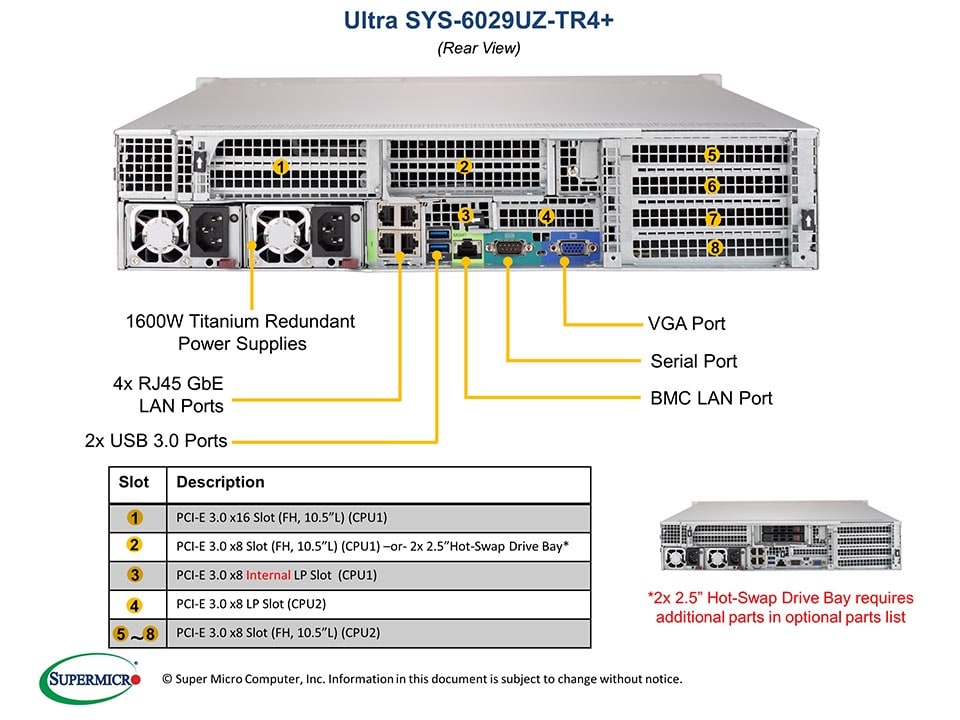

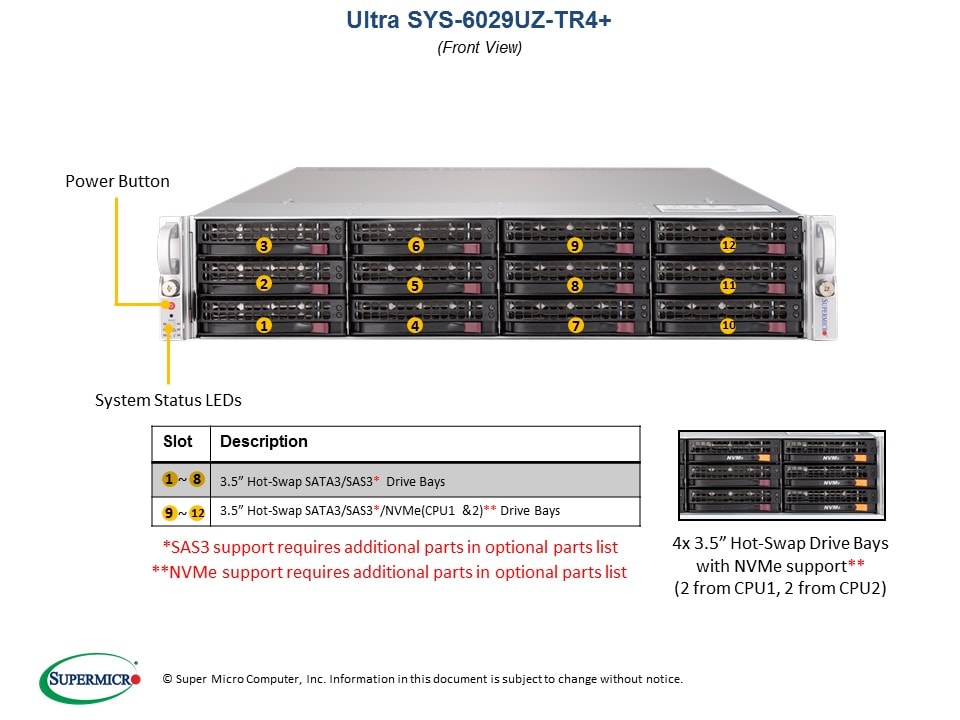

| Front View | Rear View |

 Key Applications
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server

Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16 (FH, 10.5"L)
    5 PCI-E 3.0 x8 (FH, 10.5"L)
    1 PCI-E 3.0 x8 (LP)
    1 PCI-E 3.0 x8 (internal LP)
4. 4 Gigabit Ethernet ports
5. 12 Hot-swap 3.5" drive bays;
    Optional SAS3 and NVMe support,
    Optional 2 hot-swap 2.5" rear drive
    bays for SSDs;
    Optional M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm fans
7. 1600W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6029UZ-TR4+
  • SuperServer 6029UZ-TR4+ (Black)

Motherboard

Super X11DPU-ZE+

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 4x 1GbE LAN ports via Intel® i350 (AOC-2UR68-i4G)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 4 GbE ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear, 1 Type A)
Video
  • 2 VGA ports (1 rear, 1 onboard)
Serial Port
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829U2TS-R1K62P-T

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 28.46" (723mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot (FH, 10.5"L)
  • 5 PCI-E 3.0 x8 slot (FH, 10.5"L)
  • 1 PCI-E 3.0 x8 slot (LP)
  • 1 PCI-E 3.0 x8 slot (internal LP)

Drive Bays / Storage
Hot-swap
  • 12 Hot-swap 3.5" drive bays
    Optional 8 SAS3 + 4 SAS3/NVMe
  • 2 Rear Hot-swap 2.5" drive bays
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

System Cooling
Fans
  • 4 Heavy duty 8cm fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DPU-ZE+
CSE-829U2AC4-R1K62-T 		1
1		 Super X11DPU-ZE+ Motherboard
CSE-829U2AC4-R1K62-T
Add-on Card / Module AOC-2UR68-I4G-P 1 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot)
Backplane BPN-SAS3-826A-N4 1 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0306L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG
Cable 2 CBL-PWEX-0652 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACH
Cable 3 CBL-PWEX-0673 1 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 4 CBL-SAST-0591 1 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG
Cable 5 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 6 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
Air Shroud MCP-310-82921-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, left side)
Air Shroud MCP-310-82922-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, right side)
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x4 slots
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Cable 7 CBL-0088L 4 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
* Cable 8 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 9 CBL-0318L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG
* FAN 1 FAN-0118L4 4 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot
* Parts MCP-150-00009-0B 1 Internal AOC rubber support for SC819U, 119U
* Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5"; HDD tray
* Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2"; W
* Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
* Air Shroud MCP-310-81905-0B 1 Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
* Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
* Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
* Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Optional Upgrade for 2U LHS WIO Riser RSC-R2UW-2E8E16
Or RSC-W2-66		 1
1		 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots
2U LHS WIO Riser card with 2 PCI-E x16 double width slots
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
2U Ultra optional rear drive kit MCP-240-82922-0N-OEM 1 Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less
2 Rear 2.5" Hot-swap SATA Drive Bays MCP-240-82922-0N-OEM - Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less
Storage Control Card and Cable for 4x Hybrid NVMe/SAS Drive Bays AOC-S3008L-L8e &
2 CBL-SAST-0593 (1~2)
AOC-S3008L-L8i &
2 CBL-SAST-0593 (1~2)
AOC-S3108L-H8iR &
2 CBL-SAST-0593 (1~2)
AOC-S3108L-H8iR-16DD
& 2 CBL-SAST-0593 (1~2)		 - Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
Cable for 4 NVMe Hybrid Drive Bays 2 CBL-SAST-0929 &
2 CBL-SAST-0972		 1 OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG
Hot-swap 3.5" to 2.5" NVMe Drive Tray MCP-220-00138-0B 1 ~ 4 Tool-less black hot-swap 3.5-to-2.5 converter NVMe drive tray (Orange tab)
2 Internal M.2 slots (1 SATA, 1 NVMe) RSC-UMR-8 &
CBL-SAST-0538 &
MCP-120-82924-0N &
MCP-310-21902-0N		 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8
Cable for internal M.2 SATA CBL-SAST-0538 1 29cm 30AWG SATA S-RA cable
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
More		 -
-
-
-
-
-
-
-
-
-
-
-		 Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC Compatibility Matrix
2U Cable Management Arm MCP-290-00128-0N &
MCP-290-00127-0N		 1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
CacheVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller,
Vertical form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller,
Vertical form factor
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
