SuperServer 4048B-TRFT (Complete System Only)

  Products  Systems   Multi-processor Server Systems   [ 4048B-TRFT ]




Integrated Board
Super X10QBi

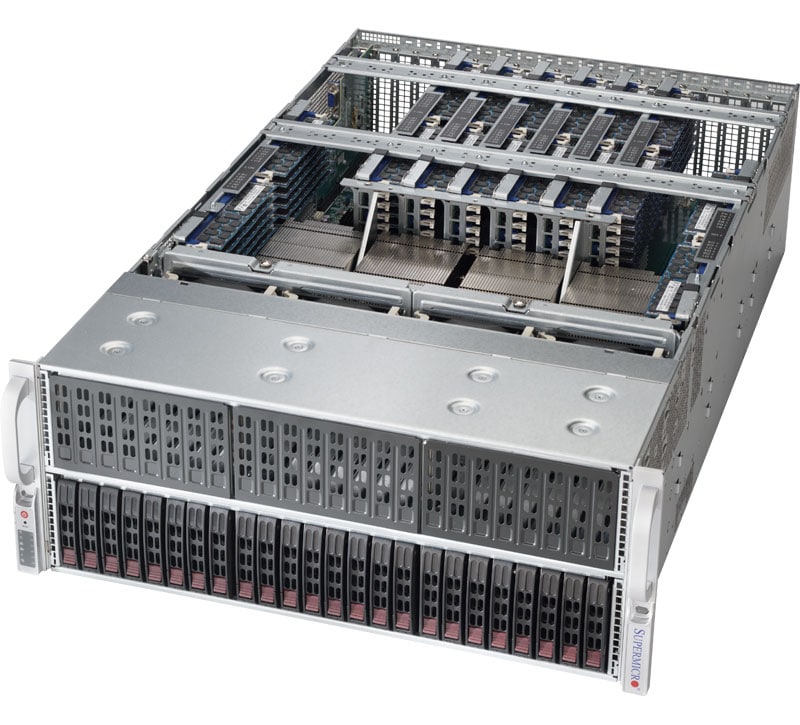

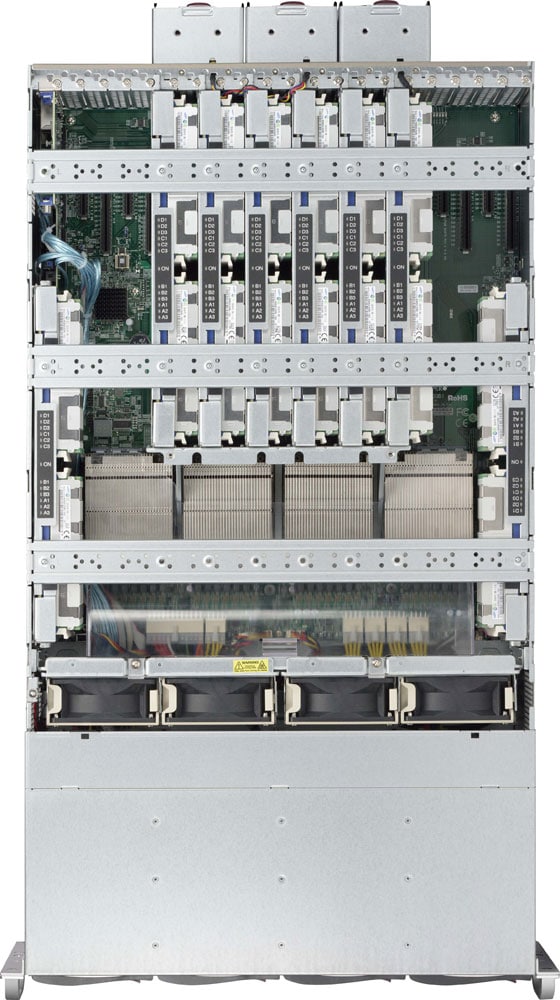

Views: | Angled View | Top View |

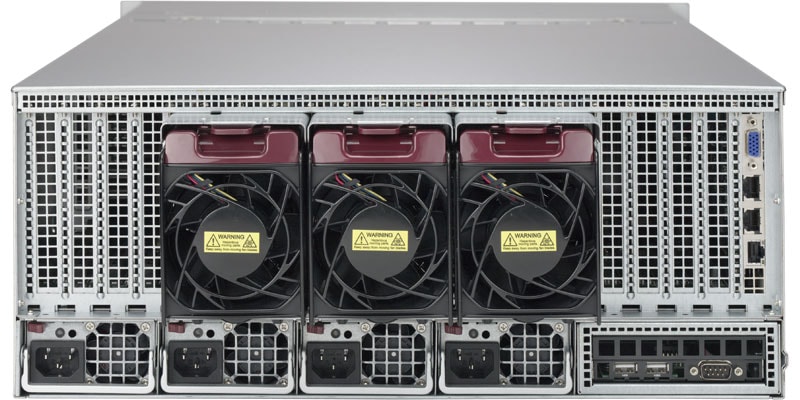

| Front View | Rear View |


Key Features
1. Quad socket R1 (LGA 2011) supports
    Intel® Xeon® processor E7-8800 v4/v3,
    E7-4800 v4/v3 family (up to 24-Core)
2. Up to 6TB DDR3 1600MHz ECC RDIMMs
    and LRDIMMs; 96x DIMM slots
3. Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
4. I/O ports via Add-on Card:
    2x 10Gb LAN, 1x Dedicated LAN for
    IPMI Remote Management, 1x VGA
5. 24x 2.5" Hot-swap SAS3/SATA3 HDD
    or SSD (selected RAID/HBA cards);
    48x 2.5" Hot-swap HDD/SSD optional
6. 4x 9cm + 3x 8cm Heavy-duty Fans
7. 1620W Redundant (N+1) Power
    Supplies, Platinum Level (94%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 32 DIMMs, 1 HDD installed).

96/64/32 DIMMs are the recommended memory population configurations for the best performance.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-4048B-TRFT
  • SuperServer 4048B-TRFT (Black)

Motherboard

Super X10QBi

Processor/Cache
CPU
  • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
  • Quad Socket R1 (LGA 2011)
Cache
  • Up to 60 MB
System Bus
  • QPI up to 9.6 GT/s
Note:
  • E7-8800/4800 v2 (using MB-X10QBI-MEM1 Rev 1.01 or above)
  • E7-8800/4800 v4/v3 (using MB-X10QBI-MEM1 Rev 2.0 or above)

System Memory
Memory Capacity
  • 96x 240-pin DDR3 DIMM slots
  • Supports up to 6TB DDR3 ECC Registered memory (RDIMM) and LRDIMM in 96 DIMM slots
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602J chipset
AHCI SATA
  • SATA3 (6Gbps) with RAID 0, 1
  • SATA2 (3Gbps) with RAID 0, 1, 5, 10
Network Controllers
(via AOM)
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI
(via AOM)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED 2400
Graphics
  • ASPEED 2400

Input / Output
AHCI SATA
  • 2x SATA3 (6Gbps) ports
  • 4x SATA2 (3Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports on AOM
  • 1x dedicated LAN port for IPMI on AOM
USB
  • 2x USB 2.0 ports
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 1 DOM (Disk on Module) power connector

System BIOS
BIOS Type
  • 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit: Comes with the system
Model
  • CSE-418XA-R3240B

Dimensions and Weight
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 31.3" (795mm)
Weight
  • Net Weight: 74.5 lbs (33.79 kg)
  • Gross Weight: 115 lbs (52.16 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 24x 2.5" Hard drive bays (default)*
  • 48x 2.5" Hard drive bays (optional)

    * BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2

Expansion Slots
PCI-Express
  • 11x PCI-E 3.0 slots w/ 48 memory slots
    (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
  • 8x PCI-E 3.0 slots w/ 96 memory slots
    (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 4x 92mm RPM Hot-Swappable Cooling Fans
  • 3x 80mm RPM Hot-Swappable Rear Exhaust Fan
  • 2x 80mm Rear Exhaust Fans (optional)
Shrouds
  • 1x Air Shroud (MCP-310-41804-0B)

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 9x fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Chassis CSE-418XA-R3240B 1 CSE-418XA-R3240B 4U Chassis with 48x HDD trays
Motherboard X10QBi 1 Super X10QBi Motherboard
Memory Module X10QBi-MEM1 8 Supports 12x DIMMs / module (up to 64GB DDR3 ECC RDIMM / slot)
Add-on Module (Proprietary) AOM-X10QBI-A 1 Add-on Module support VGA, dual 10GBase-T ports, and Dedicated IPMI 2.0 LAN port
Air Shroud MCP-310-41804-0B 1 Mylar CPU air shroud for SC418X (X10QBi),PBF
Backplane BPN-SAS3-216A 1 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0591 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Heatsink / Retention SNK-P0048PS 4 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K62P-1R 4 1620W REDUNDANT POWER MODULE


Optional Parts List

Part Number
Qty
Description
2.5" HDD Tray MCP-220-00047-0B - Black gen 3rd hot-swap 2.5" HDD tray
Drive Option 1 AOC-S2208L-H8IR (2208) x1
+ CBL-SAST-0507-01 x2
For 8 SAS2 (Broadcom 2208) HDD
Drive Option 2 AOC-S3108L-H8IR (3108) x1
+ CBL-SAST-0531 x2
For 8 SAS3 (Broadcom 3108) HDD
Drive Option 3 AOC-72405-ADP x1
+ CBL-SAST-0531 x6
For 24 SAS2 (Adaptec 72405) HDD
Drive Option 4 AOC-S3008L-L8I (3008, 2 ports) x1
+ CBL-SAST-0531 x2
For 8 SAS3 (Broadcom 3008) HDD
Drive Option 5 AOC-S2308L-L8I (2308, 2 ports) x1
+ CBL-SAST-0507-01 x2
For 8 SAS2 (Broadcom 2308) HDD
Air Shroud MCP-310-41805-0B - Air shroud for 4 memory module configuration (to utilize all PCI-E slots)
Rear Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) when use GPU card
GPU Power Cable CBL-PWEX-0581 - 1 GPU Power Cable for 1 GPU (Recommend to pre-install GPU power cable in Supermicro)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
