SuperStorage 6049SP-DE2CR90 (Complete System Only)

  Products  Systems   SuperStorage   [ 6049SP-DE2CR90 ]




Integrated Board
Super X11DSC

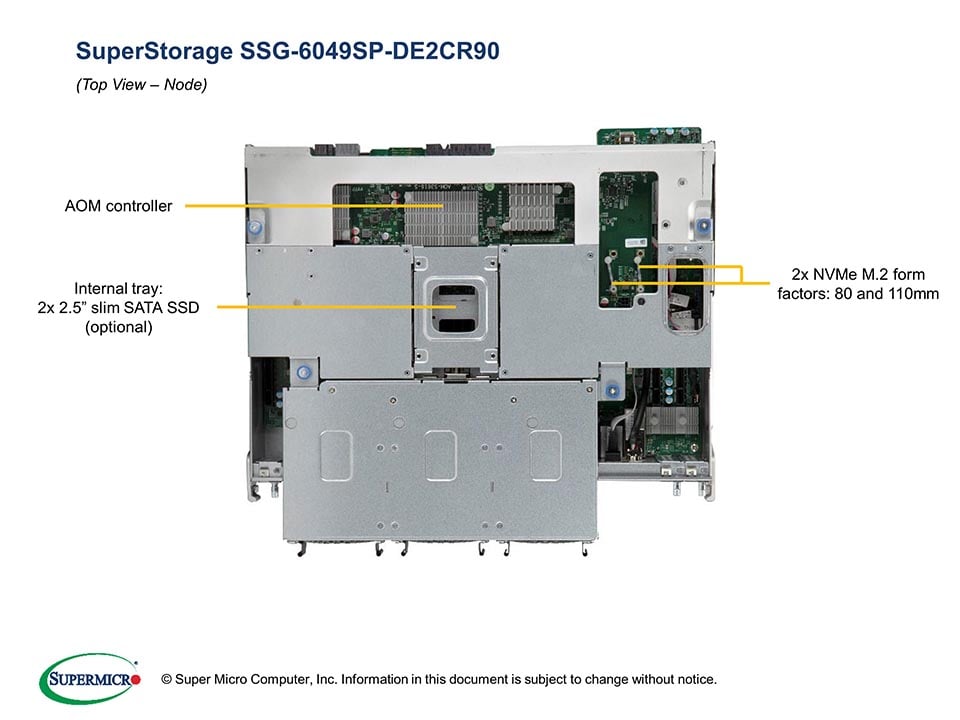

Views: | Node Angle View | Node Top View |

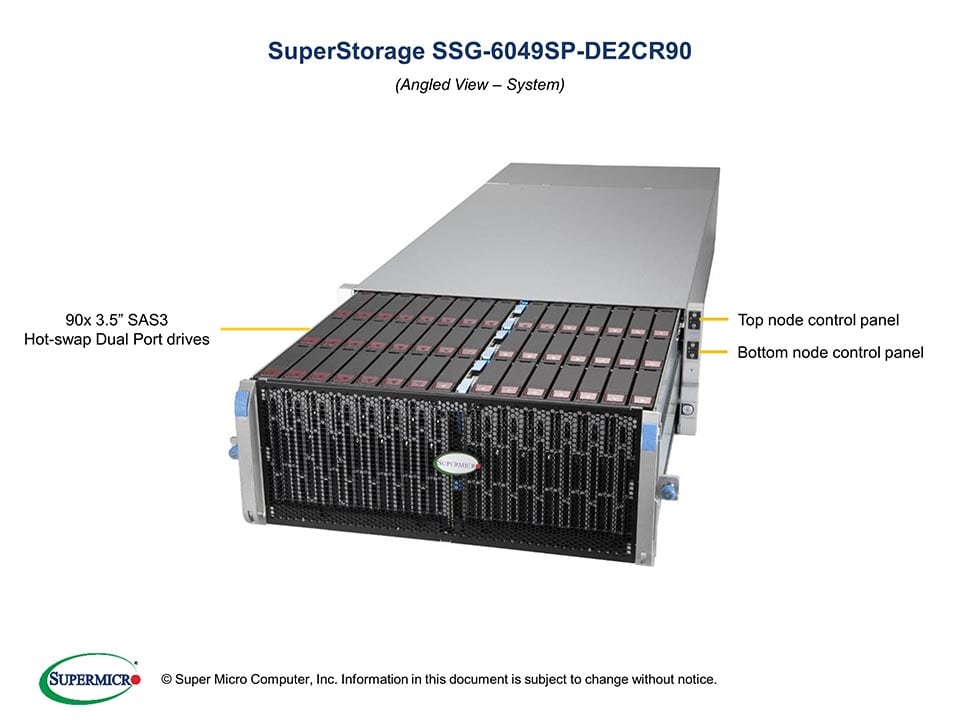

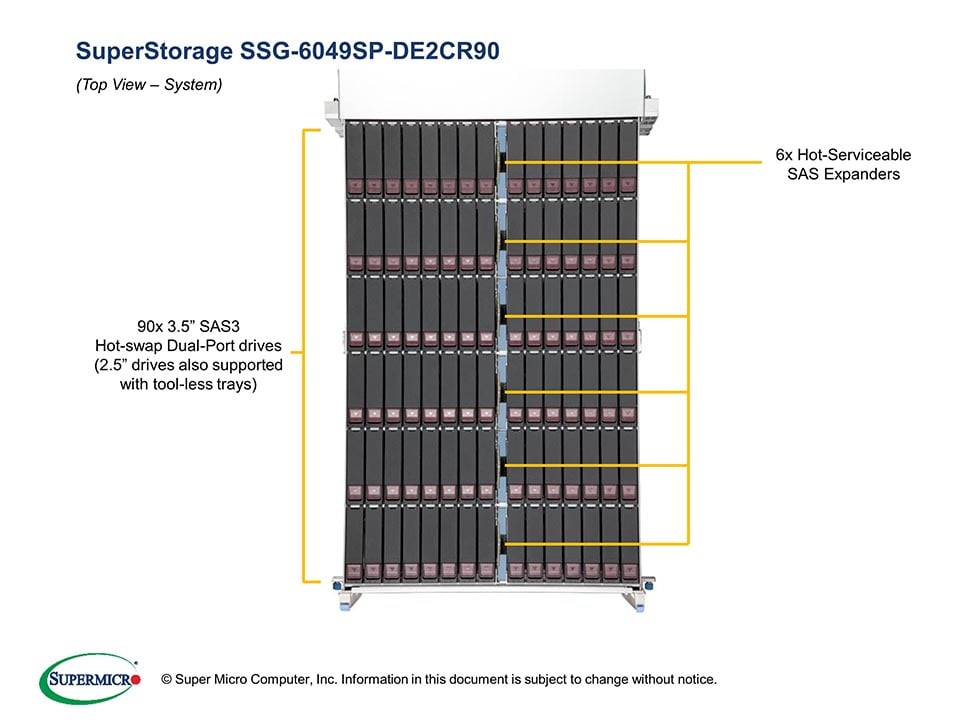

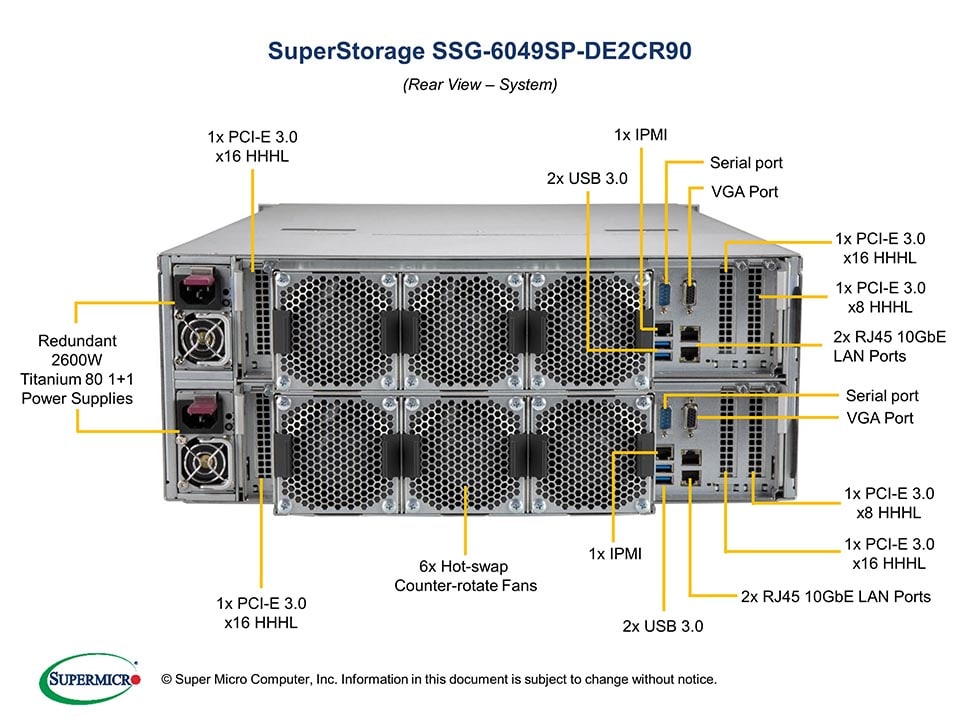

| Angled View | Top View | Front View | Rear View |


Key Applications
  - Big Data & Analytics, Data Lake
  - HPC and AI/ML Workloads
  - Telco & Cloud Service Providers
  - Financial Services & Healthcare Image Archives
  - Content Repositories
  - Government Data Protection


Key Features
1. Dual Node (HA), Enterprise High Availability (SBB) Architecture (shared storage); Fully serviceable and redundant Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
3. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 2 PCI-E 3.0 x16 (HHHL),
    1 PCI-E 3.0 x8 (HHHL)
5. 90x 3.5"/2.5" Hot-swap SAS3 drives,
    2x Fixed slim SATA SSD, 2x NVMe
    M.2 (form factor: 2280 and 22110)
6. Dual Broadcom 3616 IT Mode
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 6x 8cm hot-swap counter-rotate
    redundant PWM cooling fans
9. 2600W Redundant Power Supplies
    Titanium Level (96%)
10. Dedicated node to node connectivity
    featuring high performance NTB PCI-E 3.0
    x16 , 1G private Ethernet, and IPMI
    for robust node fail-over support

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs, 30 HDDs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals  -  OS Certification Matrix  Drive Options   Firmware

Product SKUs
SSG-6049SP-DE2CR90
  • SuperStorage 6049SP-DE2CR90 (Black)

Motherboard (Two per System)

Super X11DSC

Processor/Cache (per node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory (per node)
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices (per node)
Chipset
  • Intel® C621 chipset
Storage
  • Dual Broadcom 3616 IT Mode
Network Controllers
  • Dual 10GBase-T LAN ports via Intel X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output (per node)
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA D-Sub connector port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-947HTS-R2K63P

Dimensions
Width
  • 17.68" (449mm)
Height
  • 6.96" (177mm)
Depth
  • 42.9" (1091mm)
Weight
  • Gross Weight: 240 lbs (108.86 kg)
  • Net Weight: 150 lbs (68.04 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots (per node)
PCI-Express
  • 2 PCI-E 3.0 x16 (HHHL) slots
  • 1 PCI-E 3.0 x8 (HHHL) slot

Drive Bays
Hot-swap
  • 90x 3.5"/2.5" Hot-swap SAS3
Fixed
  • 2x 2.5" internal fixed slim SATA SSD
M.2
  • 2x NVMe M.2 (form factor: 2280 and 22110)

Backplane
SAS3 dual expander per backplane

System Cooling
Fans
  • 6x 8cm hot-swap counter-rotate redundant PWM cooling fans

Power Supply
2600W Redundant Power Supplies with PMBus
Total Output Power
  • 2600W: 200 – 240Vac
  • 2600W: 200 – 220Vdc (CQC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 216A / Min: 0A (200-240Vac)
12Vsb
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DSC
CSE-947HTS-R2K63P 		2
1		 Super X11DSC Motherboard
SC947H 90-Bay top load chassis w/o MB Tray, PWS, BPN
Add-on Card / Module AOM-S3616-S-P 2 Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controllers, PCI switch, two M.2 connectors.,RoHS
Backplane BPN-ADP-30SAS3-1 3 Adapter board between Expander and HDD BPN for CSE-947H,RoHS
Backplane BPN-SAS3-947EB 6 HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS
Backplane BPN-SAS3-947EL 6 SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS
Backplane BPN-SAS3-947SB 1 Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
Drive Tray(s) MCP-220-94601-0N 90 SC946ED 3.5" / 2.5" tool-less HDD tray
Cable 1 CBL-0066 2 39" 9 PIN COM PORT EXTENSION CABLE
Cable 2 CBL-0082L 2 Y SPLIT SATA POWER ADAPTER, PB FREE
Cable 3 CBL-0473L 4 21CM 30AWG SATA CBL, S-S
Cable 4 CBL-OTHR-1062-25 2 [NR] CBL,VGA,DP15/F, to 2X7F/P2.0,25CM,RoHS
Cable 5 CBL-OTHR-1104 1 [NR] 90 SBB,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM to 2x8,PH3.0,M, to 2x8,PH3.0,F,6A/pin,18AWG
Cable 6 CBL-PWEX-1100-25 2 [NR] MicroFit 2x2F/PH3.0 to 1x4F/PH5.08,25cm,16AWG
Power Supply PWS-2K63A-1R 2 2600W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
Heatsink / Retention SNK-P0068PS 4 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
