SuperWorkstation 5039A-i

  Products  Systems  Workstation   [ 5039A-i ]





Integrated Board
Super X11SRA

Views: | Angled View | Side View |
| Front View | Rear View |


Key Features
• High Performance Workstation
• Designed for 2D/3D Content Creation

1. Single Socket R4 (LGA 2066) supports
    Intel® Xeon® W-2200 processor,
    Intel® Xeon® W-2100 processor
2. Intel® C422 chipset
3. Up to 512GB reg. ECC LRDIMM,
    up to DDR4-2666MHz; 8 DIMM slots
4. 3 PCI-E 3.0 x16 (8/16/16, 48 lanes),
    1 PCI-E 3.0 x4,
    M.2 Interface: 2 PCI-E 3.0 x4
    M.2 Form Factor: 22110/2280
    M.2 Key: M-Key (RAID 0,1 support)
    U.2 Interface: 2 PCI-E 3.0 x4
5. ALC 1220 7.1 HD Audio, 1 COM,
    5GbE and GbE LAN, 2 USB 3.0 (front)
6. 4 internal 3.5" drive bays
7. 900W High Efficiency Power Supply

 Drivers & Utilities   BIOS   Tested Memory  Tested M.2 List   Manuals   OS Certification Matrix   Quick-References Guide  Compatible GPU List  Drive Options

Product SKUs
SuperWorkstation
  • SYS-5039A-i (Black)

Motherboard

Super X11SRA

Processor
CPU
  • Intel® Xeon® W-2200 processor, Intel® Xeon® W-2100 processor
  • Single Socket R4 (LGA 2066),
    CPU TDP support up to 165W

System Memory
Memory Capacity
  • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
Memory Type
  • 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB

On-Board Devices
Chipset
  • Intel® C422 chipset
SATA
  • SATA3 (6Gbps) via Intel C422 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Aquantia 5G LAN chip AQC108
Audio
  • ALC 1220 7.1 HD Audio

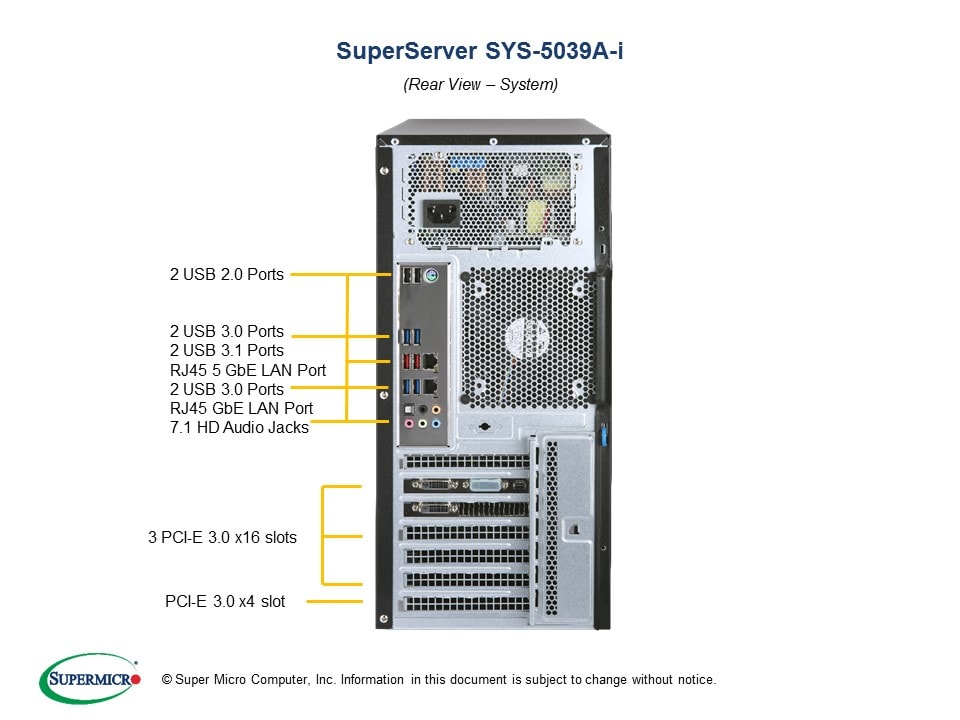

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports from Intel® C422
LAN
  • 2 RJ45 Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear + 2 headers)
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 2 USB 3.1 (2 Type A)
Audio
  • 7.1 HD Jacks
Serial Port / Header
  • 1 COM port (header)
TPM
  • 1 TPM 1.2 20-pin Header

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slots (8/16/16, 48 lanes)
  • 1 PCI-E 3.0 x4 slot
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • M.2 Form Factor: 22110/2280
  • M.2 Key: M-Key (RAID 0,1 support)
  • U.2 Interface: 2 PCI-E 3.0 x4

System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 3.0 or later
  • SMBIOS 2.7 or later
  • BIOS rescue hot-key
  • SPI dual/quad speed support
  • RTC wakeup
Chassis
Form Factor
  • Mid-Tower
Model

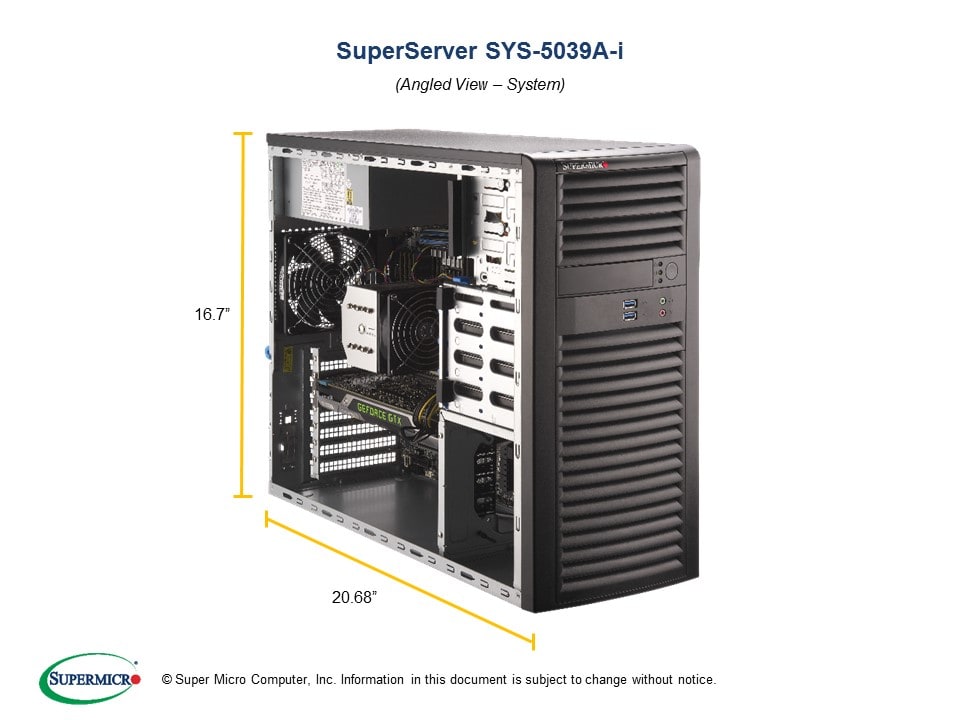

Dimensions and Weight
Height
  • 16.7" (424mm)
Width
  • 7.6" (193mm)
Depth
  • 20.68" (525.3mm)
Gross Weight
  • 35.5 lbs (16.1 kg)
Available Colors
  • Black

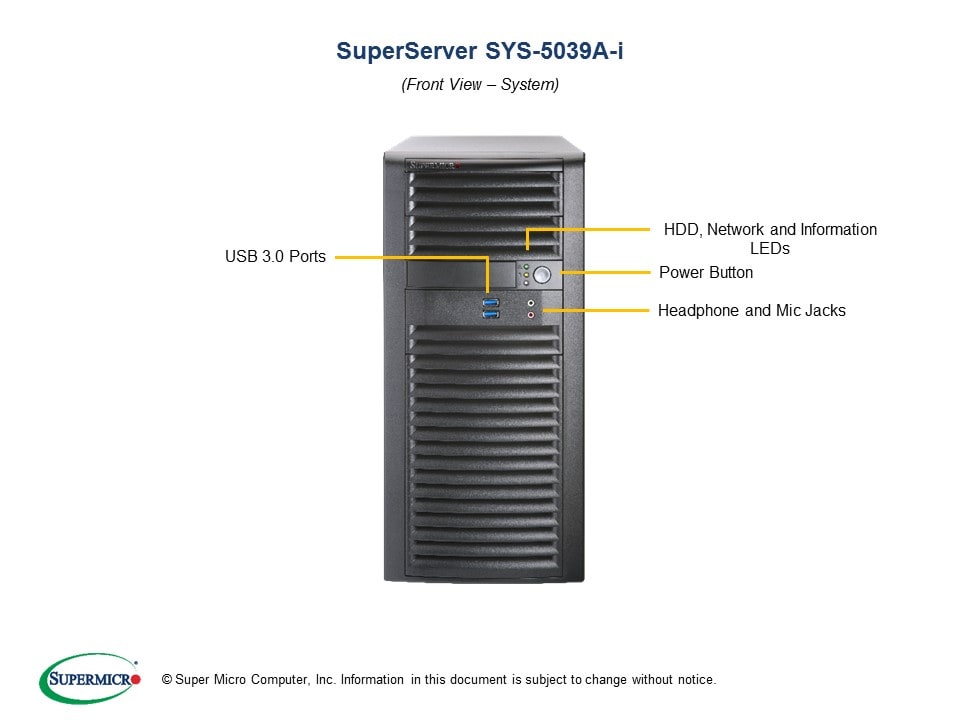

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Information LED
Ports
  • 2 front USB 3.0 Ports
  • 1 Line-out, 1 Mic-in

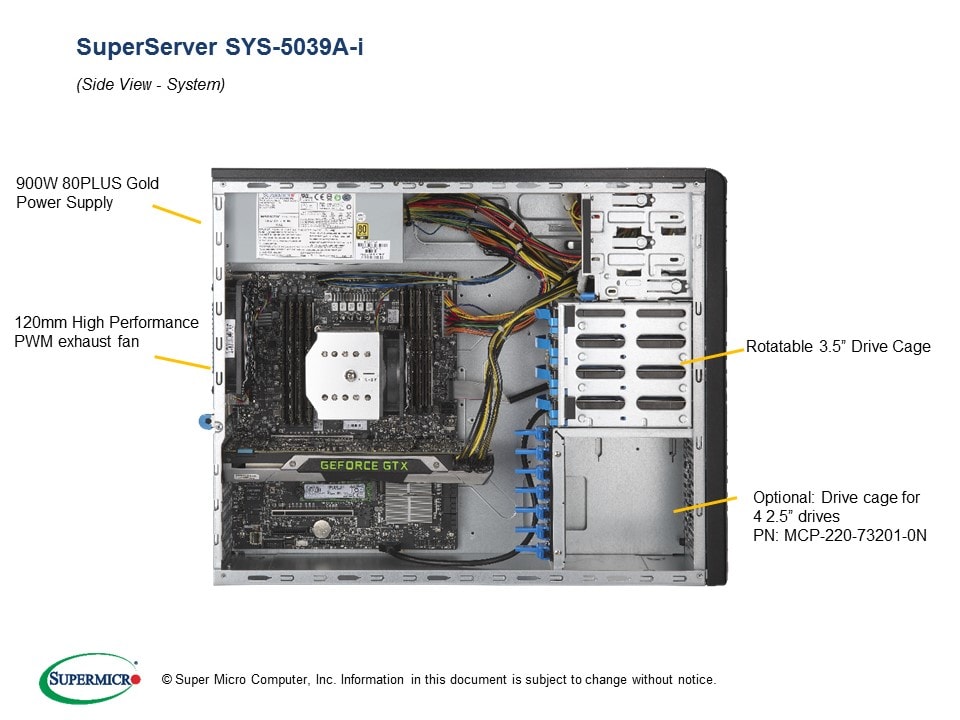

Drive Bays
Internal
  • 4 fixed 3.5" drive bays
  • Enterprise SATA HDD only recommended
Peripheral
  • 2 optional 5.25" Peripheral drive bays
  • 1 optional card reader module

System Cooling
Fans
  • 1x 12cm rear exhaust fan
  • Optional 1x 12cm front cooling fan

Power Supply
900W AC multi output power supply
AC Voltage
  • 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
  • 3 Amp
+12V1
  • 25 Amp
+12V2
  • 25 Amp
+12V3
  • 25 Amp
+12V4
  • 25 Amp
+5V
  • 25 Amp
+3.3V
  • 25 Amp
-12V
  • 0.5 Amp
Certification Gold Level   Gold Level
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SRA
CSE-732D3-903B
1
1
Super X11SRA Motherboard
3U Mid-Tower Chassis
Cable 1 CBL-0044L 4 SATA,INT,FLAT,57.7CM,26AWG
Parts MCP-260-00118-0N 1
Manual MNL-1999-QRG 1 5039A-I Quick Reference Guide
Power Supply PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold
Optional Parts List

Part Number
Qty
Description
Cable CBL-SAST-0957 - Mini SAS HD to PCIe SFF-8639 w/ Power, 55CM, 45CM, 34 AWG,RoHs
Cable CBL-0082L - Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
HDD Cage MCP-220-73102-0N - 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Fan FAN-0077L4-1 - 120x120x38 mm, 4K RPM, Optional Fan w/o housing for SC732
Heat Sink SNK-P0050AP4 - ACTIVE CPU Heat Sink
DVD-ROM DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Hide Parts List
