SuperServer AS -2115HV-TNRT (Complete System Only)

2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0

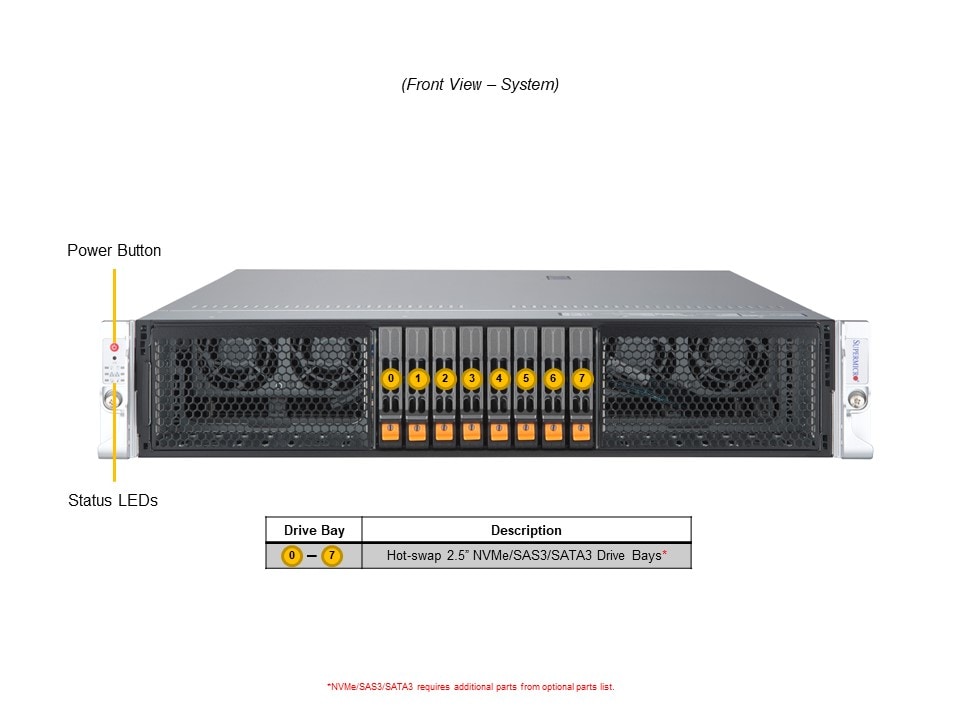

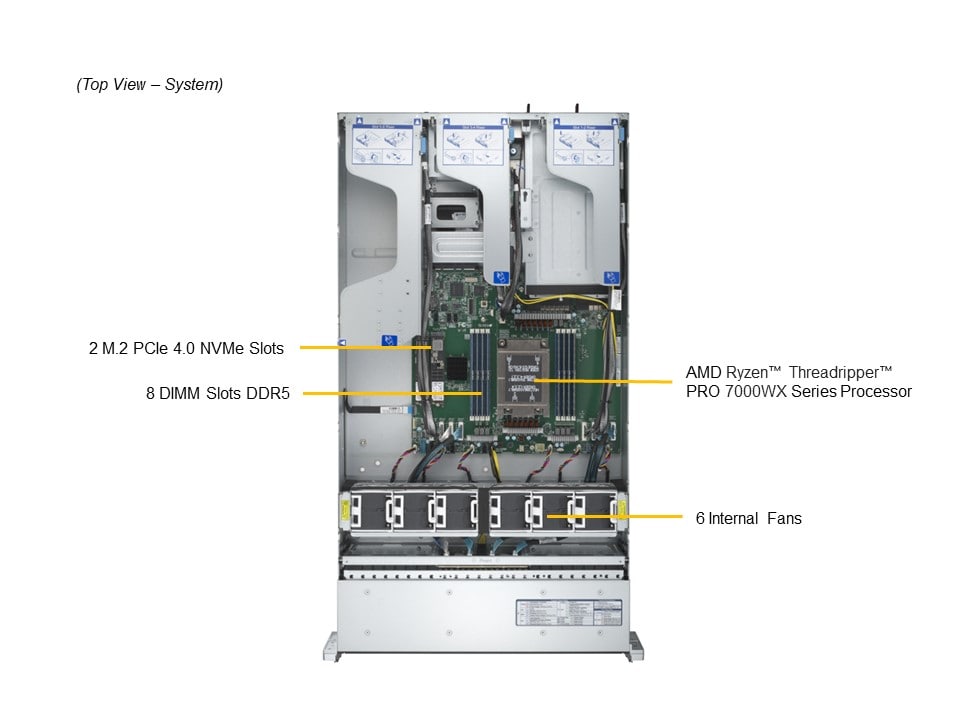

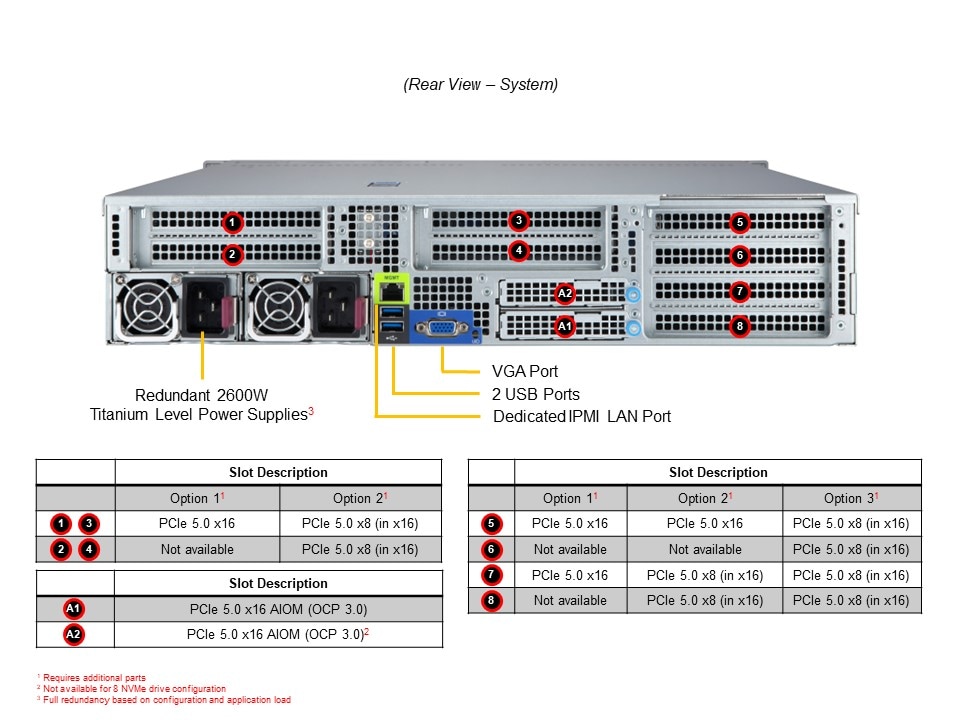

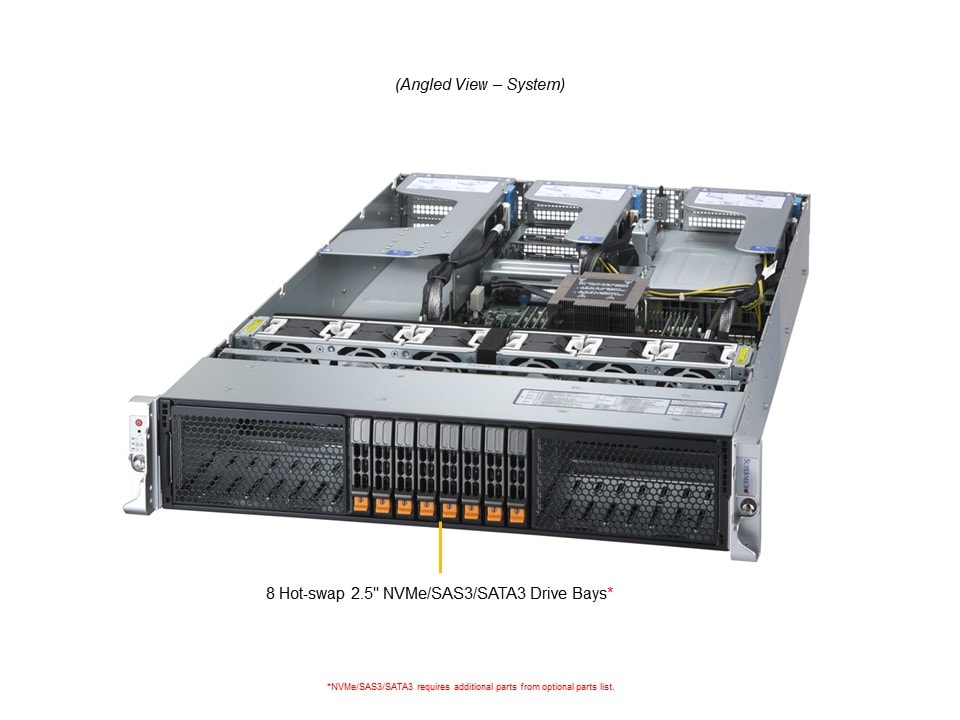

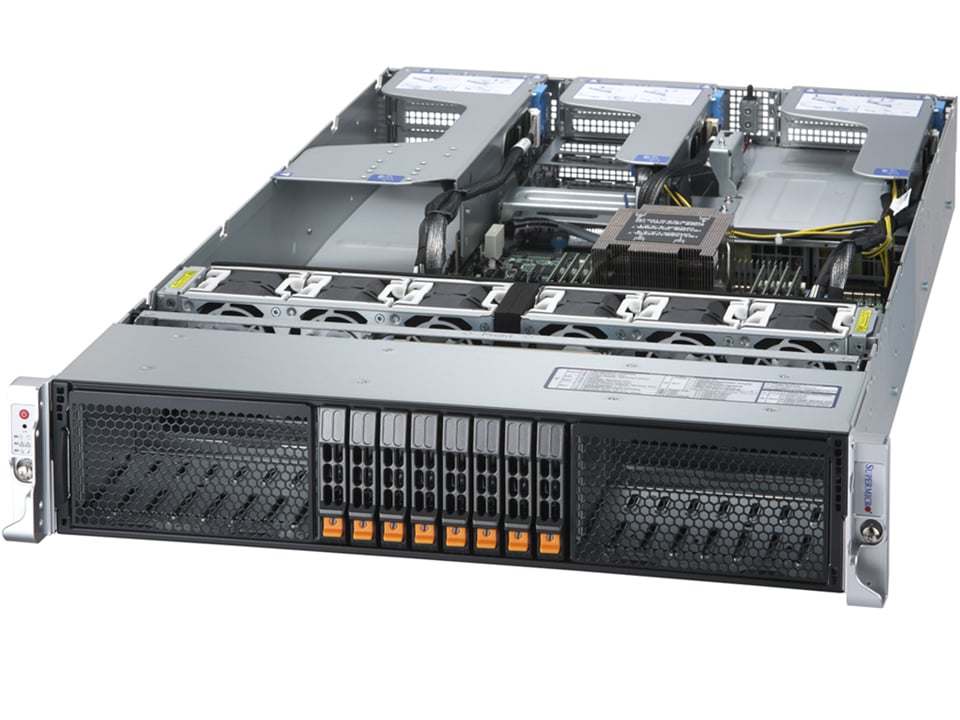

AS -2115HV-TNRT Main AS -2115HV-TNRT Angle AS -2115HV-TNRT Top AS -2115HV-TNRT Front AS -2115HV-TNRT Rear
Integrated Board: H13SRH
Learn more

Key Applications

  • Deep Learning/AI/Machine Learning Development
  • Cloud Gaming
  • Rack Workstation

Key Features

  1. 2600W Redundant Power Supplies Titanium Level Certified
    Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
  2. AMD Ryzen™ Threadripper™ PRO 7000WX series LGA-4844 up to 350W TDP Processors, CPU and Memory Overclocking supported
  3. 8x DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz Up to total 2TB
  4. 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
    Up to 4x PCIe 5.0 x16 (FHFL) slots or 8x PCIe 5.0 x8 (FHFL) slots
  5. 8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
...
...
AS-2115HV-TNRT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Workstation AS -2115HV-TNRT
Motherboard
Super H13SRH
Processor
CPU
  • Single processor(s)
  • AMD Ryzen™ Threadripper™ PRO 7000 WX-Series
Core Count
  • Up to 96C/192T; Up to 384MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
BIOS Features
  • SMBIOS 3.5 or later
  • UEFI 2.9
  • ACPI 6.5
    SMBIOS 3.6 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 31.74" (806.2 mm)
Package
  • 9.96" (H) x 26.46" (W) x 43.31" (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A
    • 8 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • View Drive Options
M.2
System Cooling
Fans
  • 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2nd AIOM MCP-120-20123-0N 1 2nd AIOM cage for AOM-AIOM-2X8 on CSE-HS 201
AOM-AIOM-2X8-G5-P 1 AIOM adaptor board (cable solution), PCIe Gen-5,RoHS
CBL-CDAT-1060-30 1 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
CBL-MCIO-1240M5 • 2 MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS
4 NVMe + 4 SATA CBL-CDAT-1062 • 1 PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG"
CBL-MCIO-1243S4Y • 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm
CBL-MCIO-1330M5 1 MCIO (x8 to x8), STR, 30cm,G5,32AWG
CBL-MCIO-1332M5 1 MCIO (x8 to x8), STR, 32cm,G5,32AWG
8 NVMe CBL-MCIO-1330M5 2 MCIO (x8 to x8), STR, 30cm,G5,32AWG
CBL-MCIO-1326M5 • 1 MCIO (x8 to x8), STR, 26cm,G5,32AWG
CBL-MCIO-1332M5 1 MCIO (x8 to x8), STR, 32cm,G5,32AWG
8 SAS AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD
CBL-CDAT-1062 • 1 PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG
CBL-SAST-1264F-100 • 1 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3808L-L8IT 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDD
8 SATA CBL-MCIO-1243S4Y • 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm
GPU and Riser Power Cables CBL-PWEX-1364-26 1 12VHPWR 2x6+4S to 2x4,MicroHi,26cm,6.25A/p,16AWG,RoHS
CBL-PWEX-1172-2654 1 McHi,P3.0(2x4 to 2x2)+ to MnFt,2x4,PH4.2,26/54CM,9A/p,16
CBL-PWEX-1171-2654 1 McHi,P3.0(2x4 to 2x2)+ to MnFt,P4.2,2x (2x3+2x1),26/54cm
CBL-PWEX-1136YVB-45 1 (2x4 to 3 2x2), PH3.0,45cm,8.5A/p,18AWG,RoHS
CBL-PWEX-1136YB-25 1 MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoH
PCIe 5.0 x16 (4x double width) CBL-MCIO-1335M5R 2 MCIO x8 (RA to STR),35CM,32AWG
MCP-120-20118-0N 1 Middle riser support bracket for 2U Intel and AMD CSE-HS201
MCP-240-21108-0N 2 Riser Bracket(2-slot) for RSC-H-68G5
MCP-240-21908-0N 1 Riser Bracket(4-slot)
RSC-H-68G5 3 1U LHS Hyper Riser card with two PCIe 5.0 slots
RSC-H-A6G5H 1 1U Active LHS Hyper riser card with one PCIe 5.0 slot
CBL-MCIO-1245M5R 2 MCIO x8 (RA to STR),45cm,30AWG
CBL-GNZ4-1227M5YRR16 1 (GENZ 4C STR to 2 MCIO) x8 RA/RA 27/16cm
PCIe 5.0 x16 (8x single width) MCP-120-20118-0N 1 Middle riser support bracket for 2U Intel/AMD in CSE-HS201
RSC-H2-6888G5L 1 2U LHS Hyper Riser card with 4 PCIe 5.0 slots
MCP-240-21908-0N 1 Riser Bracket(4-slot)
CBL-GNZ4-1227M5YR21 1 (GENZ 4C STR to 2 MCIO) x8 STR/RA 27/21cm
RSC-H-68G5 2 1U LHS Hyper Riser card with two PCIe 5.0 slots
MCP-240-21108-0N 2 Riser Bracket(2-slot) for RSC-H-68G5
CBL-MCIO-1245M5R 1 MCIO x8 (RA to STR),45cm,30AWG
CBL-MCIO-1245M5-Z 3 MCIO x8 (STR to STR),45cm,30AWG"
Power Supplies and Cables CBL-PWCD-0160-IS • 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWCD-0376-IS • 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWCD-0565-CT 2 PWCD, US, IEC60320 C14 TO C19, 6ft, 15A/250V, 14AWG, RoHS
CBL-PWCD-0579-1 2 PWCD,US,IEC60320 C14 TO C13,6FT,14AWG,RoHS
CBL-PWCD-0612JPBK1 2 PWCD,JPN,IEC60320 C13 TO C14,6FT,12A/250V,BK,RoHS
CBL-PWCD-0925 • 2 PWCD,US,NEMA 5-15P TO IEC60320 C19, 6FT, 14AWG, 15A/125V
PWS-2K63A-1R • 2 1U 2600W redundant power supply 220-264Vac, C19 plug
PWS-2K07A-1R • 2 1U 2000W redundant power supply 90-264Vac
PWS-1K63A-1R 2 1U 1000W/1600W redundant power supply 90-264Vac

A+ Workstation AS -2115HV-TNRT (Complete System Only )
