SuperServer 6028TP-HC0R

  Products  Systems   2U TwinPro™   [ 6028TP-HC0R ]




Integrated Board
Super X10DRT-P

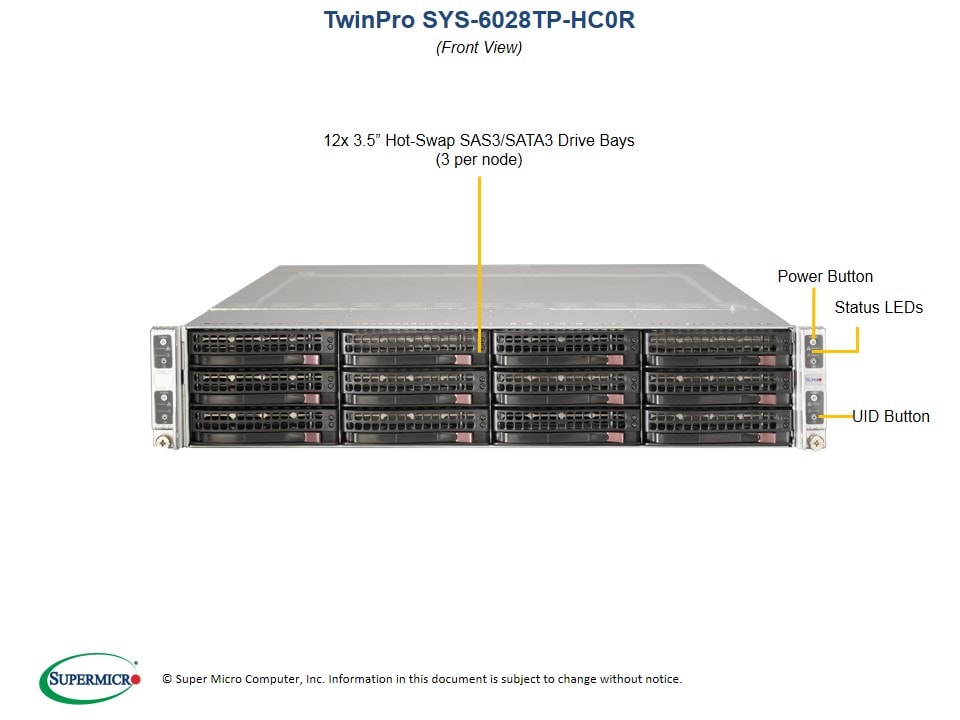

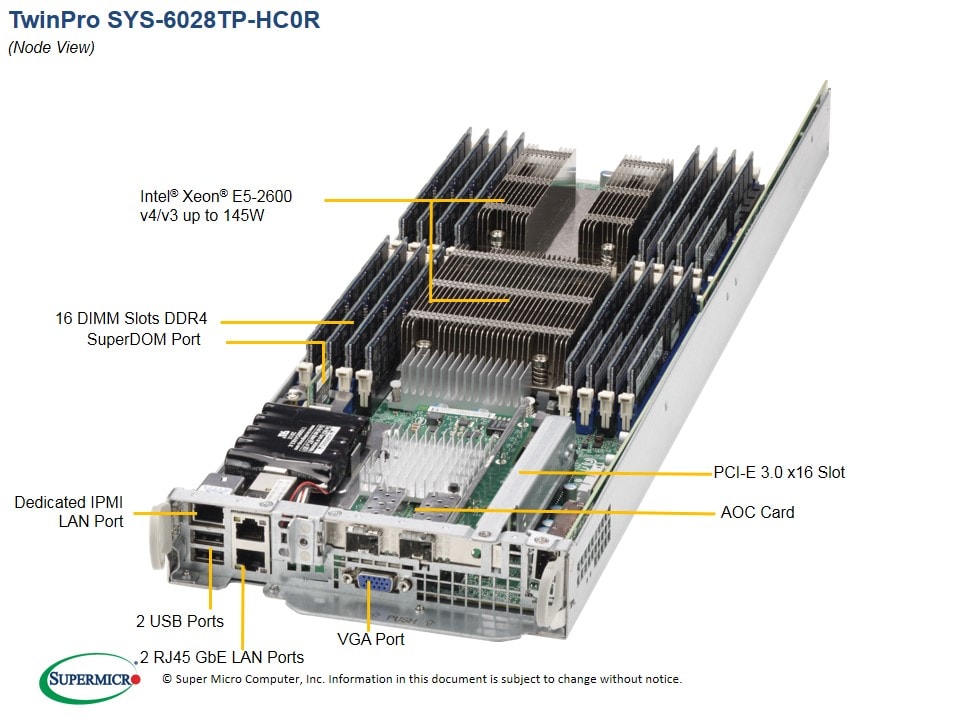

Views: | Angled View | Node View |

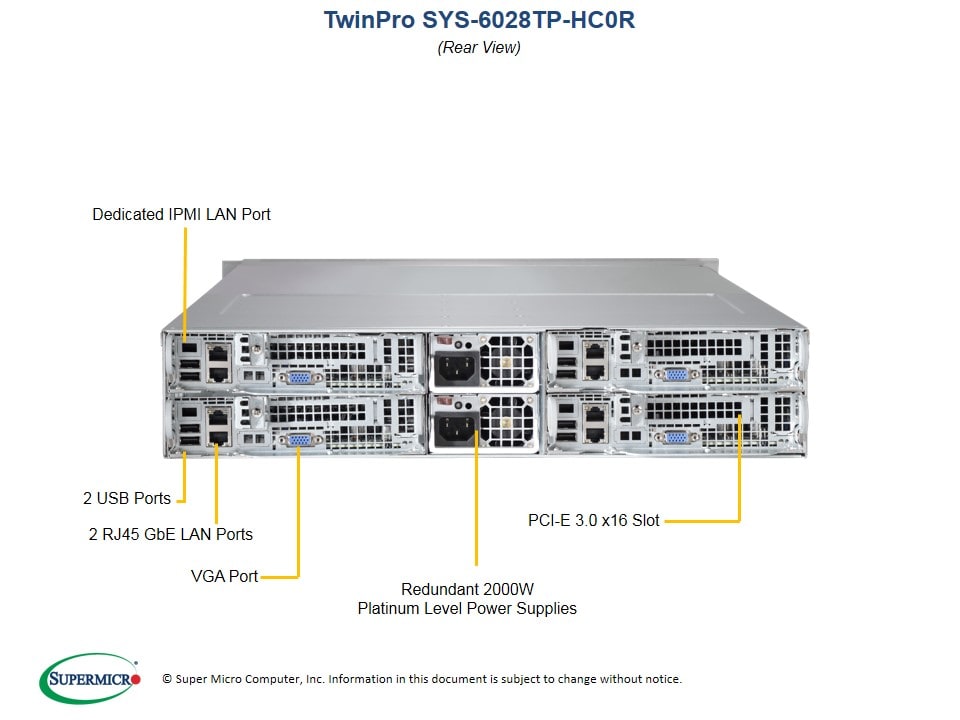

| Front View | Rear View |

 Key Features
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16x DIMM slots
3. 1x PCI-E 3.0 x16 Low-profile slot;
    1x "0 slot" (x16)
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
6. 3x 3.5" Hot-swap SAS/SATA HDD
    Bays
7. Broadcom 3008 SAS3 controller (8 ports);
    RAID 0, 1, 10
8. Mini-mSATA (half size) support
9. 2000W Redundant Power Supplies

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6028TP-HC0R
  • SuperServer 6028TP-HC0R (Black)

Motherboard (Four per System)

Super X10DRT-P

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
       RAID 0, 1, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per Node)
SAS
  • 3x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports total (2x rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header (internal)
Others
  • 1x SATADOM support on the motherboard
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ+-R2K04B

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 30.5" (774mm)
Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1x PCI-E 3.0 x16 Low-profile slot
0 Slot
  • 1x "0 slot" (x16)
  • Compatible Listing


    • (Both CPUs need to be installed for full access to PCI-E slots and 0 slot.)

Drive Bays (per Node)
Hot-swap
  • 3x 3.5" Hot-swap SAS/SATA HDD trays

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRT-P
CSE-827HQ+-R2K04B 		4
1		 Super X10DRT-P Motherboard
2U Chassis
Backplane BPN-SAS3-827HQ 1 12-port 2U TwinPro^2 SAS3 CSE-827HQ (3 drives per node) backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD
Backplane BPN-ADP-S3008L-L6IP 4 LSI 3008, SAS 12Gbs (X6 port inside)
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1663-QRG 1 6028TP-HC0R/HC0TR/HC0FR, QRG
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0057PS 4 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0047PSM 4 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
Air Shroud MCP-310-21703-0B
or
MCP-310-21702-0B		 4 TwinPro 217HQ+/827HQ+ X10 plastic air shroud
or
TwinPro 217HQ+/827HQ+ X10 mylay air shroud
Power Supply PWS-2K04A-1R
or
PWS-2K02P-1R		 2 2000W Redundant Titanium Level Power Supplies
or
2000W Redundant Platinum Level Power Supplies


Optional Parts List
  Part Number Qty Description
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
Hide Parts List
