SuperServer 5038MA-H24TRF (Complete System Only)

  Products  Systems   MicroCloud   [ 5038MA-H24TRF ]






Integrated Board
Super A1SA2-2750F

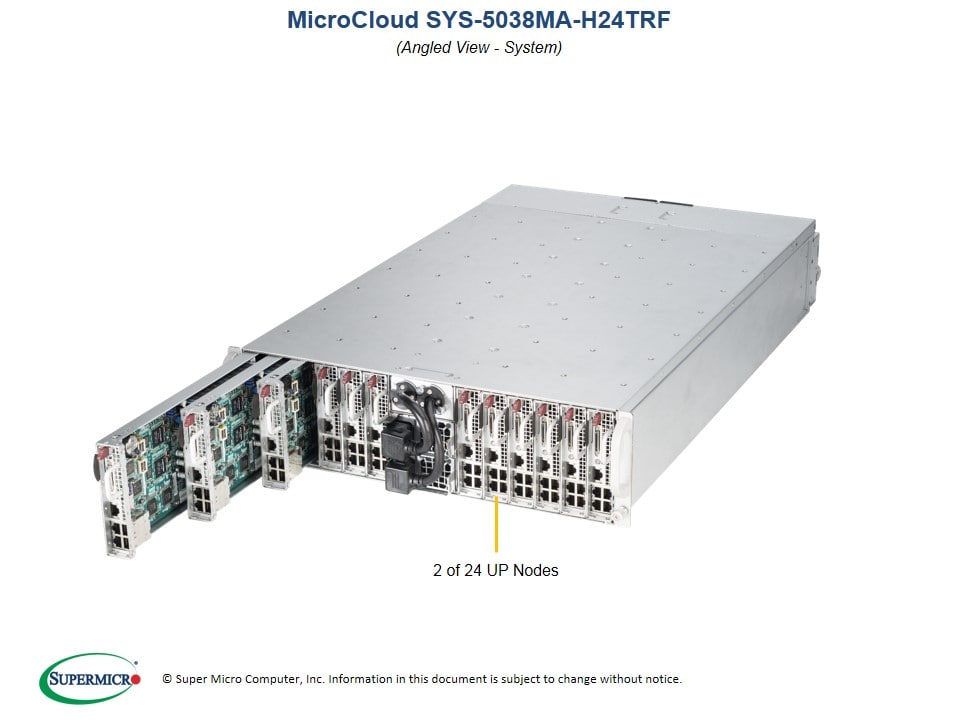

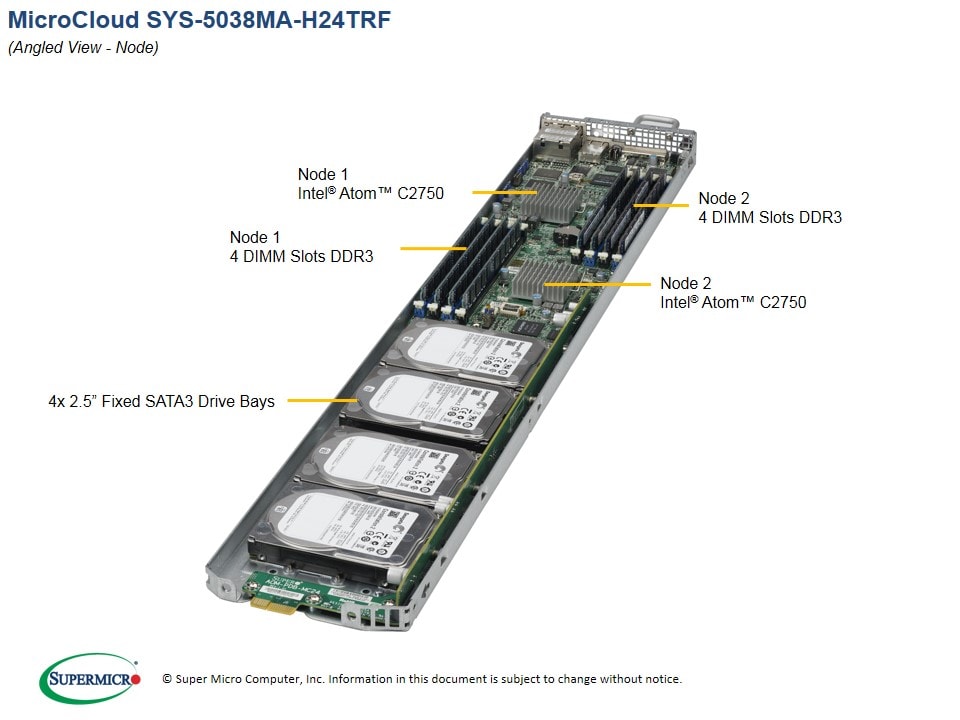

Views: | Angled View | Node View |

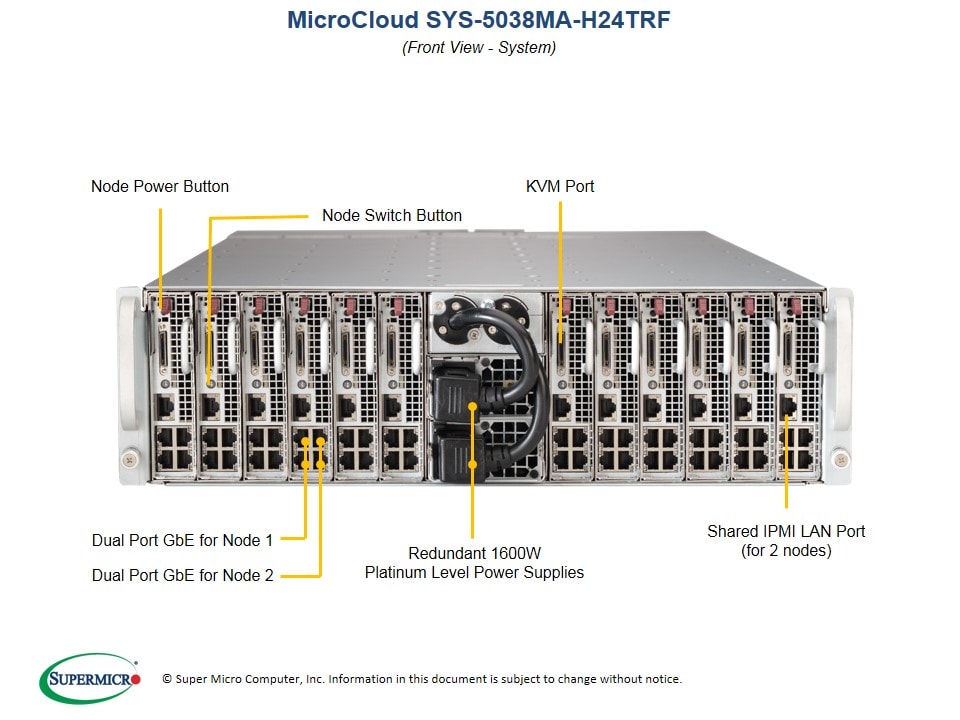

| Front View | Rear View |

Key Features (2 Nodes per Tray, Each Node:)
• Cloud Computing
• Web Cache, CDN
• Web Hosting
• Application Delivery

1. Dual Intel® Atom processor C2750,
    SoC, FCBGA 1283, 20W 8-Core
2. 2x 2.5" SATA3 (6Gb/s) HDDs
3. Up to 64GB DDR3 VLP ECC UDIMM
    1600MHz support in 4 sockets
4. 2x GbE LAN (Intel i354), 1x Shared
    LAN for IPMI Remote Management
5. Shard 1x VGA, 1x COM ports,
    2x USB 2.0 (with KVM dongle)
6. 4x 9cm heavy duty hot-swap fans with
    optimal cooling zone (per system)
7. 1600W Redundantpower supplies
    Platinum Level Certified
    (per system)


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5038MA-H24TRF (Black)

Motherboard
Super A1SA2-2750F

Processor/Cache
CPU
  • Dual FCBGA 1283
  • Intel® Atom™ Processor C2750
  • CPU TDP 20W (8-Core)
  • System-on-Chip

System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM slot
  • Supports up to 64GB DDR3 VLP ECC UDIMM memory
Memory Type
  • 1600/1333MHz ECC DDR3 SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB, 2GB
Memory Voltage
  • 1.5 V, 1.35 V

On-Board Devices
Chipset
  • Avoton SOC
SATA
  • 2x SATA3 (6Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Network Devices
Onboard NIC
  • SoC i354 GbE controller per node
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 dedicated IPMI LAN port
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Front Window
Switch
  • Power Button
  • Node Switch
Chassis
Form Factor
  • 3U
Model
  • CSE-939HA-R1K63B

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 29.5" (749.3 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 90 lbs (40.82 kg)
  • Net Weight w/ 2.5" HDDs: 110 lbs (49.90 kg)
  • Gross Weight: 120 lbs (54.43 kg)
Color
  • Black

Drive Bays
Internal
  • 4x 2.5" fixed HDD bays (up to 48x 2.5" HDDs total)
  • Enterprise SATA HDD and SSD only recommended

System Cooling
Fans
  • 4x 9cm Heavy duty fans with optimal cooling zone

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/135A; +5Vsb/4A
Certification Platinum Level94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-A1SA2-2750F
CSE-939HA-R1K63B
12
1
Super A1SA2-2750F Motherboard
3U Chassis
Add-on Card / Module AOM-BPN-MC24A 12 MicroCloud Avoton 24 nodes - Node BPN board (4x HDD)
Add-on Card / Module AOM-PDB-MC24 12 AOM-PDB-MC24
Backplane BPN-SAS-939H 1 12-port 3U (CSE-939) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Power Supply PWS-1K63S-1R 2 1600W redundant platinum power supply


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
