GPU SuperWorkstation 7048GR-TR

  Products  Systems   GPU   [ 7048GR-TR ]





Integrated Board
Super X10DRG-Q

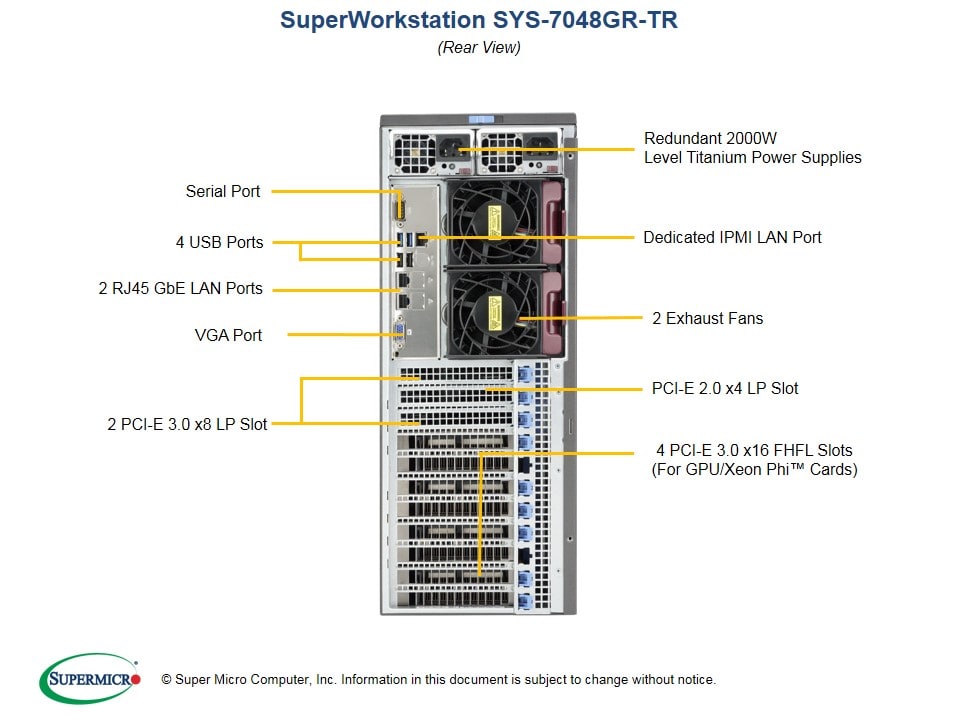

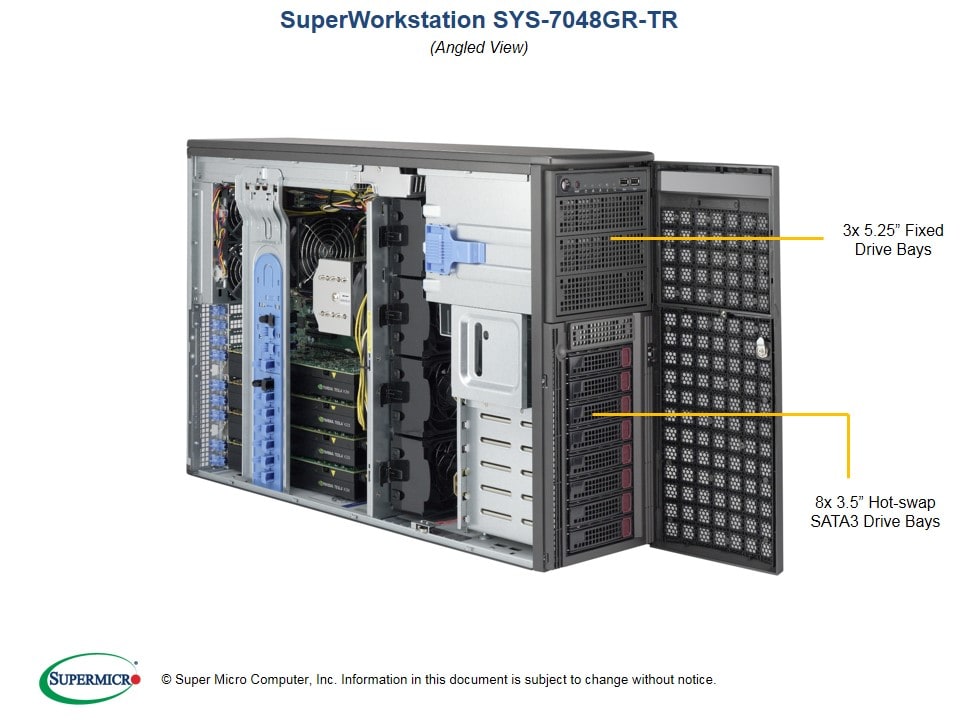

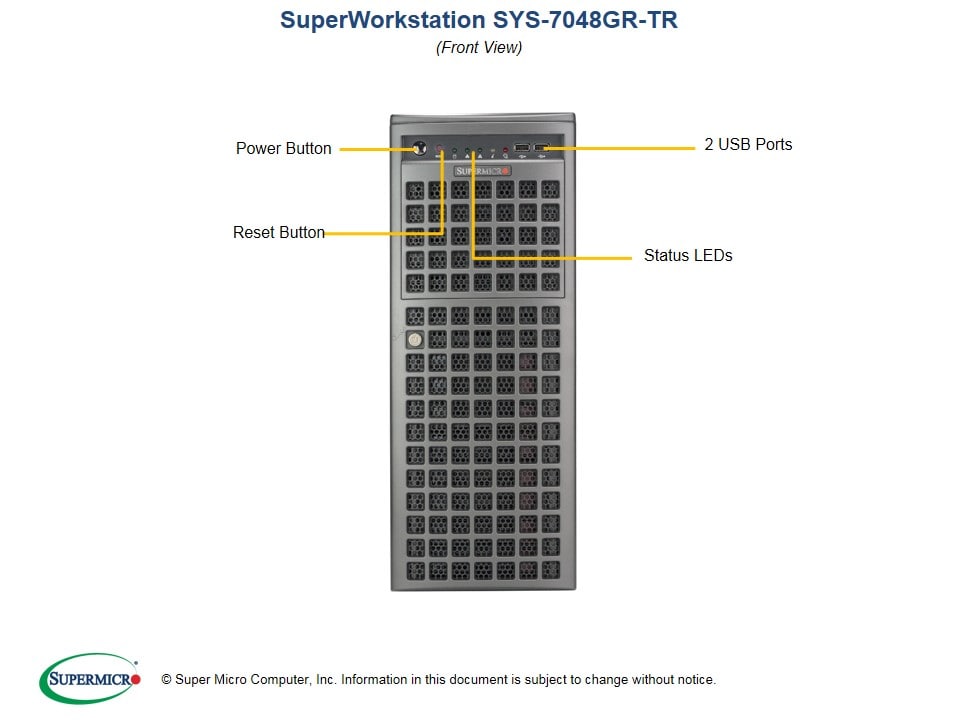

Views: | Angled View | Front View | Rear View |

Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots
    2 PCI-E 3.0 x8 (1 in x16) slots
    support Thunderbolt 2.0 AOC,
    1 PCI-E 2.0 x4 (in x8) slot;
    Up to 4 NVIDIA® GPU
4. I/O ports: 1 VGA, 2 COM, 2 GbE,
    10 USB 2.0, & 1 IPMI Dedicated LAN
5. 8 Hot-swap 3.5", 3 Fixed 5.25"
    and 1 Fixed 3.5" Drive Bays
6. 4 Heavy Duty Fans, 2 Exhaust
    Fans, and 2 Active Heatsink with
    Optimal Fan Speed Control
7. 2000W High efficiency (96%)
    Redundant PSU; Titanium Level
8. Tower or Rackmount
9. GPU Kit for passive GPU/Xeon Phi
    support (MCP-320-74701-0N-KIT)

Available Color: Black

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-7048GR-TR
  • SuperServer 7048GR-TR (Black)

Motherboard

Super X10DRG-Q

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU Support
  • NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via headers)
Audio
  • HD Audio
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 Header)
Thunderbolt
  • Thunderbolt AOC Header

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (double-width)
  • 2 PCI-E 3.0 x8 (1 in x16 slot) support Thunderbolt 2.0 AOC
  • 1 PCI-E 2.0 x4 (in x8)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-747BTQ-R2K04B

Dimensions and Weight
Height
  • 18.2" (462mm)
Width
  • 7.0" (178mm)
Depth
  • 26.5" (673mm)
Package
  • 27" (H) x 13" (W) x 38" (D)
Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
Available Colors
  • Dark Gray

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat & Power Fail LED
Ports
  • 2 Front USB 3.0 Ports

Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS/SATA Drive Trays
Peripheral Bay(s)
  • 3x 5.25" drive bays in storage module - rotates 90° for Rackmount
  • 1x 3.5" fixed drive bay

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans
  • 4x 92x38mm 4-pin PWM Middle Cooling Fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)
Heatsink
  • 2 Active Heatsink with Optimal Fan Speed Control

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Total of eight fan headers supporting up to 8 fans
  • 8x fans with tachometer status monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x fan connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRG-Q
CSE-747BTQ-R2K04B
1
1
Super X10DRG-Q Motherboard
4U Chassis
Backplane BPN-SAS-747TQ 1 8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD
Cable 1 CBL-0484L 8 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-CDAT-0661 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1709-QRG 1 SYS-7048GR-TR Quick Reference Guide,HF,RoHS/REACH
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0050AP4 2 4U Active CPU Heat Sink for X9, X10 Workstations
Power Supply PWS-2K04A-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
Power Distributor PDB-PT747-4648 1 Power Distributor for SC747 with graphic output feature


Optional Parts List
  Part Number Qty Description
Mounting Rails MCP-290-00059-0B 1 Rail set+handles, quick/quick, optional for 4U 17.2"W tower
GPU Kit MCP-320-74701-0N-KIT 1 GPU Kit for passive GPU/Xeon Phi support, 1 kit supports up to 4 GPU
Cable CBL-PWEX-0663 1 PCIe 8 pin male (black) to CPU 8 pin female (white) power adapter, 5cm, 18AWG, 1 cable per passive GPU
Front Bezel MCP-210-74703-0B 1 Front bezel cover (for 5.25" bay) for rackmount
Add-on Card Dummy MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
AOC Dummy Assembly MCP-240-00096-0N - SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
HDD Converter MCP-220-93801-0B - Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Add-on Card AOC-TBT-DSL5320 1 Thunderbolt 2,W/Display and GPIO cable,HF,RoHS/REACH
DVD Kit
DVD-RW with Cable DVM-LITE-DVDRW24-HBT1
CBL-0082L
CBL-0044L
-
-
-
BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat
Hide Parts List
