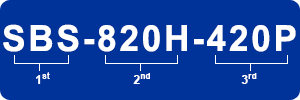

Product Naming Convention - SuperBlade®/MicroBlade™ System

SBS-

8

2

0

H

-

4

2

0

Prefix

1st



2nd


Character (Set) Representation Options
Prefix Product Type         • SBS = SuperBlade System
        • MBS = MicroBlade System
1st Enclosure Type         • 820H
        • 314E
        * See SuperBlade/MicroBlade Enclosure naming rules for details
2nd Server Type         • 420P
        • 4114S
        • 6119M
        • 6219M
        * See SuperBlade/MicroBlade Server naming rules for details

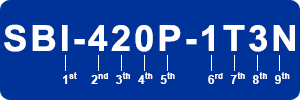

Product Naming Convention - SuperBlade® Server (X12 and above)

SBI-

4

2

0

P

-

1

T

3

N

-

LCC

Prefix

1st

2nd

3rd

4th



5th

6th

7th

8th

9th


Character (Set) Representation Options
Prefix Product Type         • SBI = SuperBlade supporting Intel CPU
1st Blade Height         • 4 = 4U Blade
        • 6 = 6U Blade
        • 8 = 8U Blade
2nd # of CPUs per Blade         • 1
        • 2
3rd Blade Generation         • 2 = X14
        • 1 = X13
        • 0 = X12
4th Socket per Platform         • P = Socket P+ (Intel)
        • E = Socket E (Intel)
        • B = Socket E2 (Intel)
        • BA = Socket BR (Intel)
5th # of Blades per row         • 1 = 10
        • 4 = 14

6th Storage Interface         • N = NVMe Support
7th Type of Drives         • E3 = E3.S
        • E1 = E1.S
8th # of Hot-plug Drive Bays         • 2, 3, 4, 5, 6, 8 = # of E3.S or E1.S

6th Storage Interface         • C = SAS3
        • T = SATA3
7th # of Hot-plug Drive Bays         • 2 = Two 2.5"
        • 3 = Three 2.5"
8th NVMe Support         • N = NVMe Support

9th Thermal Design         • LCC = Liquid Cool Cold Plate

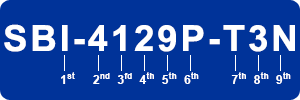

Product Naming Convention - SuperBlade® Servers (X10, X11, H12)

SBI-

4

1

2

9

P

-

T

3

N

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th


Character (Set) Representation Options
Prefix Product Type         • SBI = SuperBlade supporting Intel CPU
        • SBA = SuperBlade supporting AMD CPU
1st Blade Height         • 4 = 4U Blade
        • 6 = 6U Blade
        • 8 = 8U Blade
2nd Max # of Blades per row         • 1 = 10
        • 4 = 14
3th # of CPUs per Blade         • 1
        • 2
4th Blade Generation         • 9 = X11 (Xeon Scalable)
        • 8 = X10 (Xeon E5-2600 v4/v3)
        • 4 or 9 = H12 (AMD EPYC)
5th Socket
*Supplemental Info
        • P = Socket P (Intel)
        • R = Socket R (Intel)
        • S = Socket SP3 (AMD EPYC 7000 series)
        • M = Mehlow (Intel)
        • W = Intel Xeon W-32xx
        * G = GPU
6th Storage Interface         • C = SAS3
        • T = SATA3
7th # of Hot-Plug Bays         • 2 = Two 2.5"
        • 3 = Three 2.5"
        • 4 = Four 2.5"
        • 6 = Six 2.5"
        • 8 = Eight 2.5"
8th NVMe Support or
Networking Type
        • N = NVMe Support
        • X = 10GbE

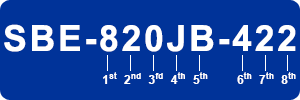

Product Naming Convention - SuperBlade® Enclosures

SBE-

8

2

0

J

B

-

4

2

2

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th


Character (Set) Representation Options
Prefix Product Type         • SBE = SuperBlade Enclosure
1st Form Factor         • 4 = 4U enclosure
        • 6 = 6U enclosure
        • 8 = 8U enclosure
2nd & 3rd Number of Blades         • 10 = 10 blades
        • 14 = 14 blades
        • 20 = 20 blades
4th Enclosure Type         • E = Enterprise
        • J = 25/10/1G Ethernet
        • C = EDR IB / Omni Path support
        • H = HDR IB
        • L = TCO Optimized
5th Battery Backup         • B = Battery Backup Enable
6th Number of Power Supply         • 8 = 8 Power Supplies
        • 6 = 6 Power Supplies
        • 4 = 4 Power Supplies
        • 2 = 2 Power Supplies
7th & 8th Power Supply
(Watt)
        • 20 = 2000W
        • 22 = 2200W
9th DC Power Supply         • D = DC Power Supply
Example: 822 = 8 x 2200W / 422 = 4 x 2200W / 222 = 2 x 2200W

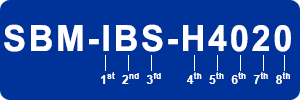

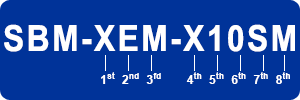

Product Naming Convention - SuperBlade® Modules

SBM-

I

B

S

-

H

4

0

2

0

Prefix

1st

2nd

3rd



4th

5th

6th

7th

8th


Character (Set) Representation Options
Prefix Product Type         • SBM = SuperBlade Module
1st - 3rd SBM Module Initials         • GEP = Gigabit Pass-Thru Switch
        • IBS = InfiniBand Switch
        • OPA = Omni Path Switch
        • 25G = 25G Ethernet Switch
4th - 8th SBM Description         • X2C+ = Layer 2/3 Ethernet
        • X3S+ = Layer 2/3 Ethernet
        • X10SM = Layer 2/3 10Gb Ethernet
        • F8X4SM = Converged with FCoE
        • T20 = 20x 1G Pass-Thru
        • 002 = 14x 1G Pass-Thru
        • 002M = 10G Pass-Thru Ethernet
        • F3616M = 20 4x FDR
        • Q3616M = 20 4x QDR
        • E3616M = 20 4x EDR
        • H4020 = 24x 100G HDR
        • C4020 = 24x 100G OPA
        • P10 = 25G Pass-Thru Module
        • 100 = 25G Ethernet

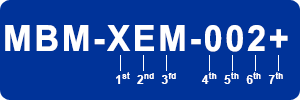

MBM-

X

E

M

-

0

0

2

+

Prefix

1st

2nd

3rd



4th

5th

6th

7th


Character (Set) Representation Options
Prefix Product Type         • MBM = MicroBlade Module
1st - 3rd MBM Module Initials         • CMM = Chassis Management Module
        • GEM = 1 Gigabit Ethernet Switch
        • XEM = 10 Gigabit Ethernet Switch
4th - 7th MBM Description         • 001 = (XEM) Intel Based Layer 2
        • 001 = (CMM) DB9 Console Port
        • 002 = Broadcom Based Layer 2
        • 002+ = Broadcom Based Layer 2 + RJ45
        • 004 = Broadcom Based Gigabit Layer 2
        • 100 = Marvell Based 10 Gigabit
        • FIO = Front I/O
        • FIO-V = Front I/O (signed FW)
