SuperServer 6019U-TN4R4T (Complete System Only)

  Products  Systems   Ultra   [ 6019U-TN4R4T ]





Integrated Board
X11DPU

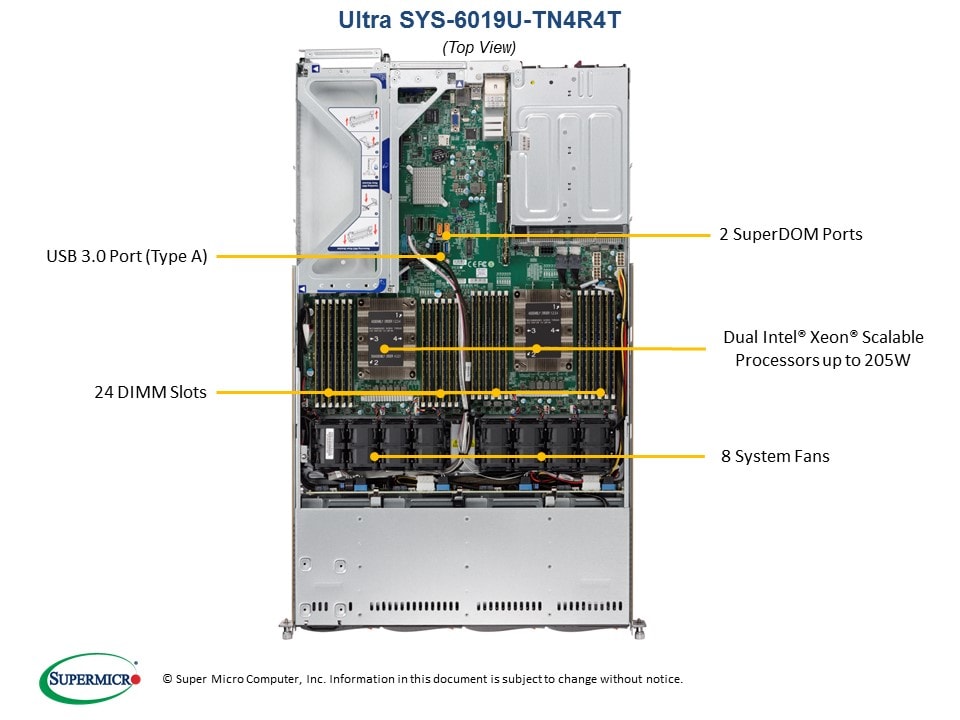

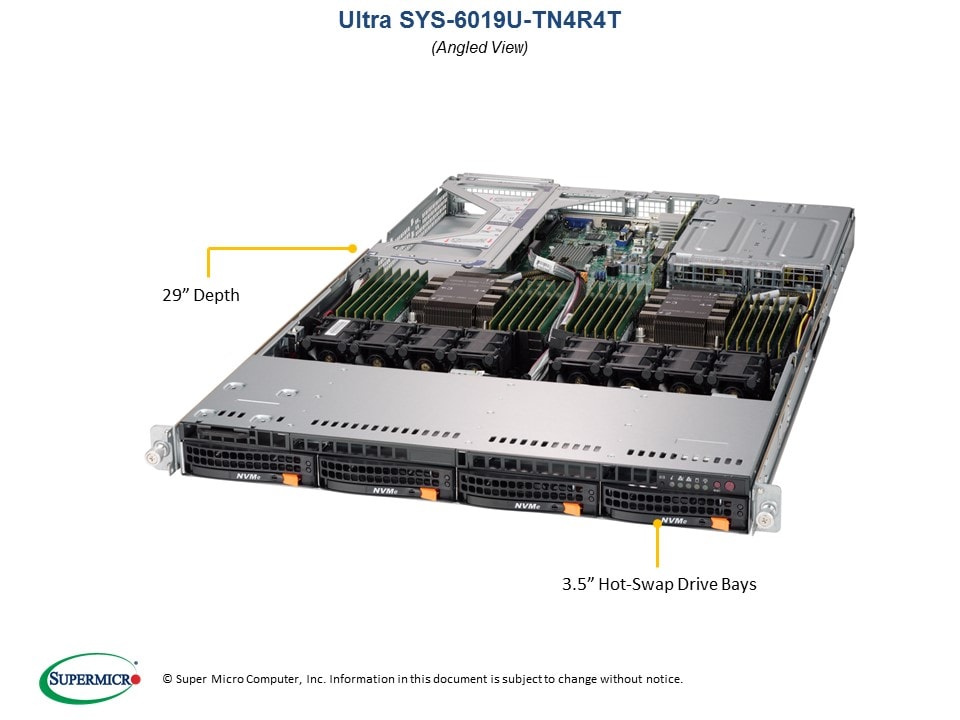

Views: | Angled View | Top View |

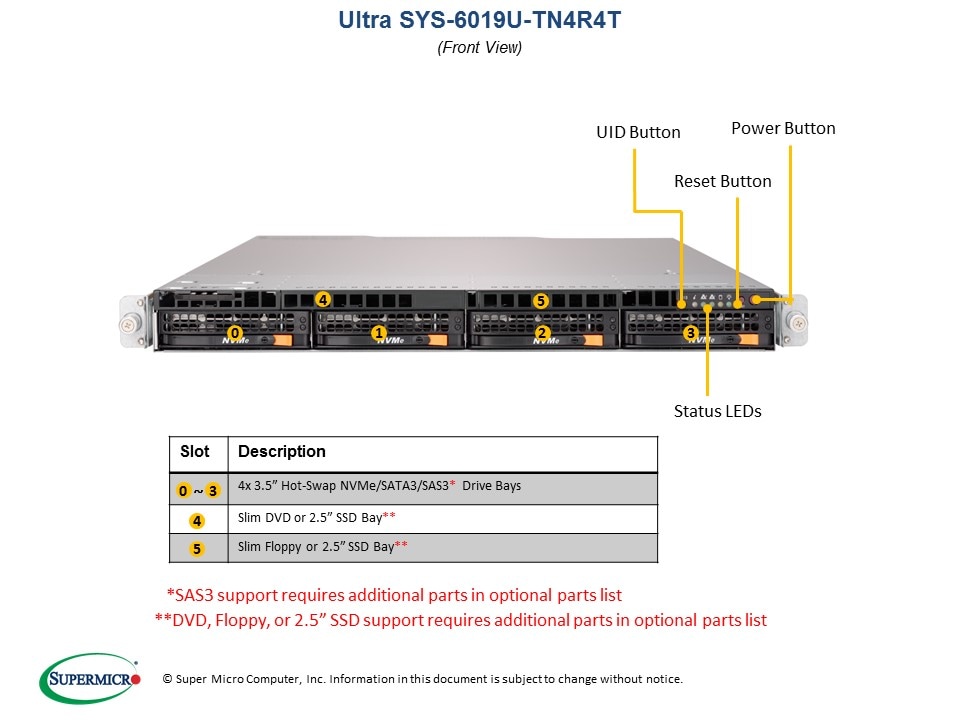

| Front View | Rear View |

Key Features
• Virtualization
• Cloud Computing
• High End Enterprise Server

1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
    2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4. 4 10GBase-T Ethernet ports
5. 4 Hot-swap 3.5" drive bays:
    4 NVMe/SATA3 hybrid ports;
    2 internal M.2 (1 SATA3, 1 NVMe);
    1 M.2 NVMe port, Optional extra
    M.2 NVMe and SATA3 ports
6. 8 Heavy duty fans w/ optimal
    fan speed control
7. 750W Redundant Power Supplies
    Platinum Level (94%+)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6019U-TN4R4T
  • SuperServer 6019U-TN4R4T (Black)

Motherboard

Super X11DPU

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 4x 10GBase-T ports via AOC-UR-i4XT (Intel® X540 10GBase-T)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA/NVMe
  • 4 SATA3 (6Gbps)/NVMe ports
LAN
  • 4 RJ45 10GBase-T Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear, 1 Type A)
Video
  • 2 VGA ports (1 rear, 1 onboard)
Serial Port
  • 1 Serial header
DOM
  • 2 SATA DOM (Disk on Module) support with embedded power

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819UTS-R751P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.7" (754mm)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
  • 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage
Hot-swap
  • 4 Hot-swap 3.5" drive bays:
    4 NVMe/SATA3 hybrid ports (optional SAS3 via AOC)
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

System Cooling
Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPU
CSE-819UTS-R751P-T
1
1
Super X11DPU Motherboard
1U Chassis
Add-on Card / Module AOC-UR-I4XT-P 1 1U Ultra Riser based on Intel X540 controller with 4-port 10GBase-T and 1 internal PCI-E 3.0 x8 slot
Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0650 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
Cable 2 CBL-SAST-0819 4 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 3 CBL-SAST-0880 1 MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG
FAN 1 FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Drive Tray(s) MCP-220-00138-0B 4 Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
Air Shroud MCP-310-81910-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
Air Shroud MCP-310-81911-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M.2 NVMe Modules
Cable for internal M.2 SATA CBL-SAST-0538 1 29cm 30AWG SATA S-RA cable
3.5" SATA/SAS Drive Tray
Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays
MCP-220-00075-0B
MCP-220-00118-0B
MCP-220-00043-0N
1~4 Black hot-swap 3.5" drive tray (Red tab, w/ hollow dummy)
Tool-less black hot-swap 3.5-to-2.5 converter drive tray (Red tab)
Black hot-swap 3.5-to-2.5 converter drive tray (Red tab)
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
DVM-TEAC-DVDRW-SBT5
1 SLIM DVD-ROM / DVD-RW SATA DRIVE
DVD-ROM / DVD-RW Installation Kit MCP-220-81502-0N 1 Slim SATA DVD kit
Hot-Swap 2.5" Slim HDD Tray (FDD Slot) MCP-220-81504-0N & CBL-0161L & CBL-PWEX-0702 1 12G 2.5" Hot-swap Slim Floppy Size Drive Kit w/Status LED
Hot-Swap 2.5" Slim HDD Tray (DVD Slot) MCP-220-81506-0N & CBL-0161L & CBL-PWEX-0702 1 12G 2.5" Hot-swap Slim DVD Size Drive Kit with Status LED
USB Port Tray
(FDD Slot)
MCP-220-00129-0B 1 Black 2x USB 3.0 port tray in slim FDD bay
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N
CBL-PWEX-0650
CBL-0080L
CBL-0484L Or
CBL-SAST-0654 Or
CBL-SAST-0948
1
1
2
2
1
1
Internal drive plate Supports Two 2.5" Drive, PCI slots
Power cable for Two internal 2.5" drives

SATA3 S-S Cable
miniSAS(iPass) to 4 SATA Cable
miniSAS HD to 4 SATA Cable
Storage Control Card and Cable(s) AOC-S3008L-L8e &
1x CBL-SAST-0948
AOC-S3008L-L8i &
1x CBL-SAST-0948
AOC-S3108L-H8iR &
1x CBL-SAST-0948
AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0948
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
More
-
-
-
-
-
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
-
-
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black hot-swap 3.5" to 2.5" HDD tray
1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
TPM security module AOM-TPM-9670H-S
AOM-TPM-9671H-S
1
1
TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
