SuperServer 6028U-TRT+ (Complete System Only)

  Products  Systems   Ultra   [ 6028U-TRT+ ]




Integrated Board
Super X10DRU-i+

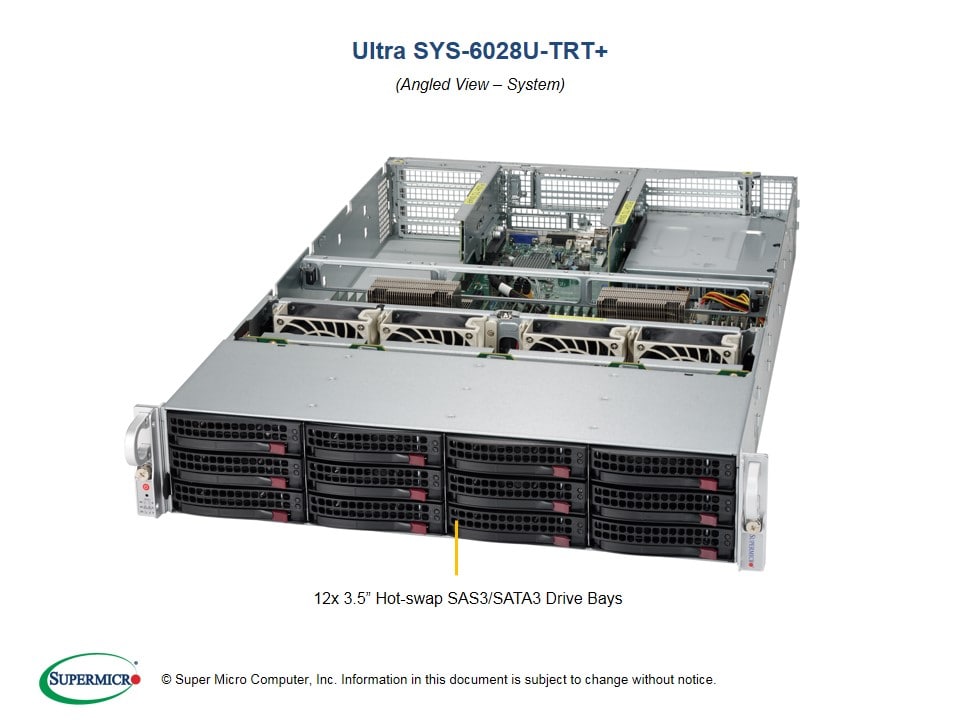

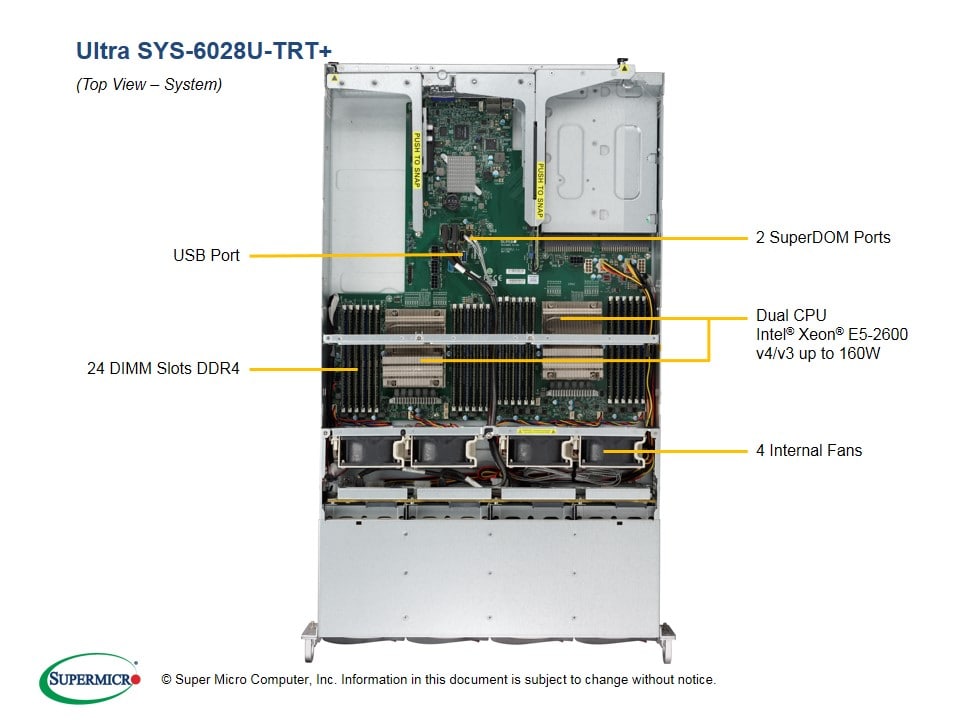

Views: | Angled View | Top View |

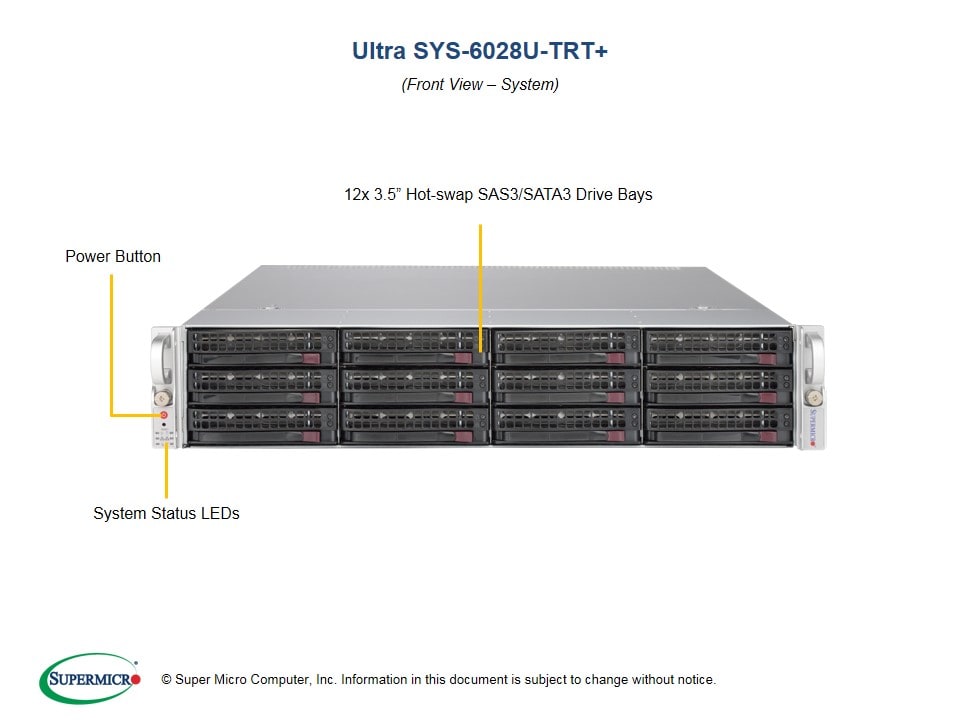

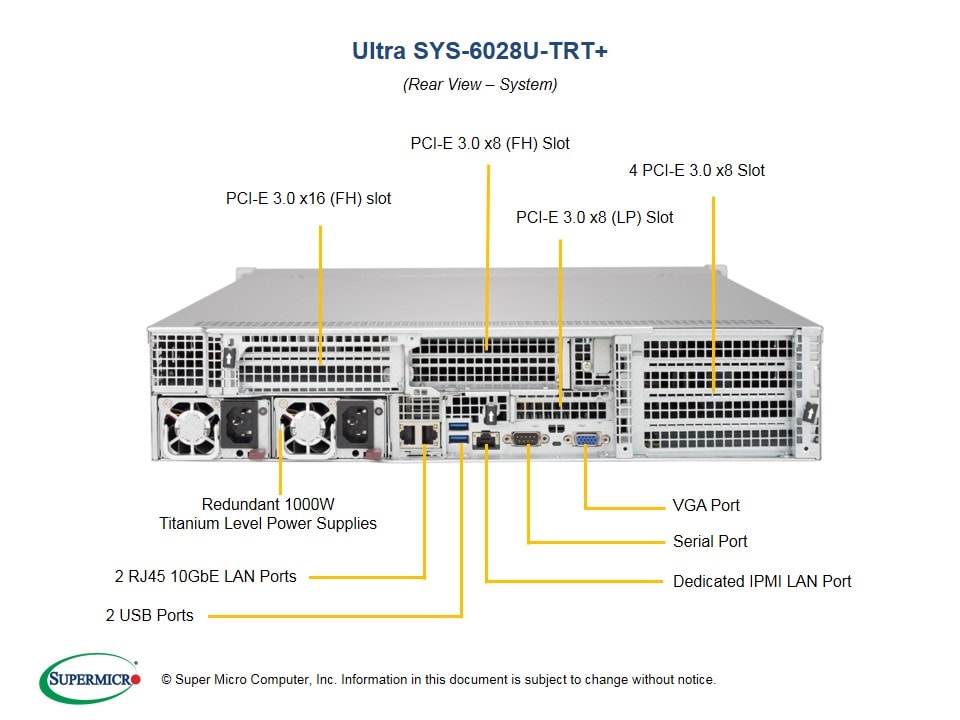

| Front View | Rear View |

 Key Features
• Flexible Connectivity Options
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 24 DIMM slots
3. 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
    7 PCI-E 3.0 x8 slots (5 FH, 10.5" L,
    1 LP, 1 Internal LP)
4. 2x 10GBase-T ports
5. 12 Hot-swap 3.5" Drive Bays:
    10 SATA3 ports by default;
    Optional drive support: 12 SAS3;
    Optional 2 hot-swap 2.5" rear drive
    bays for SSDs
6. 4 heavy duty fans w/ optimal
    fan speed control
7. 1000W High efficiency (96%)
    Redundant PSU; Titanium Level

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-6028U-TRT+
  • SuperServer 6028U-TRT+ (Black)

Motherboard

Super X10DRU-i+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  • NVDIMM: 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 2x 10GBase-T ports via AOC-2UR68-i2XT
  • Intel® X540 10GBase-T
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
SAS
  • 12x SAS3 ports support via optional Add-on Card
LAN
  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1x VGA Connector
Serial Port / Header
  • 1x Serial header
DOM
  • 2x SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829UAC-R1K02-T

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 28.46" (723mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 slot (FH, 10.5" L)
  • 7x PCI-E 3.0 x8 slots
    (5x FH, 10.5" L, 1x LP, 1x Internal LP)


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 12x Hot-swap 3.5" Drive Bays:
    10x SATA3 ports by default
  • Optional drive support: 12x SAS3


    • Note: optional storage card is required to support more than 10 drives.

Backplane
2U SAS/SATA backplane

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
  • 1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRU-i+
CSE-829UAC-R1K02-T 		1
1		 Super X10DRU-i+ Motherboard
2U Chassis
Add-on Card / Module AOC-2UR68-I2XT 1 2U Ultra Riser based on Intel X540 controller with 2 10Gbase-T ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot)
Air Shroud MCP-310-82912-0N 1
Backplane BPN-SAS3-826A 1 12-port 2U SAS3 12Gbps direct-attached backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-PWEX-0652 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACH
Cable 2 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 3 CBL-PWEX-0673 1 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 4 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
Cable 5 CBL-SAST-0631 1 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Parts MCP-240-82909-0N 1 Ultra I/O bracket for SC829U, 219U (i2XT),RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1641-QRG 1 SYS-6028U-TR(4/4T/T/TP)+, QRG,HF,RoHS/REACH
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x4 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0058PSU 2 2U Passive CPU Heat Sink for X10 2U 24-DIMM Ultra Series Servers,RoHS/REACH
Power Supply PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
Mounting Rails MCP-290-00053-0N
MCP-290-00060-0N		 1
1		 Inner/outer rail set, quick-release type, 26.5" to 36.4"
Threaded rail adapter default for round hole rack


Optional Parts List
  Part Number Qty Description
Mounting Rails MCP-290-00053-0N
MCP-290-00060-0N		 -
-		 Inner/outer rail set, quick-release type, 26.5" to 36.4"
Threaded rail adapter default for round hole rack
2U Ultra optional rear drive kit MCP-240-82922-0N-OEM &
MCP-240-82915-0N-OEM		 1 Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less
2U Cable Management Arm MCP-290-00128-0N &
MCP-290-00127-0N		 1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-0593
AOC-S3008L-L8i &
2x CBL-SAST-0593
AOC-S3108L-H8iR &
2x CBL-SAST-0593 		-
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STG-b4S
AOC-STG-i2T
AOC-STG-i2
AOC-S40G-i2Q
More		 -
-
-
-
-
-
-		 Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black hot-swap 3.5" to 2.5" HDD tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
