SuperServer 6029P-WTR

  Products  Systems   WIO   [ 6029P-WTR ]




Integrated Board
Super X11DDW-L

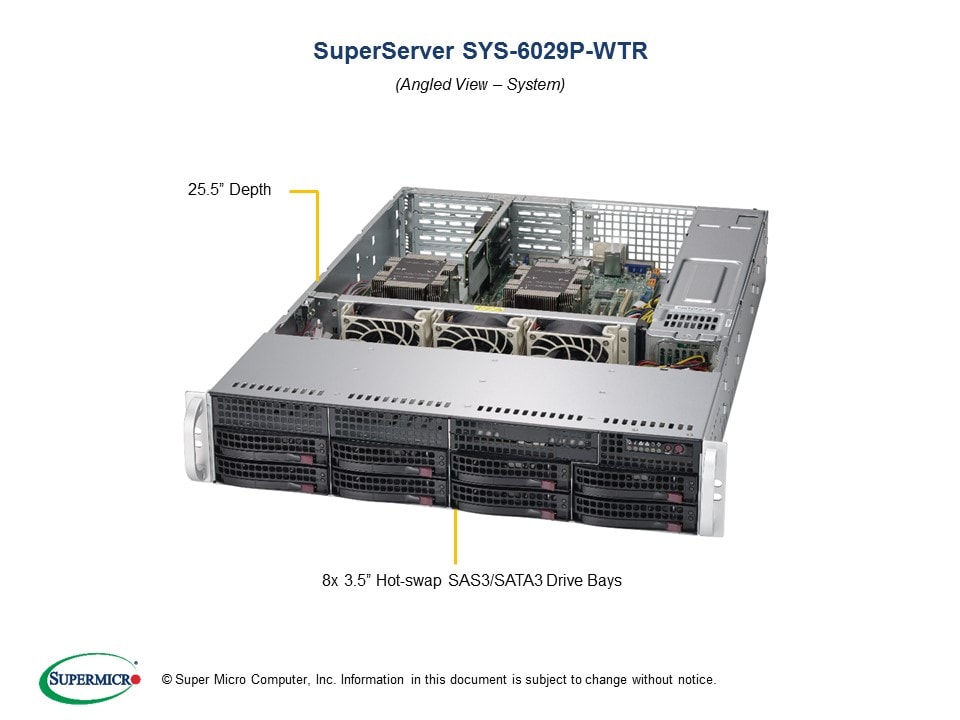

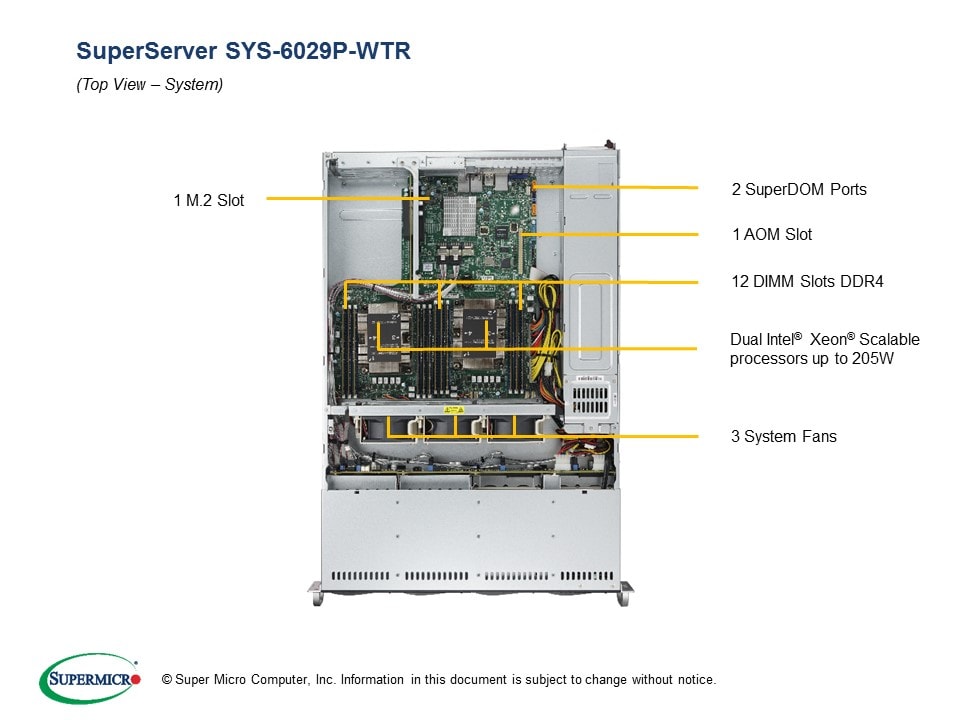

Views: | Angled View | Top View |

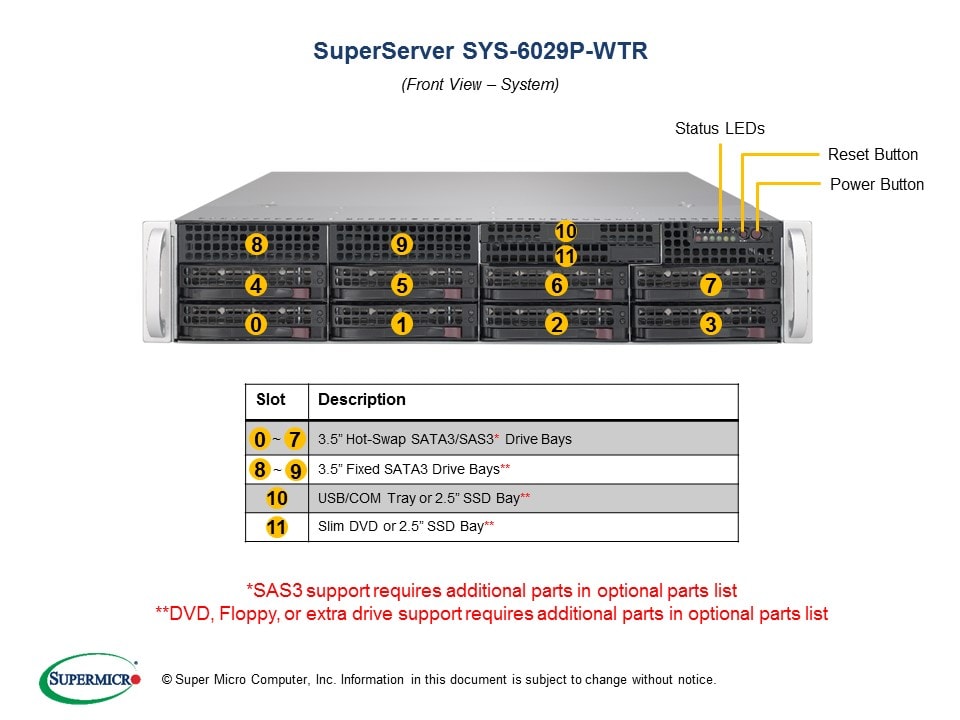

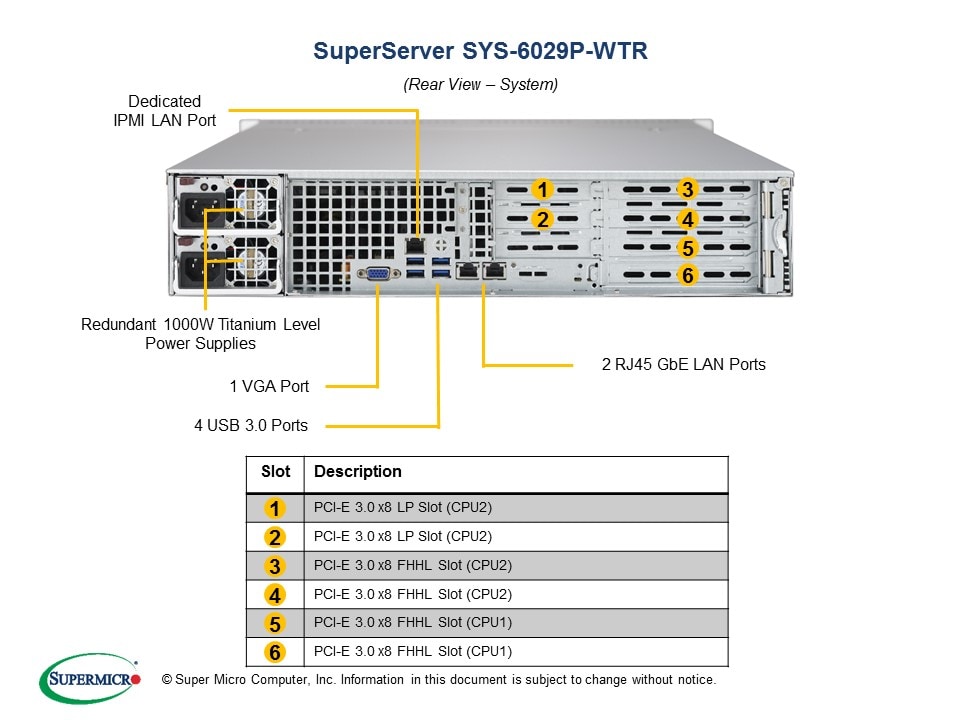

| Front View | Rear View |

 Key Applications
• Web Server, Firewall Apps.
• Corporate-Wins, DNS, Print, Login
• Gateway, provisioning servers
• Compact Network Appliance
• Cloud Computing


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 4 PCI-E 3.0 x8 (FHHL) slots,
    2 PCI-E 3.0 x8 (LP) slots,
    1 PCI-E 3.0 x16 for Add-on-Module
    (Support SAS3 Storage controller),
    1 PCI-E 3.0 x4 NVMe M.2 slot
4. 8 Hot-swap 3.5" SAS/SATA drive bays
    with SGPIO, 2 Fixed 3.5" drive bays
5. 1 Slim DVD-ROM drive bay (optional)
6. 2x 1GbE LAN ports via Intel C621
7. 1 VGA, 4 USB 3.0 (rear)
8. M.2 support
9. 1000W Redundant Power Supplies
    Titanium Level (96% Efficiency)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Quick-References Guide  Compatible GPU List  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6029P-WTR
  • SuperServer 6029P-WTR (Black)

Motherboard

Super X11DDW-L

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 1GbE LAN ports from Intel C621
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 12 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 62 lbs (28.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x8 (FHHL) slots
  • 2 PCI-E 3.0 x8 (LP) slots
  • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
  • 1 PCI-E 3.0 x4 NVMe M.2 slot


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS/SATA drive bays with SGPIO
Internal
  • 2 Fixed 3.5" drive bays

Peripheral Drives
DVD-ROM
  • 1 Slim DVD-ROM drive (optional)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 3 Heavy duty 8cm fans with PWM fan speed control

Power Supply (76mm Width)
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 12-9A / 50-60Hz
  • 200-240Vac / 7.2-6A / 50-60Hz
  • 200-240Vdc / 7.2-6A (for CCC only)
+12V
  •   Max: 66.7A / Min. 0A (100-127Vac)
  •   Max: 83A / Min. 0A (200-240Vac)
  •   Max: 83A / Min. 0A (200-240Vdc)
5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Titanium Level Certified96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DDW-L
CSE-825TQC-R1K03WB 		1
1		 Super X11DDW-L Motherboard
2U Chassis
Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Storage Cable CBL-SAST-0388L-02 2 MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
Rubber Pads MCP-150-00017-0B 2 Rubber pad, 6.5mm H, 10x10mm
Chassis Part MCP-240-00146-0N 1 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH
Air Shroud MCP-310-82602-0B 1 air shroud X11DDW + CSE-826B
Manual MNL-2031-QRG 1 6029P-WTR Quick Reference Guide,HF,RoHS.
Riser Card (right) RSC-R2UW-2E8R 1 2U RHS WIO Riser card with two PCI-E x8 slots
Riser Card (left) RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x8 slots
Heatsink w/ Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
* Power Cord CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* FAN FAN-0181L4 3 80x80x38 mm, 9.4K RPM Cooling Fan
* Rail Set MCP-290-00053-0N 2 Rail set, quick/quick, default for 2,3U 17.2"W
Notes:
  1. Parts with * come with the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Optional Upgrade for 2U LHS WIO Riser RSC-R2UW-2E8E16+
Or RSC-W2-66		 1
1		 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots
2U LHS WIO Riser card with 2 PCI-E x16 double width slots
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / RW & Mounting Kit DVM-TEAC-DVD-SBT5
& MCP-220-81502-0N
DVM-TEAC-DVDRW-SBT5
& MCP-220-81502-0N		 1 BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS
Slim SATA DVD mounting kit
BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS
Slim SATA DVD mounting kit
Internal 2.5" HDD Tray (COM slot) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray (DVD Slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
Cable for internal HDD CBL-SAST-0624
CBL-0289L		 2
1		 SATA,INT,ROUND,ST-ST,70CM,30AWG
Y split, big 4 pin to two RA SATA power extension 30cm, 20AWG
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Storage Controller
Card(s) & Cables(s)		 AOC-S3908L-H8IR-16DD &
1x CBL-SAST-1295T8S4-100

AOC-S3808L-L8iT &
1x CBL-SAST-1295T8S4-100

AOM-S3108M-H8 &
2x CBL-SAST-0699

AOC-S3108L-H8IR-16DD &
2x CBL-SAST-0699

AOC-S3008L-L8i &
2x CBL-SAST-0699

AOC-S3008L-L8e &
2x CBL-SAST-0699 		- Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD;
RAID 0, 1, 5, 6, 10, 50, 60; 95cm Slimline to 8 SATA Cable

Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD;
HBA; 95cm Slimline to 8 SATA Cable

Supermicro LP, 8 internal ports (12Gb/s) SAS Mezzanine;
RAID 0, 1, 5, 6, 10, 50, 60

Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60

Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10

Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
CacheVault (for 3108) BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 - CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location (Installed in the fixed 3.5" bays)
CacheVault (for 3908/3916) BTR-CVPM05 & BKT-BBU-BRACKET-05/MCP-240-00127-0N
BTR-CVPM05 & MCP-240-00203-0N		 1 CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3908/3916; SuperCap mounting bracket for 2.5" HDD location
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGS-i1T
AOC-STGS-i2T
AOC-STG-i4T
AOC-STGN-i1S
AOC-STGN-i2S
AOC-STG-i4S
AOC-S25G-i2S
AOC-MCX555A-ECAT

AOC-MCX556A-ECAT 		- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350AM4
Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel® X550-AT
Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel® X550-AT2
Standard LP, 4x 10GBE RJ45, PCI-E x8, Intel® XL710-BM1
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel® XL710-BM1
Standard LP, 2x 25GbE SFP28, PCI-E x8, Intel® XXV710 + Marvell Unionville
Standard LP, 1x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Standard LP, 2x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
Front Bezel MCP-210-82503-0B 1 Black SC825 front bezel
Cable Management Arm MCP-290-00073-0N & MCP-120-82503-0N 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
Inlet Thermal Sensor MCP-280-00033-0N - Universal Thermal sensor kit with 80cm I2C cable
TPM security module (optional, not included) AOM-TPM-9670V-S
AOM-TPM-9671V-S		 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 - 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)

Note: For special low power setup SKU only (3 optional parts below), contact our sales for details
Power Supply Dummy Cover CSE-PT0130L - Power Supply Dummy Cover
Power Supply PWS-802A-1R - 800W 100-240Vac/47-63Hz, and DC240 input
Fan FAN-0126L4 - 80x80x38 mm 7K RPM Chassis Middle Fan
Hide Parts List
