| SYS-4048B-TR4FT |
- SuperServer 4048B-TR4FT (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor
E7-8800 v4/v3, E7-4800 v4/v3
family
(up to 24 Cores and 165W TDP)
- Quad Socket R1 (LGA 2011)
|
| Cache |
|
| System Bus |
|
| |
|
| Memory Capacity |
- 96x 288-pin DDR4 DIMM slots
- Supports up to 12TB DDR4 ECC 3DS LRDIMM in 96 DIMM slots
|
| Memory Type |
- 1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
|
| DIMM Sizes |
- 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| AHCI SATA |
- SATA3 (6Gbps) with RAID 0, 1
- SATA2 (3Gbps) with RAID 0, 1, 5, 10
|
Network Controllers
(via AOM) |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBase-T
, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
IPMI
(via AOM) |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED 2400
|
| Graphics |
|
| |
|
| AHCI SATA |
- 2x SATA3 (6Gbps) ports
- 4x SATA2 (3Gbps) ports
|
| LAN |

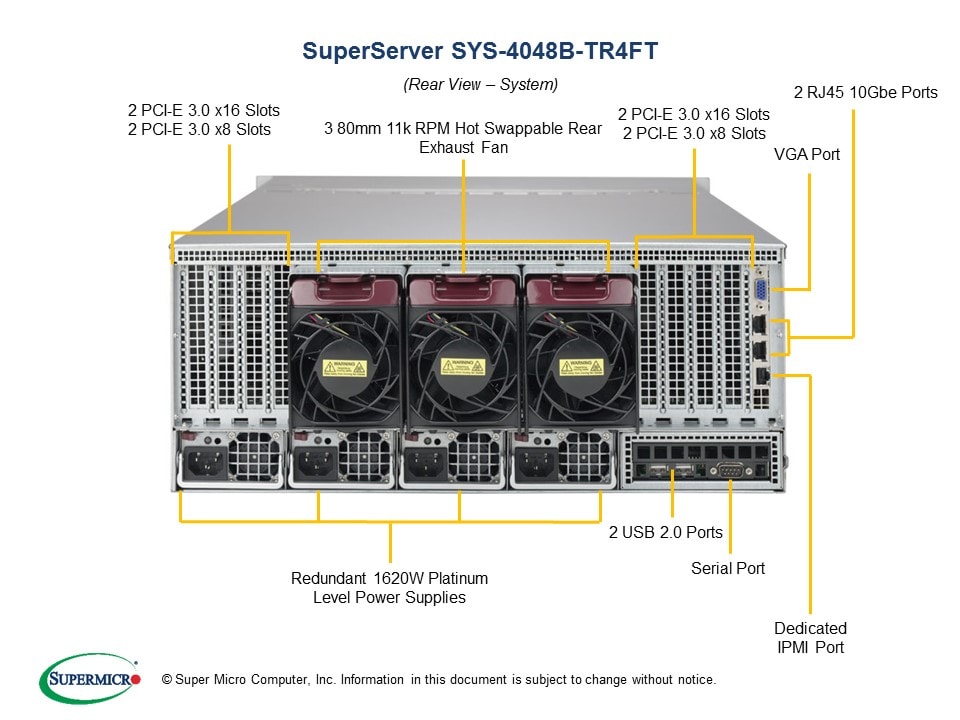

- 2x RJ45 10GBase-T ports on AOM
- 1x dedicated LAN port for IPMI on AOM
|
| USB |
|
| Serial Port / Header |
- 2x Fast UART 16550 ports: 1 rear and 1 header
|
| DOM |
- 1x DOM (Disk on Module) power connector
|
| |
|
| BIOS Type |
- 16MB SPI Flash EEPROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
|
|
|
|
|
| Form Factor |
- 4U Rackmountable
- Rackmount Kit: Comes with the system
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Weight |
- Net Weight: 74.5 lbs (33.79 kg)
- Gross Weight: 115 lbs (52.16 kg)
|
| Available Colors |
|
| |
|
| Hot-swap |

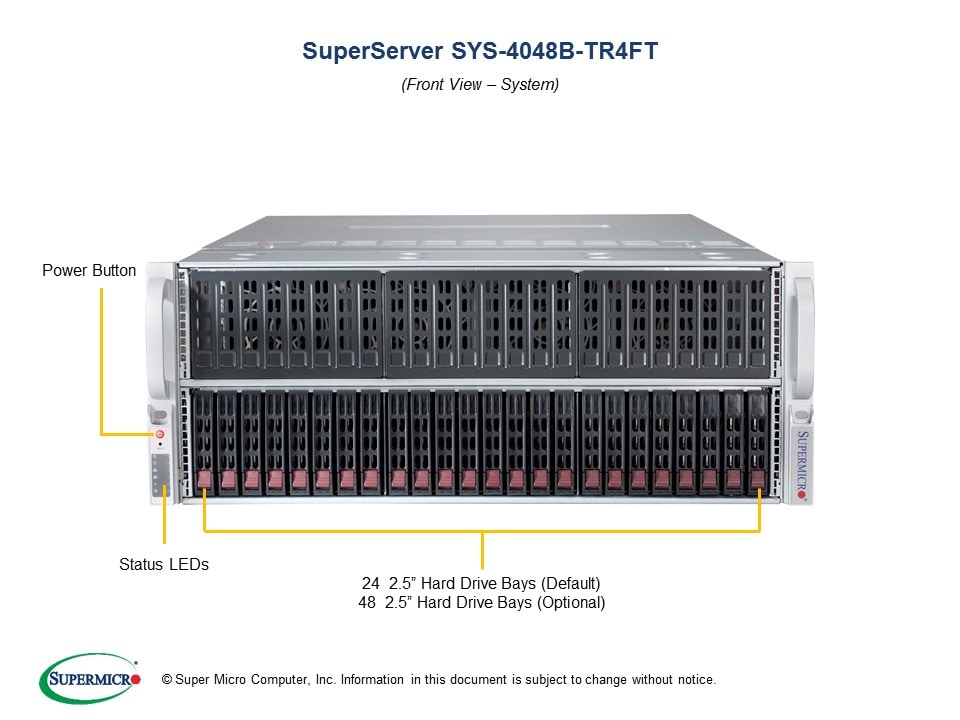

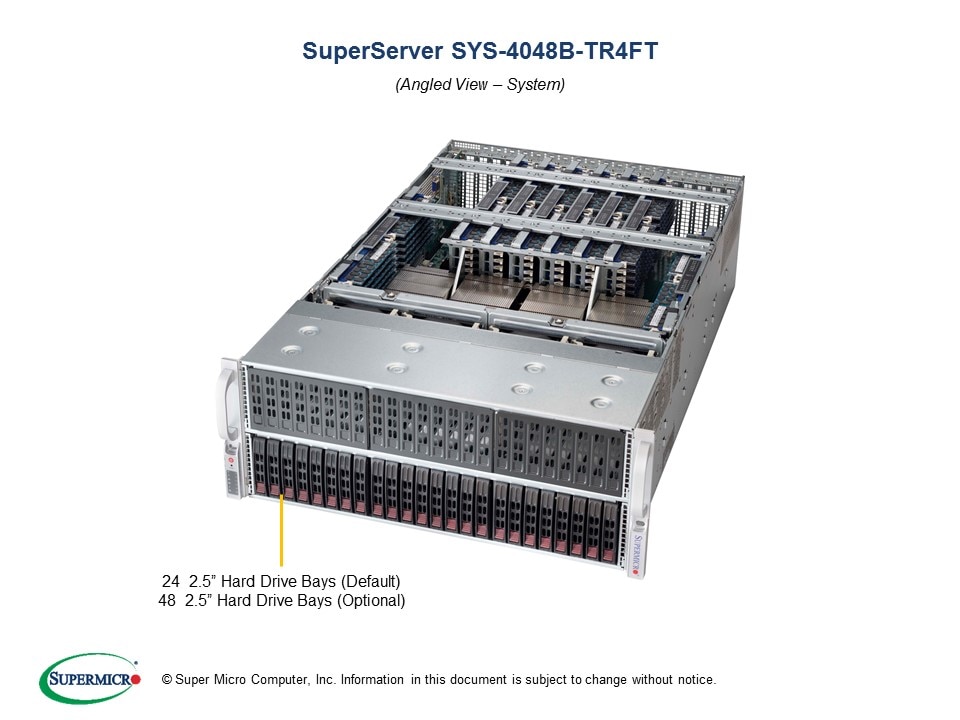

- 24x 2.5" Hard drive bays (default)*
- 48x 2.5" Hard drive bays (optional)
* BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2
|
| |
|
| PCI-Express |
- 11x PCI-E 3.0 slots w/ 48 memory slots
(4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
- 8x PCI-E 3.0 slots w/ 96 memory slots
(4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)
|
| |
|
| SAS/SATA HDD Backplane
|
| |
|
| Fans |

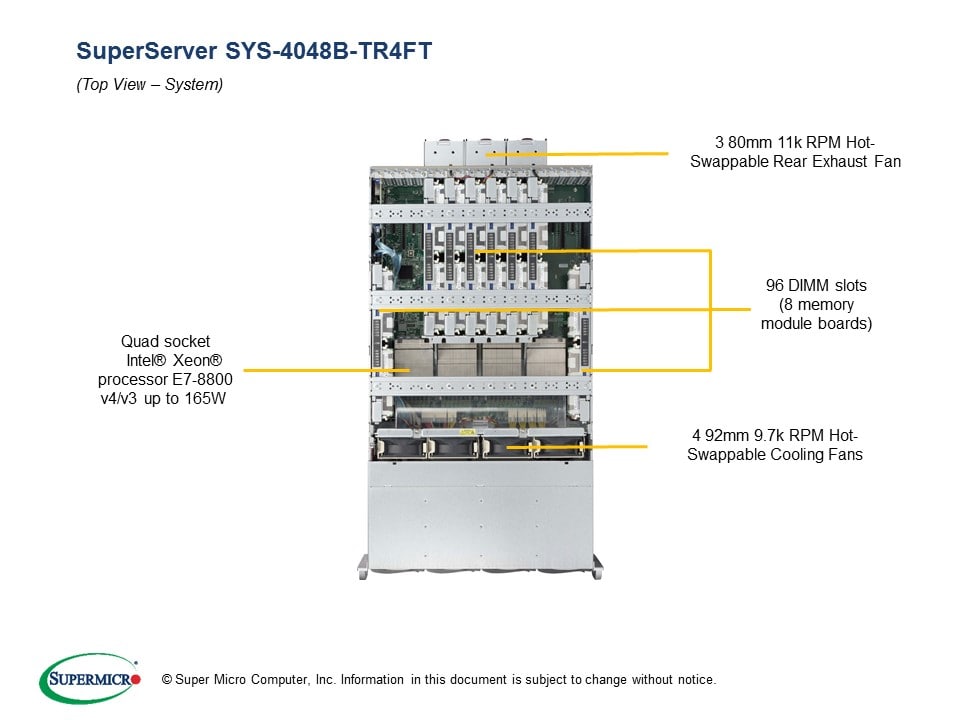

- 4x 92mm RPM Hot-Swappable Cooling Fans
- 3x 80mm RPM Hot-Swappable Rear Exhaust Fan
- 2x 80mm Rear Exhaust Fans (optional)
|
| Shrouds |
- 1x Air Shroud (MCP-310-41804-0B)
|
| | |
| 1620W high-efficiency redundant power supply w/ PMBus |
| AC Input |
- 1000W Output @ 100-120V, 12-10A, 50-60Hz
- 1200W Output @ 120-140V, 12-10A, 50-60Hz
- 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
|
| DC Output |
- 1000W: +12V/84A; +5Vsb/4A
- 1200W: +12V/100A; +5Vsb/4A
- 1620W: +12V/150A; +5Vsb/4A
|
| Certification |
  Platinum Certified
[ Test Report ]
|
| |
|
| CPU |
- Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
- 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
|
| FAN |
- 4-pin fan headers with tachometer status monitoring
- Low noise fan speed control mode
|
| Temperature |
- Monitoring for CPU and system environment
- Thermal Control for 9x fan connectors
|
| Other Features |
- Chassis intrusion detection
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
