SuperServer F618R2-RTPT+

  Products  Systems   FatTwin™   [ F618R2-RTPT+ ]





Integrated Board
Super X10DRFR-NT

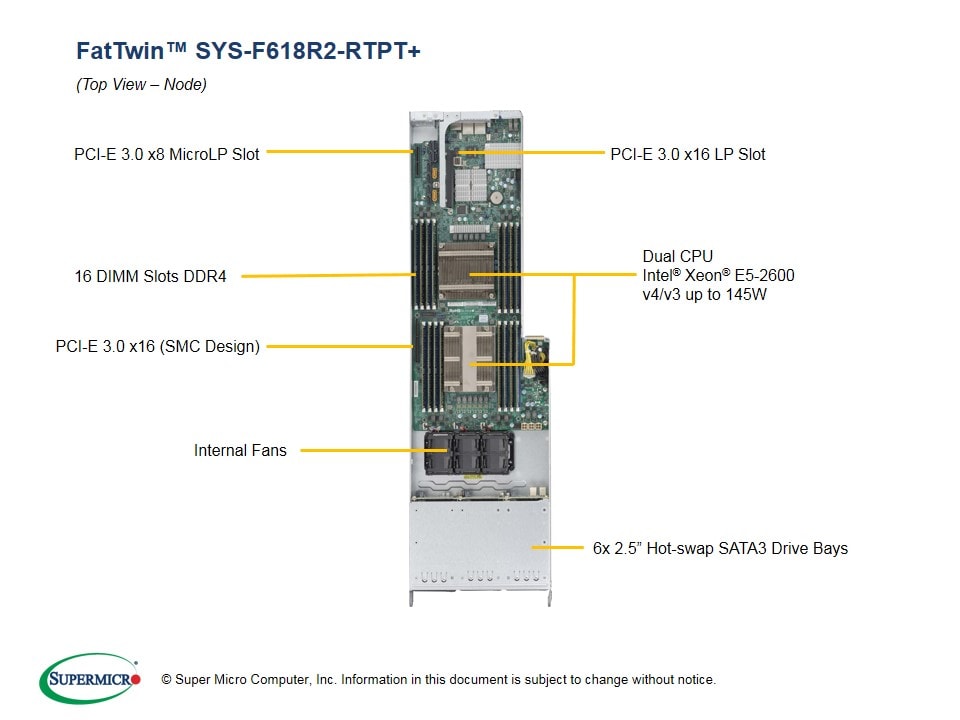

Views: | Angled (node) | Top (node) |

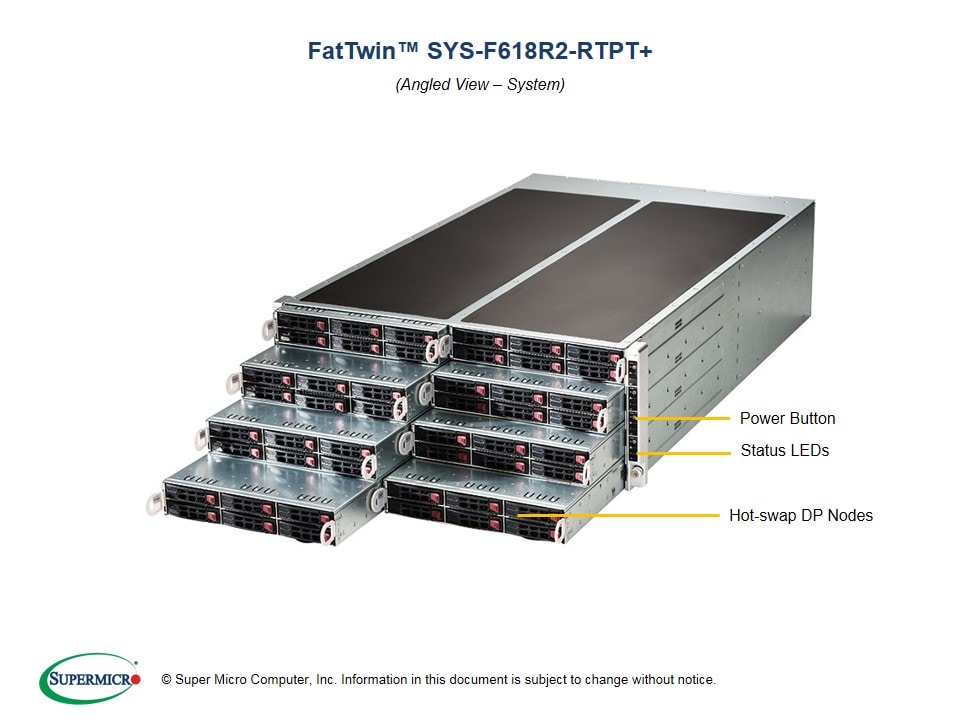

| Angled Front (system) | Rear (system) |

Key Features
8 Hot-plug System Nodes in 4U
Each node supports:


1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. Expansion slots: 1 PCI-E 3.0 x16 (LP)
    1 PCI-E 3.0 x8 (Micro Low Profile)
4. I/O ports: 2 10GBase-T, 1 Built-in
    video, 2 USB 3.0 ports
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 6x Hot-swap 2.5" SATA3 HDD Bays
7. 3x heavy duty internal fans
8. 1620W Redundant Power Supplies
    Platinum Level (94%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SYS-F618R2-RTPT+
  • SuperServer F618R2-RTPT+ (Black)

Motherboard

Super X10DRFR-NT

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
Serial ATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports
VGA
  • 1x VGA port

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC-R1K62BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)
PCI-Express

Drive Bays (per node)
Hot-swap
  • 6x 2.5" Hot-swap SATA3 HDD trays

Backplane
1x SAS/SATA backplane

System Cooling (per node)
Fans
  • 3x 4cm 14k RPM middle fans

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRFR-NT
CSE-F418BC-R1K62BP
8
1
Super X10DRFR-NT Motherboard
4U Chassis
Backplane BPN-ADP-F418LS 8 Power Distribution Board for X10DRFR,RoHS/REACH,PBF
Backplane BPN-SAS-F418-B6 8 6-port Fat Twin 6Gbps hot swappable HDD backplane (W/O SGPIO), support up to 6x 2.5-inch SAS/SATA HDD
Cable 1 CBL-0157L-02 16 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG
Cable 2 CBL-0481L 16 SATA,INT,ROUND,ST-ST,81CM,30AWG
Cable 3 CBL-0484L 16 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 4 CBL-0486L 16 2x2 to 2x2 15cm power cable HF. 18AWG
Cable 5 CBL-0489L 16 SATA,INT,ROUND,ST-RA,70CM,30AWG
Cable 6 CBL-OTHR-0022L 8 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF
Cable 7 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Manual MNL-1651-QRG 1 Quick Reference Guide for SYS-618R2-RTPT+/R72PT+,HF,RoHS/REACH
Riser Card RSC-R1UF-E16R 8 RSC-R1UF-E16R
Heatsink / Retention SNK-P0047PSM 8 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
Heatsink / Retention SNK-P0057P 8 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
* Power Supply PWS-1K62P-1R 4 1620W REDUNDANT POWER MODULE
* Backplane BPN-PDB-F418 2 Fat Twin Mid-plane; support 2x PS; 4x MB hot-swap & over-current connection; Front panel connection and 4X PWM fan control
* Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Software SFT-OOB-LIC 8 OOB Management Package (per node license)
Software SFT-DCMS-Single 8 DataCenter Management Package (per node license)
Hide Parts List
