SuperServer 1028GQ-TXRT (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   GPU/Xeon Phi™   [ 1028GQ-TXRT ]





Integrated Board
X10DGQ

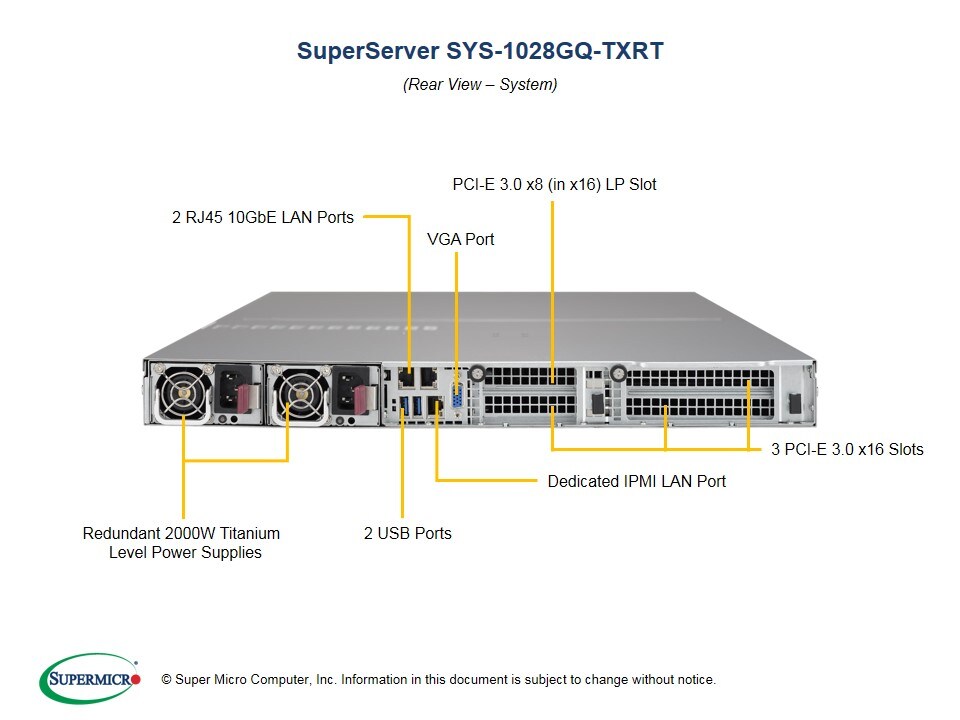

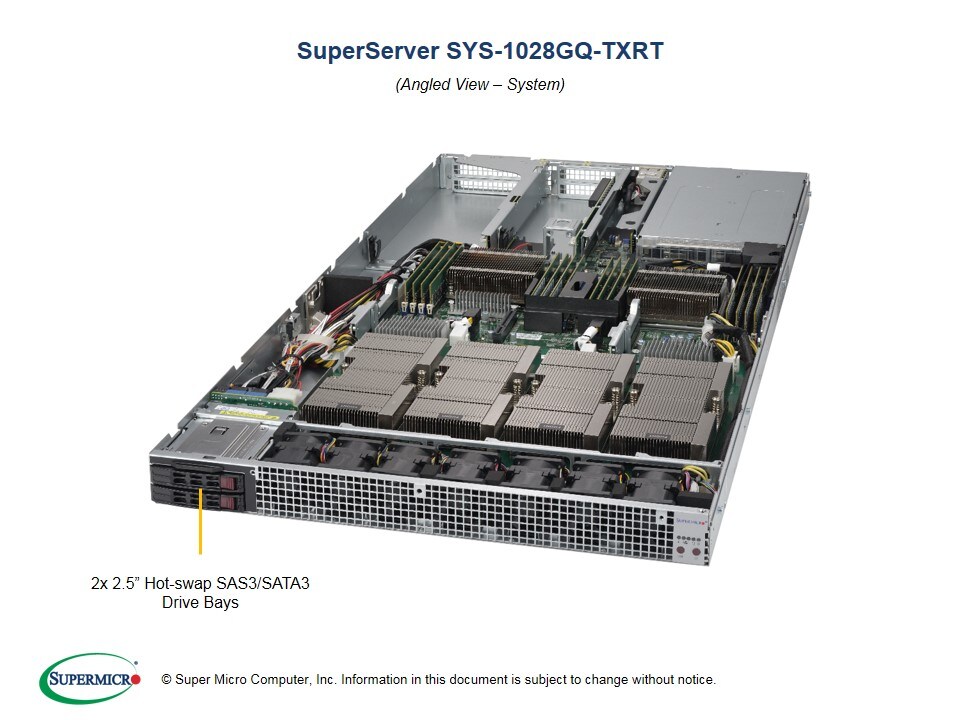

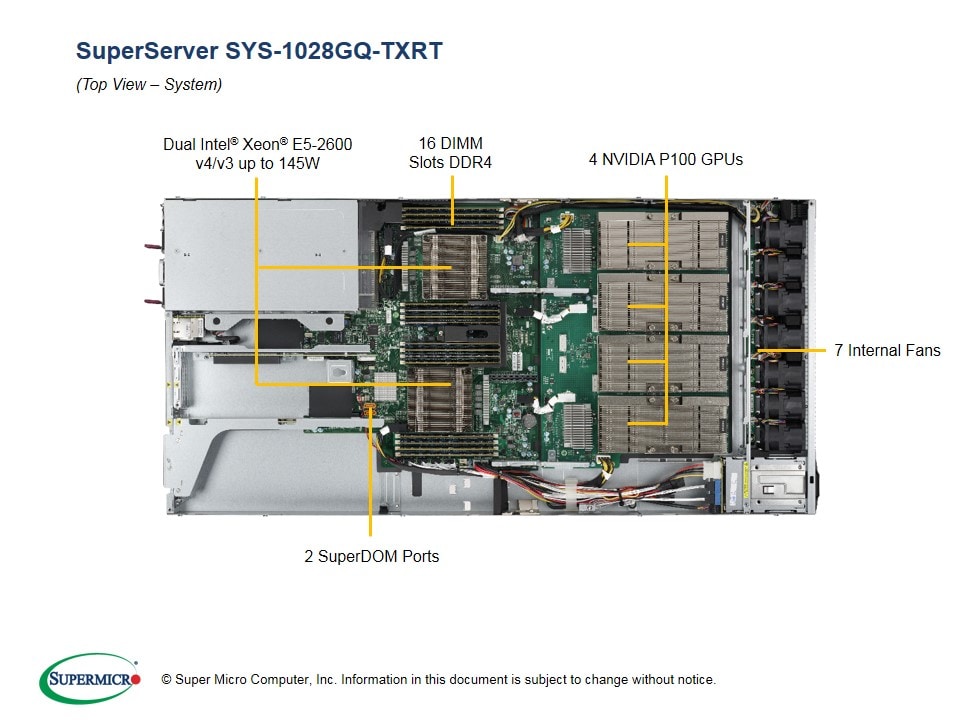

Views: | Angled View | Top View |

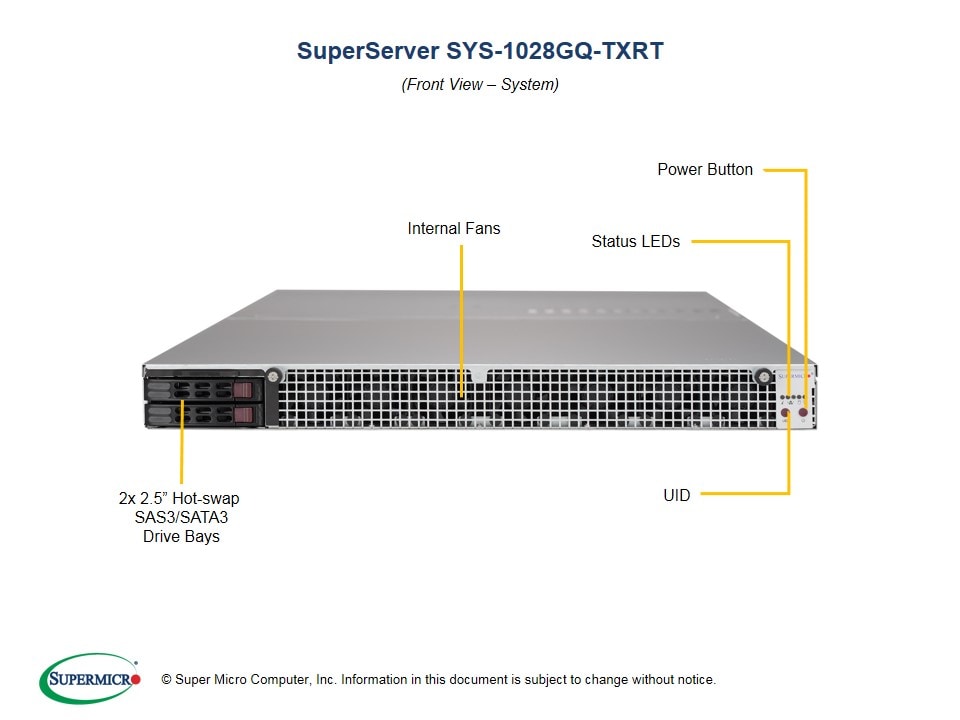

| Front View | Rear View |

Key Features
  - Up to 4 Tesla P100 SXM2
  - Up to 80 GB/s GPU-to-GPU NVLINK
  - Supports GPUDirect RDMA

1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 512GB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 3 PCI-E 3.0 x16 slots, 1 PCI-E
    3.0 x8 Low-profile slot
4. 2 10GBase-T LAN via Intel X540
5. 2x 2.5" Hot-swap drive bays,
    2x 2.5" internal drive bays
6. 7x 4cm heavy duty counter-rotating
    fans with air shroud & optimal fan
    speed control
7. 2000W Redundant Power Supplies
    Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMMs, 2 GPUs installed). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   Drive Options

Product SKUs
SYS-1028GQ-TXRT
  • SuperServer 1028GQ-TXRT (Black)

Motherboard

Super X10DGQ

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU
  • 4 Nvidia Tesla P100 SXM2
  • NVLINK up to 80GB/s

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 512GB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-TEthernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (2 via headers)
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GQP-R2K05B

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 35.2" (894mm)
  • 39.3" (997mm) with rails
Package
  • 24" (H) x 8" (W) x 46" (D)
Weight
  • Net Weight: 45 lbs (15.9 kg)
  • Gross Weight: 58 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 low-profile slot

Drive Bays
Hot-swap
  • 2x 2.5" Hot-swap drive bays
Fixed
  • 2x 2.5" internal drive bays

System Cooling
Fans
  • 7x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • 5 Phase-switching voltage regulator
FAN
  • Total of seven 4-pin PWM fans
  • 7 fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8 Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 30°C (50°F to 86°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
