SYS-1028R-WMR



Integrated Board
Super X10DRW-E

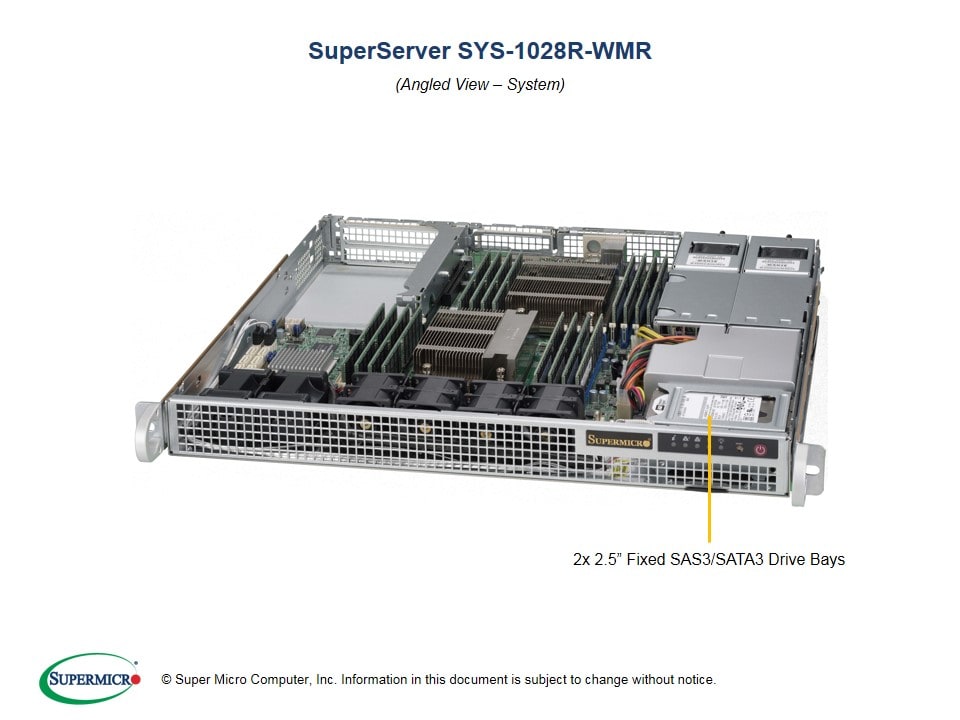

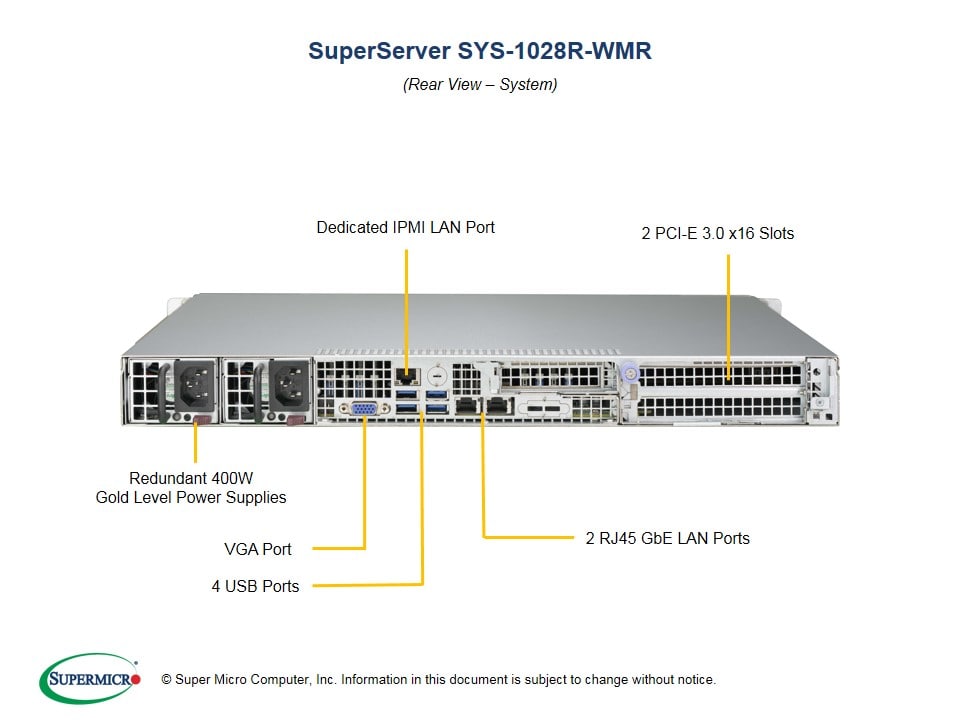

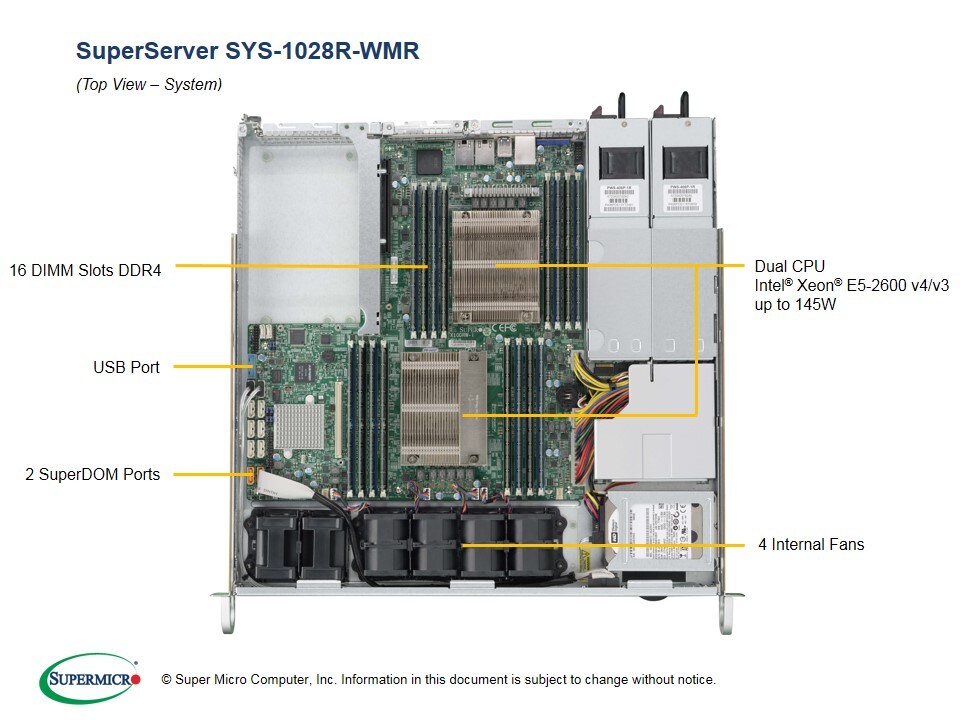

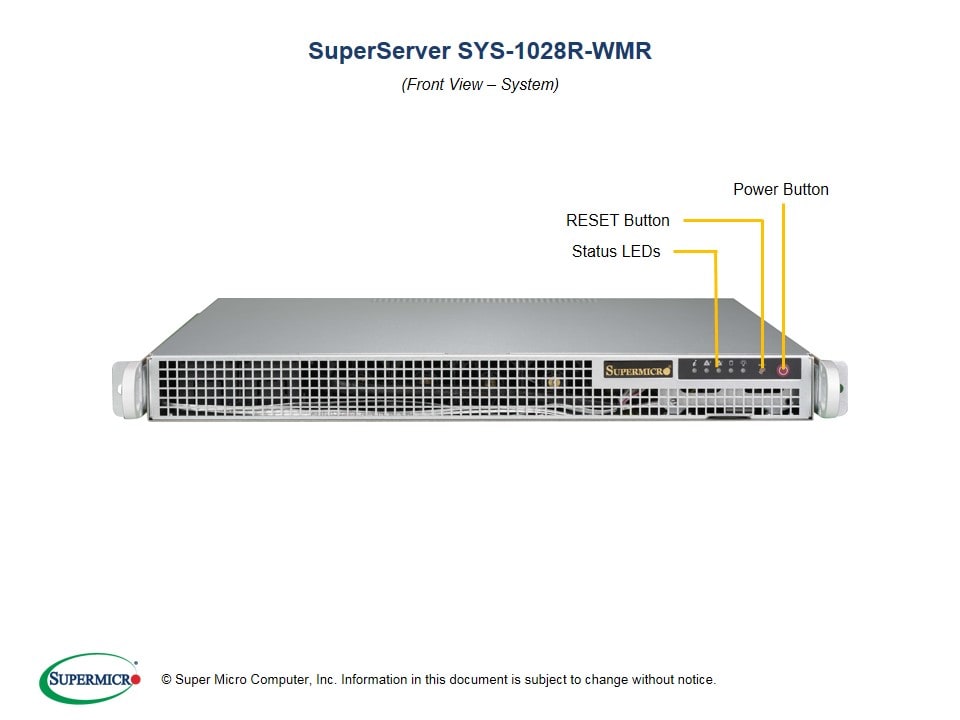

Views: | Angled View | Top View |
| Front View | Rear View |

Key Features
• Short Depth 16.9", WIO
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 2x PCI-E 3.0 x16 (FHHL) slots
4. 2x 2.5" Fixed drive bays w/ bracket
5. Intel® i350 Dual port GbE LAN
6. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
7. I/O ports: 2x SuperDOM, 1x VGA,
    1x COM, 2x USB 3.0, 4x USB 2.0
8. 400W Redundant Power Supplies
    Gold Level; BBP option

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   OS Certification Matrix   Quick-References Guide  Drive Options

Product SKUs
SYS-1028R-WMR
  • SuperServer 1028R-WMR

Motherboard

Super X10DRW-E

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
Serial ATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (via header)
  • 4x USB 2.0 ports (rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Header
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Weight
  • Net Weight: 16.5 lbs (7.48 kg)
  • Gross Weight: 27 lbs (12.25 kg)

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 Full-height, Half-length slots

Drive Bays
Internal
  • 2x 2.5" Fixed drive bays with bracket

System Cooling
Fans
  • 4x 40x56mm PWM fan; 2x fans for AOC cooling

Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input
  • 100-240V, 50-60Hz, 6-3A
DC Output
  • +5V standby: 3A
  • +12V: 33A
DC Output
With Power Distributor
  • +5V: 25A
  • +3.3V: 25A
  • -12V: 0.6A
Certification Gold Level Certified
  Gold Certified

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
