SuperServer 1029GQ-TXRT (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   GPU   [ 1029GQ-TXRT ]





Integrated Board
X11DGQ

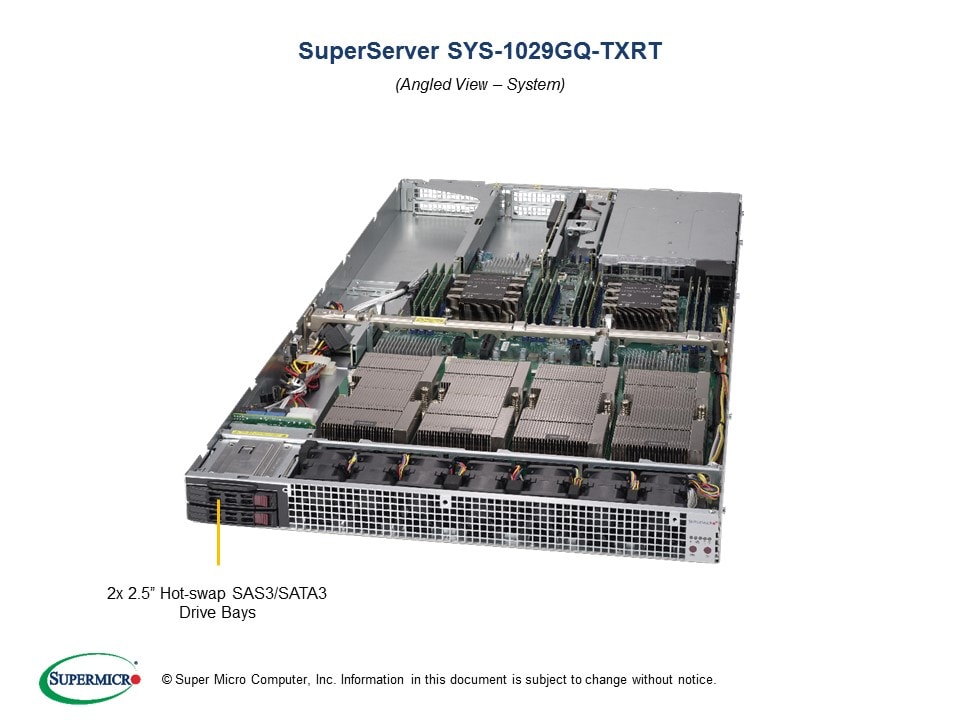

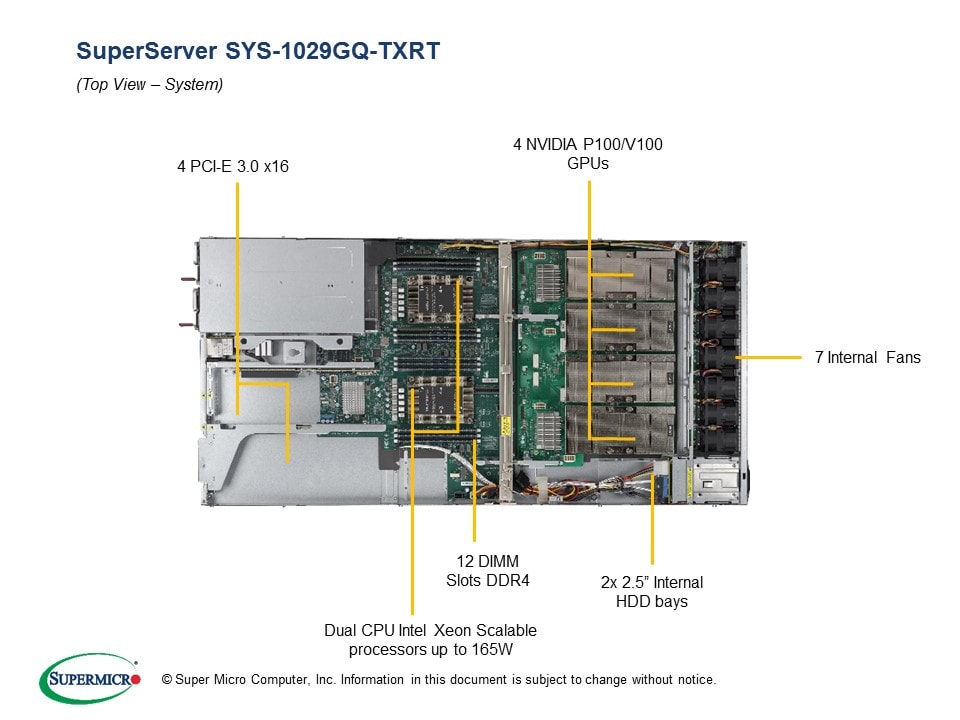

Views: | Angled View | Top View |

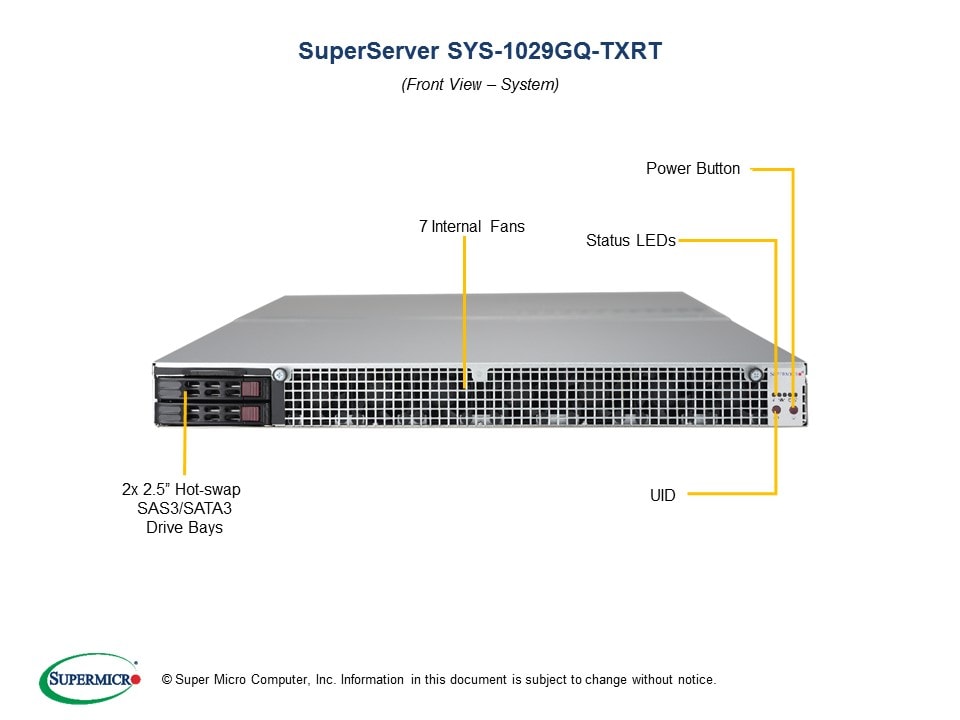

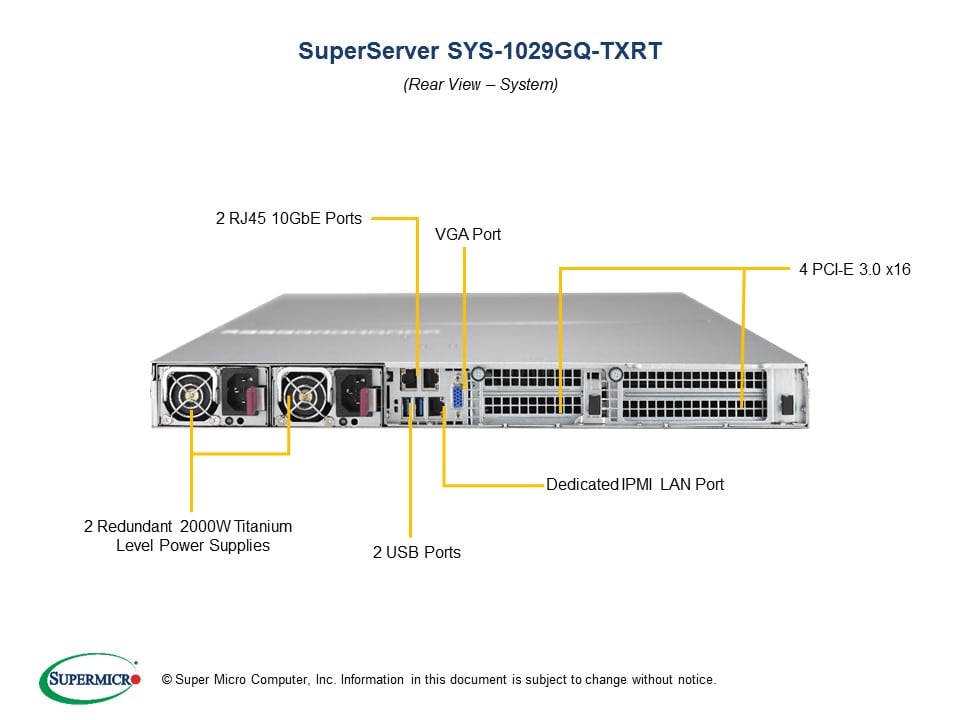

| Front View | Rear View |

Coming Soon

Key Features
  - Up to 4 Tesla P100 SXM2 GPUs
  - Up to 80 GB/s GPU-to-GPU NVLINK
  - Optimized for GPUDirect RDMA

1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
2. Up to 1.5TB ECC 3DS LRDIMM, up to
    DDR4-2666MHz; 12 DIMM slots
3. 4 PCI-E 3.0 x16 slots
4. 2 Hot-swap 2.5" SAS/SATA
    drive bays, 2 Internal 2.5" drive bays
5. 2x 10GBase-T LAN ports via Intel X540
6. 7 Heavy duty 4cm counter-rotating
    fans with air shroud & optimal fan
    speed control
7. 2000W Redundant Power Supplies
    Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPU, 4 DIMMs, 2 GPUs installed). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-1029GQ-TXRT
  • SuperServer 1029GQ-TXRT (Black)

Motherboard

Super X11DGQ

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W
Cores
  • Up to 28 Cores with Intel® HT Technology
GPU
  • 4 Nvidia Tesla P100 SXM2 GPUs
  • NVLINK up to 80GB/s

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 Fast UART 16550 header

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GQPTS-R2K05P2

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 35.2" (894mm)
  • 39.3" (997mm) with rails
Package
  • 24" (H) x 8" (W) x 46" (D)
Weight
  • Net Weight: 45 lbs (15.9 kg)
  • Gross Weight: 58 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots

Drive Bays
Hot-swap
  • 2 Hot-swap 2.5" SAS/SATA drive bays
Fixed
  • 2 Internal 2.5" drive bays

System Cooling
Fans
  • 7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Information in this document is subject to change without notice.
