SuperServer 5019GP-TT

  Products  Systems   GPU   [ 5019GP-TT ]

1U Single Processor (Intel) 2 GPU System


Integrated Board
X11SPG-TF

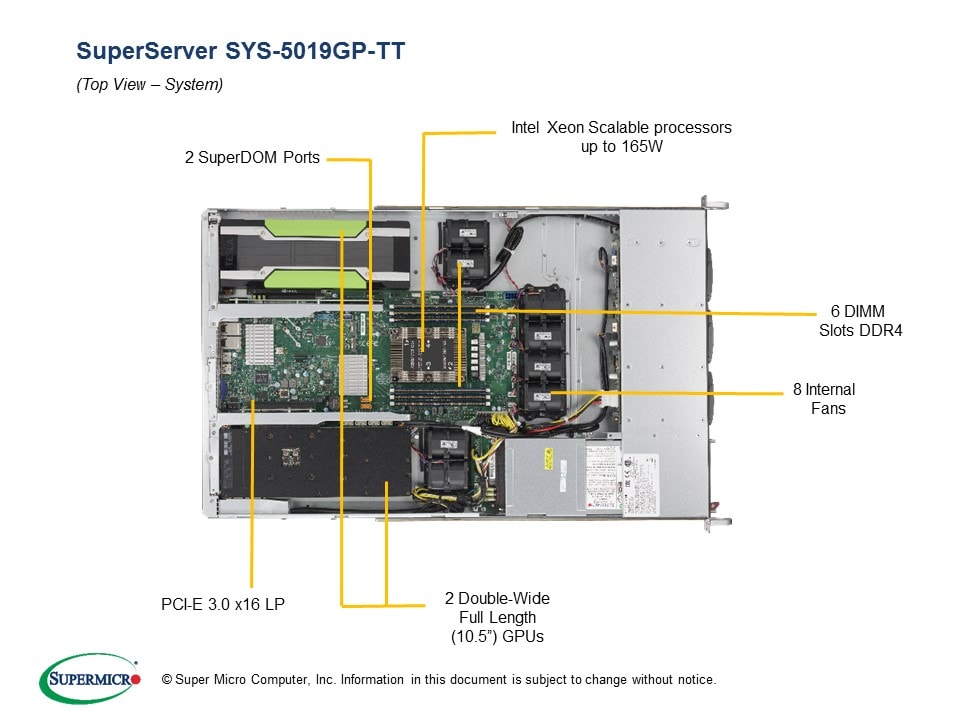

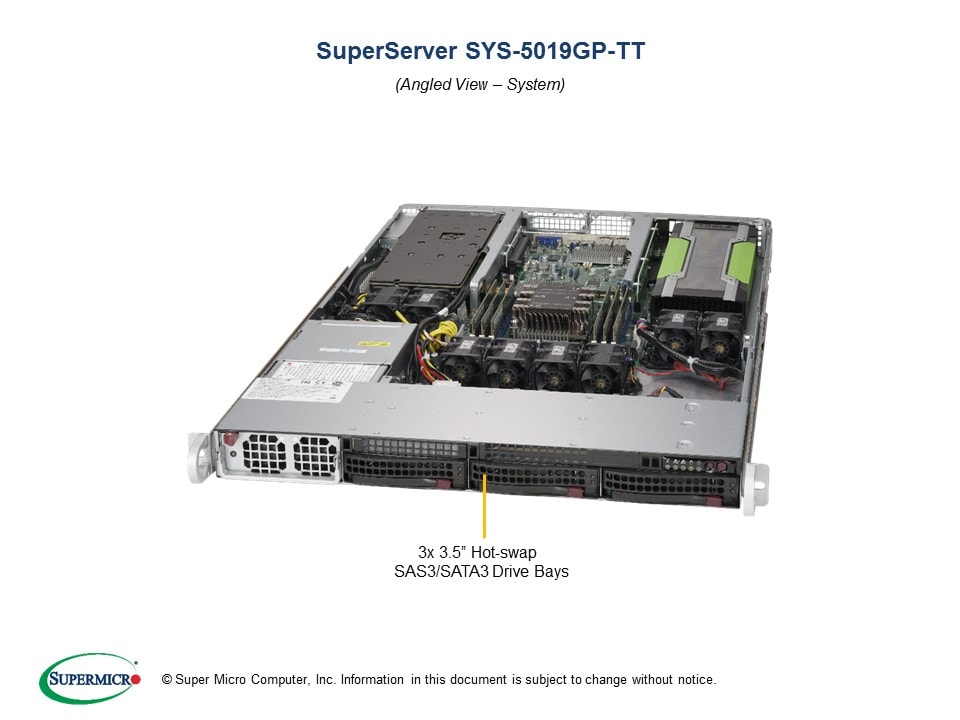

Views: | Angled View | Top View |

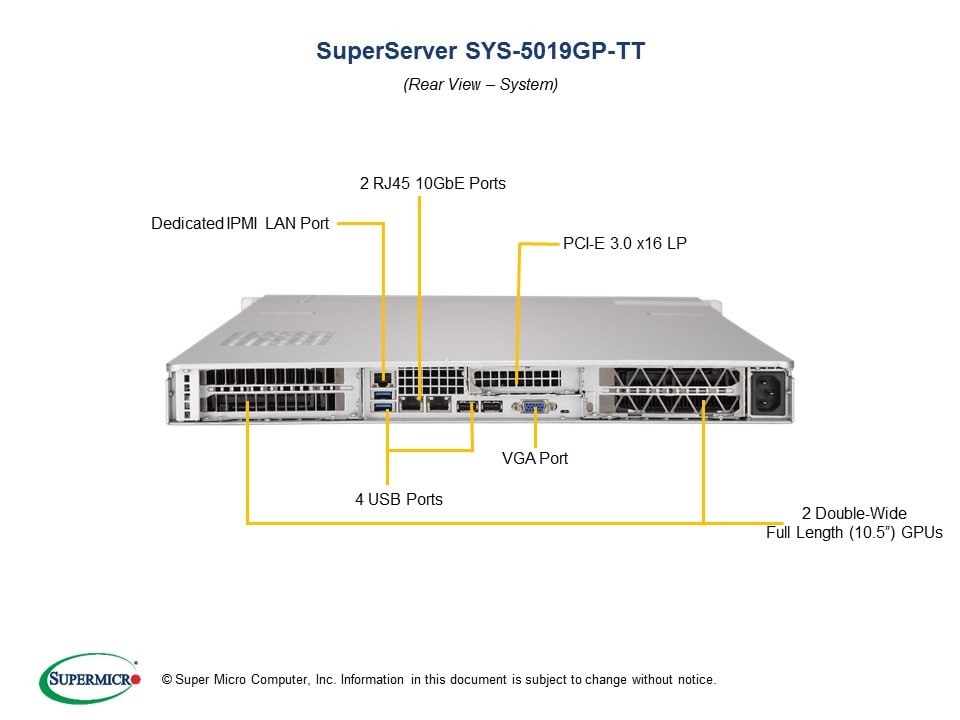

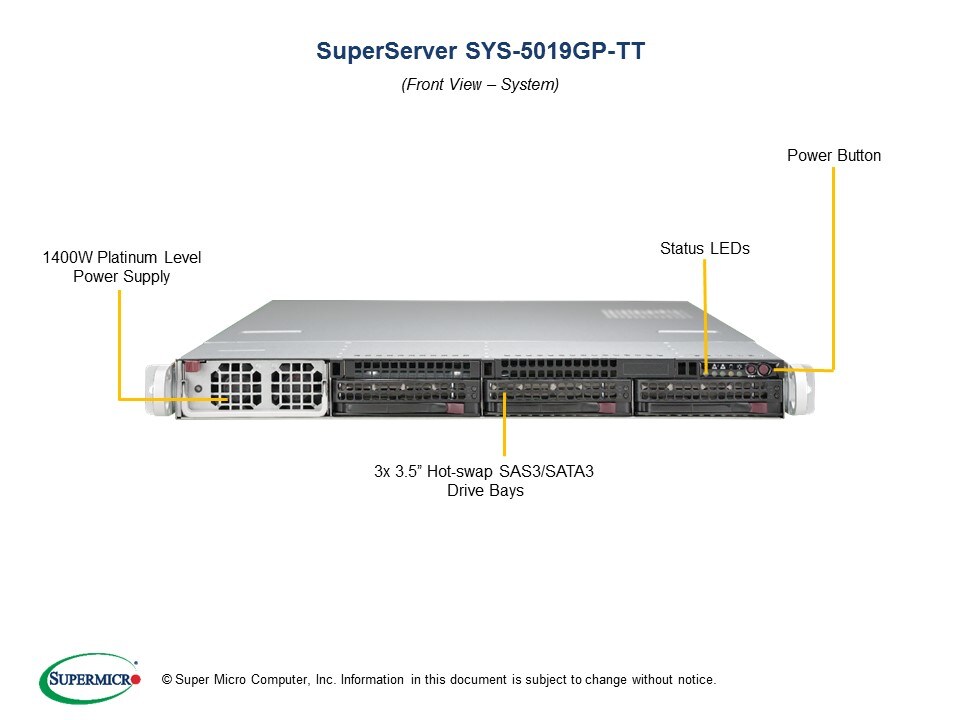

| Front View | Rear View |

 Key Applications
  - Edge Computing
  - Micro Data Center
  - AI/ML, Deep Learning Training and Inference
  - Virtualization
  - Cloud Computing


Key Features
1. Supports up to 2 Active/Passive
    Cooling NVIDIA® GPUs in 1U
2. Single Socket P (LGA 3647) supports
    2nd Gen Intel® Xeon® Scalable
    processor (Cascade Lake/Skylake)‡
3. 6 DIMMs; up to 1.5TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 2 PCI-E 3.0 x16 slots (support
    double-width GPU), 1 PCI-E 3.0 x16
    low-profile slot (center left)
5. 3 Hot-swap 3.5" SAS/SATA drive bays,
    1 slim DVD-ROM drive bay
6. 2x 10GBase-T LAN ports via Intel X550
7. 2 M.2 form factor 2280, supports
    both M.2 NVMe and SATA SSD
8. 8 Heavy duty 4cm counter-rotating
    4cm fans with air shroud & optimal fan
    speed control
9. 1400W High-efficiency Power Supply
    Platinum Level (94%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   Tested M.2 List   Manuals   OS Certification Matrix   Compatible GPU List

Product SKUs
SYS-5019GP-TT
  • SuperServer 5019GP-TT

Motherboard

Super X11SPG-TF

Processor
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs
  • 2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • NVIDIA V100, M10, T4, Quadro RTX
  • Supports both active and passive cooled GPUs
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port
  • 1 Fast UART 16550 header
DOM
  • 2 DOM (Disk on Module) power connectors

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-818GTS-1K43BP2

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.2" (716mm)
Weight
  • Net Weight: 28 lbs (12.70 kg)
  • Gross Weight: 36 lbs (16.33 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots - supporting up to 2 GPUs
  • 1 PCI-E 3.0 x16 slot (left riser)

Drive Bays / Storage
Hot-swap
  • 3 Hot-swap 3.5" SAS/SATA drive bays
M.2
  • Supports 2 M.2 form factor 2280
  • Supports both M.2 NVMe and SATA SSD
Peripheral Bay(s)
  • 1 slim DVD-ROM drive bay or 1 USB + COM port tray

System Cooling
Fans
  • 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

Power Supply
1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
  • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby
  • 6 Amp
+12V
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 14 Amp
Certification Platinum Certified
  Platinum Certified

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SPG-TF
CSE-818GTS-1K43BP2		 1
1		 Super X11SPG-TF Motherboard
1U SC818G Chassis
Backplane BPN-SAS-818TQ 1 3-port 818 TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-0489L 1 SATA,INT,ROUND,ST-RA,70CM,30AWG
Cable 3 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Cable 4 CBL-PWEX-0663 1 PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH
Cable 5 CBL-PWEX-1028 1 Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Riser Card RSC-R1U-E16R 1 RSC-R1U-E16R
Riser Card RSC-R1UG-E16-UP 1 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
Riser Card RSC-R1UG-E16R-UP 1 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K43F-1R 1 1400W redundant digital power supply
Optional Parts List
  Part Number Qty Description
Other GPUs Cables CBL-PWEX-1059 1 Quadro family GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS
AOC-S3008L-L8i (SAS3) CBL-SAST-0699 1 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 1 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 1 Mini SAS HD-4 SATA, 12G
Super Cap for LSI 3108 BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02		 1
1		 Mounting Bracket for LSI BBUs
LSI Super Cap
Network Cards AOC-S100G-m2C - Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, based on Mellanox ConnectX-4 EN chipset
AOC-MCX516A-CCAT - Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS
AOC-S40G-i2Q - Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports
AOC-MCX512A-ACAT - Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS
AOC-MCX4121A-ACAT - Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS
AOC-S25G-b2S - Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, based on Broadcom BCM57414
AOC-S25G-m2S - Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset
AOC-STG-b4S - Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports
AOC-STG-i4S - Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports
AOC-STGN-i2S - Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports
AOC-STGN-i1S - Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port
AOC-STG-i2T - Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports
AOC-SGP-i4 - Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports
AOC-SGP-i2 - Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports
GPUs Air Shroud Kit MCP-310-81806-0B - Nvidia Fermi GPU Air shroud for 818G/118G
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
