SuperStorage 2028R-DN2R20L (Complete System Only)

  Products  Systems   Storage Bridge Bay (SBB)   [ 2028R-DN2R20L ]


High Availability Storage Platform



Integrated Board
Super X10DSN-TS

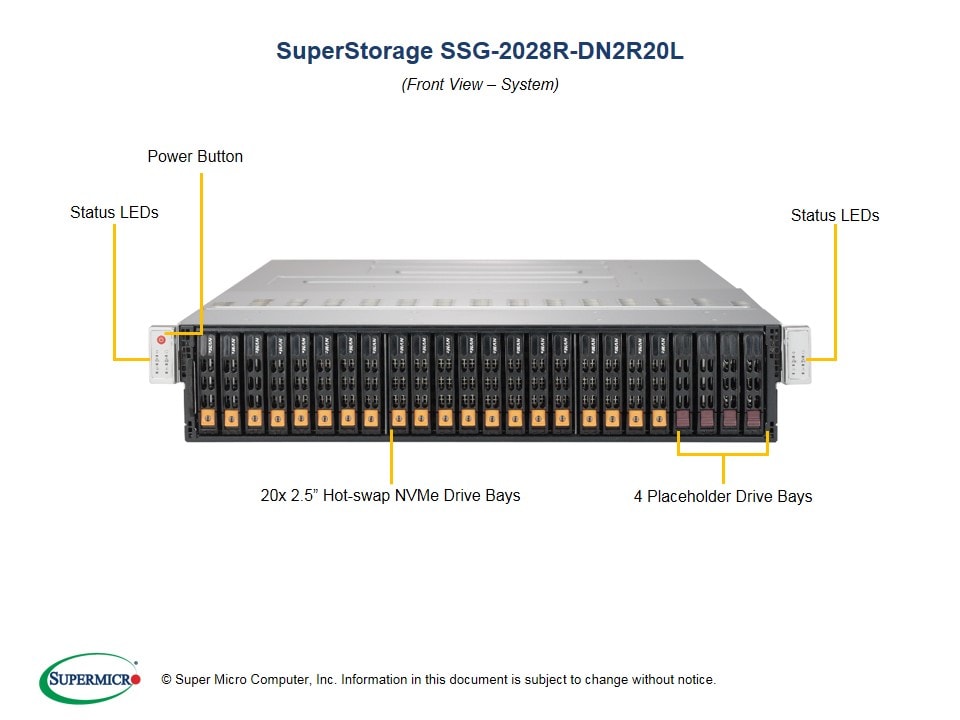

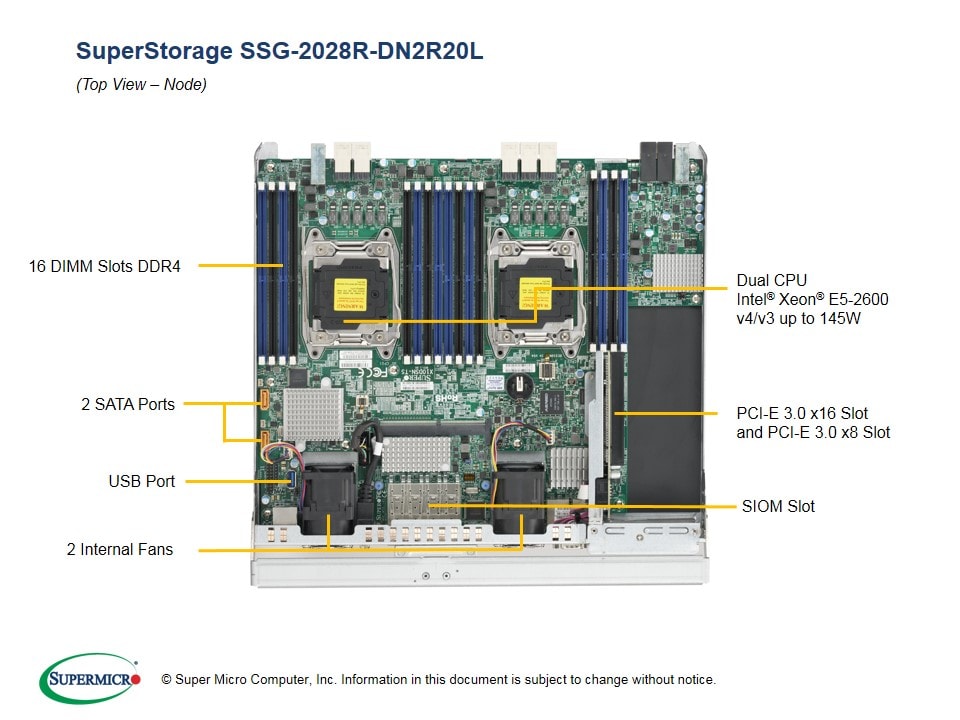

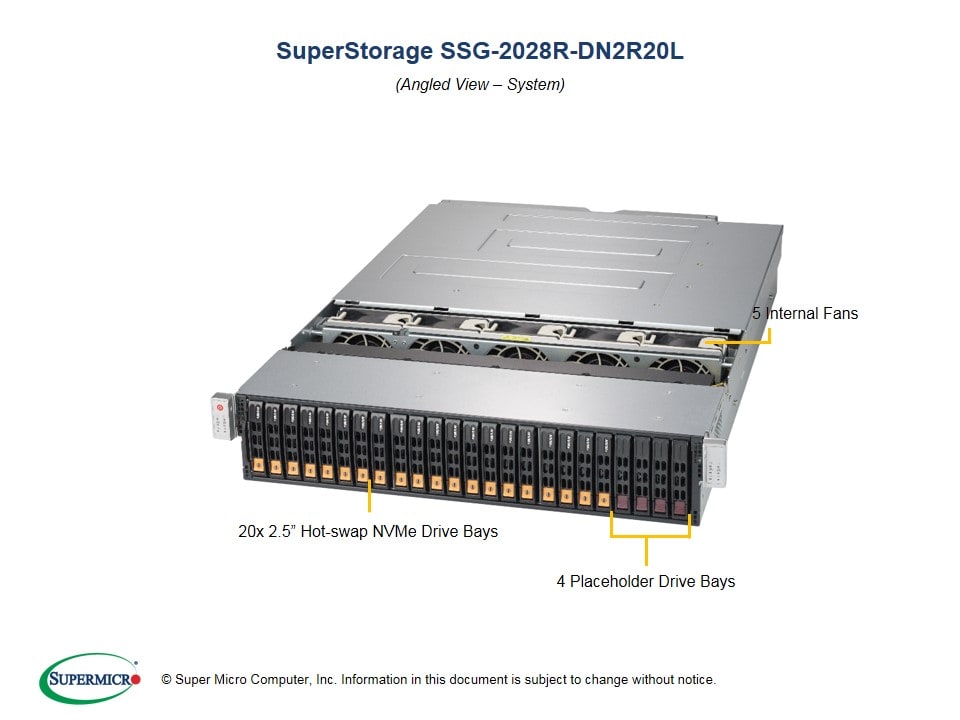

Views: | Angled View | Top View |

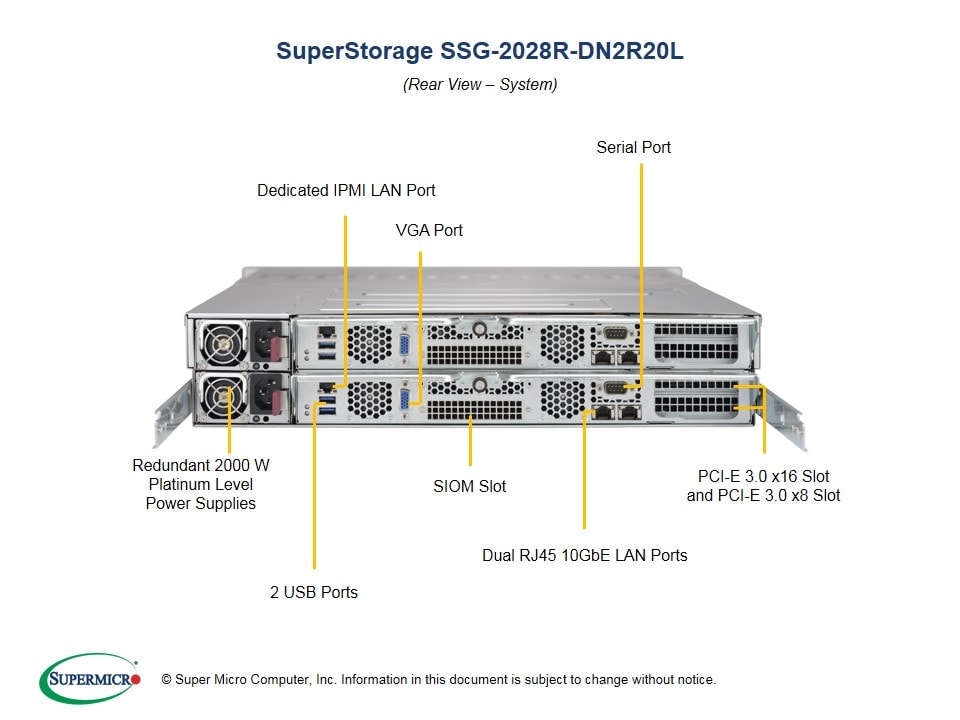

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16 DIMM slots
3. 1 PCI-E 3.0 x16 HHHL slot, 1 PCI-E 3.0
    x8 HHHL slot, 1 SIOM slot
4. Dual port 10GBase-T (Intel® X540),
    Intel® XL710 used for dedicated
    heartbeat between 2 nodes in SBB
5. 20 Hot-swap 2.5" dual port NVMe
    drive bays
6. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
7. 5 high-performance 8cm PWM fans
8. 2000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Tested SIOM

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-2028R-DN2R20L
  • SuperStorage 2028R-DN2R20L (Black)

Motherboard (Two per System)

Super X10DSN-TS

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • 10Gb private ethernet between controller nodes
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output (per Node)
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • IPMI LAN shared port
USB
  • 3 USB 3.0 ports (2 rear, 1 Type A)
Video
  • 1 VGA port
Serial Port / Header
  • COM port via riser
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227TS-R2K05P

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.6" (650mm)
Gross Weight
  • 67 lbs (30.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Heartbeat LED
  • 2 Network activity LEDs
  • Power Fail LED
  • Overheat/Fan Fail LED

Expansion Slots (per Node)
PCI-Express (per node)
  • 1 PCI-E 3.0 x16 HHHL slot
  • 1 PCI-E 3.0 x8 HHHL slot
  • 1 SIOM slot

Drive Bays
Hot-swap
  • 20 Hot-swap 2.5" dual port NVMe drive bays

System Cooling
Fans
  • 5x 8cm high-performance PWM fans

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DSN-TS
CSE-227TS-R2K05P
2
1
Super X10DSN-TS Motherboard
2U Chassis
Backplane BPN-NVMe3-227SNB 1 BPN-NVMe3-227SN Base Board
Backplane BPN-NVMe3-227SNL 2 BPN-NVMe3-227SN PLX Gen3 PCIe Swtich Daughter Board
Backplane BPN-NVME3-227SSB 1 227S Platfrom Mid-Plane for Power Distribution and PCIe Pass-Through
Cable 1 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
Cable 2 CBL-SAST-0819 8 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Riser Card RSC-X-68-C 2 1U Storage Riser card wtih 1 PCI-Ex6 , 1 PCI-Ex8 and comport
Heatsink / Retention SNK-P0047PS 4 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
FAN 1 FAN-0167L4 4 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
FAN 2 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
