Part Number
|
Qty
|
Description
|
Motherboard / Chassis |
MBD-X10DSN-TS
CSE-227STS-R2K05P |
2 1 |

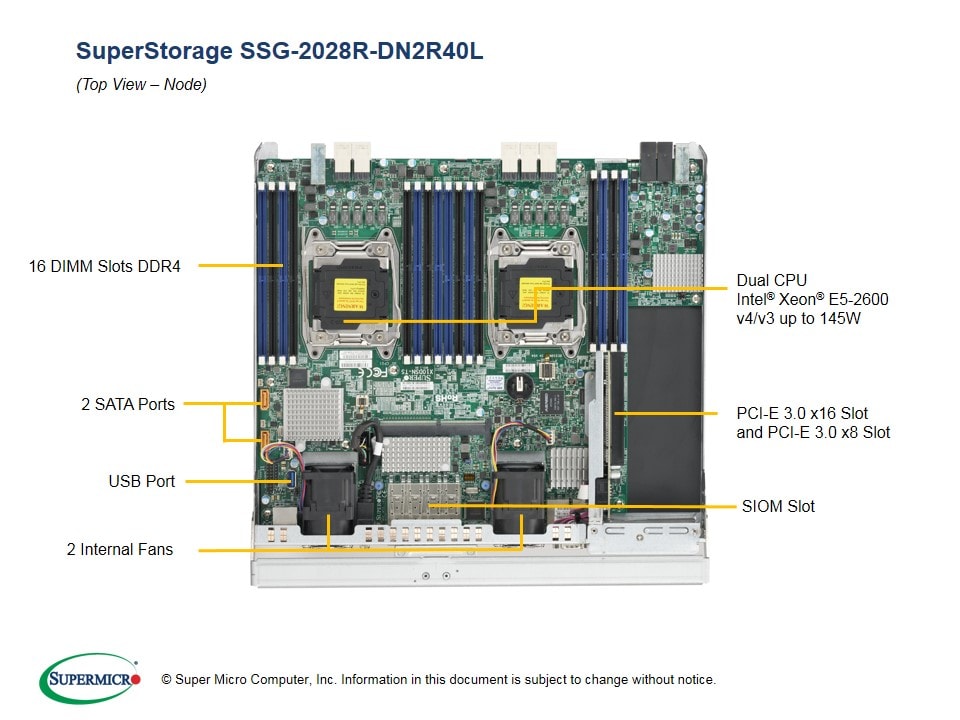

Super X10DSN-TS Motherboard
2U Chassis |
Backplane
|
BPN-NVMe3-227SNB |
2
|
BPN-NVMe3-227SN Base Board |
Backplane
|
BPN-NVMe3-227SNL |
4
|
BPN-NVMe3-227SN PLX Gen3 PCIe Swtich Daughter Board |
Backplane
|
BPN-NVME3-227SSB |
1
|
227S Platfrom Mid-Plane for Power Distribution and PCIe Pass-Through |
Cable 1
|
CBL-PWCD-0160-IS |
2
|
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH |
Cable 2
|
CBL-SAST-0818 |
8
|
OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG |
Cable 3
|
CBL-SAST-0819 |
4
|
OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH |
Cable 4
|
CBL-SAST-0820 |
4
|
OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH |
Parts
|
MCP-110-00015-0N |
16
|
Pan head screw, #6-32 x 6L |
Riser Card
|
RSC-X-68-C |
2
|
1U Storage Riser card wtih 1 PCI-Ex6 , 1 PCI-Ex8 and comport |
Heatsink / Retention
|
SNK-P0047PS |
4
|
1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
Power Supply
|
PWS-2K05A-1R |
2
|
1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH |
FAN 1
|
FAN-0167L4 |
4
|
40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers |
FAN 2
|
FAN-0168L4 |
5
|
80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) |
|
|
