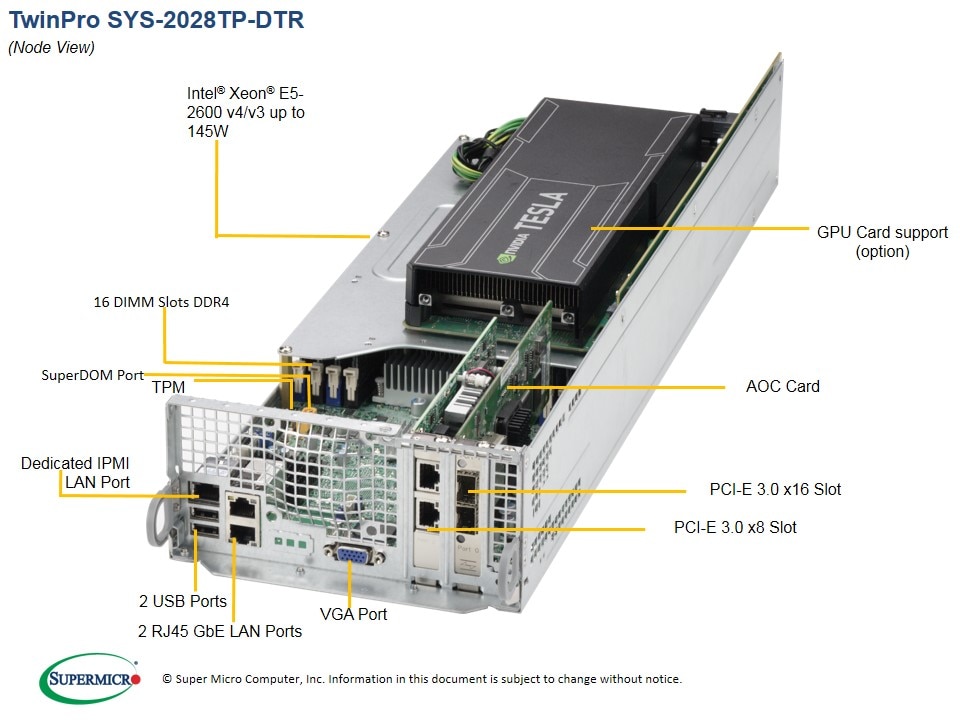

Key Features Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/
v3 family; QPI up to 9.6GT/s2.
Up to 2TB† ECC 3DS LRDIMM
, up to
DDR4-
2400†MHz
; 16x DIMM slots3. 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slot,
and 1x PCI-E 3.0 x16 for
GPU/Xeon Phi support (w/ GPU kit)4. Intel® i350 Dual port GbE LAN5. Integrated IPMI 2.0 with KVM and

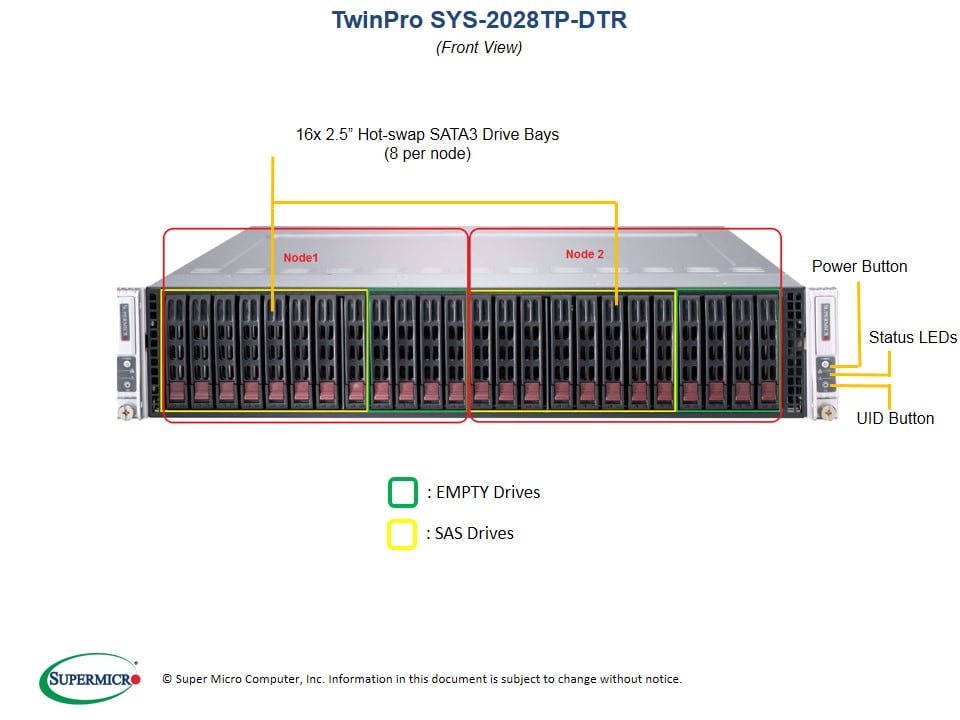

Dedicated LAN 6. 8x 2.5" Hot-swap SATA HDD Bays7. mSATA (full size) support8. 1280W Redundant Power Supplies Platinum Level Digital (94%)
