SuperServer 5038MD-H24TRF (Complete System Only)

  Products  Systems   MicroCloud   [ 5038MD-H24TRF ]





Integrated Board
Super X10SDE-DF

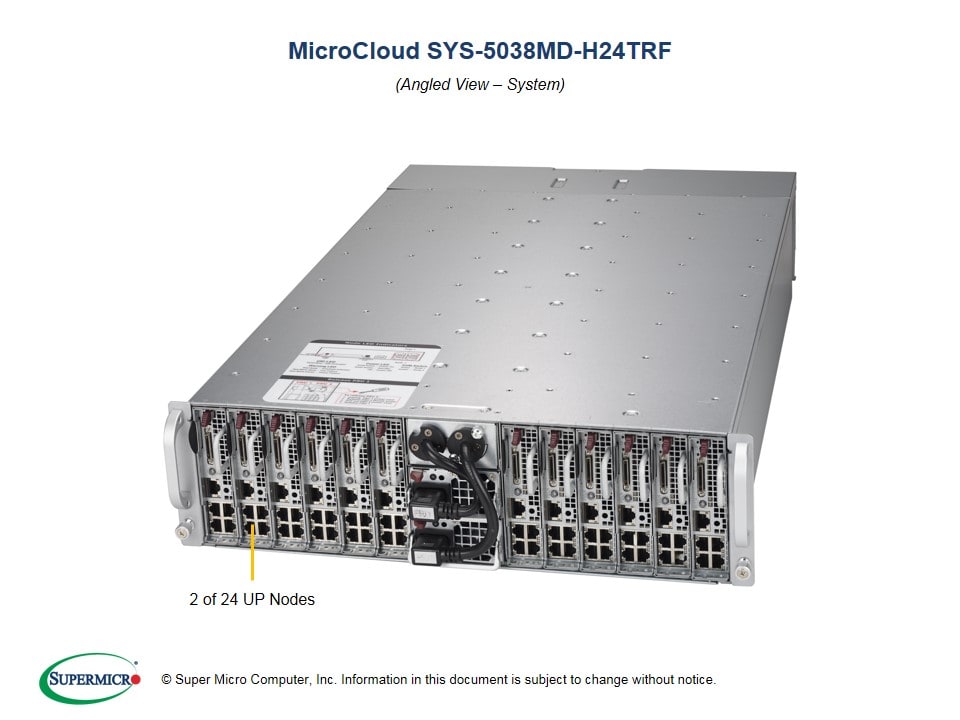

Views: | Angled View | Node View |
| Front View | Rear View |

Key Features (2 Nodes per Tray, Each Node:)
• Cloud Computing
• Web Cache, CDN
• Web Hosting
• Application delivery

1. Single socket FCBGA 1667, 6-Core,
    45W, 12 Threads; support Intel®
    Xeon® processor D-1531
2. 1x 2.5" SATA3 (6Gbps) HDDs or
    2x 2.5" Slim SSD with Optional kit
3. 4x 288-pin DDR4 DIMM slots; up to
    128GB ECC VLP RDIMM / 64GB
    ECC VLP UDIMM; 4 DIMM slots
4. 2 GbE LAN (Intel i350), 1 shared
    LAN for IPMI Remote Management
5. 2 USB 2.0, 1 VGA, 1 COM port
    (with KVM dongle)
6. 4x 9cm heavy duty fans with
    optimal cooling zone
7. 1600W Redundant power supplies
    Platinum Level Certified


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5038MD-H24TRF (Black)

Motherboard
Super X10SDE-DF

Processor/Cache
CPU
  • Intel® Xeon® processor D-1531
  • Socket FCBGA 1667
  • CPU TDP support 45W, 2.2-2.6GHz, 12MB
Cache
  • 9M Cache, 2.20 GHz

System Memory (per node)
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Up to 128GB DDR4 VLP ECC RDIMM
  • Up to 64GB DDR4 VLP ECC/non-ECC UDIMM
Memory Type
  • 2133/2400MHz VLP ECC DDR4 RDIMM and VLP ECC/Non-ECC UDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices (per node)
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) via SoC
Network Controllers
  • Dual LAN via Intel® i350 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Headers
  • 1 Type A USB 3.0
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Input / Output (per node)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 LAN shared for IPMI Remote Management
USB
  • 2 USB 2.0 via KVM
KVM
  • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • RTC (Real Time Clock) Wakeup

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-939HX-R1K63B

Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 29.5" (749 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 90 lbs (40.82 kg)
  • Gross Weight: 120 lbs (54.4 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Drive Bays (per node)
Internal
  • 1x 2.5" internal SATA3 (6Gbps) HDDs per node or 2x 2.5" Slim SSD with Optional kit
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 9cm Heavy duty fans with optimal cooling zone

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/135A; +5Vsb/4A
Certification Platinum Level94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SDE-DF
CSE-939HX-R1K63B
12
1
Super X10SDE-DF Motherboard
3U Chassis
Add-on Card / Module AOM-PDB-MC24 12 AOM-PDB-MC24
Add-on Card / Module AOM-BPN-MC24 12 AOM-BPN-MC24
Backplane BPN-SAS-939H 1 12-port 3U (CSE-939) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 2 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Rail set MCP-290-41803-0N 1 set Rail set support 28.5" to 33.7" depth rail,RoHS/REACH,PBF
Power Supply PWS-1K63S-1R 2 1600W redundant platinum power supply


Optional Parts List
  Part Number Qty Description
Drive Tray(s) MCP-220-93906-0N - HDD converesion plate to support 4 x 2.5" HDD per node
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
