SuperServer 4028GR-TR

Super Micro Computer, Inc.
Contact Us

Search

Reseller Resource Center

  Products   Systems   4U   [ 4028GR-TR ]





Integrated Board

X10DRG-O+-CPU


X9DRG-O-PCIE

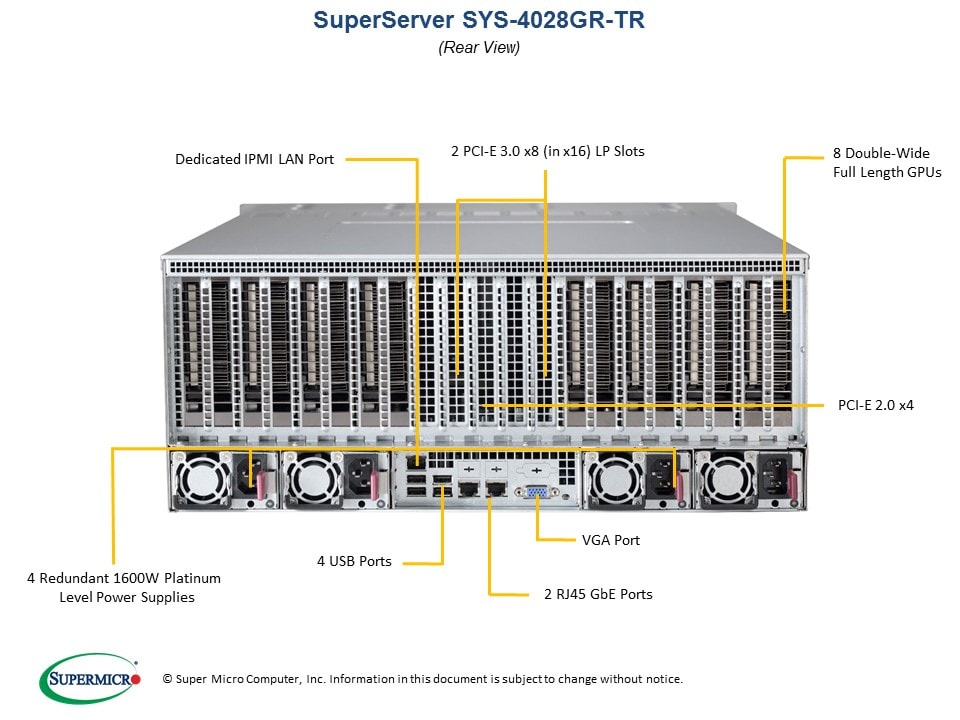

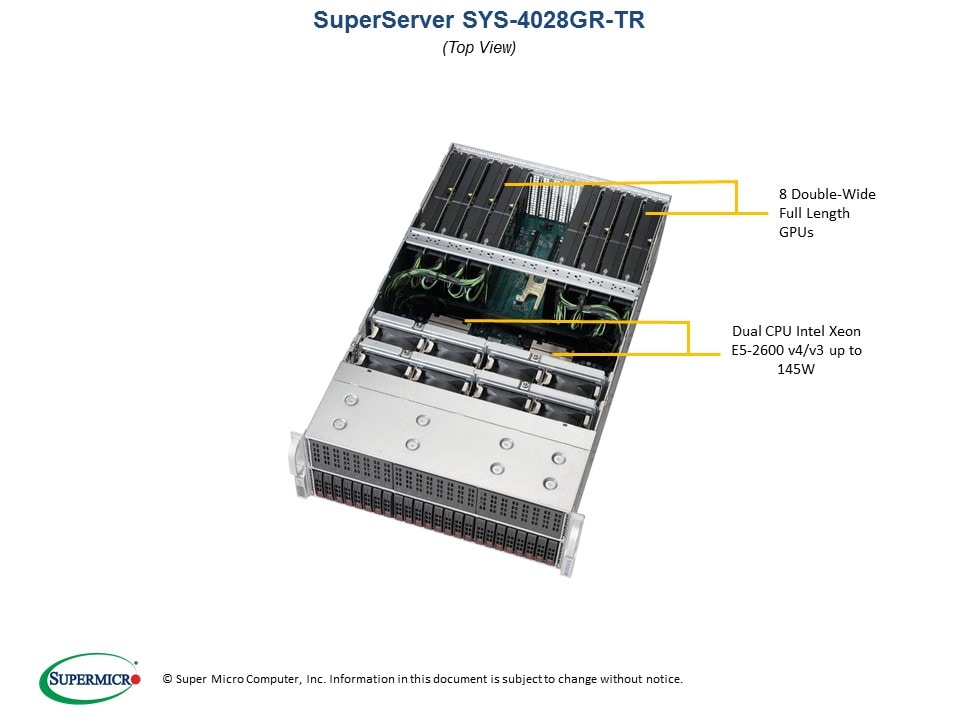

Views: | Angled View | Top View |

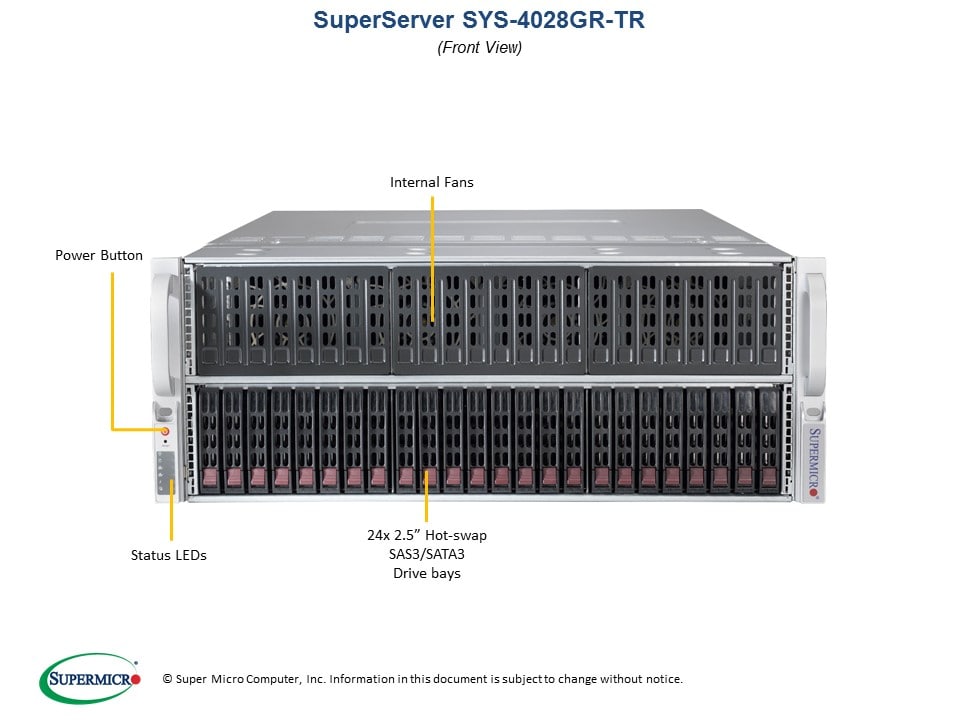

| Front View | Rear View |


Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. Expansion slots:
    8 PCI-E 3.0 x16 (double-width) slots
    2 PCI-E 3.0 x8 (in x16) slots
    1 PCI-E 2.0 x4 (in x16) slot
4. Dual GbE LAN with Intel® i350
5. 24x 2.5" Hot-swap drive bays
6. 8x 92mm RPM Hot-Swap cooling fans
7. 1600W Redundant (2+2) Power
    Supplies; Platinum Level (94%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested HDD   Manuals   OS Certification Matrix   Compatible GPU List  Quick-References Guide

Product SKUs
SYS-4028GR-TR
  • SuperServer 4028GR-TR (Black)

Motherboard

Super X10DRG-O+-CPU

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi Support
  • K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Gigabit Ethernet Ports with Intel® i350
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418GTS-R3200B

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 80 lbs (36.2 kg)
  • Gross Weight: 135 lbs (61.2 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 24x 2.5" Hard drive bays

Expansion Slots
PCI-Express
  • 8x PCI-E 3.0 x16 (double-width) slots
  • 2x PCI-E 3.0 x8 (in x16) slots
  • 1x PCI-E 2.0 x4 (in x16) slot

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 8x 92mm RPM Hot-Swappable Cooling Fans
Shrouds
  • 1x Air Shroud (MCP-310-84806-0B)
  • 1x Air Shroud (MCP-310-84807-0B)

Ultra Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1600W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac / 12.9A Max / 47-63Hz
  • 200-240Vac / 9.5A Max / 47-63Hz
+12V
  • Max: 82A / Min: 0.1A (100-127Vac)
  • Max: 132A / Min: 0.1A (200-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 8x fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
