Supermicro IPMI 相关工具

IPMICFG

IPMICFG 是一款用来配置 IPMI 装置的本机端 (In-band/Local) 工具。其命令行工具提供了标准 IPMI 指令与 Supermicro 专属的 OEM 指令用于作BMC/FRU 配置。此命令列介面工具可在 UEFI、DOS、Windows 与 Linux 操作系统上执行,毋需安装。

IPMICFG 产品特点:

  • 设置 IPMI IP 地址
  • 设置 IPMI 配置
  • 配置 IPMI 使用者
  • 配置 IPMI FRU
  • 管理系统事件日志(SEL)
  • 透过 NM (Node Manager) 协议管理 IPMI

硬件需求

  • 具备基板控制器(BMC)并支援 IPMI 2.0 规格的 Supermicro 系统.

操作系统 (OS)

  • DOS 5.0 或以上相容版本
  • Microsoft Windows 7 / 8 / 8.1 / 10 /Server 2003 32bit and 64bit / Server 2008 32bit and 64bit / Server 2012 / Server 2016
  • Linux Kernel version 2.6.x 以上. Ex: Red Hat Enterprise Linux (RHEL) 6.8 and 7.2 SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP1 Ubuntu Server 14.04 LTS and 16.04 LTS
  • UEFI Shell
Usage: IPMICFG params (Example: IPMICFG -m 192.168.1.123)
  -m                    Show IP and MAC.
  -m IP                 Set IP (format: ###.###.###.###).
  -a MAC                Set MAC (format: ##:##:##:##:##:##).
  -k                    Show Subnet Mask.
  -k Mask               Set Subnet Mask (format: ###.###.###.###).
  -dhcp                 Get the DHCP status.
  -dhcp on              Enable the DHCP.
  -dhcp off             Disable the DHCP.
  -g                    Show Gateway IP.
  -g IP                 Set Gateway IP (format: ###.###.###.###).
  -r                    BMC cold reset.
                        option: -d | Detected IPMI device for BMC reset.
  -garp on              Enable the Gratuitous ARP.
  -garp off             Disable the Gratuitous ARP.
  -fd                   Reset to the factory default.
                        option: -d | Detected IPMI device for BMC reset.
  -fdl                  Reset to the factory default. (Clean LAN)
                        option: -d | Detected IPMI device for BMC reset.
  -fde                  Reset to the factory default. (Clean FRU & LAN)
                        option: -d | Detected IPMI device for BMC reset.
  -ver                  Get Firmware revision.
  -vlan                 Get VLAN status.
  -vlan on <vlan tag>   Enable the VLAN and set the VLAN tag.
                        If VLANtag is not given it uses previously saved value.
Sample output – help menu
[ipmicfg_HOME] > IPMICFG.exe –sdr
Status | (#)Sensor                |      Reading | Low Limit | High Limit
------ | ---------                |      ------- | --------- | ----------
    OK | (4) CPU1 Temp            |     44C/111F |    0C/32F |   86C/187F
    OK | (71) CPU2 Temp           |     44C/111F |    0C/32F |   86C/187F
    OK | (138) System Temp        |      31C/88F |   -5C/23F |   80C/176F
    OK | (205) Peripheral Temp    |     44C/111F |   -5C/23F |   80C/176F
    OK | (272) PCH Temp           |     57C/135F |   -5C/23F |   90C/194F
    OK | (339) FAN1               |     1800 RPM |   600 RPM |  18975 RPM
    OK | (406) FAN2               |     1800 RPM |   600 RPM |  18975 RPM
       | (473) FAN3               |          N/A |       N/A |        N/A
       | (540) FAN4               |          N/A |       N/A |        N/A
       | (607) FAN5               |          N/A |       N/A |        N/A
       | (674) FAN6               |          N/A |       N/A |        N/A
       | (741) FAN7               |          N/A |       N/A |        N/A
       | (808) FAN8               |          N/A |       N/A |        N/A
    OK | (875) VTT                |       1.05 V |    0.91 V |     1.34 V
    OK | (942) CPU1 Vcore         |       0.89 V |    0.54 V |     1.48 V
    OK | (1009) CPU2 Vcore        |       0.76 V |    0.54 V |     1.48 V
    OK | (1076) VDIMM ABCD        |       1.48 V |    1.20 V |     1.64 V
    OK | (1143) VDIMM EFGH        |       1.50 V |    1.20 V |     1.64 V
    OK | (1210) +1.5 V            |       1.47 V |    1.34 V |     1.64 V
    OK | (1277) 3.3V              |       3.31 V |    2.92 V |     3.64 V
    OK | (1344) +3.3VSB           |       3.31 V |    2.92 V |     3.64 V
    OK | (1411) 5V                |       5.05 V |    4.48 V |     5.50 V
    OK | (1478) 12V               |      12.29 V |   10.81 V |    13.25 V
    OK | (1545) VBAT              |       3.26 V |    2.68 V |     3.31 V
    OK | (1612) HDD Status        |        0.00  |     2.68  |      3.31
  Fail | (1679) Chassis Intru     |  01 C0 01 00 |       N/A |        N/A
    OK | (1746) PS1 Status        |  01 C0 01 00 |       N/A |        N/A
Sample output of SDR Records

SMCIPMITool

SMCIPMITool 是带外 (Out-of-Band) 的 Supermicro IPMI工具,允许用户通过 CLI(命令行界面)与具有IPMI的系统包括SuperBlade® 系列设备连接。 该程序提供了两种使用模式,即:OS 命令行模式和Shell 模式。 该程序可以轻松与现有基础架构整合,以便与 Supermicro 服务器的基板管理控制器 (BMC) 连接,达到远程配置系统的功能。

SMCIPMITool 主要特点:

  • 远程系统管理
    • SuperBlade 管理
    • MicroBlade 管理
    • 系统电源控制
    • HDD 和 NVMe 管理
    • FRU 管理
    • 系统诊断(透过 Super Diagnostic Offline)
    • NM(节点管理器)管理
    • 群组管理
  • 远程 IPMI 管理
    • 支持 IPv6
    • 远程文字界面操作(Serial-Over-LAN)
    • 韧体升级
    • 系统传感器和事件日志
    • 电源和电池备援电力 (BBP®) 模块监控
    • 多节点系统信息
    • 虚拟媒体管理(需要节点产品密钥)
    • 远程桌面截取(需要节点产品密钥)

操作系统 (OS)

  • Red Hat Enterprise Linux (RHEL) 以上版本
  • SUSE Linux Enterprise Server (SLES) 11 以上版本
  • Ubuntu Server 14.04 以上版本
  • Windows 7 and 10
  • Windows Server 2008 R2 SP 1, 2012 R2
[root@fc-x10slm SMCIPMITool]#./SMCIPMITool 10.141.170.35 ADMIN ADMIN
Command:
Command(s):
superblade                       SuperBlade blade management (13)
microblade                       MicroBlade & 8U/4U SuperBlade blade management (6)
ipmi                             IPMI device management (30)
sel                              IPMI system event log (5)
user                             IPMI user management (7)
nm                               Node Management V1.5 (16)
nm20                             Node Management V2.0/V3.0 (Romley platform or later) (42)
nm30                             Node Management V3.0 (Grantley platform or later) (10)
nm40                             Node Management V4.0 (2)
dcmi                             DCMI Management (4)
bios                             BIOS update (9)
pminfo [<busId> <SlaAddr>]       Power supply PMBus health
psfruinfo [<busId> <SlaAddr>]    Power supply FRU health
psbbpInfo [<busId> <SlaAddr>]    Battery Backup Power status
shell                            Shell mode
ver                              SMCIPMITool version
list [keyword]                   List all or find available commands
exec <file> [loop] [delay]       Execute commands from file
execm <file> [loop] [delay]      Execute commands from file for TaskRun
find [<Start> <End> <netMask>]   Find IPMI device from local or IP range
found                            found IPMI devices (6)
host                             Host management (6)
hostrun <host|group> <command>   Run a command on host or group
mg                               Manage group command (8)
sc                               Execute shell command
ukvm                             General KVM launcher
kvm                              SIM KVM console (graphic mode)
kvmw                             SIM(W) KVM console (graphic mode)
kvmwa                            SIM(WA) KVM console (graphic mode)
kvmwx9                           SIM(X9) KVM console (graphic mode)
dr                               SIM Virtual Media Drive Redirection
prompt <type> <on|off>           Config information displayed on prompt
sol                              SOL Commands
hdd                              HDD status (6)
bbp                              Battery Backup Power Management (5)
tp                               TwinPro MCU Information (19)
wsiso                            Mount ISO file via Windows Share or SAMBA (for X9 and later) (3)
tas                              TAS settings (7)
nvme                             NVMe (Non-Volatile Memory Express) (8)
nodekey                          Node Product Key (1)
rsc [filename.ext]               iKVM remote screen capture(X9 or later) ext:png|jpg
rko [filepath]                   iKVM remote keyboard operation(X9 or later)
diag                             Super Diagnostics (3)
Sample output – help menu
Getting SDR records ...
  Status |     ID | Num(Hex) | Sensor                   |      Reading |  Low NR  |  Low CT  |  High CT  |  High NR  |
  ------ |     -- | -------- | ---------                |      ------- | -------- | -------- | --------- | --------- |
  OK     |      4 |       01 | CPU1 Temp                |     64C/147F |   5C/41F |   5C/41F | 102C/216F | 102C/216F |
  OK     |     71 |       02 | CPU2 Temp                |     70C/158F |   5C/41F |   5C/41F | 102C/216F | 102C/216F |
  OK     |    138 |       0A | PCH Temp                 |      37C/99F | -11C/12F |  -8C/18F |  95C/203F | 100C/212F |
  OK     |    205 |       0B | System Temp              |      28C/82F |  -9C/16F |  -7C/19F |  85C/185F |  90C/194F |
  OK     |    272 |       0C | Peripheral Temp          |     38C/100F |  -9C/16F |  -7C/19F |  85C/185F |  90C/194F |
  OK     |    339 |       0D | MB_10G Temp              |     44C/111F |  -5C/23F |   0C/32F | 100C/212F | 105C/221F |
  OK     |    406 |       10 | VRMCpu1 Temp             |     40C/104F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
  OK     |    473 |       11 | VRMCpu2 Temp             |     49C/120F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
  OK     |    540 |       12 | VRMP1ABC Temp            |      31C/88F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
  OK     |    607 |       13 | VRMP1DEF Temp            |      34C/93F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
  OK     |    674 |       14 | VRMP2ABC Temp            |      35C/95F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
  OK     |    741 |       15 | VRMP2DEF Temp            |      35C/95F |  -9C/16F |  -7C/19F | 100C/212F | 105C/221F |
         |    808 |       41 | FAN1                     |          N/A |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
  OK     |    875 |       42 | FAN2                     |     6200 RPM |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
  OK     |    942 |       43 | FAN3                     |     6200 RPM |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
  OK     |   1009 |       44 | FAN4                     |     6200 RPM |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
         |   1076 |       45 | FAN5                     |          N/A |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
         |   1143 |       46 | FAN6                     |          N/A |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
         |   1210 |       47 | FANA                     |          N/A |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
         |   1277 |       48 | FANB                     |          N/A |  300 RPM |  500 RPM | 25400 RPM | 25500 RPM |
         |   1344 |       B0 | P1-DIMMA1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   1411 |       B1 | P1-DIMMA2 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   1478 |       B2 | P1-DIMMB1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
  OK     |   1545 |       B4 | P1-DIMMC1 Temp           |      30C/86F |  -5C/23F |   0C/32F |  85C/185F |  90C/194F |
         |   1612 |       B6 | P1-DIMMD1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   1679 |       B7 | P1-DIMMD2 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   1746 |       B8 | P1-DIMME1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
  OK     |   1813 |       BA | P1-DIMMF1 Temp           |      31C/88F |  -5C/23F |   0C/32F |  85C/185F |  90C/194F |
         |   1880 |       D0 | P2-DIMMA1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   1947 |       D1 | P2-DIMMA2 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   2014 |       D2 | P2-DIMMB1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
  OK     |   2081 |       D4 | P2-DIMMC1 Temp           |      32C/90F |  -5C/23F |   0C/32F |  85C/185F |  90C/194F |
         |   2148 |       D6 | P2-DIMMD1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   2215 |       D7 | P2-DIMMD2 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
         |   2282 |       D8 | P2-DIMME1 Temp           |          N/A |      N/A |      N/A |       N/A |       N/A |
  OK     |   2349 |       DA | P2-DIMMF1 Temp           |      34C/93F |  -5C/23F |   0C/32F |  85C/185F |  90C/194F |
  OK     |   2416 |       30 | 12V                      |      11.82 V |  10.17 V |  10.28 V |   13.29 V |   13.41 V |
  OK     |   2483 |       31 | 5VCC                     |       5.09 V |   4.25 V |   4.28 V |    5.54 V |     5.6 V |
  OK     |   2550 |       32 | 3.3VCC                   |       3.41 V |   2.78 V |   2.82 V |    3.65 V |    3.69 V |
         |   2617 |       33 | VBAT                     |                 battery presence detected                  |
  OK     |   2684 |       34 | Vcpu1                    |       1.83 V |   1.24 V |   1.26 V |    2.07 V |     2.1 V |
  OK     |   2751 |       35 | Vcpu2                    |       1.84 V |   1.24 V |   1.26 V |    2.07 V |     2.1 V |
  OK     |   2818 |       36 | VDimmP1ABC               |       1.22 V |   0.94 V |   0.96 V |    1.42 V |    1.44 V |
  OK     |   2885 |       37 | VDimmP1DEF               |       1.22 V |   0.94 V |   0.96 V |    1.42 V |    1.44 V |
  OK     |   2952 |       38 | VDimmP2ABC               |       1.22 V |   0.94 V |   0.96 V |    1.42 V |    1.44 V |
  OK     |   3019 |       39 | VDimmP2DEF               |       1.22 V |   0.94 V |   0.96 V |    1.42 V |    1.44 V |
  OK     |   3086 |       3A | 5VSB                     |       5.15 V |   4.22 V |   4.38 V |    5.52 V |    5.58 V |
  OK     |   3153 |       3B | 3.3VSB                   |       3.38 V |   2.78 V |   2.89 V |    3.65 V |    3.69 V |
  OK     |   3220 |       3C | 1.8V PCH                 |       1.84 V |   1.53 V |   1.58 V |    1.99 V |    2.01 V |
  OK     |   3287 |       3D | PVNN PCH                 |       1.03 V |   0.82 V |   0.84 V |    1.17 V |    1.19 V |
  OK     |   3354 |       3E | 1.05V PCH                |       1.07 V |   0.87 V |   0.89 V |    1.22 V |    1.24 V |
  Fail   |   3421 |       AA | Chassis Intru            |                 General Chassis Intrusion                  |
  OK     |   3957 |       C8 | PS1 Status               |                     Presence detected                      |
  OK     |   4024 |       C9 | PS2 Status               |                     Presence detected                      |
Sample output of SDR records

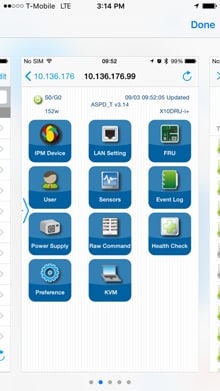

IPMIView

IPMIView 是一款基于图型用户接口的应用软件,允许管理员透过BMC 来管理多台系统。IPMIView 支持符合IPMI v1.5 或 v2.0 的 Supermicro BMC。

IPMIView 监看并回报 SuperBlade 系统的状态,包括刀片服务器、电源供应器、Gigabit 网络交换器、InfiniBand 和 CMM 模块。 IPMIView 并支持远程 KVM 和挂载虚拟媒体。

IPMIView 产品特点:

  • IPMI 系统管理
  • 远程图形接口 (KVM) 控制
  • 远程文字界面 (SOL) 控制
  • 虚拟媒体装置管理
  • IPMI 使用者/群组管理
  • Trap 接收器
  • 行动版应用程序(Android, iOS)

操作系统(OS)

  • Red Hat Enterprise Linux (RHEL) 以上版本
  • SUSE Linux Enterprise Server (SLES) 以上版本
  • Ubuntu Server 14.04 以上版本
  • Windows 7 and 10
  • Windows Server 2008 R2 SP 1, 2012 R2

IPMIView

IPMIView Mobile (1 of 2)IPMIView Mobile (2 of 2)

可以在 BMC 资源 中找到其他信息。

IPMIView for Android V1.6.0 (Available on Google Play) (Direct Link)
IPMIView for iOS V1.6.0 (Available on Apple Store)

更多相关讯息,请联系
Email: support@supermicro.com
Twitter: @Supermicro_SW
