SuperServer 2048U-RTR4 (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

Reseller Resource Center

  Products   Systems   2U   [ 2048U-RTR4 ]





Integrated Board
Super X10QRH+

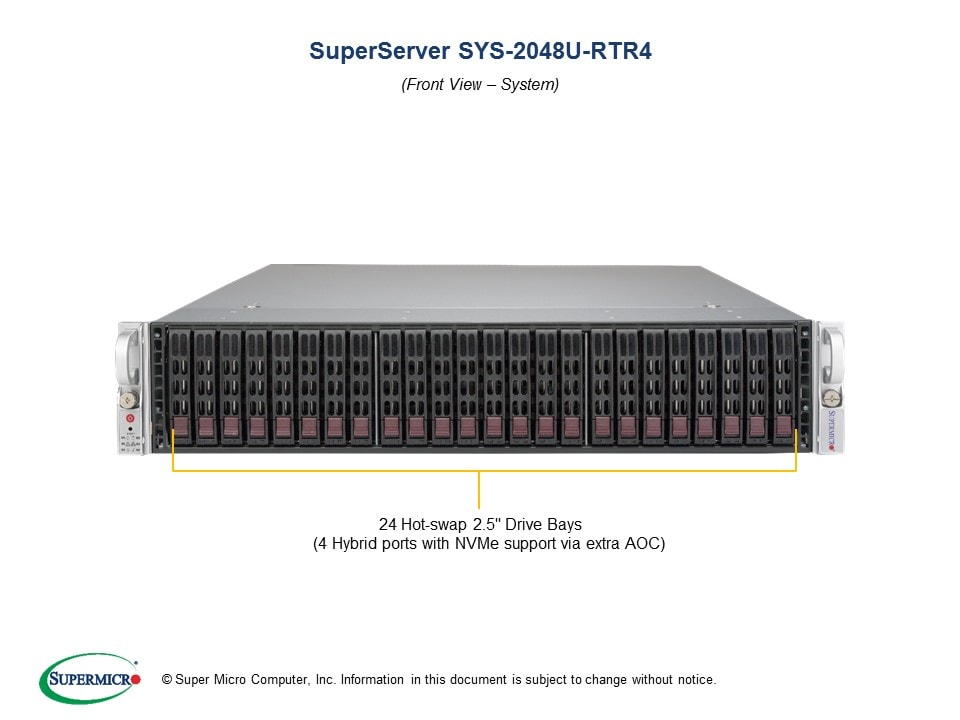

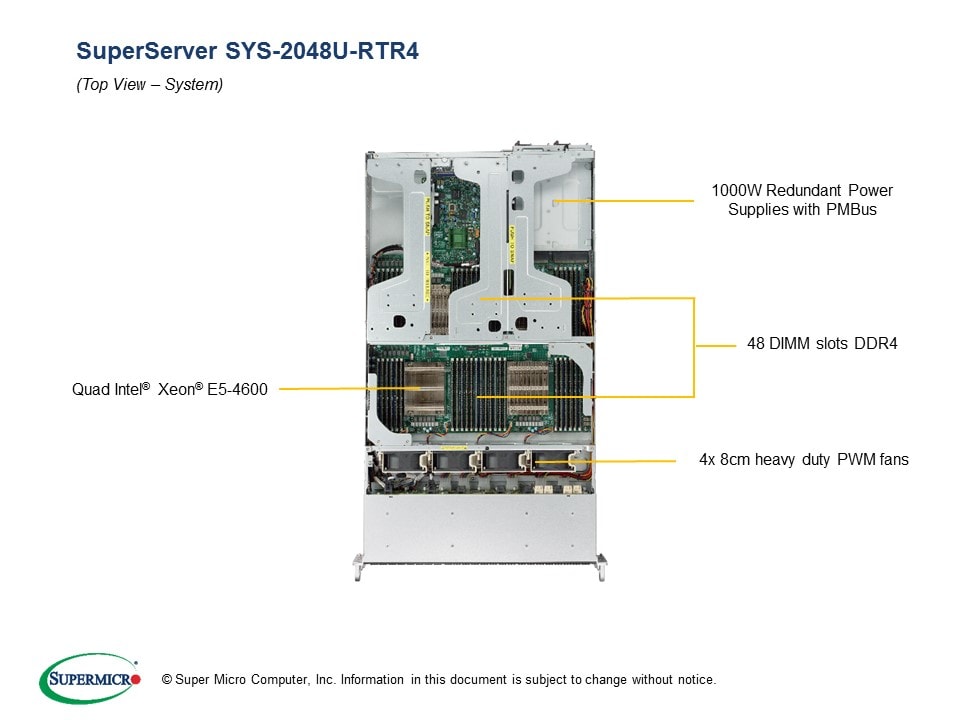

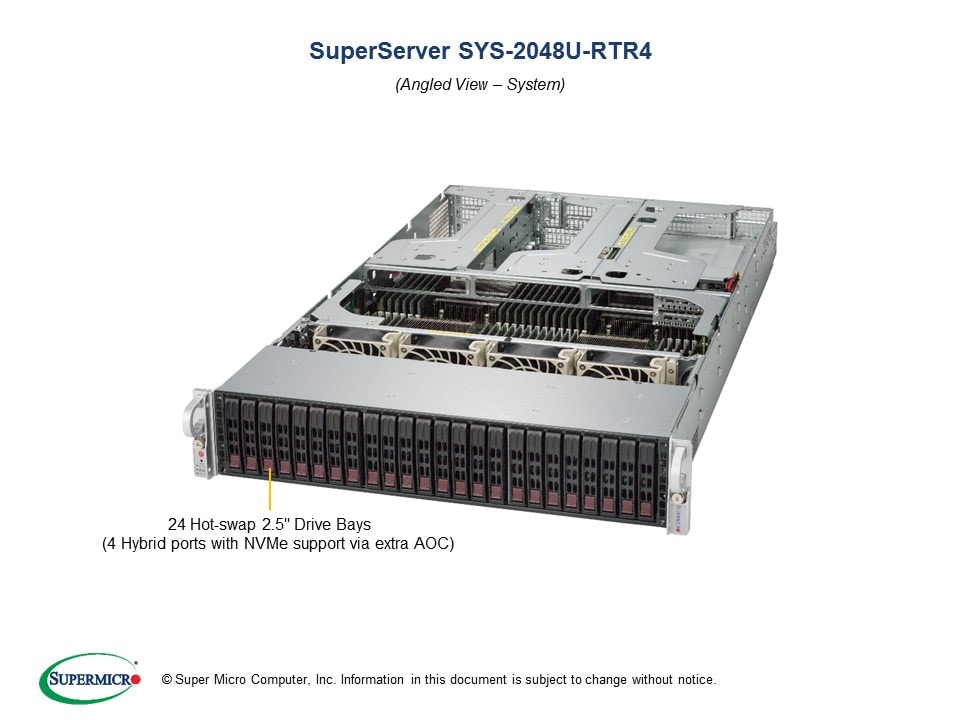

Views: | Angled View | Top View |

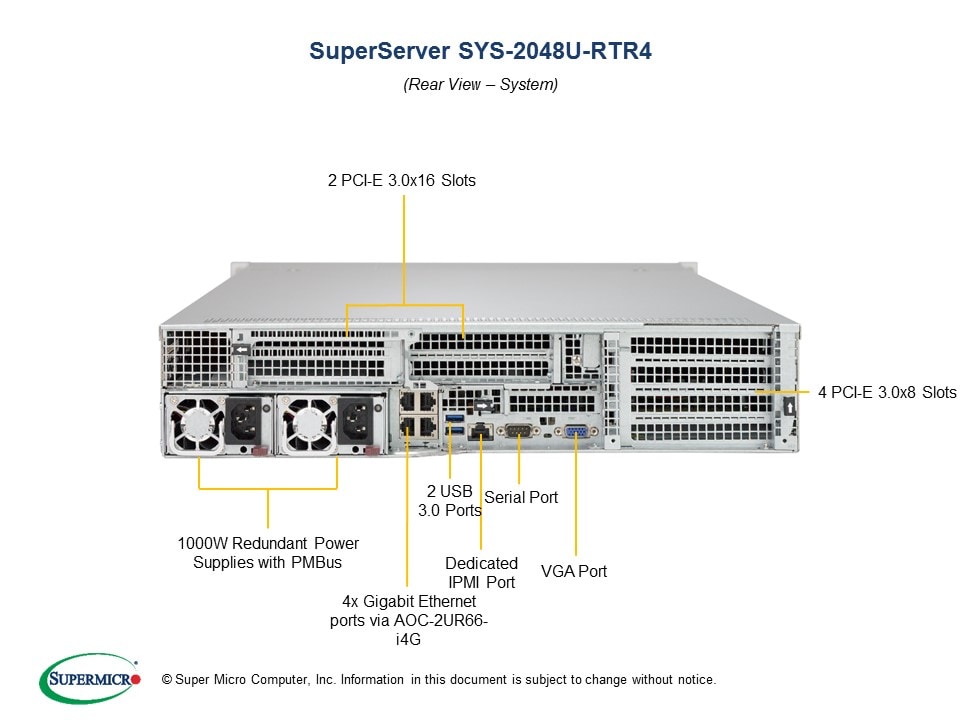

| Front View | Rear View |


Key Features
• 48 DDR4 DIMM Slots, up to 6TB
• Up to 11 PCI-E 3.0 slots
• 4 Hot-Swap NVMe Bays support
   via optional NVMe AOC
• Flexible Connectivity Options

1. Quad socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-4600 v4/v3
    family (up to 22-Core)
2. Up to 6TB 3DS LRDIMM, up to
    DDR4-2400MHz; 48 DIMM slots
3. 9 PCI-E 3.0 x8 slots,
    2 PCI-E 3.0 x16 slots
4. 4 GbE + 1 dedicated IPMI LAN ports
5. 24 Hot-swap 2.5" Drive Bays:
    4 Hybrid ports with NVMe
    support via extra AOC
6. 4x 8cm heavy duty fans
7. 1000W High efficiency (96%)
    Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested HDD   Tested NVMe   Manuals   OS Certification Matrix

Product SKUs
SYS-2048U-RTR4
  • SuperServer 2048U-RTR4 (Black)

Motherboard

Super X10QRH+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-4600 v4/v3 family (up to 135W TDP) *
  • Quad Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s

System Memory
Memory Capacity
  • 48x 288-pin DDR4 DIMM slots
  • Up to 6TB ECC 3DS LRDIMM
  • Up to 3TB ECC LRDIMM
  • Up to 1.5TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
SAS
  • 24 SAS3 ports support via optional Add-on Cards
NVMe
  • 4 Hybrid ports with NVMe support via AOC
LAN
  • 4 RJ45 GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 via header, 1 Type A)
  • 2 USB 2.0 ports
    (2 via header)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218U-R1K02P

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 30.7" (780mm)
Weight
  • Net Weight: 43 lbs (19.4 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Gross Weight
  • 36 lbs (16.4kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 9 PCI-E 3.0 x8 slots
    (include 4 PCI-E 3.0 x8 internal slots)
  • 2 PCI-E 3.0 x16 slots


  • (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)

Drive Bays
Hot-swap
  • 24x 2.5" Hot-swap drive bays
  • Default 10 SATA3 ports (2 SATA3 ports for SATA DOM or internal HDD)
  • Optional 24 SAS3 ports via AOC
  • Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC


  • Note: optional storage card is required to support more than 8 drives through backplane.

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Power Supply
1000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%    Titanium Level
    [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Information in this document is subject to change without notice.
