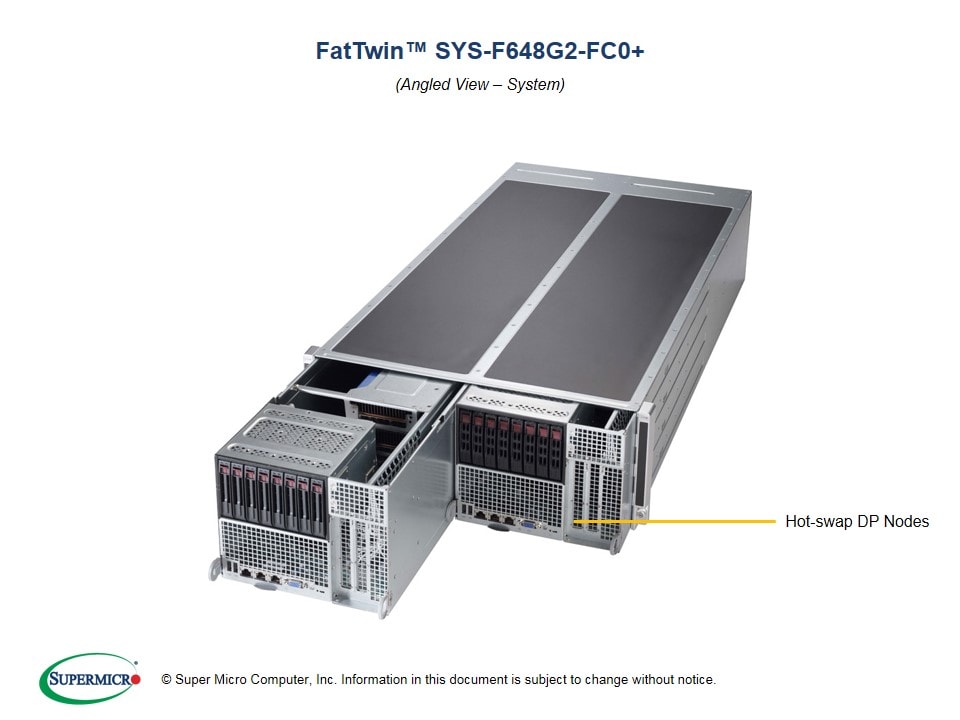

Key Features 2 Hot-plug System Nodes in 4U Front I/O. 6x GPU/Xeon Phi per node. Each node supports:
1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/
v3 family; QPI up to 9.6GT/s
2.
Up to 2TB† ECC 3DS LRDIMM
, up to
DDR4-
2400†MHz
; 16x DIMM slots
3. 6 PCI-E 3.0 x16 Double-width
GPU/Xeon Phi; 2 PCI-E 3.0 x8
(Full-height, Half-length) slots
4. Front I/O ports: 2 GbE,
2 USB 3.0 and 1 VGA connector
5. Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) w/
dedicated LAN port
6. 8x 2.5" Hot-swap SAS3 drives
via Broadcom 3008 controller
7. 2000W High efficiency (96%)
Redundant PSU; Titanium Level
|
|
|
|
|
|
|
|
| |
| SYS-F648G2-FC0+ |
- SuperServer F648G2-FC0+ (Black)
|
|
|
CPU |
- Intel® Xeon® processor E5-2600
v4†/
v3 family
(up to 145W TDP)
*
- Dual Socket R3 (LGA 2011)
|
Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
System Bus |
|
Note |
† BIOS version 2.0 or above is required |
Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
|
GPU/Xeon Phi Support |
- 6x Double-width GPU/Xeon Phi per node
(total of 12x GPU/Xeon Phi cards in 4U)
- Supports Intel Xeon Phi
- Supports NVIDIA K1/K2/K10/K20M/K20X/K40M/K80(only supports 4 per node), Xeon Phi 5110P, and Xeon Phi 3120P/7120P
|
|
|
Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
|
Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
DIMM Sizes |
- RDIMM:
32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
|
|
|
Chipset |
|
SAS |
- SAS3 (12Gbps) via Broadcom 3008
- SW RAID 0, 1, 10 support
|
AHCI SATA |
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
Network Controllers |
- Intel® i350 Dual Port GbE LAN
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
Graphics |
|
|
|
SAS |
|
LAN |
- 2x RJ45 GbE LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
USB |
|
VGA |
|
|
|
| |
| Form Factor |
|
Model |
|
| |
| Width |
|
Height |
|
Depth |
|
Package |
- 25.6" (W) x 11.8" (H) x 48.0" (D)
|
Weight |
- Net Weight: 105 lbs (47.63 kg)
- Gross Weight: 150 lbs (68.04 kg)
|
Available Colors |
|
| |
| Buttons |
- Power On/Off button
- UID button
|
LEDs |
|
|
|
PCI-Express |

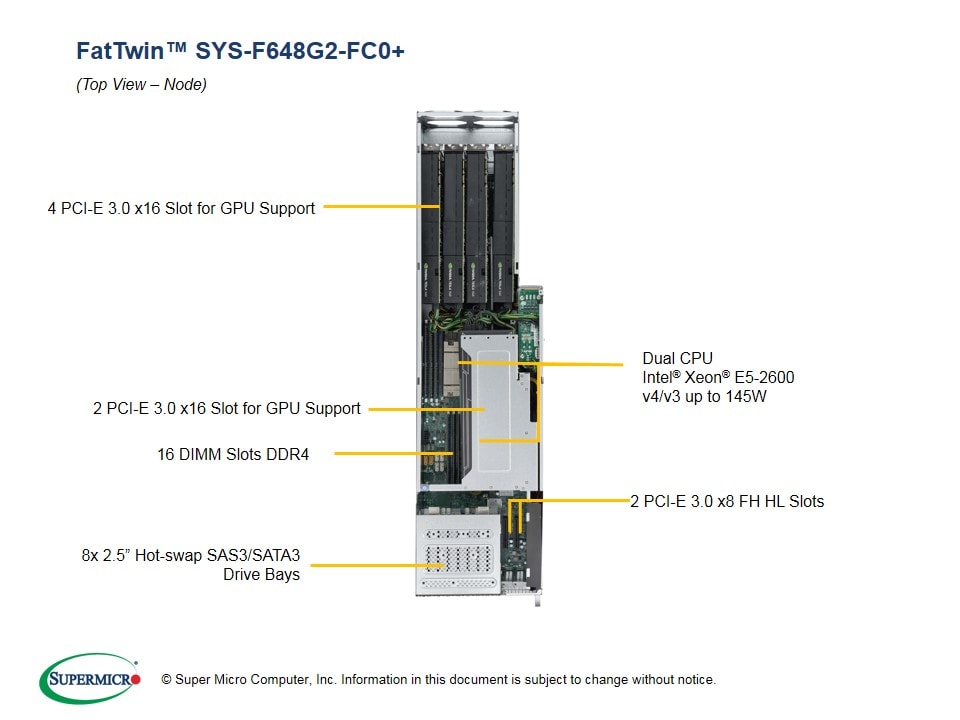

- 6x PCI-E 3.0 x16 Double-width GPU/Xeon Phi
- 2x PCI-E 3.0 x8 slots (Full-height, Half-length)
|
| |
| Hot-swap |
- 8x 2.5" Hot-swap drive bays
|
| |
| Fans/Air Shroud |
- 8x 80mm heavy duty fans with air shroud and PWM fan speed control and additional fans available
|
| |

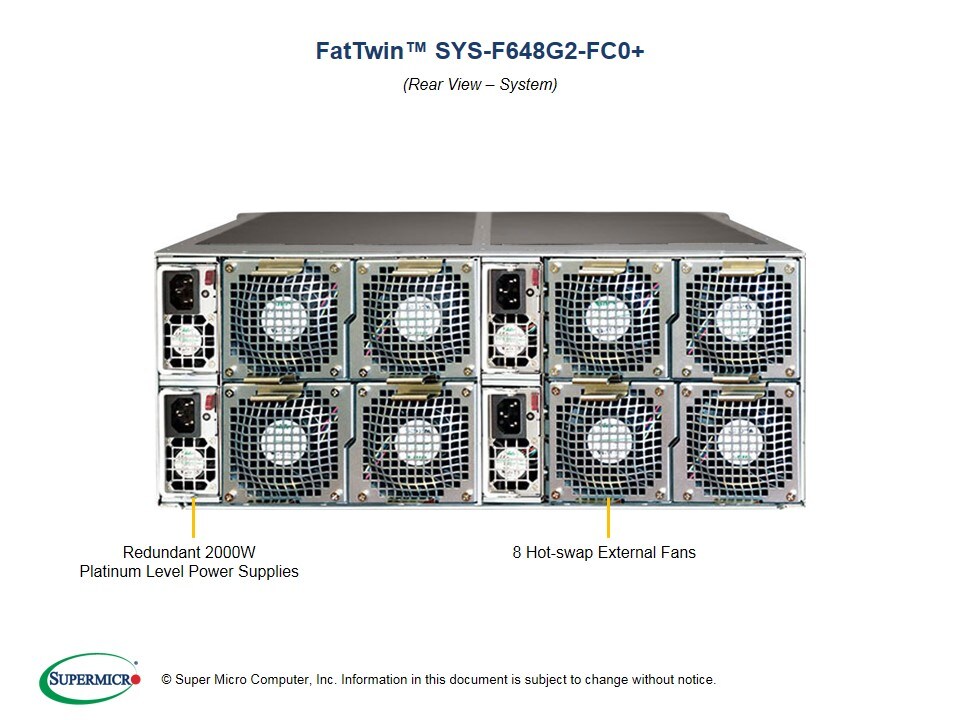

2000W Redundant Power Supplies with PMBus |
Total Output Power |
- 1000W: 100 – 127Vac
- 1800W: 200 – 220Vac
- 1980W: 220 – 230Vac
- 2000W: 230 – 240Vac
- 2000W: 200 – 240Vdc (UL/cUL only)
|
Dimension (W x H x L) |
|
Input |
- 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
- 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
- 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
- 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
- 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
|
+12V |
- Max: 83.3A / Min: 0A (100-127 Vac)
- Max: 150A / Min: 0A (200-220 Vac)
- Max: 165A / Min: 0A (220-230 Vac)
- Max: 166.7A / Min: 0A (230-240 Vac)
- Max: 166.7A / Min: 0A (200-240 Vac)
(UL/cUL only)
|
+5Vsb |
|
Output Type |
- 27 Pairs Gold Finger Connector
|
Certification |
Titanium Level [ Test Report ]
|
|
|
BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| |
| RoHS
|
|
Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
| |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
Motherboard / Chassis |
MBD-X10DRFF-CG
CSE-F442BG-R2K04BP |
2 1 |
Super X10DRFF-CG Motherboard
4U Chassis |
Backplane |
BPN-ADP-F418L |
4 |
BPN;SASADP;SAS827-H8;H8DTT;cable req |
Backplane |
BPN-SAS3-I28A |
2 |
8-port Mobile-Rack (CSE-M28SAC) SAS3 12Gbps hot swappable HDD backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD |
Backplane |
BPN-ADP-4UGPU-P |
4 |
Backplan adapter card for 4UGPU,RoHS/REACH,PBF |
Cable 1 |
CBL-PWCD-0578 |
4 |
PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
Cable 2 |
CBL-PWEX-0460-05 |
2 |
8 pin female to two big 4 pin female power cable, 35cm and 22cm. 18AWG,HF,RoHS/REACH,PBF |
Cable 3 |
CBL-SAST-0550 |
4 |
MINI SAS HD,12G,INT,25CM,30AWG |
Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
Manual |
MNL-1756-QRG |
1 |
A Quick Reference Guide for SYS-F648G2-FC0(PT)+,HF,RoHS/REACH |
Riser Card |
RSC-R2UFF-X2E16B |
2 |
RSC-R2UFF-X2E16B |
Riser Card |
RSC-R4UFF-A4E16B |
2 |
RSC-R4UFF-A4E16B |
Riser Card |
RSC-R4UFF-A2E16A |
2 |
RSC-R4UFF-A2E16A |
Heatsink / Retention |
SNK-P0048PS |
4 |
2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
Power Supply |
PWS-2K04A-1R |
4 |
AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH |
|
|
|
| |
| |
Part Number |
Qty |
Description |
Internal Fan |
FAN-0150L4 |
8 |
Rear internal fan for cooling enhancement |
Software |
SFT-OOB-LIC • |
2 |
OOB Management Package (per node license) |
Software |
SFT-DCMS-Single |
2 |
DataCenter Management Package (per node license) |
Hide Parts List
|
|
|
|
Note: Power redundancy is based on configuration. For more information, please refer to user manual. |
|
|
