Supermicro SSG-640SP-DE2CR90 | Servidor de almacenamiento 4U

4U 2-node high availability top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 4.0

Integrated Board: X12DSC-6
Más información

Key Applications

  • Big Data & Analytics, Data Lake
  • HPC and AI/ML Workloads
  • Telco & Cloud Service Providers
  • Financial Services & Healthcare Image Archives
  • Content Repositories
  • Government Data Protection

Key Features

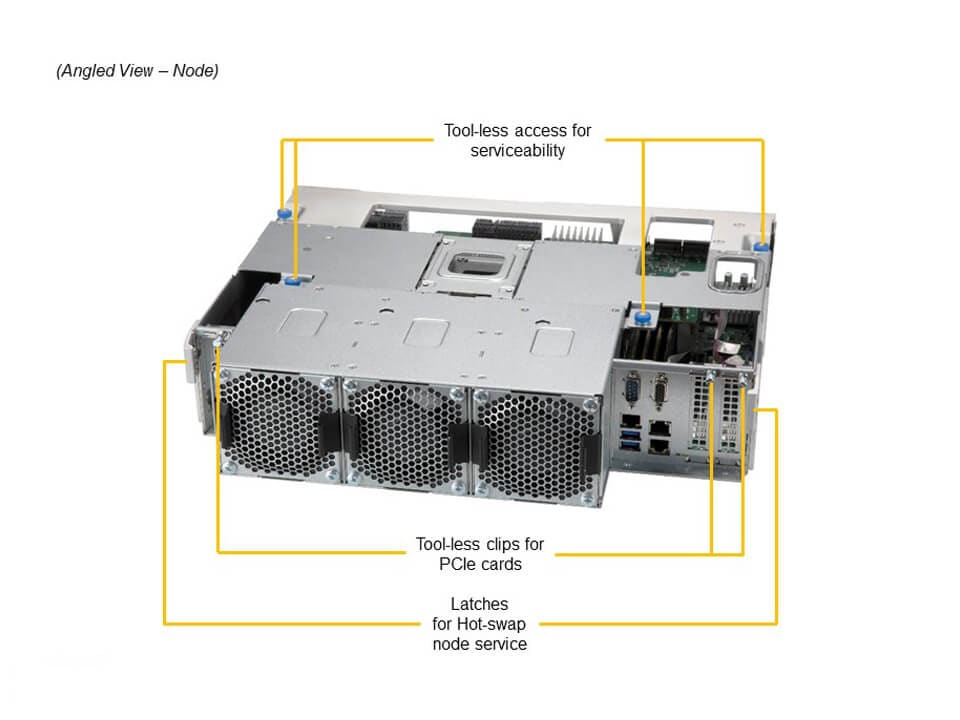

Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCIe 4.0 x16 HHHL PCIe slots

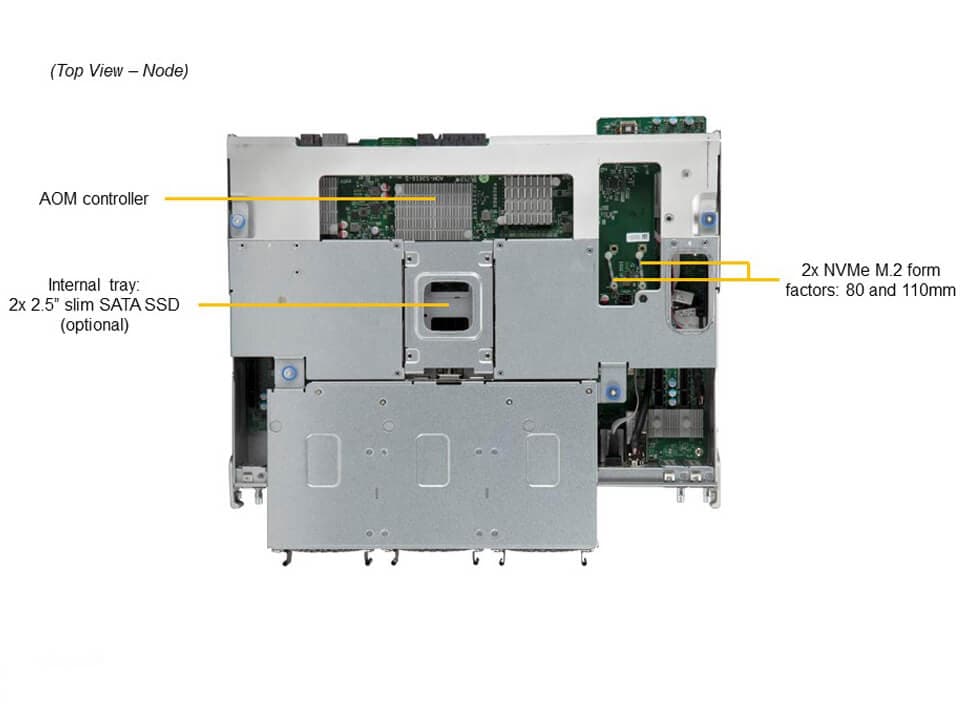

  4. 90 3.5"/2.5" Hot-swap SAS3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 2600W Redundant Power Supplies Titanium Level (96%)
  7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    HBA Controller support via Broadcom® 3616
  8. Dedicated node to node connectivity featuring high performance NTB PCIe 4.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support
...
...
SSG-640SP-DE2CR90
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SSG-640SP-DE2CR90
Motherboard
Super X12DSC-6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity

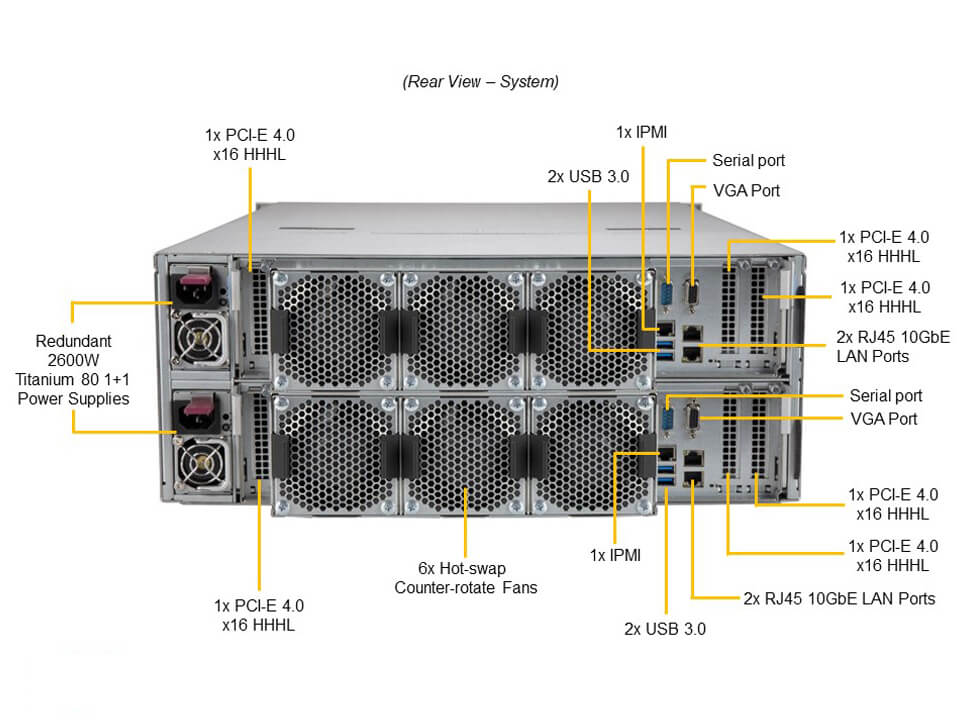

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
Fan
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Certifications
Operating Systems
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-947HTS-R2K63P
Dimensions and Weight
Height
  • 7"
Width
  • 17.6"
Depth
  • 42.1"
Package
  • 29.92" (H) x 35.82" (W) x 53.15" (D)
Weight
  • Gross Weight: 240 lbs (108.86 kg)
  • Net Weight: 150 lbs (68.04 kg)
Available Color
  • Black
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 92 bays

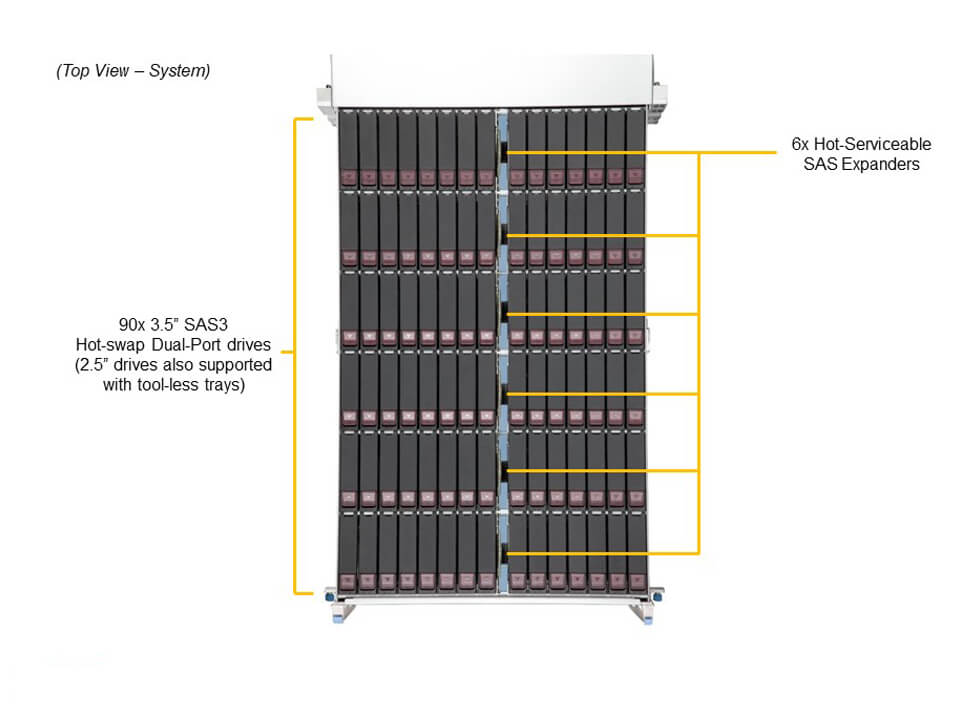

    • 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
    • 2 top-loading fixed 2.5" SATA drive bays
  • Ver opciones de conducción
M.2
System Cooling
Fans
  • Up to 6 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2600W
2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Acceso programado
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & Generation)
TPM AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
