A+ Server F1114S-FT (Complete System Only)

A+ Products Systems FatTwin™ [ F1114S-FT ]





Integrated Board
H12SSFF-AN6 Motherboard
Super H12SSFF-AN6

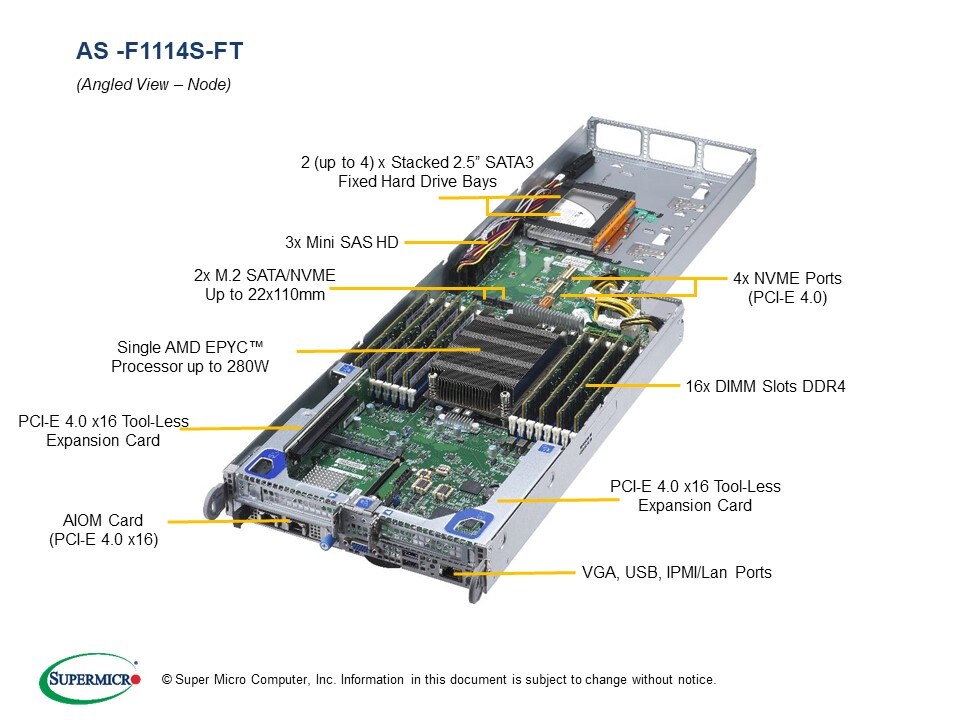

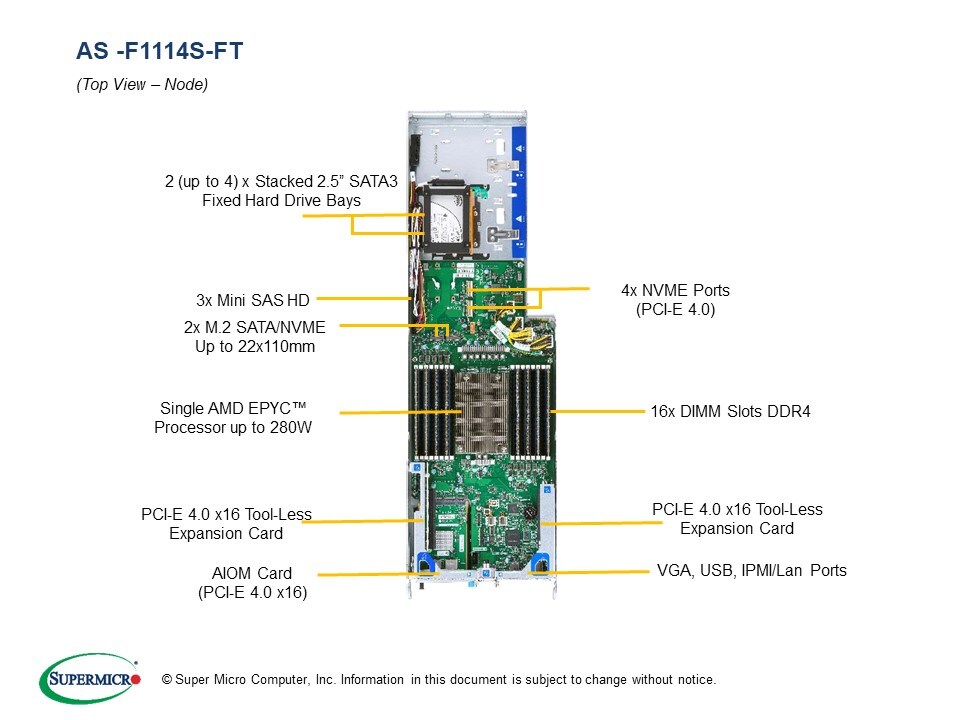

Views: | Angled (node) | Top (node) |

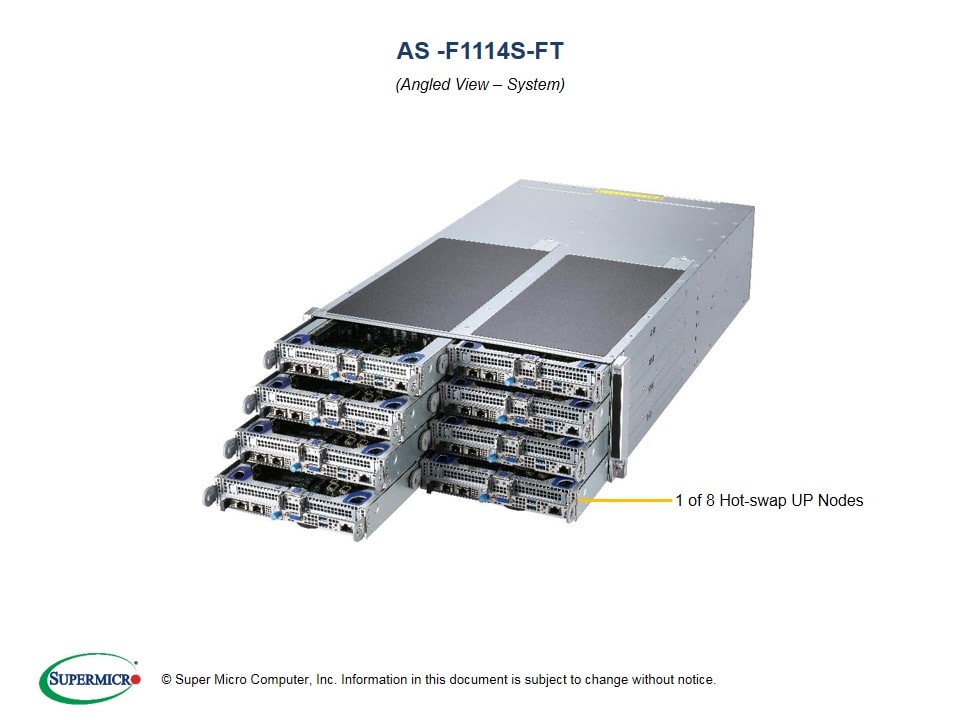

| Angled Front (system) | Rear (system) |
Key Applications
- Hyperscale and Hyperconverged Solutions
- Cloud Computing
- Cluster Node
- Data Center
- HPC cluster computer nodes

Key Features
8 Hot-pluggable System Nodes in a 4U form factor.
Each node supports:
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. Up to 4TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 16 DIMM slots
3. Expansion slots: 2 PCI-E 4.0 x16 (LP Riser),
1 PCI-E 4.0 x16 AIOM slot
4. AIOM Network card,
1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. Up to 4 fixed internal 2.5" drive bays:
   4 SATA3 by default,
   or optional 2 NVMe via additional cable
M.2 Interface: 2 SATA/NVMe, PCI-E 4.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
7. 8 heavy-duty 8cm 13.5k RPM rear fans per enclosure
8. 2000W or above Redundant Power Supplies
   (Full redundancy based on
   configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely assembled system (for optimal performance 8 DIMMs is recommended). Minimum requirement is 1 CPU, 4 DIMMs, 1 HDD/NVMe and 1 AIOM/AOC NIC card per node.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List Tested AOC Manuals Drive Options

Product SKUs
AS -F1114S-FT
  • A+ Server F1114S-FT (Black)
Motherboard

Super H12SSFF-AN6
Processor/Chipset (per Node)
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP / cTDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking via AIOM (not included, must add 1 per node)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output (per node)
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • Flexible networking via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
VGA
  • 1 VGA port (front)
Others
  • 1 TPM 2.0 header
System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418IF4-R2K20BP
Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 108.5 lbs (49.21 kg)
  • Gross Weight: 204.8 lbs (90.71 kg)
Available Colors
  • Black
Front Panel (per node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 2 PCI-E 4.0 x16 (Low-profile riser)
  • 1 PCI-E 4.0 x16 (AIOM)
Drive Bays (per node)
Fixed
  • Up to 4 internal 2.5" drive bays:
    • 4 SATA3 by default,
    • or optional 2 NVMe via additional cable in Optional Parts List
M.2
  • M.2 Interface: 2 SATA/NVMe, PCI-E 4.0 x4
  • M.2 Form Factor: 2260, 2280, 22110
  • M.2 Key: M-Key
System Cooling
Fans
  • 8 heavy-duty 8cm 13.5k RPM rear fans per enclosure

Power Supply
2000W or above Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1100W with Input 100-120Vac
  • 1400W with input 120-140Vac
  • 1800W with input 200-220Vac
  • 1980W with input 220-230Vac
  • 2000W with input 230-240Vac
  • 2000W with input 200-240Vac (for UL/cUL use only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 91.7A / Min: 0A (100-120Vac)
  • Max: 116.7A / Min: 0A (120-140Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (for UL/cUL use only)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSFF-AN6
CSE-F418IF4-R2K20BP 		8
1 		Super H12SSFF-AN6 Motherboard
4U Chassis
Cable 1 CBL-OTHR-1110-14 8 20pin to 20pin,PH1.0,14CM,28AWG,1.0A/pin,RoHS
Cable 2 CBL-PWCD-0578-1 4 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Cable 3 CBL-PWEX-1020-11 16 PWEX,2X4F/P4.2 TO 2X4F/P4.2,10.5CM,16AWG,RoHS
Cable 4 CBL-SAST-0757 8 MINI SAS HD-2 SAS+8P 2x4(5,12V)GPU PWR,BLK,INT,50CM,22/30AWG
Riser Card RSC-FF-6G4 8 1U Front LHS FatTwin riser card with one PCI-E 4.0x16slot
Riser Card RSC-PR-6-X2 8 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
Heatsink / Retention SNK-P0062P 8 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply PWS-2K02P-1R 4 2000W redundant platinum power supply
Backplane BPN-PDB-X12DPFF 2 FatTwin 4U 4-Node PDB with LCMC for FIO Platform
Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)


Optional Parts List
Part Number Qty Description
Cable for 2 NVMe Drives Support CBL-SAST-1231LP-85 1 SlimlineLP x8 (STR) to 2x SFF 8639,2x4,PH4.2,35/35/30/3
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
