SuperServer 1019D-4C-RAN13TP+

  Products  Systems  1U   [ 1019D-4C-RAN13TP+ ]

SYS-1019D-FHN13TP



Integrated Board
Super X11SDW-4C-TP13F+

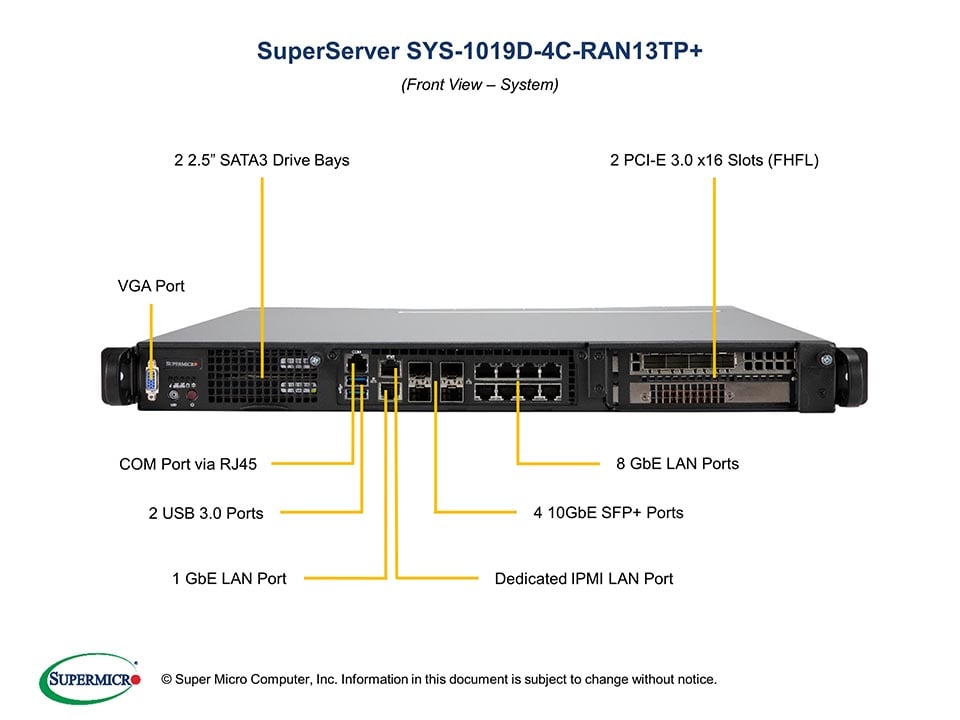

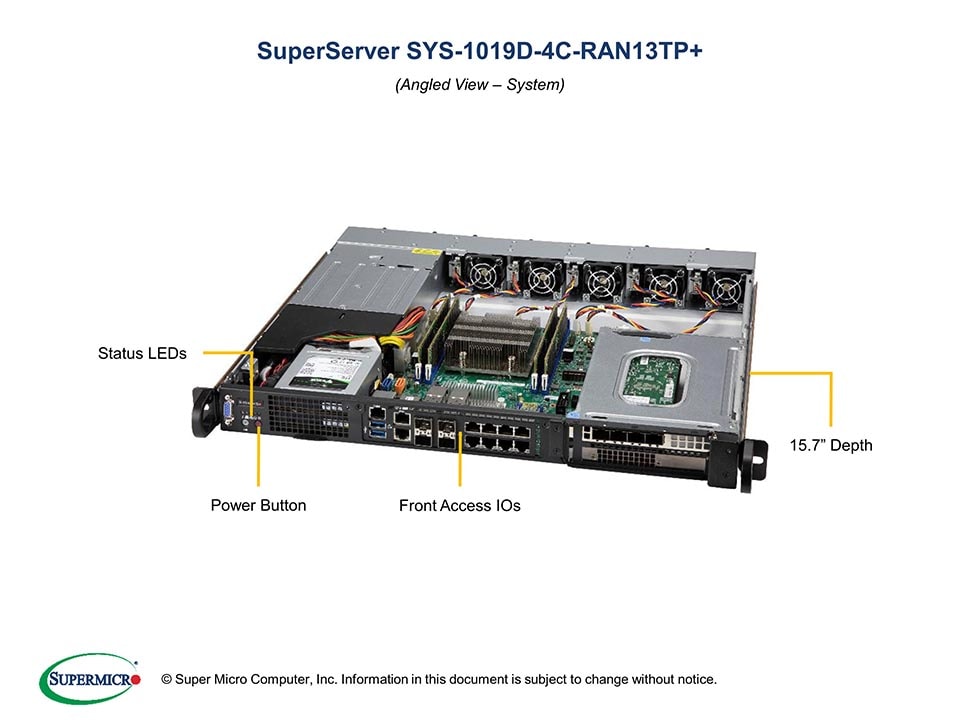

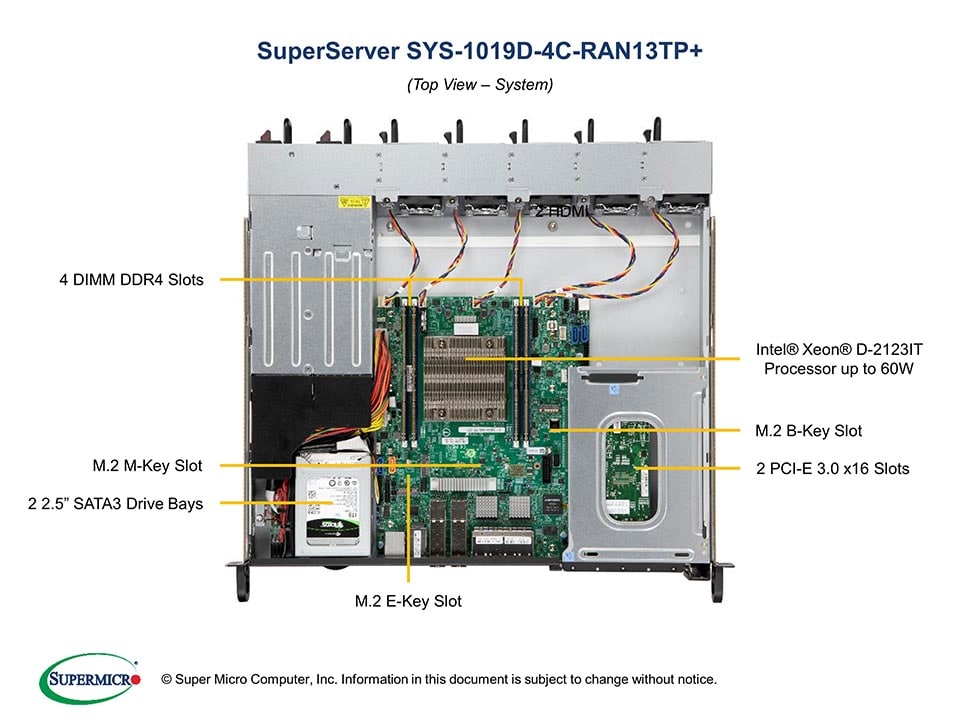

Views: | Angled View | Top View |

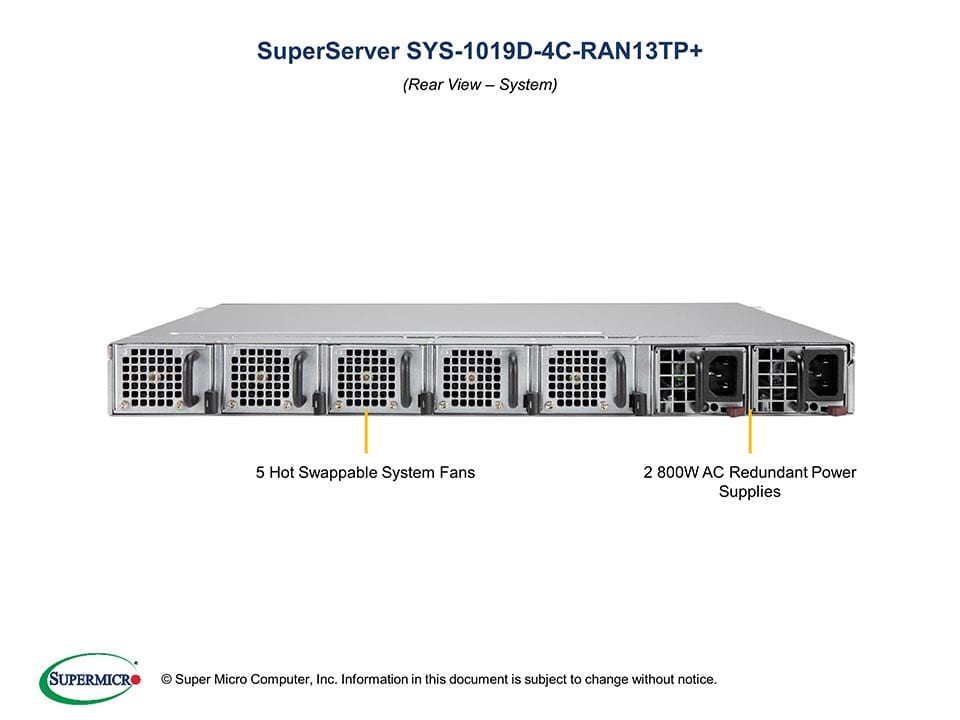

| Front View | Rear View |

Key Applications
- Multi-Access Edge Computing (MEC)
- Centralized/Cloud Radio Access
   Network (C-RAN)
- Universal Customer Premise
   Equipment (uCPE)
- Software Defined WAN (SD-WAN)
- Network Function Virtualization (NFV)
- Artificial Intelligence (AI)



Key Features
1. Intel® Xeon® D-2123IT Processor,
    4-Core, 8 Threads, 2.2 GHz, 60W
2. Up to 512GB ECC LRDIMM,
    up to 256GB reg. ECC RDIMM
    DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 (FHFL) slots
4. 2 Internal 2.5" SSD bays
5. M.2: 1 M-Key, 2280/22110;
    1 E-Key, 2230; 1 B-Key, 2242/3042
6. 9 GbE (1 port for management),
    4x 10G SFP+, and
    1 Dedicated IPMI LAN
7. 2 USB 3.0, 1 VGA,
    1 COM via RJ45
8. 800W Redundant Power Supplies
    Platinum Level (94%+)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Drive Options   Manuals   Quick-References Guide  OS Certification Matrix

Product SKUs
SYS-1019D-4C-RAN13TP+
  • SuperServer 1019D-4C-RAN13TP+ (Black)

Motherboard

Super X11SDW-4C-TP13F+

Processor
CPU
  • Intel® Xeon® processor D-2123IT
  • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 60W TDP
Cores / Cache
  • 4 Cores, 8 Threads

System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 L/RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Quad 10G SFP+ via SoC
  • 8x 1GbE with Intel® I350-AM4
  • Single 1GbE with Intel® I210
IPMI
  • ASPEED AST2500
  • Support for Intelligent Platform Management Interface v.2.0
Video
  • VGA via Aspeed AST2500 BMC

Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 4 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM via RJ45
TPM
  • 1 TPM Header & Chip both

System BIOS
BIOS Type
  • UEFI 256Mb

Management
Software
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515M-R804

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 15.7" (399mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 28 lbs (12.7 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots
M.2
  • 1 M.2 M-Key: 2280/22110
  • 1 M.2 B-Key: 2242/3042
  • 1 M.2 E-Key: 2230

Drive Bays
Internal
  • 2 Internal 2.5" drive bays

System Cooling
Fans
  • 5x 40x56mm Hot-swap Counter-rotation PWM Fans

Power Supply
800W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz
+5V
  • N/A
+5V standby
  • Max.: 4 Amp
  • Min.: 0 Amp
+12V
  • Max: 62.5A & Min: 0.5A (100Vac-127Vac)
  • Max: 66.6A & Min: 0.5A (200Vac-240Vac)
  • Max: 66.6A & Min: 0.5A (230-240Vdc)
-12V
  • N/A
+3.3V
  • N/A
Certification Platinum Level Certified     Platinum Level Certified
  [ Test Report ]

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 45°C (32°F to 113°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SDW-4C-TP13F+
CSE-515M-R804
1
1
Super X11SDW-4C-TP13F+ Motherboard
1U Chassis
Cable 1 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 2 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
FAN FAN-0207L4 2 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis
Parts MCP-260-00153-0B 1 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black
Air Shroud MCP-310-51504-0B 1 Mylar Air Shroud for SC515M + X11 SDW
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
* Power Supply PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input
* Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List

Part Number
Qty
Description
Rack Bracket MCP-290-00016-0N - 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
Air Shroud MCP-310-51505-0B 1 Mylar Air Shroud for SC515M + T4 GPU
Air Shroud MCP-310-51506-0B 1 Mylar Air Shroud for SC515M, FHFL AOC optimized
Hide Parts List
