Vue d'ensemble

Supermicro Max IO solutions are resource optimized, cost-effective and ideal for space-constrained applications. Supermicro's highly dense yet compact server designs provide excellent compute, networking, storage and I/O expansion. These servers utilize Supermicro optimized thermal designs to save energy, operate at lower decibels and minimize system power consumption. Several models provide redundant power and cooling options and run at an extended temperature range. Supermicro's high quality assures reliable, long life and uninterrupted operation.

Supermicro Max IO solutions support a range of Intel® technologies for a diverse portfolio of use cases. Support for high-performance enterprise level Socket P processors enables customers to meet the requirements of applications including Industrial Automation (IPC), Medical Imaging, Intelligent Transport, Digital Signage, Digital Security and Surveillance, Network, Storage appliances, Edge Computing and other variety of other applications.

Caractéristiques du produit

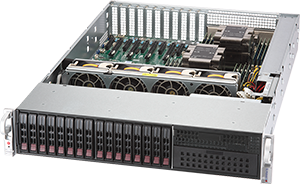

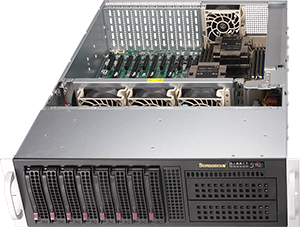

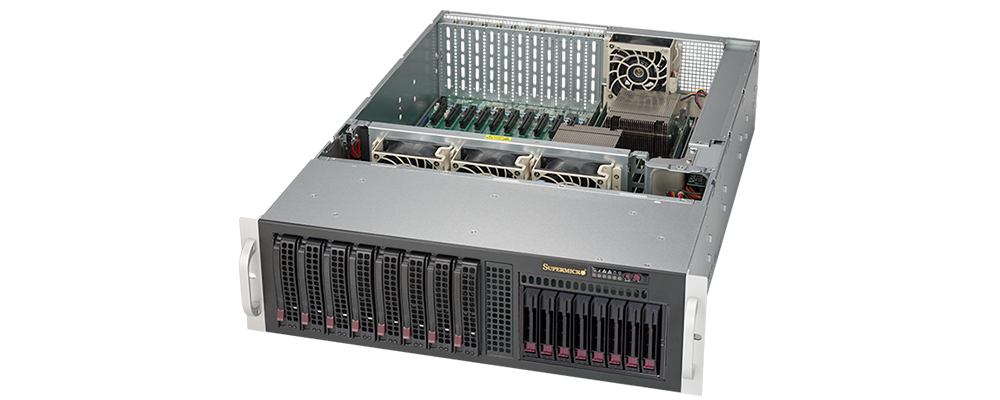

Supermicro Maxio 2U und 3U Rackmount

Facteur de forme

Montage en rack 2U et 3U
Supermicro Maxio Intel® Optane™ DC persistent memory

Mémoire

16 emplacements DIMM, jusqu'à 4 To de mémoire DDR4, mémoire persistante Intel® Optane™ DC
Supermicro Maxio energy efficiency

Puissance

Jusqu'à 1000W d'efficacité énergétique redondante de niveau Titanium (96%) et Platinum
Supermicro Maxio rack-scale management

Gestion

Standard industriel ouvert IPMI, API Redfish, gestion de l'échelle du rack
Supermicro Maxio Dual Intel®Xeon® scalable processor

Processeurs

Deux processeurs Intel® Xeon® Scalable jusqu'à 205 W TDP
Supermicro Maxio drive bays

Entraînements

Jusqu'à 16 baies de disques 2,5" ou 8 baies de disques 3,5
Supermicro Maxio slots

Entrée/sortie

2 emplacements PCI-E 3.0 x16, 2 emplacements PCI-E 3.0 x16 (ou 4 PCI-E 3.0 x8), 4 emplacements PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (dans un emplacement x8) ; double 10GbE intégré
Supermicro Maxio global services

Services

Worldwide Global Services

Certains produits peuvent ne pas être disponibles dans votre région
