SuperServer F619P2-RTN

  Products  Systems   FatTwin™   [ F619P2-RTN ]








Integrated Board
Super X11DPFR-SN




Views: | Angled (node) | Top (node) |

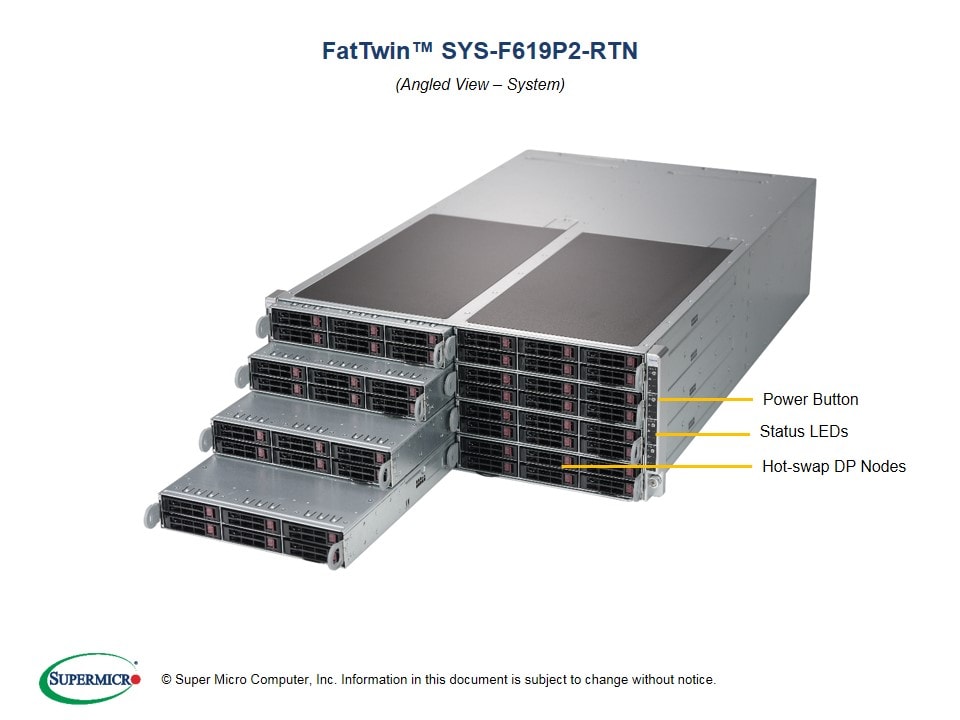

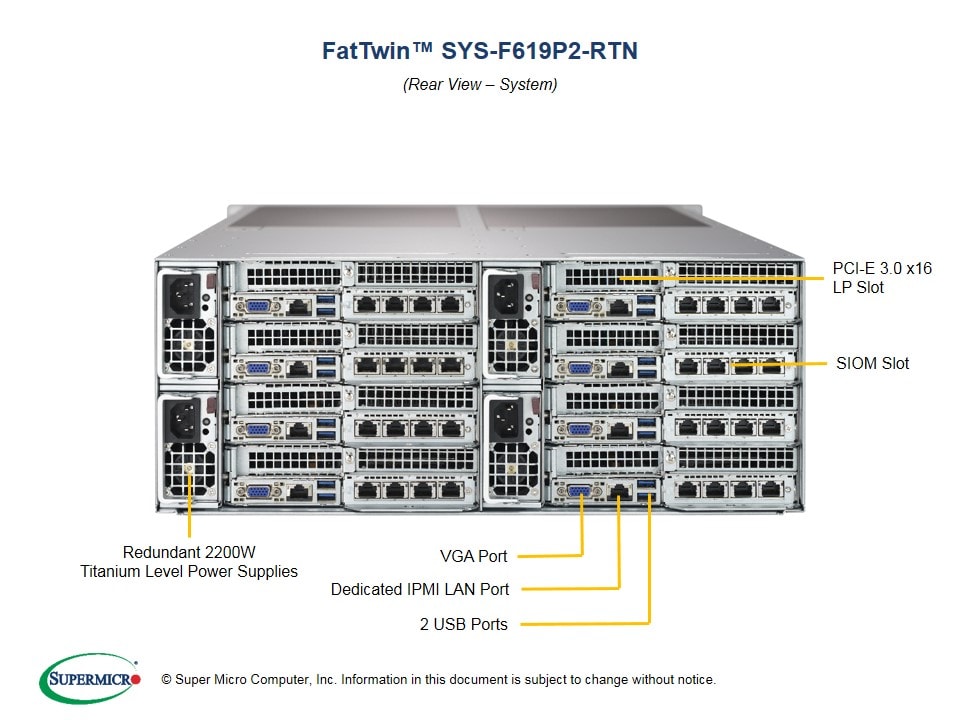

| Angled Front (system) | Rear (system) |



 Key Features

8 Hot-plug System Nodes in 4U

Each node supports:



1. Dual Socket P (LGA 3647) support

    2nd Gen. Intel® Xeon® Scalable

    processors (Cascade Lake/Skylake)‡
2. 12 DIMMs; up to 3TB 3DS ECC

    DDR4-2933MHz† RDIMM/LRDIMM,

    Supports Intel® Optane™ DCPMM††
3. Expansion slots: 1 PCI-E 3.0 x16 (LP)

    1 PCI-E 3.0 x16 (for SIOM )
4. 6 Hot-swap 2.5" SATA3 or 2 Hot-swap

    2.5" SATA3 + 4 NVMe U.2

    M.2 Interface: PCI-E 3.0 x4

    M.2 Form Factor: 2260, 2280, 22110

    M.2 Key: M-Key
5. SIOM Network card,

    1 dedicated IPMI LAN port
6. 1 VGA, 2 USB 3.0 ports
7. 3x 4cm 20k RPM middle fans
8. 2200W Redundant Power Supplies

    Titanium Level (96% Efficiency)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options   Tested SIOM  Network Card (AOC) Matrix


Product SKUs
SYS-F619P2-RTN
  • SuperServer F619P2-RTN (Black)

Motherboard


Super X11DPFR-SN

Processor/Cache (per Node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡,

    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W with IVR
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

System Memory (per Node)
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Flexible networking via SIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output (per node)
SATA
  • 14 SATA3 (6Gbps) ports
NVMe
  • 4 NVMe U.2 option
LAN
  • SIOM flexible Network card
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC2-R2K20BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (Low-profile)
  • 1 PCI-E 3.0 x16 (SIOM)

Drive Bays (per node)
Hot-swap
  • 6 Hot-swap 2.5" SATA3 or 2 Hot-swap 2.5" SATA3 + 4 NVMe U.2
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • M.2 Form Factor: 2260, 2280, 22110
  • M.2 Key: M-Key

Backplane
1 SAS/SATA backplane

System Cooling (per node)
Fans
  • 3x 4cm 20k RPM middle fans

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level96%  Titanium Level

  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


See Parts List
Parts List - (Items Included)


 Part Number

 Qty

 Description
Motherboard / Chassis MBD-X11DPFR-SN

CSE-F418BC2-R2K20BP 		8

1		 Super X11DPFR-SN Motherboard

4U Chassis
Backplane BPN-ADP-X11DPFR 8 Power distribution board for X11DPFR-S(N)
Backplane BPN-SAS3-F418-B6N4 8 6-Port Hybrid Backplane Supports 2x2.5” SAS3/SATA3 HDD/SDD and 4x2.5” SAS3/SATA3/NVMe Storage Devices for FatTwin Platform
Cable 1 CBL-0486L 16 2x2 to 2x2 15cm power cable HF. 18AWG
Cable 2 CBL-OTHR-0022L 8 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF
Cable 3 CBL-PWCD-0578 4 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 4 CBL-SAST-0532 16 MINI SAS HD,12G,INT,50CM,30AWG
Cable 5 CBL-SAST-1002-1 32 OcuLink v 1.0,INT,PCIe NVMe SSD, 13CM,34AWG
Riser Card RSC-RR1U-E16 8 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0067PS 8 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0067PSM 8 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm




Optional Parts List
  Part Number Qty Description
SIOM Cards for FatTwin Various 1/node See FatTwin SIOM Compatibility Matrix
Network Card(s) AOC-SGP-i2/4

AOC-STGN-i1S/i2S

AOC-STGF-i2S

AOC-STG-i4S

AOC-STG-b4S

AOC-STG-i2T

AOC-STGS-i1/2T

AOC-STG-i4T

AOC-STG-i2

AOC-S25G-m2S

AOC-S40G-i2Q

More		 - Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2

Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540

Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550

Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB

Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN

Standard LP 2-port 40GbE controller, Intel Fortville XL710

AOC Compatibility Matrix
TPM security module AOM-TPM-9670H-S-O 1/node SPI capable vertical TPM 2.0 provisioned for client,RoHS
Intel VROC RAID Key AOC-VROCINTMOD

AOC-VROCSTNMOD

AOC-VROCPREMOD		 1/node

1/node

1/node		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)

Intel VROC Standard, RAID 0, 1, 10

Intel VROC Premium, RAID 0, 1, 5, 10
Add-on card for Additional M.2 NVMe AOC-SLG3-2M2 1/node Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
Alternative Rack Rail Kit MCP-290-00077-0N 1/system SLIDING RAILS, BLADE SERVER for round-hole rack, M5 thread
2 NVMe Drive Kit for CPU1 AOC-SLG3-2E4T-P

CBL-CDAT-0674

CBL-SAST-0818		 1/node

1/node

2/node		 2 Port NVMe PCIE X8 Retimer

4 Pin to 4 Pin I2C cable, 30cm, 26AWG, 4 wires, pinout 1-1, for vpp header

OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
4 NVMe Drive Kit for CPU1 AOC-SLG3-4E4T-P

CBL-CDAT-0674

CBL-SAST-0818		 1/node

1/node

4/node		 4 Port NVMe PCIE X16 Retimer

4 Pin to 4 Pin I2C cable, 30cm, 26AWG, 4 wires, pinout 1-1, for vpp header

OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
Global Services & Support OS4HR3/2/1

OSNBD3/2/1		 -

-		 3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
