SuperServer SYS-420GH-TNGR (Complete System Only)

4U AI Training System with 8 Habana® Gaudi® Deep Learning Processors and dual 3rd Gen Intel® Xeon® Scalable Processors

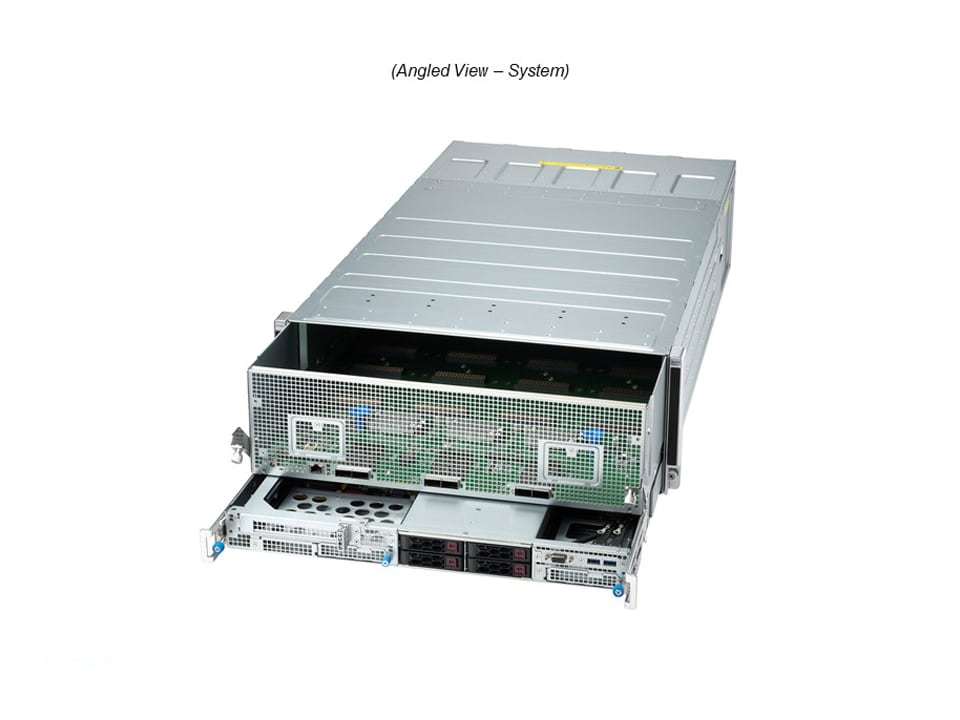

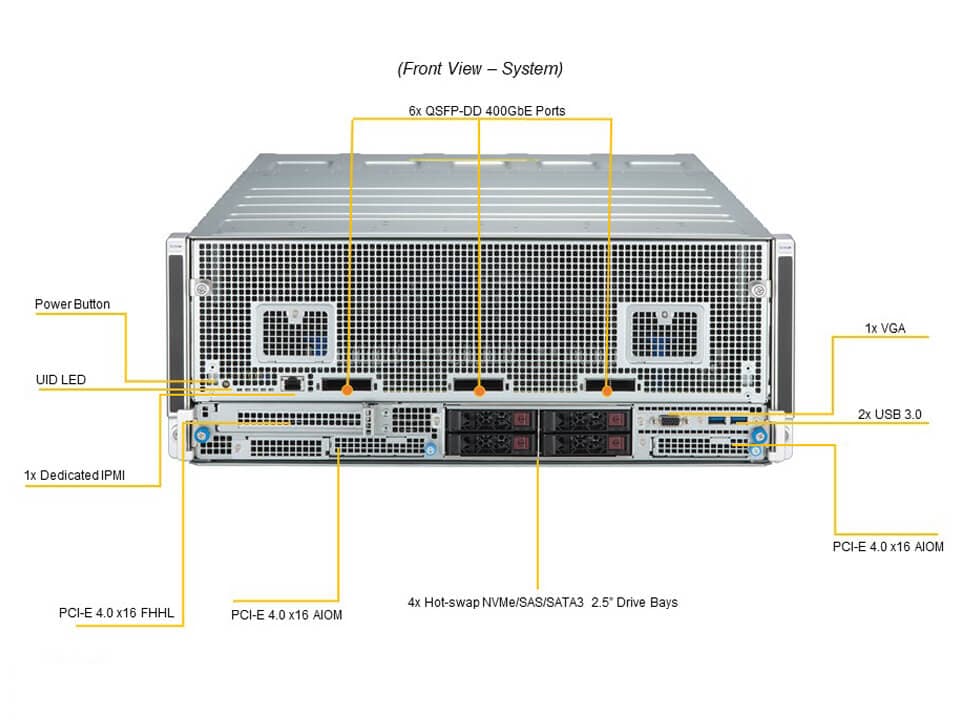

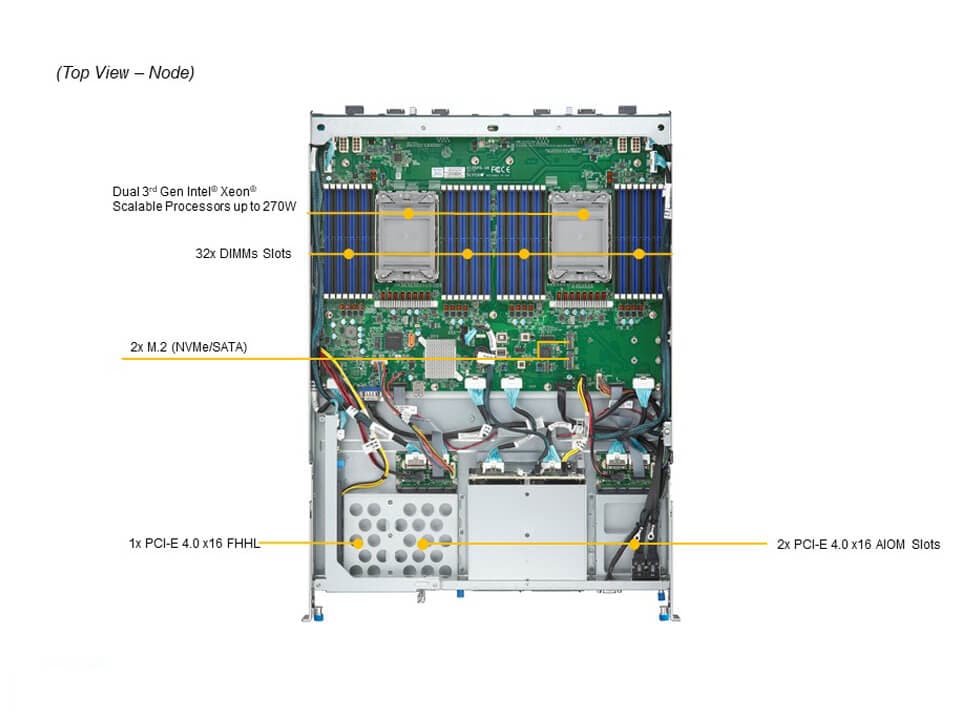

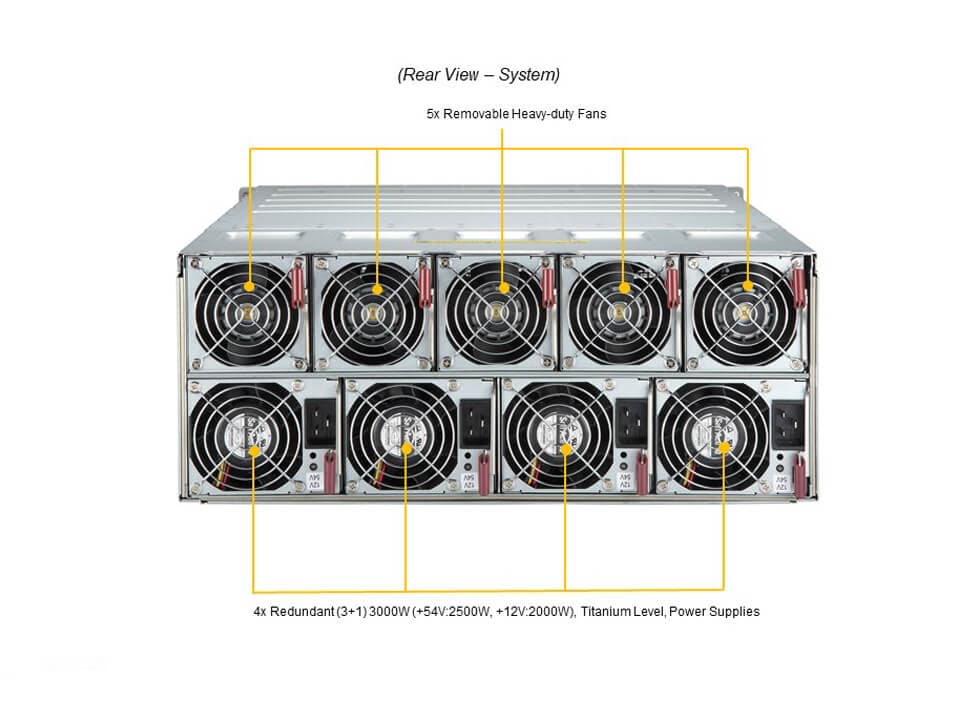

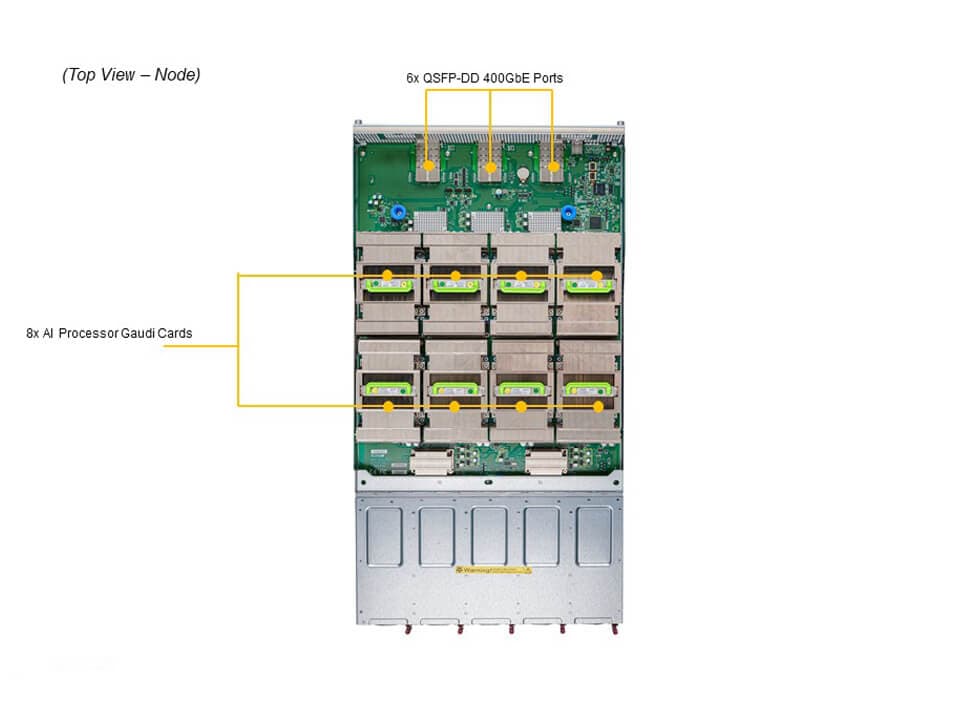

SYS-420GH-TNGR Main SYS-420GH-TNGR Angle SYS-420GH-TNGR Top SYS-420GH-TNGR Node SYS-420GH-TNGR Front SYS-420GH-TNGR Rear
Integrated Board: X12DPG-U6
Learn more

Key Applications

  • Computer Vision
  • Natural Language Processing
  • Recommendation
  • Purpose Built for AI/Deep Learning Training

Key Features

  1. Dual Intel® Xeon® Scalable Processors (Ice Lake) TDP up to 270W
  2. Intel® C621A Chipset
  3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
  4. 1x PCIe 4.0 x16 FHHL slot plus 2x PCIe 4.0 AIOM (OCP 3.0 superset) slots
  5. 24x on-board 100GbE (via 6x QSFP-DDs) for scale-out and 1x 10GbE BaseT (dedicated IPMI port)
  6. 4x 2.5” SAS/SATA/NVMe Hybrid Hot-Swap Bays
  7. 5x Removable Heavy-Duty Fan(s)
  8. 4x 3000W(54V+12V)/2000W(12V) redundant, Titanium Level power supplies
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-420GH-TNGR (Silver)
Motherboard
Super X12DPG-U6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
Hardware Accelerator
AI Processor
  • 8x Habana training Gaudi HL-205 OAM
GPU
Max GPU Count
  • Up to 8 double-width GPU(s)
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 6x 400GbE QSFP-DD
  • 1x 10GbE BaseT
  • Note: IPMI LAN port on AI processor tray, two AIOM slots on CPU tray.
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
USB
  • 2 USB 3.0 port(s) (2 USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-428G2
Dimensions and Weight
Height
  • 7" (178mm)
Width
  • 17.6" (447mm)
Depth
  • 32" (813mm)
Package
  • 15" (H) x 27.3" (W) x 49.4" (D)
Weight
  • Gross Weight: 137 lbs (62 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Carrier Board Node LED
  • CPU Node LED
  • Information LED
  • PSU Failed LED
  • UID LED
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 FHFL slot(s)
  • 2 PCIe 4.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 4x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 5 removable heavy-duty Fan(s)
Fans
  • 5 Removable Heavy-Duty 84x203.5x82.4mm Fan(s)
Power Supply
6000W Redundant Titanium Level power supplies
Total Output Power
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
AC Input
  • 2880W: 200-207Vac
  • 2880W: 200-207Vac / 50-60Hz
  • 3000W: 207.1-240Vac
  • 3000W: 207.1-240Vac / 50-60Hz
  • 3000W: 240Vdc
  • 3000W: 240Vdc / 50-60Hz
12V SB
  • Max: 4A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Compatible GPU ListDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadCarrier Board FirmwareDrivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPG-U6

MBD-HGI-MEZZ-P

CSE-428G2 		1

1

1 		Super X12DPG-U6 Motherboard

Habana carrier board to support 8* HabanaGaudiHL-205OAMm

4U Chassis
Add-on Card / Module AOM-AIOM-2X8-P 2 2nd AIOM board (cable solution) for Hyper-E2Usystem,RoHS
Backplane BPN-NVME4-HS119N-S4R 1 1U 4-Slot SFF Backplane Supports 4 x SAS3/SATA3/NVMe4 Storage Devices,HF,RoHS
BPN-OAM-428G2 1 Midplane for OAM systems, able to support different OAM carrier boards like Habana Gaudi, Intel PVC, AMD GPU, etc.,RoHS
Cable CBL-OTHR-0795-1 2 FLAT,IDC 2X11F/P1.27 at both endsNCSI,14CM,w/sh30AWGRoHS
CBL-OTHR-1115 2 2x15 to 2x15,18cm,28AWG,1A/pin,RoHS
CBL-PWCD-0376-IS 4 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWEX-0973-15 1 (MicroFit 2x4 to MicroHi 2x2),PH3.0,15cm,9A/p,18AWG,RoHS
CBL-PWEX-0973-30 1 (MicroFit 2x4 to MicroHi 2x2),PH3.0,30cm,9A/p,18AWG,RoHS
CBL-SAST-1201LP-85 2 SlimSASLP (x8 RA to x8 STR), 14CM, 85 OHM, RoHS
CBL-SAST-1202LP-85 1 SlimSASLP (x8 RA to x8 STR),21CM, 85OHM, RoHS
CBL-SAST-1227LP-100 1 SlimSASLP (x8 STR to x4 STR),27CM,100 OHM,RoHS
CBL-SAST-1242LP-85 1 SlimSASLP (x8 RA to x8 STR),41CM,85 OHM, RoHS
CBL-SAST-1245LP-85 3 SlimSASLP (x8 STR to x8 STR),43CM,85 OHM,RoHS
CBL-SAST-1294LP-85 1 SlimSASLP (x8 RA to x8 STR),16CM,85 OHM,RoHS
Drive Tray(s) MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Power Supply PWS-3K03G-2R 4 2U 3000W, Titanium efficiency for Habana GPU 54V(2500W)+12V(2000W)
PWS-DF004-2F 5 Fan module for Habana system, 84x203.5x82.4,8080 fan
Riser Card RSC-H2-68G4 1 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
