SuperServer SYS-220GQ-TNAR+ (Complete System Only)

2U Dual Processor (Intel) GPU System with NVIDIA HGX A100 4-GPU 40GB/80GB, NVLink, Redundant 3000W Titanium Level Power Supplies

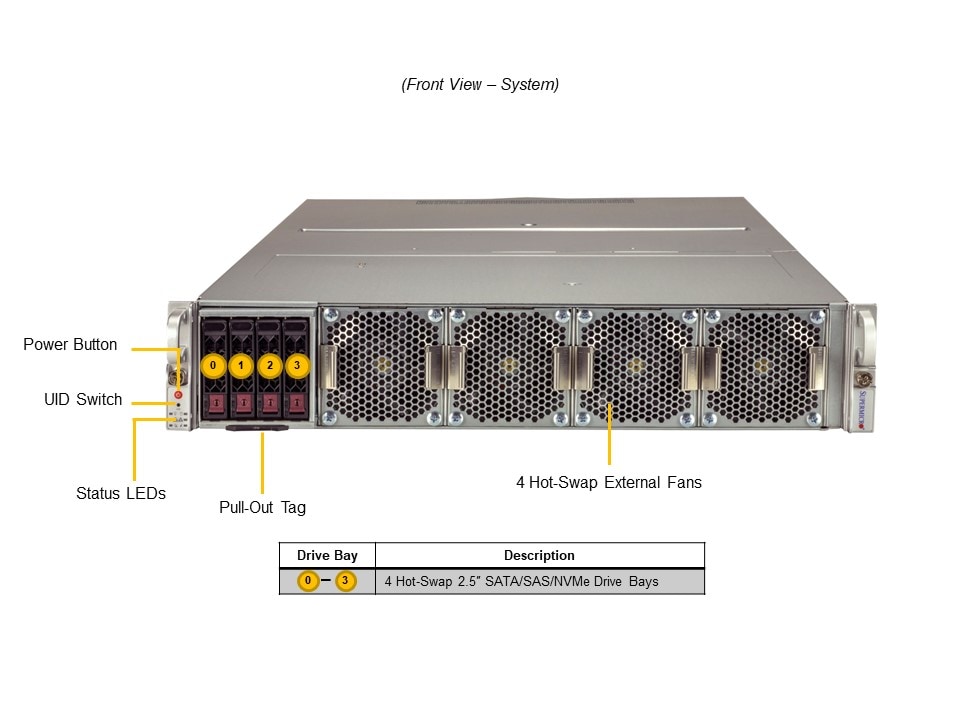

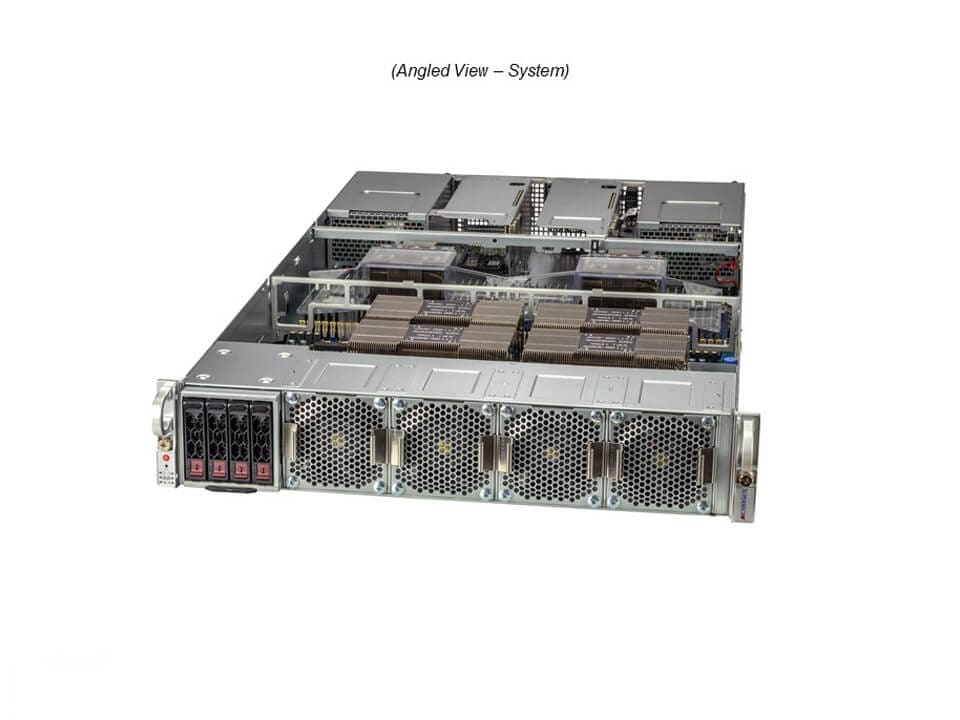

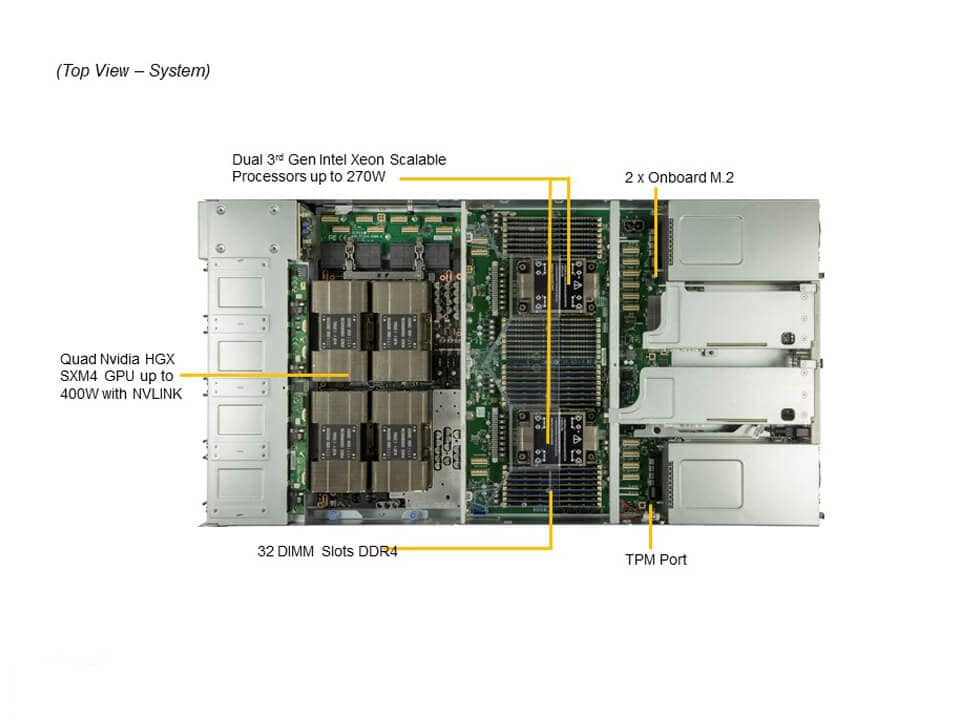

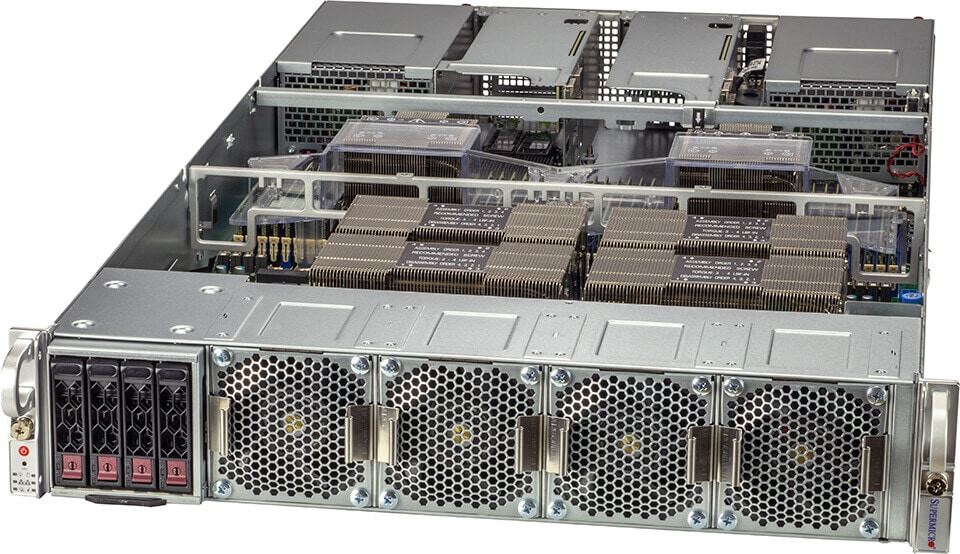

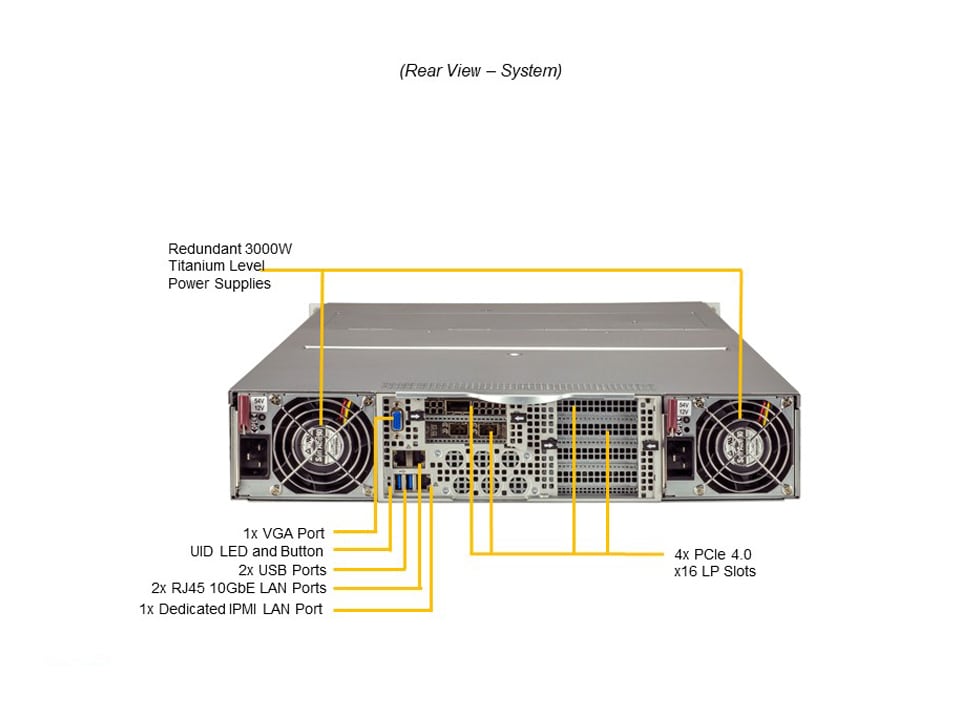

SYS-220GQ-TNAR+ Main SYS-220GQ-TNAR+ Angle SYS-220GQ-TNAR+ Top SYS-220GQ-TNAR+ Front SYS-220GQ-TNAR+ Rear
Integrated Board: X12DPG-QR
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
    Up to 4x PCIe Gen 4.0 X16 LP Slots
  4. Direct connect PCIe Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
    High density 2U system with NVIDIA® HGX™ A100 4-GPU
    Highest GPU communication using NVIDIA® NVLINK™
    Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
  5. Flexible networking options
  6. 2 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
    4x 2.5" Hot-swap (SATA/SAS/NVMe) drive bays
  7. 4 heavy duty fans with optimal fan speed control
  8. 2x 3000W redundant Titanium level power supplies
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-220GQ-TNAR+ (Silver Body)
Motherboard
Super X12DPG-QR
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Supported GPU
  • HGX A100 4-GPU SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™
Certification
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM and 16x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X540-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-228GTS-R3K02P
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 32.7" (830.3mm)
Package
  • 11" (H) x 22.5" (W) x 45.5" (D)
Weight
  • Net Weight: 67.5 lbs (30.6 kg)
  • Gross Weight: 86.5 lbs (39.2 kg)
Available Color
  • Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x16 LP (enabled upon request during order) ** slot(s)
Drive Bays / Storage
Hot-swap
  • 4x 2.5" hot-swap NVMe/SATA/SAS drive bays
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
3000W Redundant Titanium Level power supplies
Total Output Power
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
AC Input
  • 2880W: 200-207Vac
  • 2880W: 200-207Vac / 50-60Hz
  • 3000W: 207.1-240Vac
  • 3000W: 207.1-240Vac / 50-60Hz
  • 3000W: 240Vdc
  • 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A
Output Type
  • Backplanes (connector)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Drive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPG-QR

CSE-228GTS-R3K02P 		1

1 		Super X12DPG-QR Motherboard

2U Chassis
Add-on Card / Module AOM-228G-FAN-P 1 Fan board for SC228G,RoHS
AOM-PCIE4-SXM4-Q-P 1 PCIe Transition board for nVidia,Redstone,GPUmoduleRoHS
AOM-PTG-I2T-P 1 Riser card using Intel X710 for GPU AMD/Intel systems
Backplane BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN Supports 4xSAS3/SATA3/NVMe4 Storage Device
Cable CBL-0223L 2 BLADE PWS POWER CORD C-19 TO C-20, PBF
CBL-OTHR-1062A-10 1 [NR] VGA,DP15/F to 2X7F/P2.0,10CM,variant of OTHR-1062,RoHS
CBL-PWEX-1092-23 1 MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
CBL-PWEX-1093-36 1 MicroFit,(2x2F to 2x2F), PH3.0,36CM,10A/pin,16AWG,RoHS
CBL-PWEX-1094-43 1 Microfit,(2X4 to 2X4),PH3.0,43CM,9A/pin,16AWG,RoHS
CBL-PWEX-1096-43 1 Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43.
CBL-PWEX-1114-30 2 Microfit,(2x4 to 2x4),PH3.0,30CM,9A/pin,16AWG,RoHS
CBL-SAST-1216LP-85 5 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),16CM,85 OHM,R
CBL-SAST-1224LP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
CBL-SAST-1229LP-85 2 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
CBL-SAST-1262LP-85 6 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM,
CBL-SAST-1264AL4-85 2 SlimSAS (LP x8 to x8),LNRV,64cm, with 1x4 SB,85Ohm,RoHS
CBL-SAST-1272-100 1 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM,RoH
CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
Drive Tray(s) MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Riser Card RSC-G-66G4 2 1U LHS GPU Riser card with two PCIe 4.0 x16 slots,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
SNK-P4006PV 4 2U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
*Power Supply PWS-3K02G-2R 2 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W)
*Fan FAN-0197L4-1 4 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan, w/ SMC Fan Board, louver for AS-2124GQ-NART (CSE-228G Chassis)
*Rail Set MCP-290-00144-1N 1 2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5-33.5
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
2.5" SATA/SAS Drive Tray MCP-220-00187-0B 1 per drive 2.5 thin profile drive tray, standard color tab, for SAS / SATA drives
GPU Baseboard * GPU-NVTHGX-A100-SXM4-48 1 NVIDIA Redstone GPU Baseboard, 4 A100 80GB SXM4
GPU-NVTHGX-A100-SXM4-4 1 NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4
GPU Baseboard Note * Required as part of Complete System - -
Network Cards (Ethernet) AOC-S25G-I2S - 2-port SFP28 Intel XXV710 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-623106AN-CDAT - 2-port QSFP56 Mellanox ConnectX-6 DX 100GbE Ethernet Adapter Card, PCIe 4.0 x16
AOC-STGN-I2S - 2-port SFP+ Intel 82599ES 10GbE Ethernet Adapter Card, PCIe 2.0 x8
AOC-S25G-M2S-O • - 2-port SFP28 Mellanox ConnectX-4 LX EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-623102AN-ADAT - 2-port SFP28 Mellanox ConnectX-6 DX No Crypto 25GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-STG-I2T - 2-port RJ45 Intel X540 10GbE Ethernet Adapter Card, PCIe 2.1 x8
AOC-STG-I4T - 4-port RJ45 Intel XL720-BM1 & X557-AT4 10Gb Ethernet Adapter Card, PCIe 3.0 x8
AOC-MCX516A-CCAT - 2-port SFP28 Mellanox ConnectX-5 EN 100GbE Ethernet Adapter Card, PCIe 3.0 x16
AOC-STG-I4S - 4-port SFP+ Intel XL710-BM1 10GbE Ethernet Adapter Card, PCIe 3.0x8
AOC-MCX512F-ACAT - 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x16
AOC-STGF-i2S-O - 2-port SFP+ Intel X710-BM2 10GbE Ethernet Adapter Card with NC-SI function support by connector, PCIe 3.0 x8
AOC-MCX512A-ACAT  - 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-STG-B2T-O - 2-port RJ45 Broadcom 57416 10GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-S100GC-i2C - 2-port QSFP28 Intel Columbiaville 810-CAM2 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-STGS-i2T - 2-port RJ45 Intel  X550-AT2 10GbE Ethernet Adapter Card, PCIe 3.0 x8
Network Cards (Ethernet/ InfiniBand) AOC-653105A-ECAT - 1-port QSFP56 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-MCX556A-ECAT - 2-port QSFP28 Mellanox ConnectX-5 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0 x16
AOC-653106A-HDAT - 2-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
AOC-653105A-HDAT - 1-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
AOC-653106A-ECAT - 2-port QSFPS6 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
Network Cards (InfiniBand) AOC-683105AN-HDAT - 1-port QSFP56 Mellanox ConnectX-6 DE 200Gb/s HDR InfiniBand, PCIe 3.0/4.0 x16
Storage Controller Cards AOC-S3108L-H8iR-16DD - 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
AOC-S3808L-L8iT - 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/exp
AOC-S3908L-H8IR-32DD - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
Storage Controller Cards - Cables CBL-SAST-1285-100 - Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R (for AOC-S3108L-H8iR-16DD)
CBL-SAST-1281-100 - Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, (for AOC-S3908L-H8IR-32DD and AOC-S3808L-L8iT)
Storage Controller Cards - Cachevault MCP-240-00203-0N - Remote Mounting Board for BTR-CVPM05, Occupies single PCIe Slot
BTR-CVPM05 - Supercap/TFM Unit for cached data protection (optional for AOC-S3908L-H8IR-32DD)
TPM Security Module AOM-TPM-9670V-S-FIPS-P - AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
