SuperServer SYS-220HE-FTNR-US (Complete System Only)

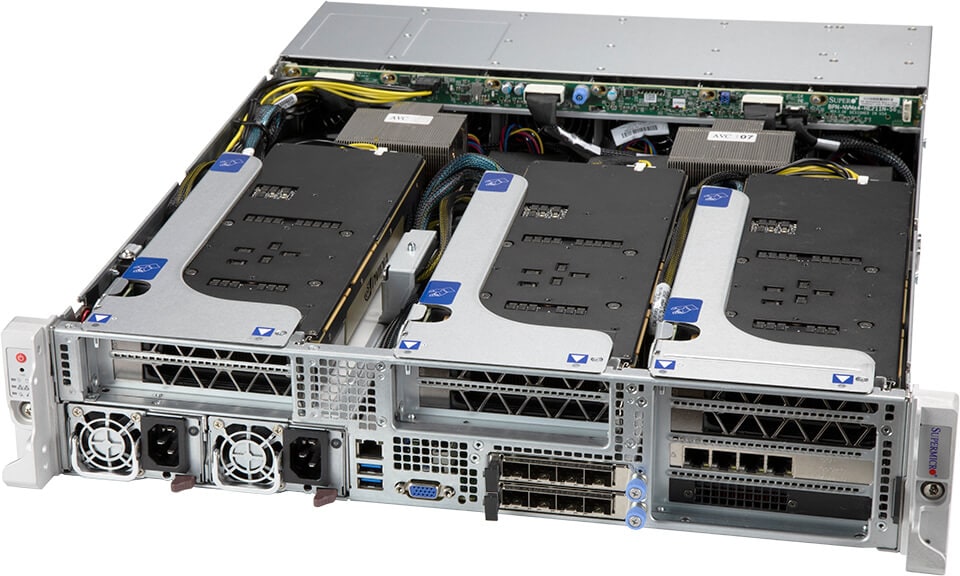

SYS-220HE-FTNR-US Main SYS-220HE-FTNR-US Angle SYS-220HE-FTNR-US Top SYS-220HE-FTNR-US Front SYS-220HE-FTNR-US Rear
Integrated Board: X12DHM-6
Learn more

Key Applications

  • 5G Core and Edge
  • Telecom Micro Data Center
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  3. 4 PCIe 4.0 x16 slots with GPU/Accelerator support

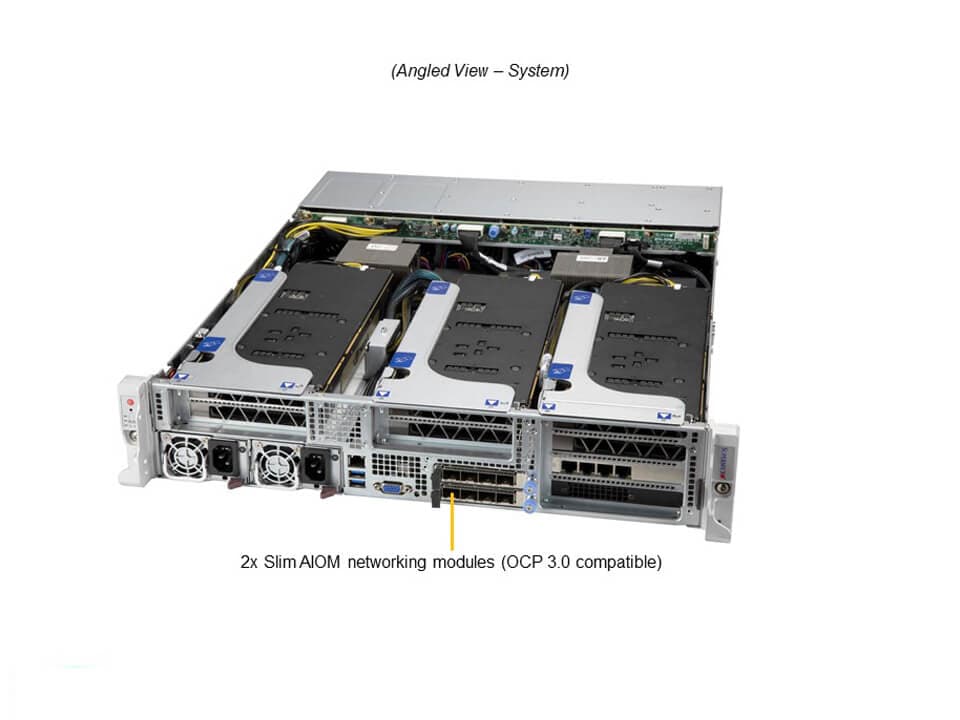

  4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives

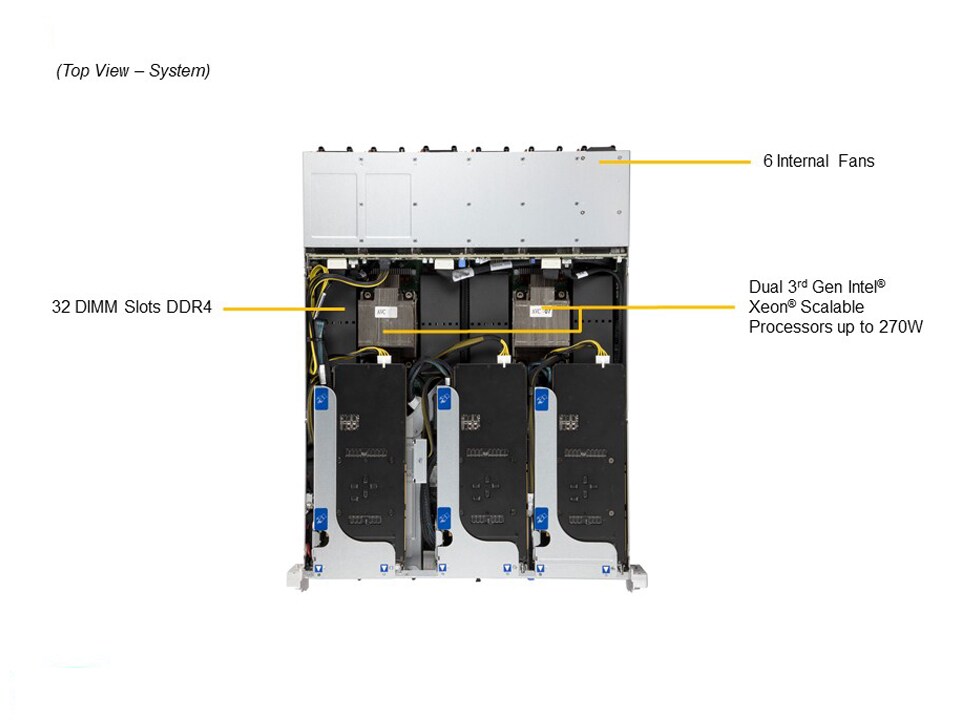

  6. 6 heavy duty hot-swap fans with optimal fan speed control
    Front I/O, tool-less design
  7. 2000W or optional 1200W redundant AC power supplies
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-220HE-FTNR-US (Silver)
Motherboard
Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 4x 1GbE BaseT with Intel® i350-AM4 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211-R000NFP
Note
  • Standard sliding rail kit: Post to Post 19.1" ~ 26.4“
Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (436.88mm)
Depth
  • 22.6" (574mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Net Weight: 34.4 lbs (15.6 kg)
  • Gross Weight: 47.4 lbs (21.5 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LEDs
  • LAN1 activity
  • LAN2 activity
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 4 (Optional) PCIe 4.0 x16 or x8 FH, 10.5"L slot(s)
  • 2 (Optional) PCIe 4.0 x8 FH, 10.5"L slot(s)
  • 2 PCIe 4.0 x8 FH, 6.6"L slot(s)
Note
  • If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; If Slot 7 is configured as PCIe x16, Slot 8 will be disabled.
Drive Bays / Storage
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shroud(s)
Power Supply
2000W Redundant Titanium (certification pending) Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A (100Vac-127Vac)
  • Max: 150A (200Vac-220Vac)
  • Max: 165A (220Vac-230Vac)
  • Max: 166A (230Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Certification 94%+   Titanium (certification pending) Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       5°C ~ 35°C (41°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
AIOM MatrixCompatible GPU ListDrive OptionsTested AOC ListTested M.2 ListTested Memory
Software
BIOS DownloadBMC DownloadDrivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DHM-6

CSE-HE211-R000NFP 		1

1 		Super X12DHM-6 Motherboard

2U Chassis
Add-on Card / Module AOM-AIOM-2X8-P 1 2nd AIOM board (cable solution) for Hyper-E2Usystem,RoHS
AOM-HE211-AIOM-P 1 AIOM connection for Hyper-E 2U system,RoHS
AOM-HS119-IO-P 1 Hyper IO Board,RoHS
Backplane BPN-NVME4-HE211N-S6 1 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS
Cable CBL-GNZ4-1221LP-85 1 Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R
CBL-OTHR-1117 1 [NR] 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
CBL-PWEX-1088-26 3 2x4,PH4.2 + 2x2pin,PH3.0 to 2x4,PH3.0,26/54CM,16AWG,9A
CBL-PWEX-1226 1 Microfit,(2X4 to 2X4),PH3.0,30CM,9A/pin,16AWG,RoHS
CBL-SAST-1218LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85
CBL-SAST-1222LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM,
CBL-SAST-1223LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85
CBL-SAST-1226LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM,
CBL-SAST-1229LP-85 3 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
CBL-SAST-1230LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O
CBL-SAST-1232LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O
CBL-SAST-1243LP-85 1 SlimlineLP x8 (STR to STR),INT,30CM,85 OHM,RoHS
CBL-SAST-1249LP-85 1 SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8
CBL-CDAT-1290F 1 [NR] FRONT CNTL,20 TO 20 PIN,P0.5,FLAT,90CM,STD,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1104-8 1 [NR] 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM
Fan FAN-0215L4 6 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers
Power Supply PWS-2K08F-1R 2 1U 2000W 100-240VAC/50-60Hz, reverse airlfow
Riser Card RSC-H2-6888G4 1 2U LHS Hyper riser card with one PCIe 4.0 x16 and three PCI
RSC-H2-68G4 2 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
*Drive Tray(s) MCP-220-00178-0B 6 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
6 Drive Bay Configuration (6 SAS/SATA) AOC-S3808L-L8IT-O + CBL-SAST-1273LP-100 1 6 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 0-5
AOC-S3908L-H8IR-16DD-O + CBL-SAST-1273LP-100 1 6 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-5
Cable Management Arm for Hyper-E MCP-290-00168-0N 1 Cable Management Arm for Hyper-E
CacheVault SuperCap BTR-CVPM05 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
CacheVault SuperCap to PCIe Card Bracket BKT-BBU-BRACKET-05 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
Drive Tray Label LBL-0968 - Pack of 4 "NVMe" labels for hot-swap drive tray
Global Services & Support SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
Intel® VROC RAID Key Options AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCPREMOD • 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
Optional Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16 RSC-H2-668G4S 1 Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16
Optional RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200 CBL-PWEX-1086-26 1,2,3 RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200
Optional sliding rail kit MCP-290-11902-0N 1 Optional sliding rail kit for Post to Post: 24" ~ 35.3"
MCP-290-11901-0N 1 Optional sliding rail kit for Post to Post: 26.5" ~ 41.2"
Slim AIOM module AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T, Intel X550,RoHS
AOC-AG-i4M 1 AIOM Quad-Port 1GbE RJ45, based on i350-AM4 with 0.5U Bracket, RoHS
AOC-A100G-m2CM 1 AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS
AOC-AG-i2M 1 AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS
AOC-AH25G-m2S2TM 1 AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2 with 0.5U Bracket, RoHS
AOC-AG-i4SM 1 AIOM 4-port GbE SFP, Intel i350-AM4 with 0.5U bracket,RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-ATG-i4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
TPM security module AOM-TPM-9671V-O - SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
AOM-TPM-9670V-O - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
Trusted Platform Module Options AOM-TPM-9671V-O 1 SPI capable vertical TPM 1.2
AOM-TPM-9670V-O 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V-S-FIPS-O 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS
