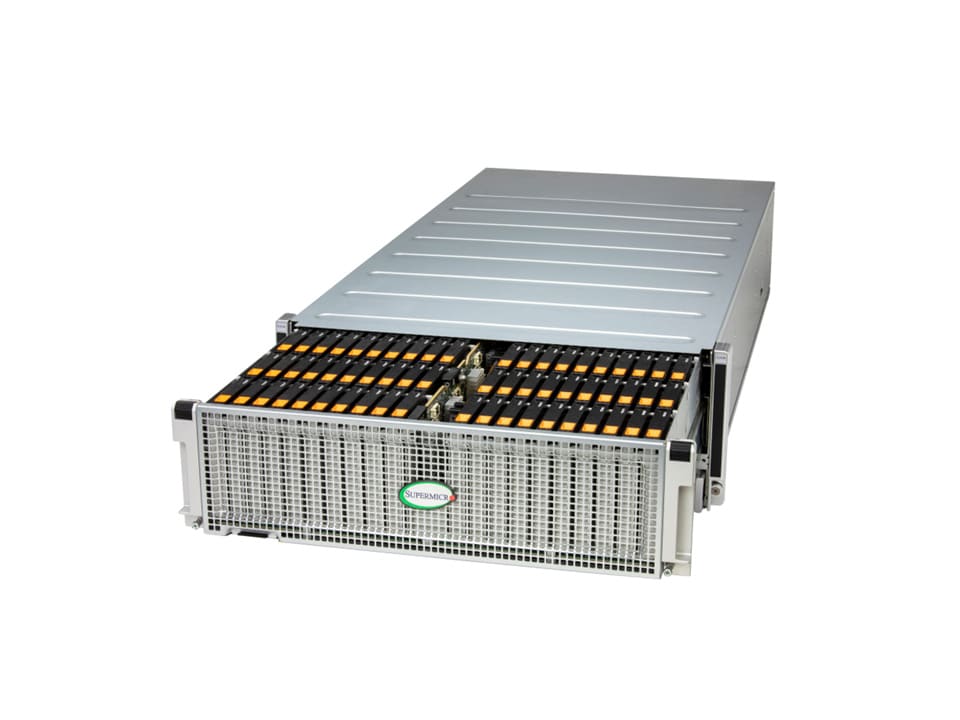

4U Storage server with 160 hot-swap 2.5" NVMe bays and PCIe 5.0

OCP Accepted
Integrated Board: H14SSF
了解更多 更多

Key Applications

  • High Performance Computing
  • Engineering/scientific research
  • AI/Deep Learning Training
  • Industrial Automation
  • Healthcare
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Climate and Weather Modeling
  • Finance & Economics

Key Features

  1. AMD EPYC™ 9005 Series Processors up to 360W
  2. 160 U.2 Drive Bays + 4 E1.S Drive
  3. Up to 12 DIMMs supporting up to 6TB DDR5-4800 in 1DPC or 6TB DDR5-6400 in 1DPC
  4. Up to 4 PCIe 5.0 x16 FHHL slots
  5. Up to 2 RJ45 10G LAN Ports
  6. 2 Redundant 2600W power supplies
...
...
ASG-4116S-NU160R
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
ASG-4116S-NU160R
Motherboard
Super H14SSF
Processor
CPU
Core Count

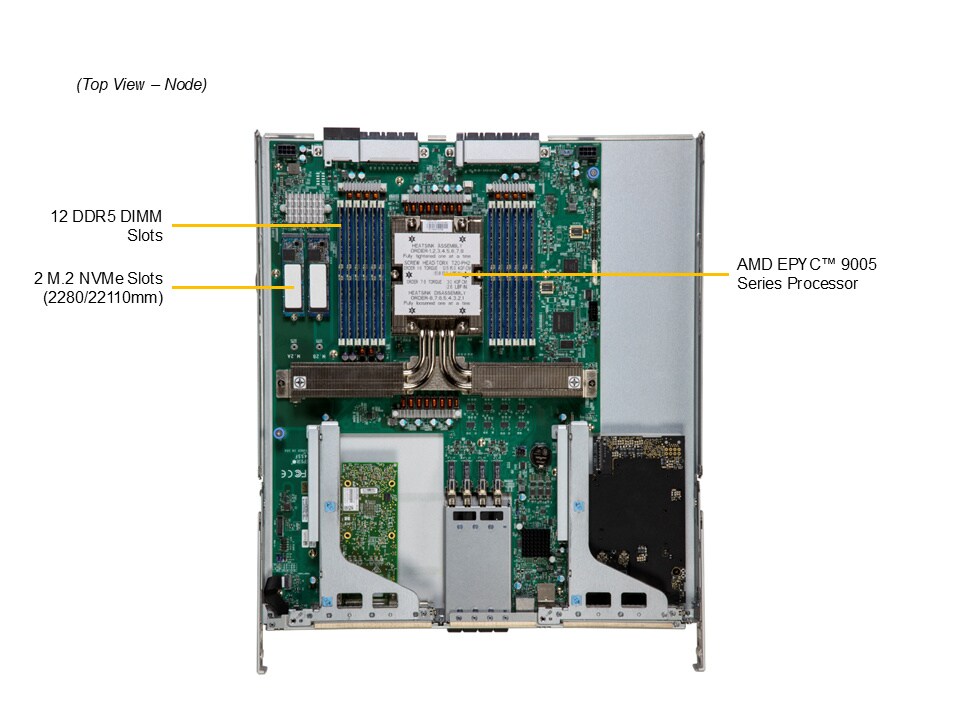

  • Up to 96C/192T; Up to 256MB Cache
Note
  • Supports up to 360W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
  • 查看内存选项
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
Chipset
  • PCIe switch
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
  • 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Automatic Firmware Recovery
  • Cryptographically Signed Firmware
  • Runtime BMC Protections
  • Secure Boot
  • Secure Firmware Updates
  • Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-SG401U2-R000NDFP
Dimensions and Weight
Height
  • 6.9" (176 mm)
Width
  • 17.65" (448.4 mm)
Depth
  • 33.2" (845 mm)
Package
  • 26.7" (H) x 28.7" (W) x 50.7" (D)
Weight
  • Gross Weight: 236 lbs (107 kg)
  • Net Weight: 203 lbs (92 kg)
Available Color
  • No Paint
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 164 bays

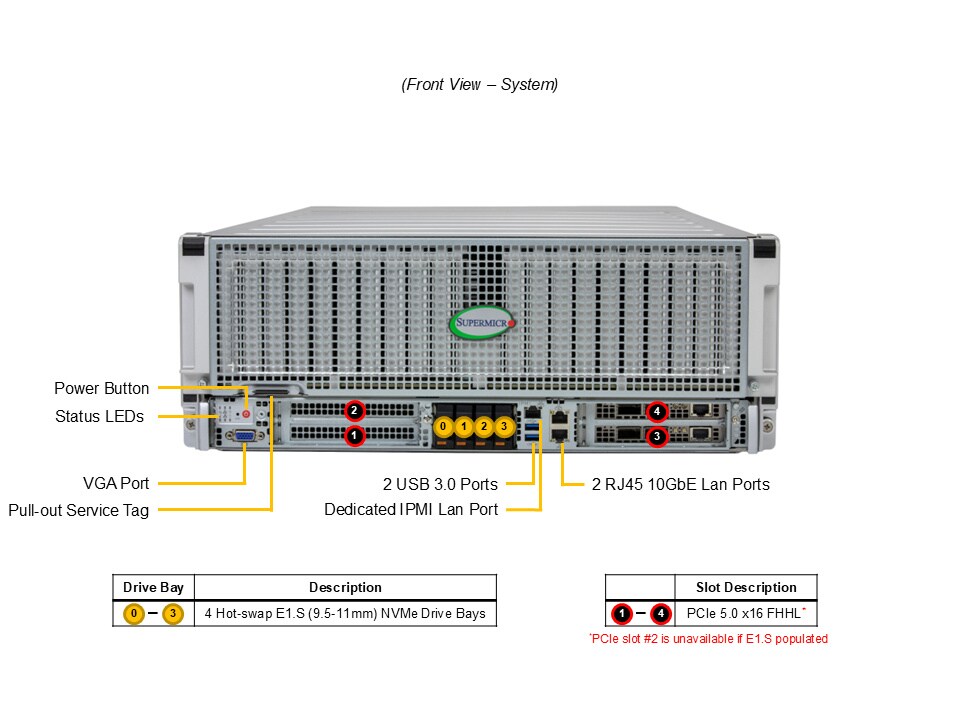

    • 4 front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays

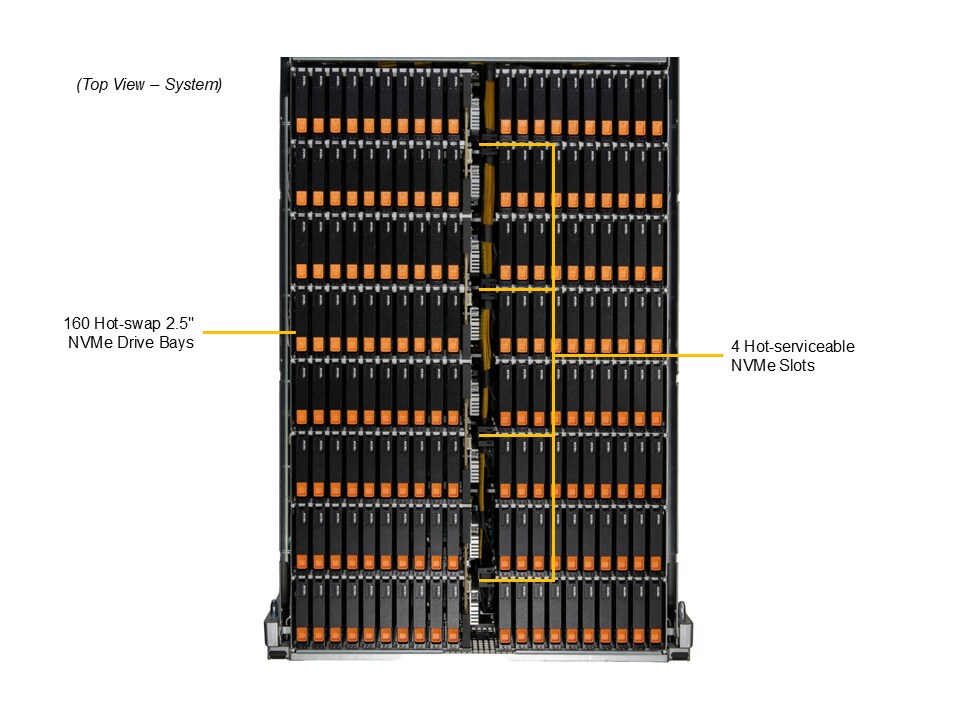

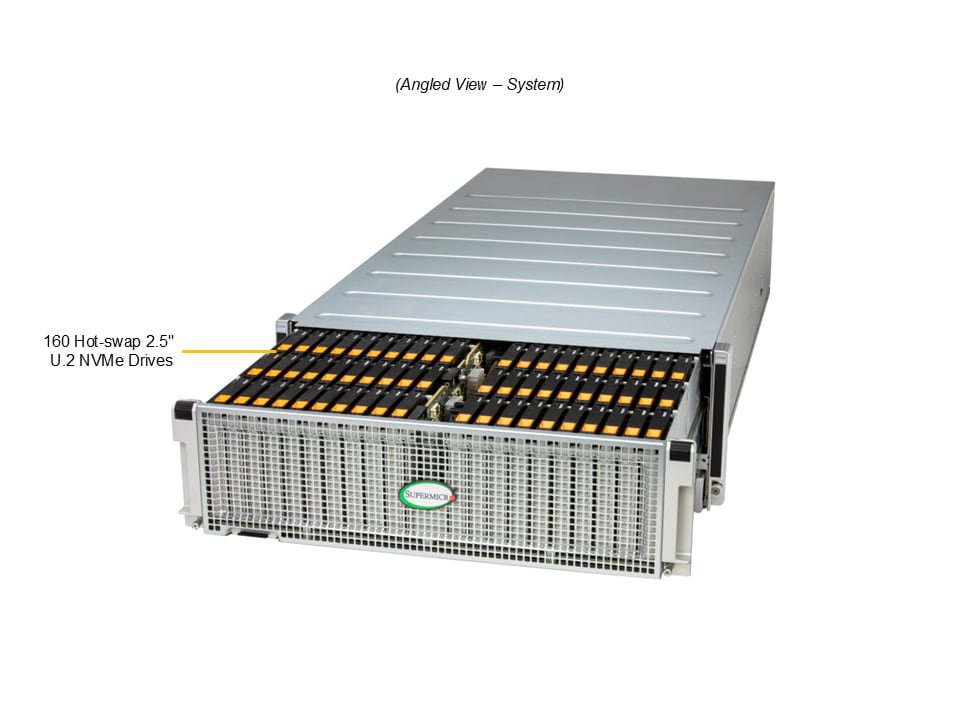

    • 160 top-loading hot-swap 2.5" PCIe 4.0 x1 NVMe drive bays
  • 查看 NVMe 选项
M.2
System Cooling
Fans

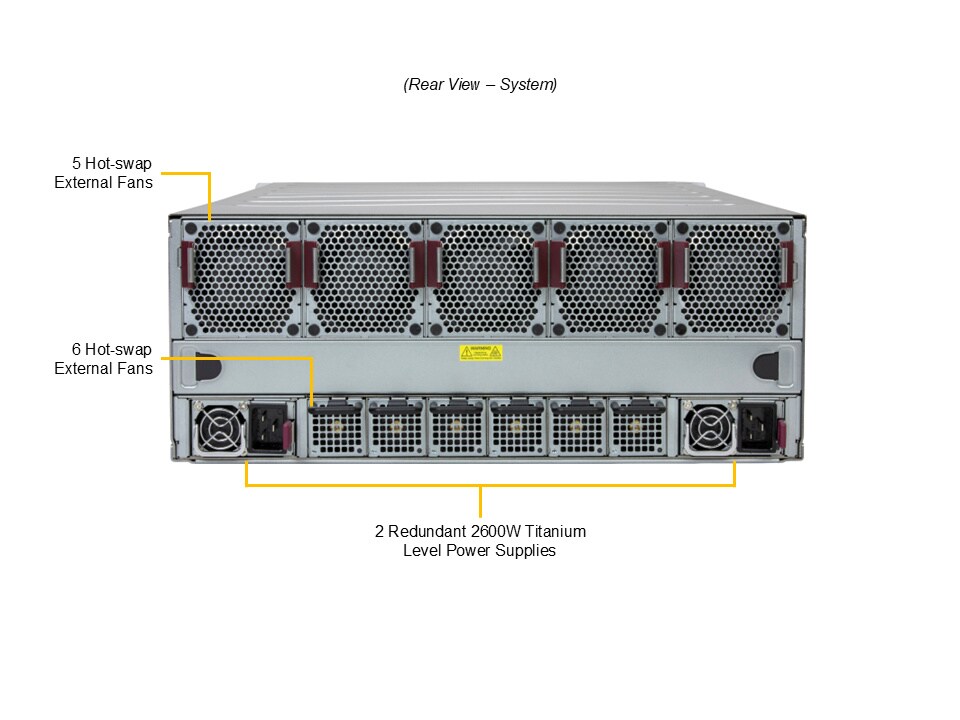

  • Up to 5 Hot-swappable rear fans with optimal fan speed control 80x80x80mm Fan(s)
  • Up to 6 Hot-swappable rear fans with optimal fan speed control 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
Input 2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

日程安排 访问
Resources & Downloads

A+ Server ASG-4116S-NU160R New
