SuperServer SYS-420GP-TNAR+-US (Complete System Only)

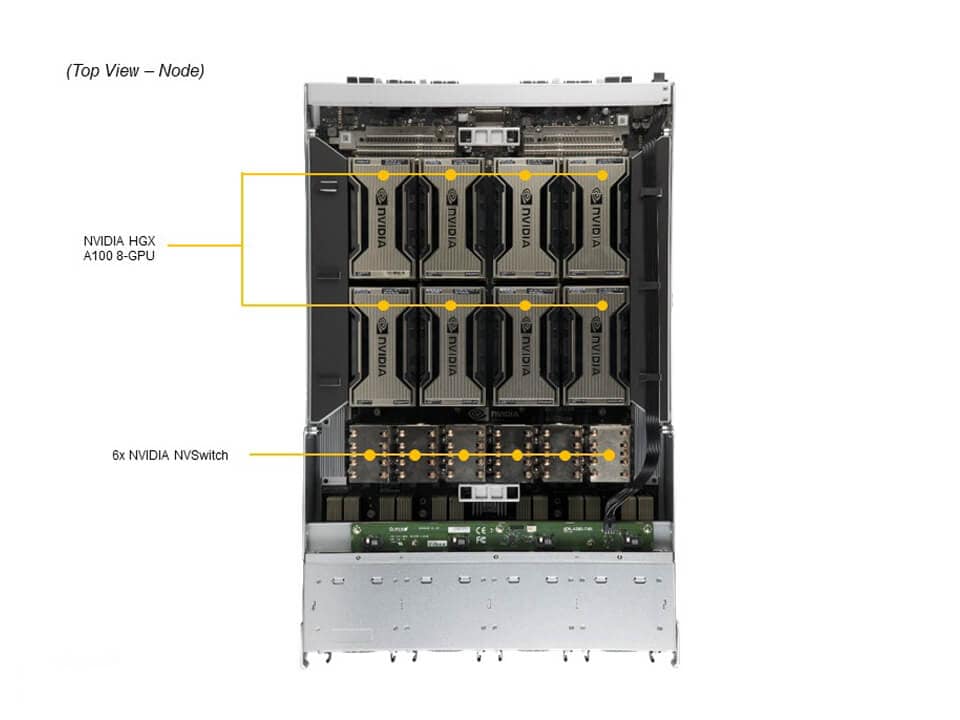

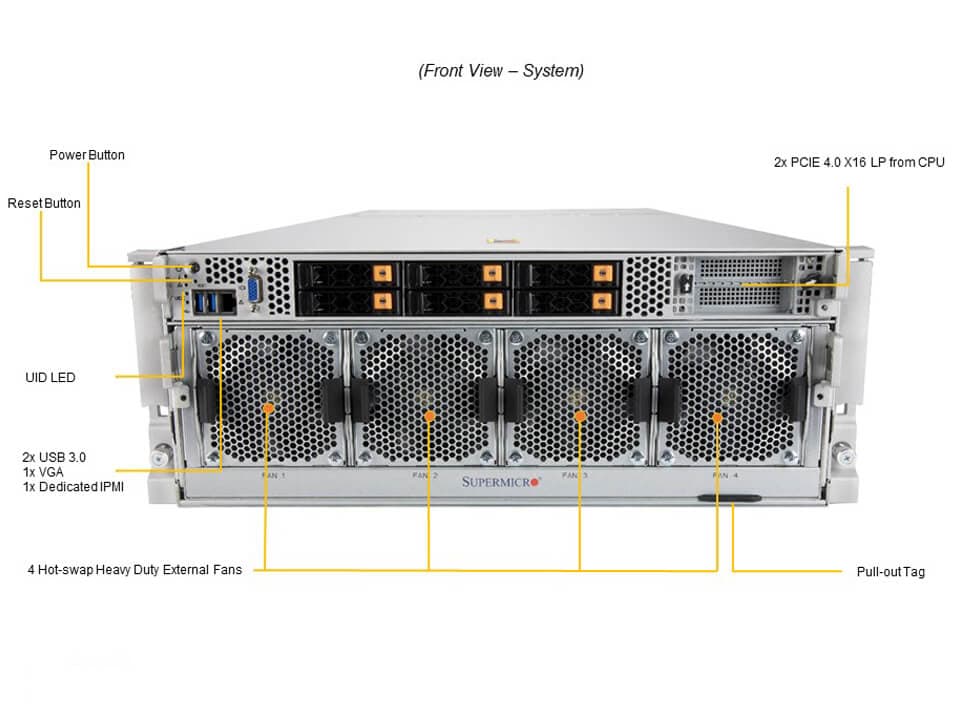

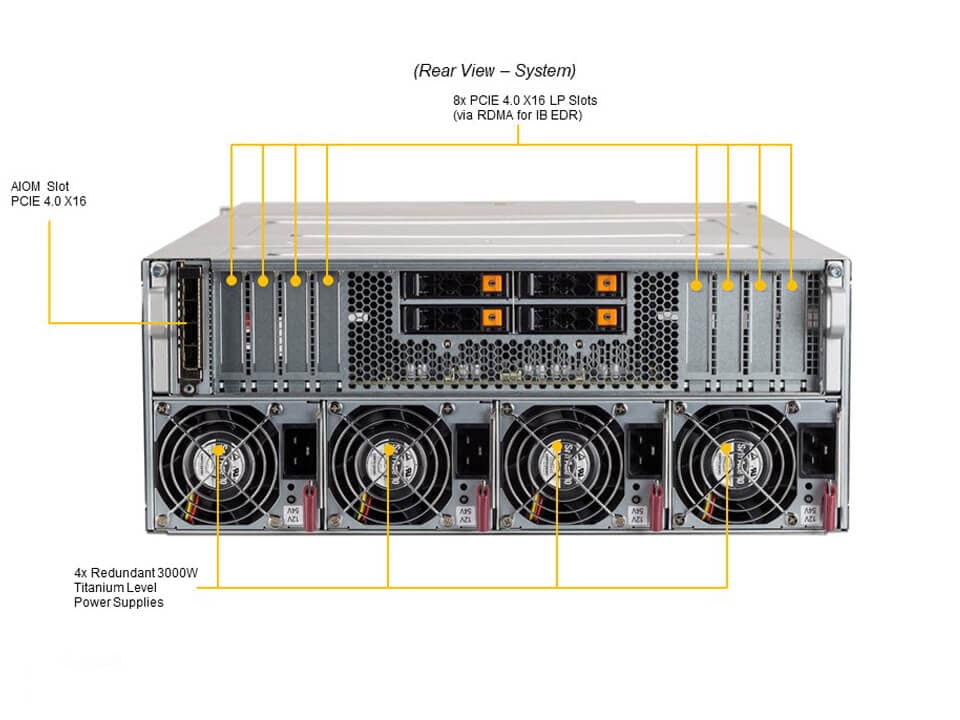

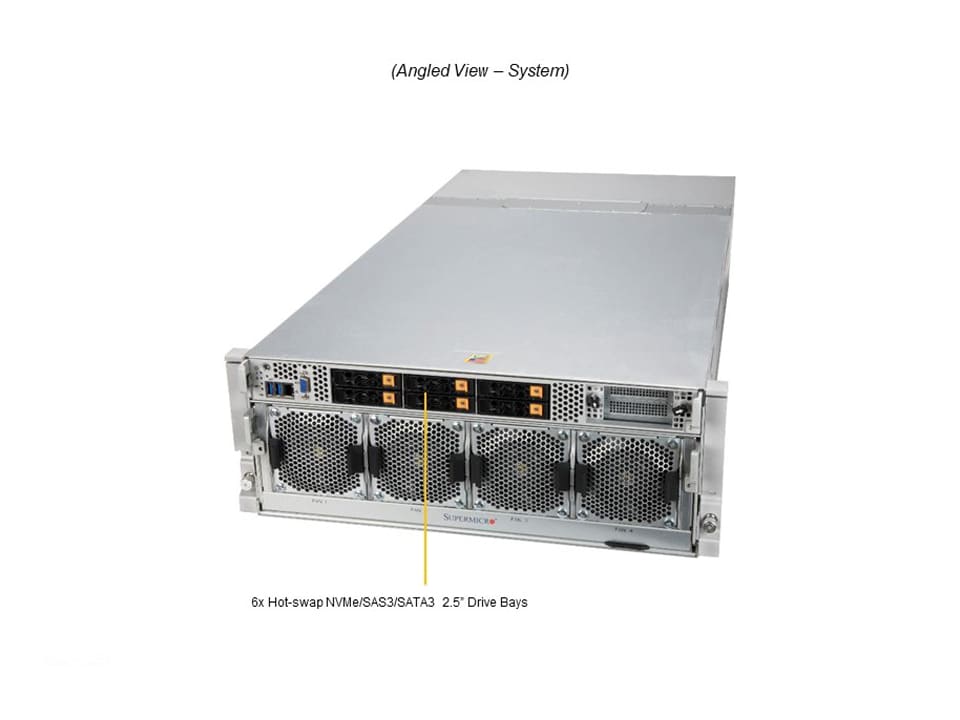

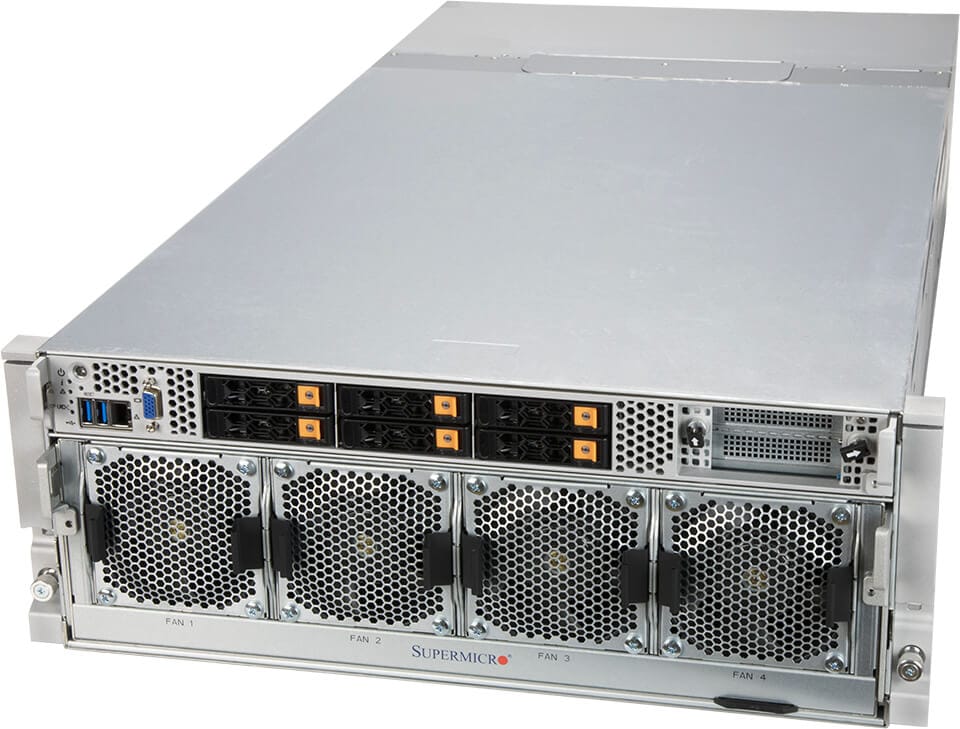

SYS-420GP-TNAR+-US Main SYS-420GP-TNAR+-US Angle SYS-420GP-TNAR+-US Top SYS-420GP-TNAR+-US Node SYS-420GP-TNAR+-US Front SYS-420GP-TNAR+-US Rear
Integrated Board: X12DGO-6
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. 10 PCIe Gen 4.0 X16 LP Slots
    AIOM/OCP 3.0 Support
  5. Flexible networking options
  6. 2 M.2 NVMe and SATA for boot drive only
    6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
  7. 4 heavy duty fans with optimal fan speed control
  8. 4x 3000W redundant Titanium level power supplies
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-420GP-TNAR+-US (Black Front & Silver Body)
Motherboard
Super X12DGO-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Supports up to 8 DW GPUs
Supported GPU
  • NVIDIA HGX: A100 8-GPU SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 12TB: 16x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-438G
Dimensions and Weight
Height
  • 6.9" (174mm)
Width
  • 17.6" (446mm)
Depth
  • 35.4" (900mm)
Package
  • 29.5" (H) x 27.4" (W) x 44.9" (D)
Weight
  • Net Weight: 166 lbs (75.3 kg)
  • Gross Weight: 225 lbs (102.1 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe)
  • 10 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid; 4x 2.5" NVMe dedicated)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
6000W Redundant Titanium Level power supplies
Total Output Power
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
AC Input
  • 2880W: 200-207Vac
  • 2880W: 200-207Vac / 50-60Hz
  • 3000W: 207.1-240Vac
  • 3000W: 207.1-240Vac / 50-60Hz
  • 3000W: 240Vdc
  • 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A
Output Type
  • Backplanes (connector)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Compatible GPU ListDrive OptionsTested AOC ListTested M.2 ListTested Memory
Software
BIOS DownloadBMC DownloadDrivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DGO-6

CSE-438G 		1

1 		Super X12DGO-6 Motherboard

4U Chassis
Add-on Card / Module AOM-438G-AIOM-P 1 AIOM adapter card for CSE-438G,RoHS
AOM-438G-FAN-P 1 Fan adaptor for SC1018G,RoHS
AOM-DGO-IO-P 1 I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS
AOM-SXM4-IO-P 1 PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS
Backplane BPN-GPU-438G 1 Midplane for 4U AMD/Intel Delta GPU system,RoHS
BPN-NVME4-F418-B6S6 1 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS
Cable CBL-0223L 4 BLADE PWS POWER CORD C-19 TO C-20, PBF
CBL-GNZ2-12105F-85 1 GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105.
CBL-GNZ2-1281F-85 1 GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4
CBL-PWEX-1114-30 1 Microfit,(2x4 to 2x4),PH3.0,30CM,9A/pin,16AWG,RoHS
CBL-PWEX-1117-40 2 MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin,
CBL-SAST-1238FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C
CBL-SAST-1242-100 2 Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O
CBL-SAST-1258FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C
CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
Fan FAN-0196L4-1 4 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board
Power Supply PWS-3K02G-2R 4 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W)
Riser Card RSC-G-66G4 1 1U LHS GPU Riser card with two PCIe 4.0 x16 slots,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Rail Set MCP-290-00180-0N 1 L shape rail set for 4U chassis, quick release , for 17.6"W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
