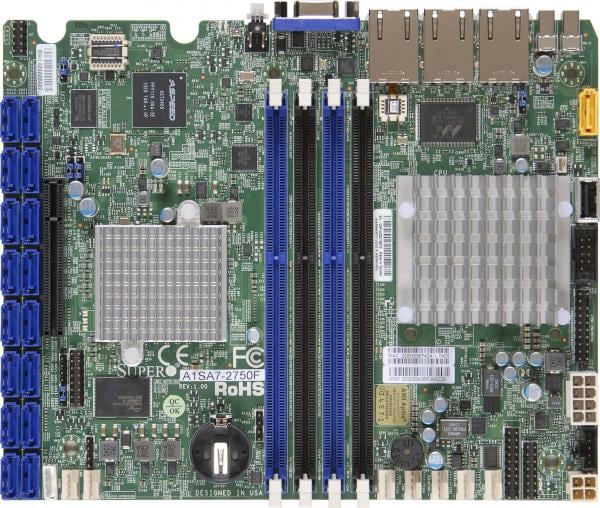

A1SA7-2750F

A1SA7-2750F
Avoton
Low Power

Key Features


  1. Intel® Atom® Processor C2750
    Single Socket FCBGA-1283 supported, CPU TDP support Up to 20W TDP
  2. 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
    ,x8 data width
  3. 1 PCIe 2.0 x4 (in x8 slot)
  4. SoC controller for 1 SATA3 (6 Gbps) ports;
    Broadcom® 2116 SW controller for 16 SATA3 (6 Gbps) ports;
    SATA3 or SAS2 with IT mode
  5. Dual LAN with SoC
    I354 Built in LAN GbE MACs
  6. System on Chip
  7. 1 port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A1SA7-2750F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 6.7" x 8.3" (17.02cm x 21.08cm)
Processor
CPU
  • Intel® Atom® Processor C2750
  • Single Socket FCBGA-1283 supported, CPU TDP supports Up to 20W TDP
Core
  • Up to 8 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz
Memory Type
  • 1600 MT/s SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.5V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 1 SATA3 (6 Gbps) ports
  • Broadcom® 2116 SW controller for 16 SATA3 (6 Gbps) ports
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Dual LAN with SoC, I354 Built in LAN GbE MACs
Input / Output
USB
  • 3 USB 2.0 port(s) (2 rear; 1 Type A)
Video Output
  • 1 port(s)
Serial Port
  • 1 fast UART 16550 Serial
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Others
  • 1 SMC SATA DOM onboard power support
Expansion Slots
PCIe
  • 1 PCIe 2.0 x4 (in x8 slot)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, NMI, IPMI2.0, Watchdog
PC Health Monitoring
Voltage
  • System level control, Supports system management utility, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, System level control, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
