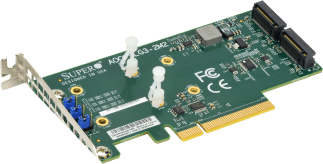

Add-on Card AOC-SLG3-2M2
Products Accessories [ AOC-SLG3-2M2 ]
Add-on Card

Supermicro PCI-E Add-On Card for up to two NVMe SSDs

The Supermicro NMVe AOC-SLG3-2M2 features two internal sockets for M.2 NVMe SSDs allowing any system to yield high-performance and low power storage expandability. Once populated with one or two NVMe M.2 SSDs, this robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry level SMB systems to enterprise class server platforms. Ideal for embedded / IPC solutions and desk top / gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.

Form factor: PCI-E 3.0 x8 low-profile card.

Adjustable stand-off supporting multiple M.2 lengths:

22x110mm
22x80mm
22x60mm

This product is only available through Supermicro.
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free

Key Features

• Gen 3.0 PCI-E x8
• Supports up to 2 NVMe M.2 SSDs
• Ambient operating temperature from 10°C - 55°C
• OS Support: Windows, Linux, VMWare
• M.2 Key: M-key
• Each socket supports PCI-E 3.0 x4
Dimensions
H x L
2.71" x 5.24"

Validated Platforms
Servers/Serverboards
SYS-1019GP-TT
SYS-1029GQ-TVRT
SYS-1029TP-DTR
SYS-2028BT-HTR+
SYS-2029BZ-HNR
SYS-F629P3-RC1B
H11DSi
H11DSI-NT
H11DSI-T
H11DST-B
H11DSU-iN
H11SSL-C
H11SSL-i
H11SSL-NC
H11SSW-iN
H11SSW-NT
X10DAC
X10DAi
X10DAX
X10DDW-i
X10DDW-iN
X10DRD-i
X10DRD-iNT
X10DRD-iT
X10DRD-L
X10DRD-LT
X10DRG-H
X10DRG-HT
X10DRG-Q
X10DRL-i
X10DRT-B+
X10DRT-PS
X10DRU-i+
X10DRW-E
X10DRW-i
X10DRW-iT
X10DSC+
X10SDV-2C-7TP4F
X10SDV-2C-TP4F
X10SDV-2C-TP8F
X10SDV-4C+-TP4F
X10SDV-4C-7TP4F
X10SDV-7TP4F
X10SDV-7TP8F
X10SDV-TP8F
X10SRH-CF
X10SRH-CLN4F
X10SRi-F
X10SRL-F
X10SRM-F
X10SRM-TF
X10SRW-F
X11DAC
X11DAi-N
X11DDW-L
X11DDW-NT
X11DGQ
X11DPFR-S
X11DPG-QT
X11DPi-N
X11DPi-NT
X11DPT-B
X11DPT-BH
X11DPT-PS
X11DPU
X11DPU-V
X11DPU-Z+
X11DPU-ZE+
X11SPi-TF
X11SPL-F
X11SPM-F
X11SPM-TF
X11SPM-TPF
X11SPW-CTF
X11SPW-TF
X11SSD-F
X11SSH-F
X11SSH-LN4F
X11SSL
X11SSL-F
X11SSM
X11SSM-F
Downloads
User's Guide [ Download ]
Parts List
Part Number Qty Description
Add-on Card AOC-SLG3-2M2 1 Low Profile, Dual NVMe M.2 SSD PCI-E add-on card
