MicroBlade® Server

Overview

Highlights
Powerful and flexible extreme-density 3U or 6U all-in-one blade architecture
Density optimized designs for up to 4 independent UP nodes per blade server
Up to 86% in power efficiency and 56% in density improvements** When compared standard 1U rackmount servers

Innovations

Resource Saving Architecture
A shared cooling, power and networking infrastructure is key to the extraordinary density and efficiency offered by blade servers. MicroBlade takes our resource saving vision even further with Supermicro's innovative Disaggregated Server Design that enables the independent upgrades of the compute modules without replacing the rest of the server infrastructure for optimal TCO.
Extremely High Density
The MicroBlade family offers the best server density for up to 112x 1-socket Atom nodes, up to 56x 1-socket Xeon processor nodes, and up to 28 2-socket Xeon processor nodes in 6U. It can be effortlessly deployed at scale and provisioned in volume with its data center friendly features and designs, including free-air cooling, Battery Backup Power (BBP®), Supermicro RSD with Redfish RESTful APIs, redundant AC or DC power supply options, and more.

Product Features

Enclosures

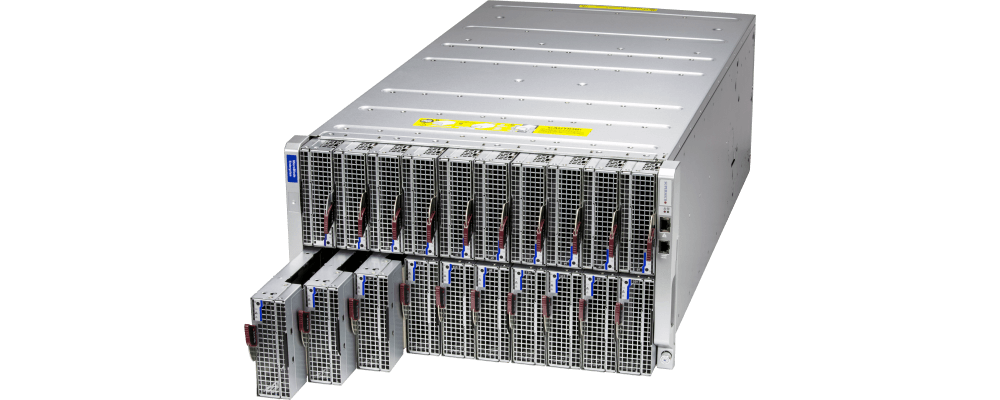

6U (20-blade)

Blade Support	Up to 20x 1-socket blade servers
Node Support	Intel® Core™ processor based blade servers
Networking	Up to 4 hot-pluggable 2.5G/1G Ethernet switches
Management	Up to dual redundant management modules
Power Supply	Up to 8 hot-pluggable 2200W/3000W redundant AC

Show more Show less

Available blades Enclosure detail

6U (28-blade)

Blade Support	Up to 28x 2-socket blade servers Up to 28x dual-node 1-socket blade servers
Node Support	Intel® Xeon® processor based blade servers
Networking	Up to 2 hot-pluggable 10G/1G Ethernet switches
Management	Up to dual redundant management modules
Power Supply	Power Supply Up to 8 hot-pluggable 2200W AC * Up to 8 hot-pluggable 2200W DC * Battery Backup Power Up to 4 hot-pluggable 1200W BBP® modules *

Show more Show less

Available blades Enclosure detail

3U (14-blade)

Blade Support	Up to 14x 2-socket blade servers Up to 14x dual-node 1-socket blade servers
Node Support	Intel® Xeon® processor based blade servers
Networking	Up to 2 hot-pluggable 10G/1G Ethernet switches
Management	Single hot-pluggable management module
Power Supply	Up to 4 hot-pluggable 2200W AC or 2000W DC
