Supermicro GPU-Optimized Supercomputing Server Solutions

Supermicro's powerful GPU/Coprocessor systems will catapult the most compute intensive workloads to new heights of performance, and deliver the highest quality with extreme optimization. Generating massively parallel processing power and unrivaled networking flexibility with support for up to 8/4 GPU/Coprocessor, PCI-E 3.0 expansion slots, 10GBase-T Ethernet, and QDR/FDR InfiniBand ports, these systems are equipped with the latest and most advanced technologies.

The Supermicro GPU/Coprocessor SuperServer® systems support up to: 6TB DDR4-2933MHz memory in 24 DIMM slots with support for Intel® Optane™ DC Persistent Memory, 4/6 GPU/Coprocessor cards in 1U/2U/4U, 24 SATA 3.0 (6Gbps) ports with Intel® C622 controller, up to 2x 10GBase-T ports, redundant Platinum Level (95%) power supplies, integrated Redfish dedicated LAN, and dual or single 2nd generation Intel® Xeon® Scalable Processors up to 28 cores and 255W TDP.

Supermicro's powerful GPU/Coprocessor SuperServer® systems are available in 1U, 2U, 4U and Tower form factors, and optimized for HPC, AI/Deep Learning, Oil and Gas simulation, Computational Finance, Science and Engineering, and Media/Entertainment.

News / Success Stories

  • Supermicro World Record Benchmarks for Low Latency and Financial Computation Announced at STAC Summit - New Hyper-Speed Ultra and High Density Parallel Processing Systems Achieve World Records for STAC-A2 Financial Services Technology Benchmarks [read more]
  • Supermicro 1U GPU Solution (deployed by NEC Japan) at GSIC Center - Ranked 1st on the World's Green500 List of Computer Systems [read more]

Compatible GPU support matrix (New NVIDIA® Tesla® V100 support!)

Resources

Up to 16 V100 SXM3 GPUs
  • AI/Deep Learning, High-performance Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
  • 16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
  • 6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

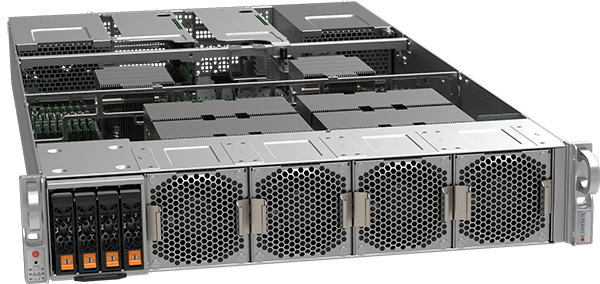

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA Tesla P100 SXM2 GPUs
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-swap 3.5" SAS/SATA drive bays
  • 1 slim DVD-ROM bay or 1 USB + COM port tray
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA GPUs in 1U
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2x Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 2 PCI-E x16 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

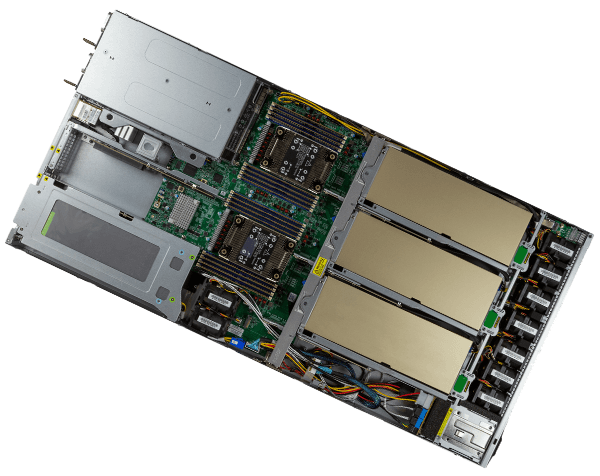

Up to 4 GPUs in 1U
  • High-performance Computing, Big Data Analytics, Business Intelligence, Research Lab, Astrophysics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL), 1 PCI-E x16 (LP), and 1 PCI-E 3.0 x8 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 3 NVIDIA GPUs
  • 2D/3D and CAD Applications, Astrophysics, Chemistry, Cloud and Virtualization
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 1 PCI-E 3.0 x8 (in x16, LP) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 10x 4cm heavy duty counter-rotating fans with air shroud
  • 1600W Redundant Platinum Level (94%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 6 NVIDIA GPUs
  • GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 6 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 5 heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
  • 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 8x 92mm cooling fans, 4x 80mm cooling fans
  • 2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6049GP-TRT (Coming Soon)
Up to 20 single-width GPUs
  • AI/Deep Learning, Video Transcoding
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
  • 20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0 (rear)
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA GPUs
  • 3D rendering, Astrophysics, Chemistry, Cloud Computing, Virtualization, Compute intensive application
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • Up to 24 Hot-swap 2.5" Drive Bays, 8x 2.5” drives supported natively
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 slot
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 4 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 GPUs
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays (2 SATA3 ports by default)
  • 4 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x16 (single-width), 1 PCI-E x4 (in x8) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0, 7.1 HD Audio
  • 4 heavy duty fans, 4 exhaust fans, 2 active heat sinks with optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
  • 2x 10GBase-T (1028GQ-TVRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7x 4cm heavy duty PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
New! HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
  • 2 GbE (1028GQ-TXR)/10GBase-T (1028GQ-TXRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7x 4cm heavy duty PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T, 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2200W Redundant Titanium Level Power Supplies
HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
  • 2 GbE (4028GR-TXR)/10GBase-T (4028GR-TXRT), 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2200W Redundant Titanium Level Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" and 2 internal 2.5" Drive Bays
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.) and 2 PCI-E 3.0 x8 (in x16) LP slots
  • I/O ports: 2 GbE (-TR)/10GbE (-TRT), 1 Video, 1 COM/Serial, 2 USB 3.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 9x 4cm heavy-duty counter-rotating fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies
Up to 3 GPU
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4 Hot-swap 2.5" SATA3 HDD Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (3 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 10 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Platinum Level Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
  • 6 Hot-swap 2.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 counter-rotating fans w/ optimal fan speed control
  • 1400W Platinum Level digital-switching Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
  • 3 Hot-swap 3.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 counter-rotating fans w/ optimal fan speed control
  • 1400W Platinum Level digital-switching Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" SATA3 HDD Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE/10GBase-T (TRT, TRHT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies
HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots, Single Root Complex
  • 2 GbE (4028GR-TR2)/10GBase-T (4028GR-TRT2), 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W Redundant Titanium Level Power Supplies
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 (in x16) slots, 1 PCI-E 2.0 x4 (in x16) slot
  • I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial,
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 1600W Redundant (2+2) Platinum Level Power Supplies
Thunderbolt Support • Up to 4 GPUs • 7.1 HD Audio
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 Hot-swap 3.5" SATA HDD Bays, 3 peripheral 5.25" drive bays, 1 fixed 3.5" drive bay
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.), 2 PCI-E 3.0 x8 (1 in x16), and 1 PCI-E 2.0 x4 (in x8) slot
  • 2 GbE, 1 Video, 2 COM/Serial, 5 USB 3.0, 4 USB 2.0, 7.1 HD Audio, Thunderbolt Support
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 PWM Middle cooling fans and 2 PWM rear exhaust fans
  • 2000W Redundant Titanium Level Power Supplies
  • Up to 2 Hot-swap 3.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U, each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
  • I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
  • Up to 6 Hot-swap 2.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U, each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
  • I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
  • Up to 120 GPUs/Xeon Phi™/Kepler + 120 CPUs per 42U Rack!
  • Up to 2 Xeon Phi™ or Tesla Kepler K10X/K20M/K40M/K20X/K80; GRID K1/K2
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • 8 DIMM slots; up to 1TB ECC LRDIMM or RDIMM DDR4-2400
  • 1 SSD or 2 SATA-DOM (Disk-On-Module) supported
  • 1 FDR 56Gbps InfiniBand (-F) or 2 FDR 56Gbps InfiniBand (-F2)
  • Dual port 10G LAN (-X)
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • HPC/Cluster, Financial Analysis, oil & gas simulation
  • 4 Hot-plug System Nodes in 2U, each Node:
  • Single Socket P (LGA 3647) support: Intel® Coprocessor x200; optional integrated Intel® Omni-Path fabric
  • 3 Hot-swap 3.5" SATA3 Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (Low-profile) slots
  • 2 GbE, 1 Video, 1 COM, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy-duty 8cm PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
  • Development Box, Financial Analysis, Oil and Gas Simulation, Code Optimization
  • Single socket P (LGA 3647) supports: Intel® Coprocessor x200
  • Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x4 slots
  • 2 GbE, 1 Video, 1 COM, 6 USB 3.0 (4 rear, 2 front)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 750W Multi-output Power Supply
