X14 All-Flash NVMe
The Architecture for Low-Latency, High-Throughput Storage
- Storage: Up to 32 hot-swap E3.S drives or 16 hot-swap E3.S drives + 8 fixed E3.S 2T CXL Type 3 bays
- CPU: Dual Intel® Xeon® 6700/6500 series processors
- Memory: Up to 32 DIMMs, 8TB DDR5
- Expansion: Up to 3 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

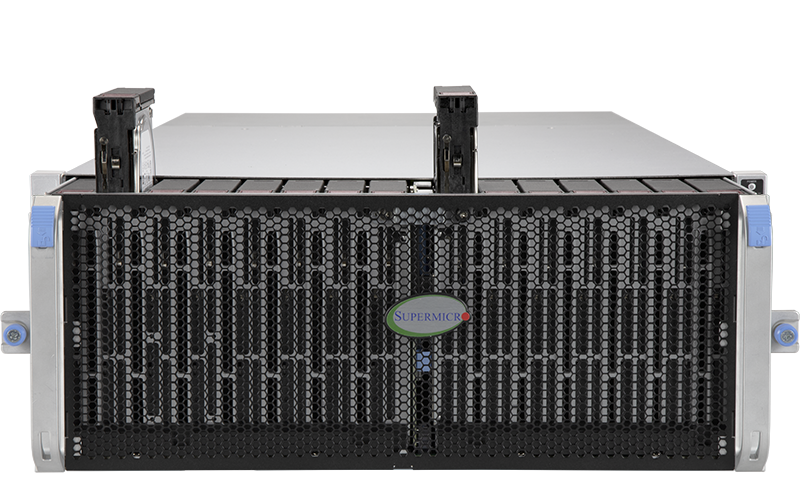

X14 4U Top-Loading Single/Multi Node
Single-socket, maximum capacity systems for large-scale object storage
- Storage: Up to 90 3.5"/2.5" SAS/SATA
- CPU: Single Intel® Xeon® 6700/6500 series processor
- Memory: Up to 16 DIMMs, 2TB DDR5
- Expansion: Up to 4 PCIe 5.0 slots
X14 2U Front Loading
High capacity with front/rear drive access
- Storage: Up to 12 NVMe/SAS/SATA
- CPU: Single Intel® Xeon® 6700/6500 series processor
- Memory: Up to 8 DIMMs, 2TB DDR5
- Expansion: Up to 6 PCIe 5.0 LP slots
Petascale Storage with NVIDIA Grace™ Superchip
HIgh Performance Storage Systems for AI, HPC, and Software-Defined Storage
- Storage: Up to 16 hot-swap E3.S drives
- CPU: Dual NVDIA Grace™ C2 Series CPU Superchips
- Memory: Up to 960GB ECC LPDDR5X onboard
- Expansion: Up to 2 PCIe 5.0 x16 FHFL slots + 1 PCIe 5.0 x16 AIOM slot
X14 4U Double-Sided
High capacity with front/rear drive access
- Storage: Up to 36 SAS/SATA
- CPU: Single Intel® Xeon® 6700/6500 series processor
- Memory: Up to 8 DIMMs, 2TB DDR5
- Expansion: Up to 6 PCIe 5.0 LP slots
X13/H13/X12 All-Flash NVMe
Revolutionary Storage Density, Performance, and Capacity
- Storage: Up to 24 E1.S (9.5mm or 15mm)/2.5" U.2 NVMe, or 32 E3.S
- CPU: Dual 5th/4th Gen Intel® Xeon® Scalable or Single AMD EPYC™ 9004 Series processors
- Memory: Up to 32 DIMMs, 8TB DDR5
- Expansion: Up to 2 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots
X13 2U/3U Front Loading
High capacity with front drive access
- Storage: Up to 16 3.5" SAS/SATA (up to 6 optional NVMe hybrid)
- CPU: Dual 5th/4th Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR5
- Expansion: Up to 5 PCIe 5.0 FH slots
X13 4U Front Loading/Double-Sided
High capacity with front-only and front/rear drive access
- Storage: Up to 36 3.5" SAS/SATA (up to 6 optional NVMe hybrid)
- CPU: Dual 5th/4th Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR5
- Expansion: Up to 4 PCIe 5.0 FH slots
X13/H13 Simply Double High Density
Dual-loading design to maximize storage capacity in a 2U chassis
- Storage: Up to 24 3.5" SAS/SATA
- CPU: Single 5th/4th Gen Intel® Xeon® Scalable processor or AMD EPYC™ 9004 Series processor
- Memory: Up to 16 DIMMs, 4TB DDR5
- Expansion: Up to 6 PCIe 5.0 FH slots + 2 PCIe 5.0 AIOM slots
X12 4U Top-Loading Single/Multi Node
Maximum capacity for large-scale object storage
- Storage: Up to 90 3.5" SAS/SATA
- CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR4
- Expansion: Up to 4 PCIe 4.0 LP slots
X12 Simply Double High Density
Dual-loading design to maximize storage capacity in a 2U chassis
- Storage: Up to 24 3.5" SAS/SATA
- CPU: Dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR4
- Expansion: Up to 2 PCIe 4.0 LP slots + 1 PCIe 4.0 AIOM slot
X12 2U/4U Front-Loading
Cost-effective, highly serviceable storage for database and enterprise applications
- Storage: Up to 24 3.5" SAS/SATA with direct-attached options
- CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR4
- Expansion: Up to 5 PCIe 4.0 LP slots
X12 4U Double-Sided (Front/Rear Loading)
High capacity with front and rear access
- Storage: 36 3.5" SAS/SATA
- CPU: Single or dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR4
- Expansion: Up to 4 PCIe 4.0 LP slots
X12/H12 1U Storage Server
High capacity with internal mounted storage and front NVMe flash options
- Storage: Up to 12 3.5" SATA with optional hot-swap NVMe
- CPU: Single AMD EPYC™ 7003 series or dual 3rd Gen Intel® Xeon® Scalable processors
- Memory: Up to 16 DIMMs, 4TB DDR4
- Expansion: Up to 3 PCIe 4.0 slots + 1 AIOM
