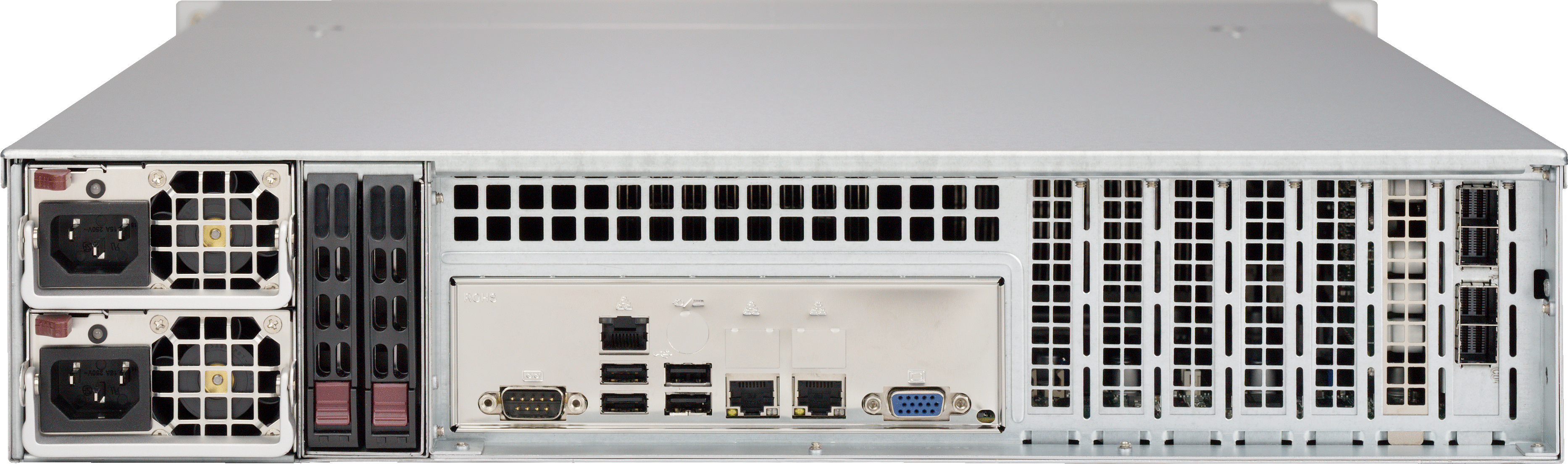

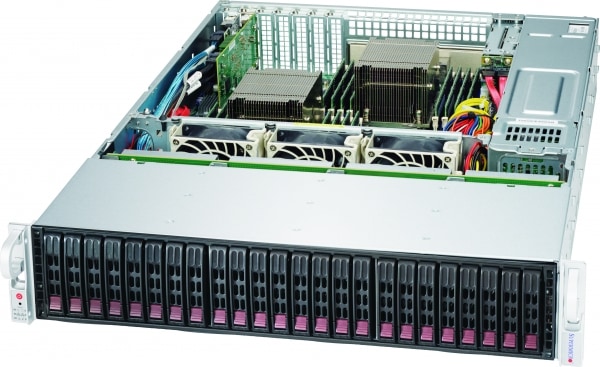

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 24 x 2.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
  3. 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
  5. 7 low-profile expansion slot(s)
  6. 3 x 8cm high-performance PWM fan(s)
    Optional 5 x 6cm 4pin high performance fan(s)
Specifications
Product SKUs
CSE-216BAC-R920LPB
  • SuperChassis 216BAC-R920LPB

Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 24.8" (630 mm)
Gross Weight
  • 53 lbs (24.04 kg)
Packaging (W x H x L)
  • 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
Available Color
  • Black

Expansion Slots
  • 7x Low-profile expansion slot(s)

Drive Bays
  • 24x 2.5" hot-swap drive bay
  • Optional 2x 2.5" hot-swap drive bay

Backplane
  • 24-Port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 3x 8cm high-performance PWM fan(s)
  • Optional 5x 6cm 4pin high performance fan(s)

System Monitoring
  • Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 920W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT216-2824
  • O/P: 12V/100
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Bracket MCP-320-82601-0N 1 Middle fan bracket for 826B/216B with 3 X 8cm fan
HD Backplane BPN-SAS3-216A 1 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
Cable(s) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(s) CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
Cable(s) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly
Part(s) MCP-120-00062-0N 7 Blank LP L-bracket (5x5 square hole)
Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B
Fan(s) FAN-0204L4 3 80x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater
Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219
Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B
Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Optional Parts List
  Part Number Qty Description
Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan)
Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
HDD Kit MCP-220-82609-0N - Rear 2 X 2.5" HDD kit for 826B series chassis (cables & backplane included)
MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
Short Rail MCP-290-00058-0N - 19" to 26.6" rail set, Quick Release, Tool-less
Servers (for CSE-216BAC-R920LPB)
SSG-2027R-AR24NV SSG-2028R-ACR24H SSG-2028R-ACR24L
Motherboard (for CSE-216BAC-R920LPB)
X10SRH-CLN4F X10DRC-LN4+ X10DRi-LN4+ X10DRi-T4+
X10DRI X10DRI-T X10DAC X10DRC-T4+
X10DAi
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
