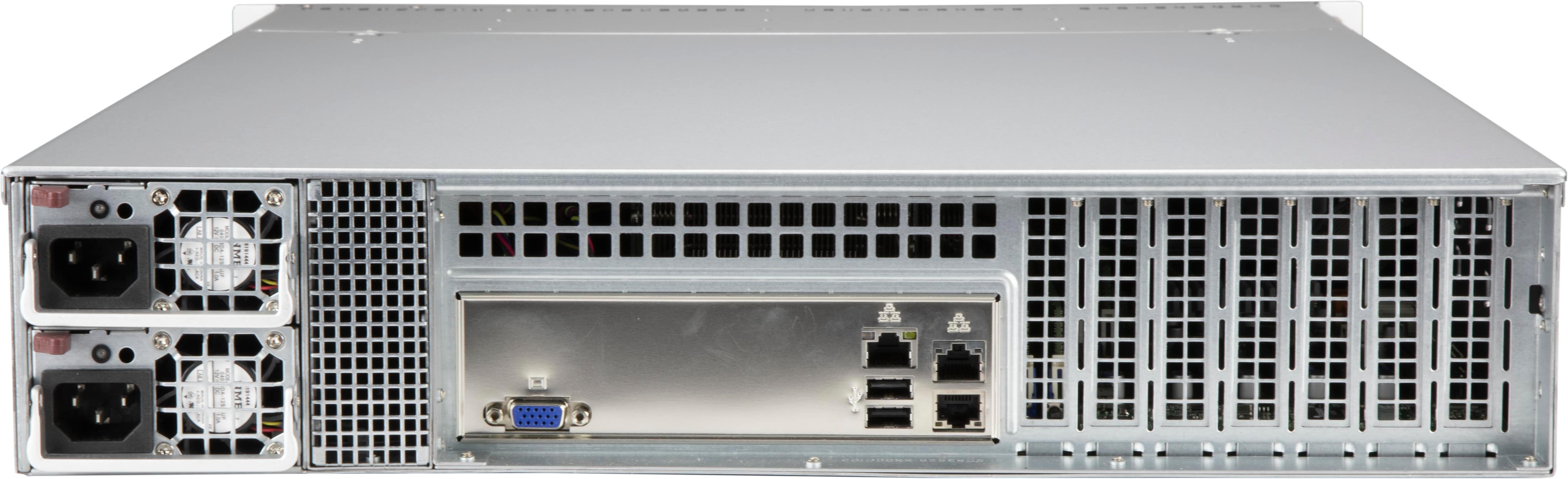

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
    Optional 2x 3.5" fixed drive bay,
    Optional rear 2x 2.5" hot-swap drive bay kit
  3. 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD
  4. 600W / 650W 1U Redundant Power Supply
  5. 7 low-profile expansion slot(s)
  6. 3x 80mm heavy duty fan(s) with PWM fan(s) speed control
  7. Support Service Tag for system information.
  8. OEM Only, MOQ Applies

Specifications
Product SKUs
CSE-LA25TQC-R609LP
  • SuperChassis LA25TQC-R609LP

Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 33 lbs (14.97 kg)
    Packaging (W x H x L)
    • 24" (610 mm) x 9" (229 mm) x 34" (864 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 low-profile expansion slot(s)

    Drive Bays
    • 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
    • Optional 2 x 3.5" fixed drive bay
    • Optional 2 x 2.5" hot-swap SAS3/SATA drive bay

    Backplane
    • 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

    Peripheral Drives
    • Optional 1 x slim DVD-ROM drive bay
    • Optional 2 x USB 2.0 ports
    • Optional 1 x COM port tray
    • Optional 2 x USB 3.0 ports

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control

    System Monitoring
    • Optional Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    600W / 650W 1U Redundant Power Supply
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 600W with Input 100 - 127Vac
    • 650W with Input 200 - 240Vac
    • 650W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 50A (100Vac - 127Vac)
    • Max: 54.16A (200Vac - 240Vac)
    • Max: 54.16A (200 - 240)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT826-L8824
    • O/P: 12V/75
    • +5V Max: 30
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-825TQ18-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable(S)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CD-ROM & AccessoryMCP-290-82518-0B1Black DVD / USB dummy cover for CSE-LA25
    Fan(s)FAN-0181L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
    Front PanelFPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    Drive Tray(s)MCP-220-00184-0B8Black gen-9 tool-less cost-effective 3.5" HDD tray (no dummy)
    Drive Tray(s)MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    Power DistributorPDB-PT826-L882412U cost effective PDB support up to 1200W.,RoHS
    Power Supply & AccessoryPWS-609P-1R221U, platinum efficiency, 600W, AC input: 100-127/200-240Vac.
    Rear WindowMCP-240-82608-0N1216B/826B LP rear window,RoHS/REACH,PBF
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00053-0N - Rail set, quick/quick, default for 2,3U 17.2"W
    Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
    Cable CBL-0160L - NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    HDD Kit MCP-220-82502-0B - Black fixed 3.5" HDD tray tray for CSE-825/CSE-LA25
    Motherboard (for CSE- LA25TQC-R609LP)
    X11DPi-N X11DPi-NT X11SRL-F X11DPL-i
    X11SPL-F
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
