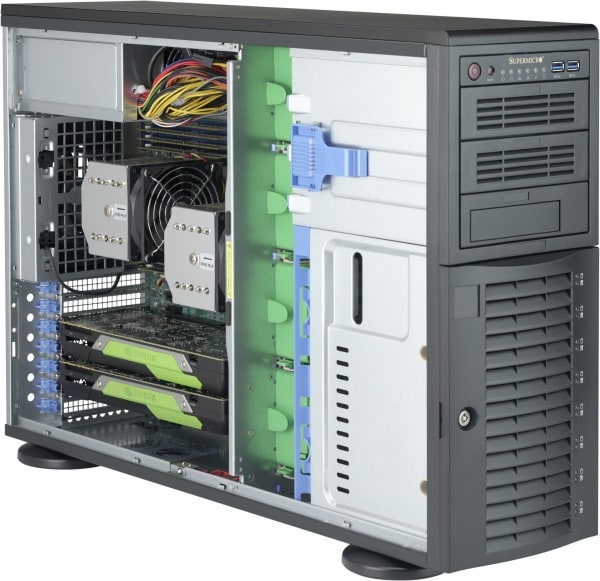

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
  2. Whisper-Quiet (<27dB)
  3. Front HDD Door Lock & Side Panel Intrusion Switch
  4. Front I/O Ports: 2x USB 3.0
  5. 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
  6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
  7. 1200W Platinum Level Certified High-Efficiency Power Supply
  8. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Specifications
Product SKUs
CSE-743AC-1K26B-SQ
  • SuperChassis 743AC-1K26B-SQ

Form Factor
  • 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 56 lbs (25.4 kg)
Net Weight
  • 53 lbs (24.04 kg)
Packaging (W x H x L)
  • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
  • Black

Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)

Drive Bays
  • 8x 3.5"/2.5" hot-swap SAS drive bay with SES3

Backplane
  • 8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis

Peripheral Drives
  • 2x standard 5.25" drive bay
  • 90 degree rotatable drive cage

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • 1x 92mm PWM Rear fan(s)
  • 2x 80mm PWM Chassis Middle Fans

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1200W PS2 Multi-output power supply
Power Efficiency
  • 94%
Total Output Power and Input
  • 1200W with Input 120 - 240Vac
  • 1000W with Input 100 - 120Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 185 x 150 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.3A / Min: 0A
+12V
  • Max: 99A / Min: 1A (120Vac - 240Vac)
  • Max: 83A / Min: 1A (100Vac - 120Vac)
+5V
  • Max: 20A / Min: 0.3A
+3.3V
  • Max: 20A / Min: 0.3A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • UL/CB
Components
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable(s) CBL-0084 1 16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(s) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(s) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(s) CBL-SAST-0631 2 Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
Fan(s) FAN-0103L4 1 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
Fan(s) FAN-0104L4 2 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Drive Tray(s) MCP-220-00193-0N 8 SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
Power Supply & Accessory PWS-1K26P-PQ 1 1000W/1200W PS2 Multi output power supply with modular cable
Optional Parts List
  Part Number Qty Description
Cable CBL-0454L - USB 3.0 to 2.0 Adapter Cable 30cm (19 pin Male to 9 pin Female). 28/24AWG
CBL-0157L - 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Mounting Rail CSE-PT26L-(B) -
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Motherboard (for CSE-743AC-1K26B-SQ)
X12SPA-TF
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
