  • Double-sided High Density JBOD Storage Enclosure

Key Features

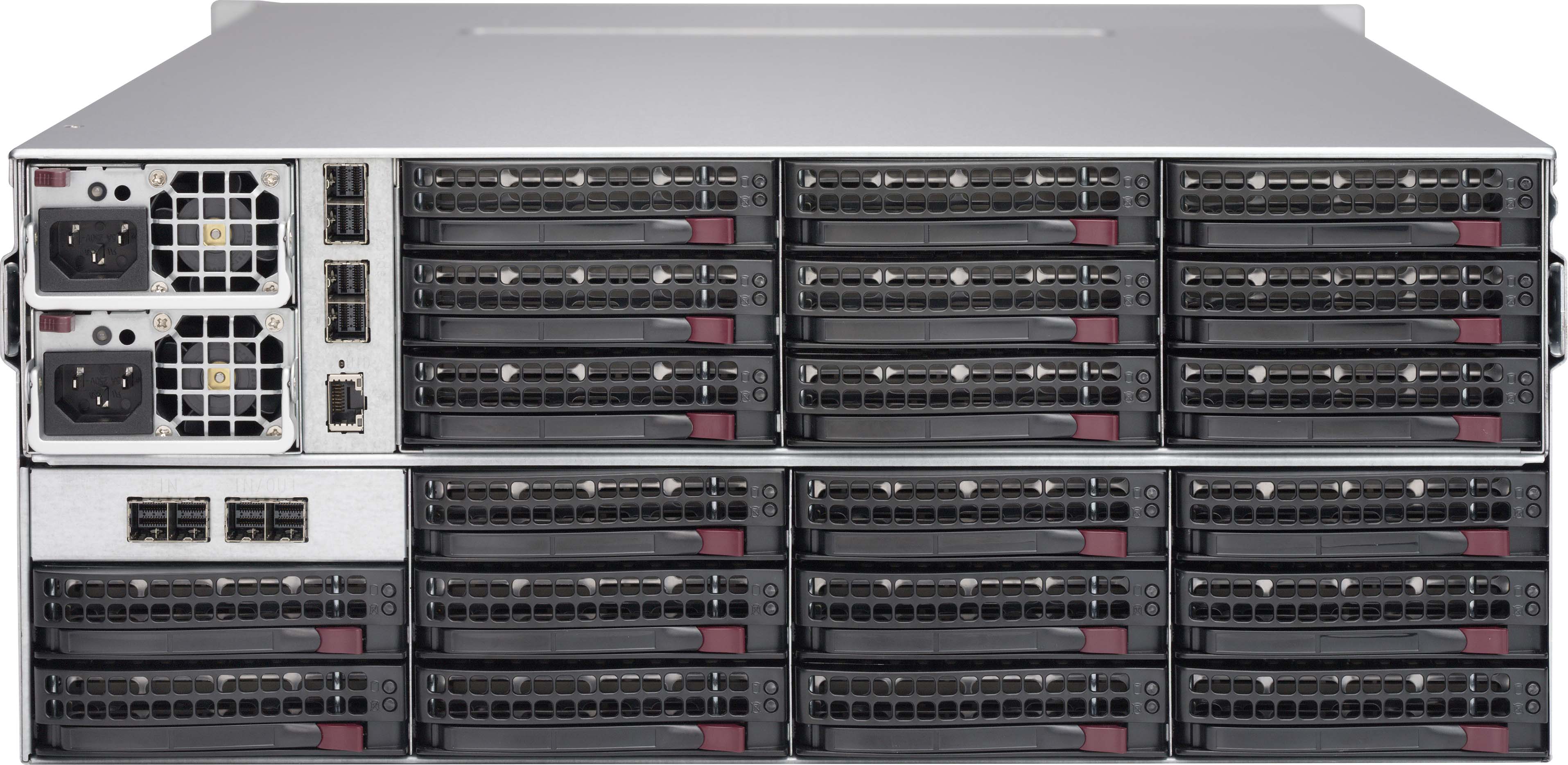

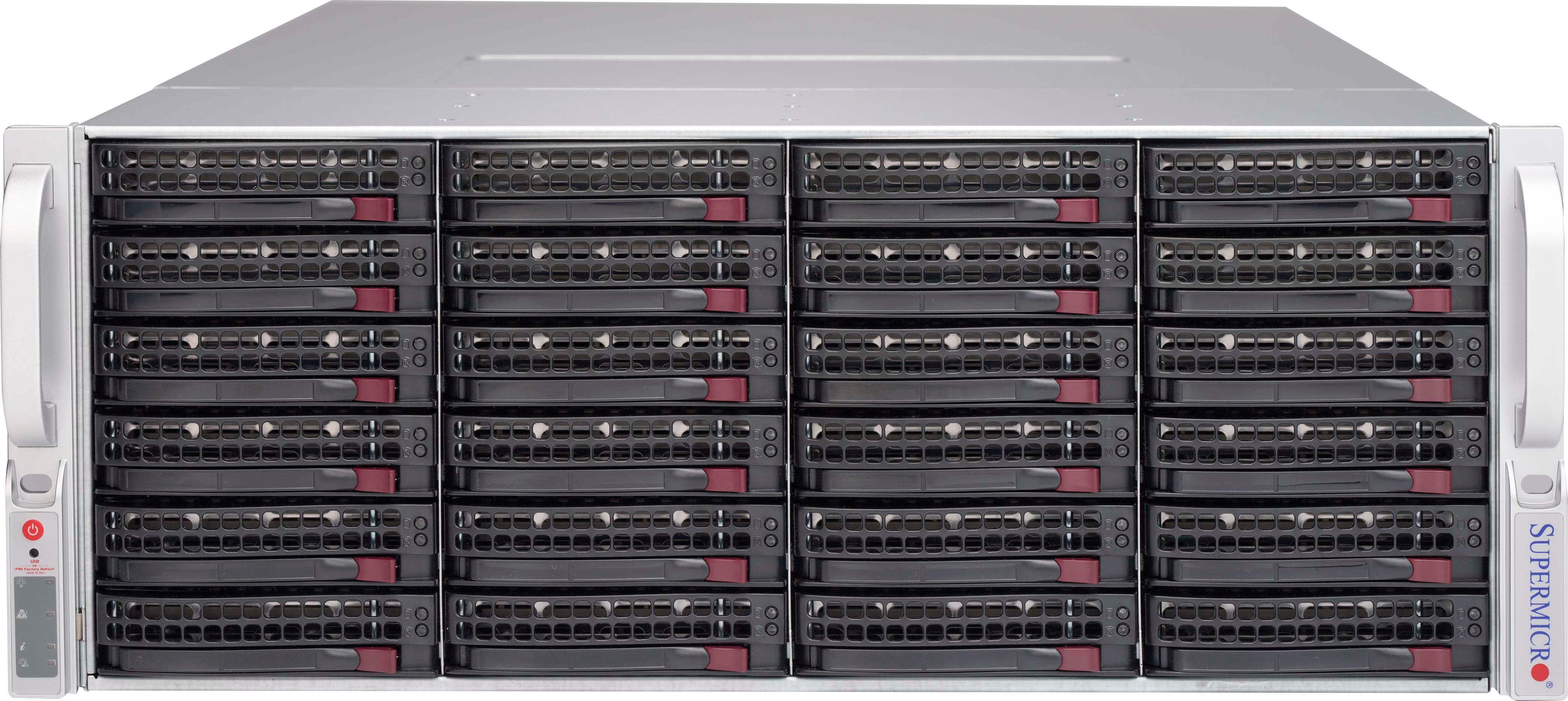

  1. 44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
  2. Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
  3. 7x 8cm (middle) hot-swap redundant cooling fans
  4. SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
  5. JBOD Power Control Board with IPMI for remote monitor and power on-off
  6. 8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
  7. Palletized packaging for easy shipping and handling
  8. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller


For optimal performance and quality, Supermicro validated drives are recommended. Please contact your Supermicro sales rep for validated HDD.
Specifications
Product SKUs
CSE-847E2C-R1K23JBOD
  • SuperChassis 847E2C-R1K23JBOD

Form Factor
  • 4U SAS3 JBOD storage chassis
  •
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 95 lbs (43.09 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
    Available Color
    • Black

    Drive Bays
    • 44 x 3.5" hot-swap HDD bays for JBOD solution

    Qualified SAS Controllers
    • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
    • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller

    Backplane
    • 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    • 20-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 1 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • Power Status LED
    • Power Fail LED
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • 7 x 8cm hot-swap redundant PWM cooling fan(s)

    System Monitoring
    • IPMI

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 83A (100Vac - 127Vac)
    • Max: 100A (200Vac - 240Vac)
    • Max: 100A (200 - 240)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT847-8824
    • O/P: 12V/135
    • +5V Max: 100
    • +3.3V Max: 30
    • -12V Max: 0.6
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL
    Components
    Standard Parts List
      Part Number Qty Description
    BracketMCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    HD BackplaneBPN-SAS3-846EL2124-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    HD BackplaneBPN-SAS3-847EL2120-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    Control BoardMCP-280-84701-0N4SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
    Control BoardCSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)CBL-CDAT-060124 Pin to 4 Pin I2C cable, 50cm, 26AWG
    Cable(s)CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    Cable(s)CBL-SAST-05684Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
    Cable(s)CBL-SAST-05938Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
    Cable(s)CBL-SAST-0593-018Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
    Power DistributorPDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    Power Supply & AccessoryPWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    Cable CBL-SAST-0573 - 1m external Mini SAS HD to external mini SAS HD.28AWG,HF,RoHS/REACH,PBF
    Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Cable CBL-SAST-0677 - 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
