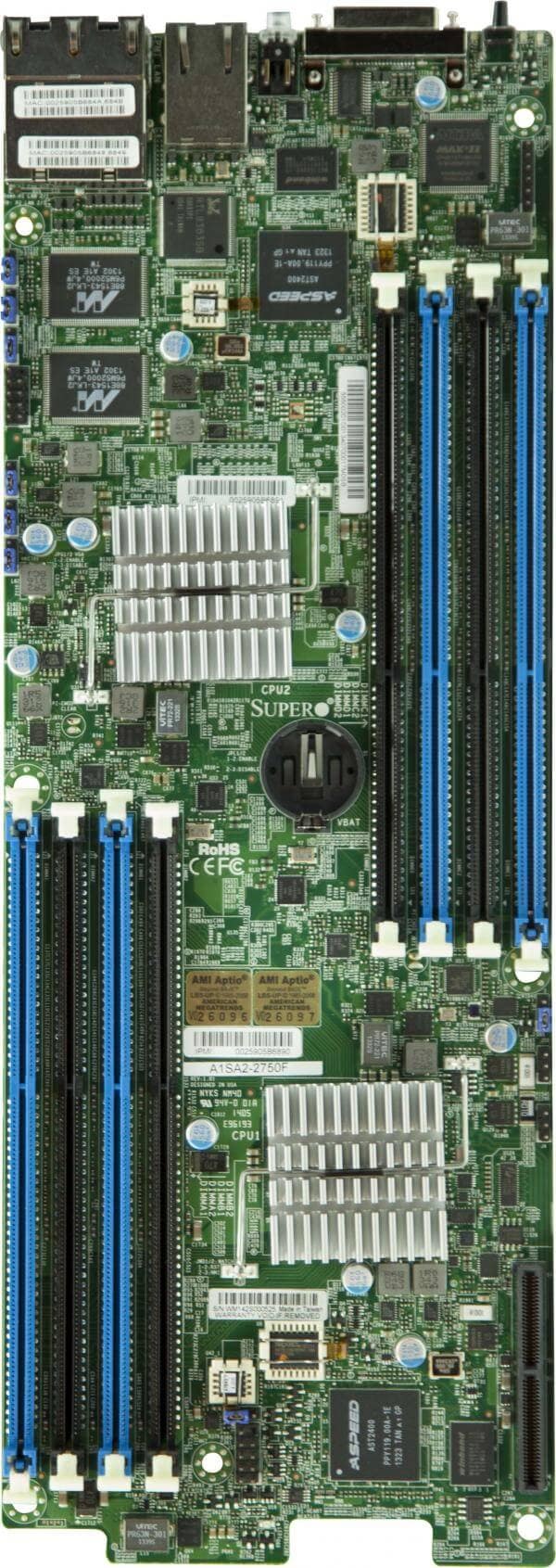

Supermicro Motherboard Xeon Boards A1SA2-2750F

Key Features

  1. Intel® Atom® Processor C2750
    Dual Socket FCBGA-1283 supported, CPU TDP support Up to 20W TDP
  2. System on Chip
  3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHzUp to , DDR3-1600MHz, in 4 DIMM slots
    64GB Unbuffered ECC, DDR3-1600MHz in 4 DIMM slots, x8 Width only
  4. 1 PCI-E 2.0 x4 (in x8 slot)
  5. 1 VGA port
  6. SoC controller for 2 SATA3 (6 Gbps) ports;
  7. Dual LAN with Intel® C2000 SoC
    Dual LAN with Intel® C2000 SoC

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-A1SA2-2750F
  • A1SA2-2750F

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 6.7" x 8.5" (17.02cm x 21.59cm)

Processor/Cache
CPU
  • Intel® Atom® Processor C2750
  • Dual Socket FCBGA-1283 supported, CPU TDP support Up to 20W TDP

System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHzUp to , DDR3-1600MHz, in 4 DIMM slots
  • 64GB Unbuffered ECC, DDR3-1600MHz in 4 DIMM slots, x8 Width only
Memory Type
  • 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB
Memory Voltage
  • 1.5V

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports;
Network Controllers
  • Dual LAN with Intel® C2000 SoC
    Dual LAN with Intel® C2000 SoC
Graphics
  • ASPEED AST2400 BMC

Input / Output
USB
  • 2 USB 2.0 ports (2 rear)
Video Output
  • 1 VGA port
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type
  • UEFI 128Mb

Management
Software
  • IPMI2.0, KVM with dedicated LAN

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby
FAN
  • Fan speed control, Overheat LED indication, PWM fan speed control
Temperature
  • CPU thermal trip support
LED
  • UID/Remote UID, CPU / System Overheat LED
Other Features
  • Chassis intrusion header, RoHS
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A1SA2-2750F 1 A1SA2-2750F Motherboard


Server (Optimized for A1SA2-2750F)
Server Name
SYS-5038MA-H24TRF
A1SA2-2750F
