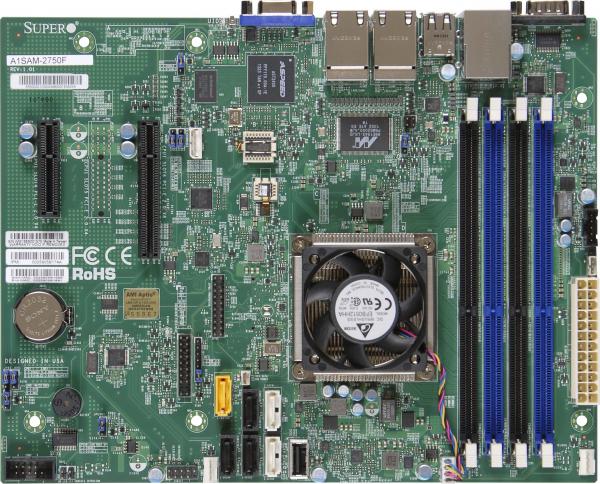

Supermicro Motherboard Xeon Boards A1SAM-2750F

Avoton
Low Power
Silvermont

Key Features

  1. Intel® Atom® Processor C2550.
    Single Socket FCBGA1283 supported, CPU TDP support 20W TDP
  2. System on Chip
  3. 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
    , x8 Width only
  4. 1 PCI-E 2.0 x8
    1 PCI-E 2.0 x4
  5. 1 port
  6. SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
  7. Quad LAN with Intel® C2000 SoC

Specifications
Product SKUs
MBD-A1SAM-2750F
  • A1SAM-2750F

Physical Stats
Form Factor
  • mATX
Dimensions
  • N/A

Processor/Cache
CPU
  • Intel® Atom® Processor C2550.
  • Single Socket FCBGA1283 supported, CPU TDP support Up to 20W TDP

System Memory
Memory Capacity
  • 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
  • , x8 Width only
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
Network Controllers
  • Quad LAN with Intel® C2000 SoC
Graphics
  • Aspeed AST2400 BMC

Input / Output
USB
  • 7 USB 2.0 ports (4 rear + 2 headers + 1 Type A)
Video Output
  • 1 port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
TPM
  • TPM Header
Others
  • Support one SMC SATA DOM
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x8
  • 1 PCI-E 2.0 x4

System BIOS
BIOS Type
  • UEFI 128Mb

Management
Software
  • IPMI2.0, NMI, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Supports system management utility, System level control
FAN
  • 3x 4-pin fan headers (up to 3 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, System level control, UID, WOL
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A1SAM-2750F 1 A1SAM-2750F Motherboard


Chassis (Optimized for

A1SAM-2750F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC510T-203B
SC510-203B
SC512L-200B
SC813MTQ-350CB
SC813MTQ-202CB
SC510T-203B
SC731i-300B

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
